Iron Mold Coated Sand Production Line for Grinding Ball

Specification

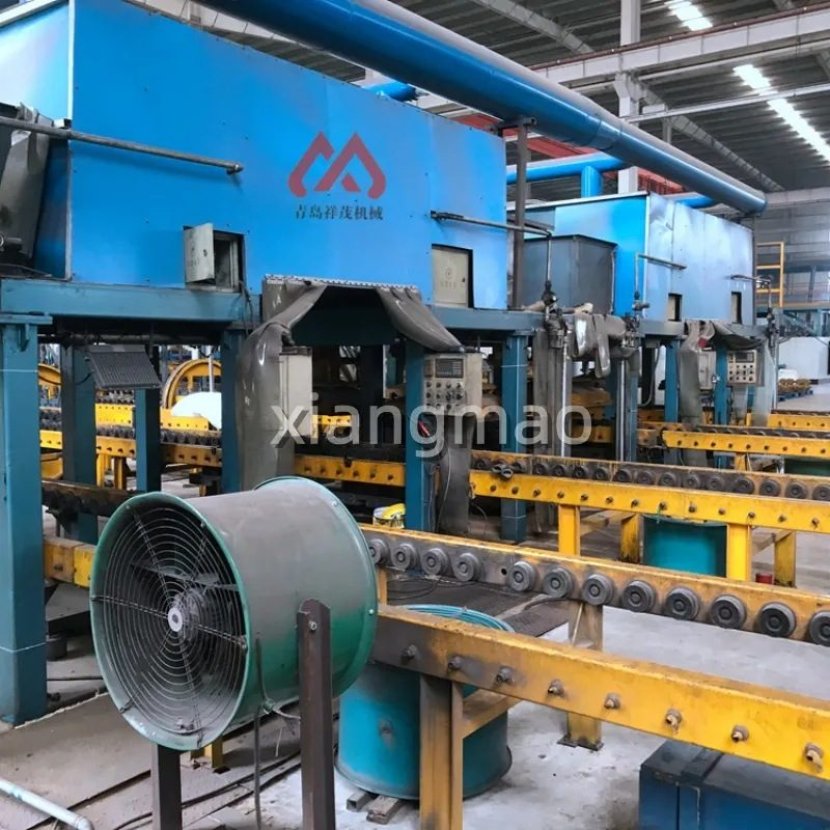

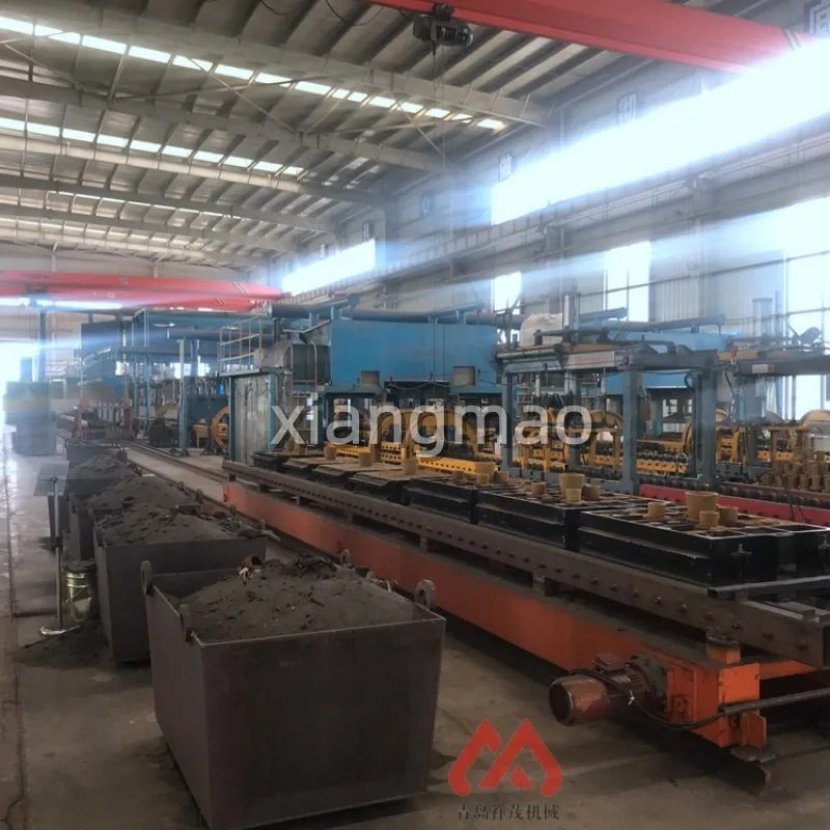

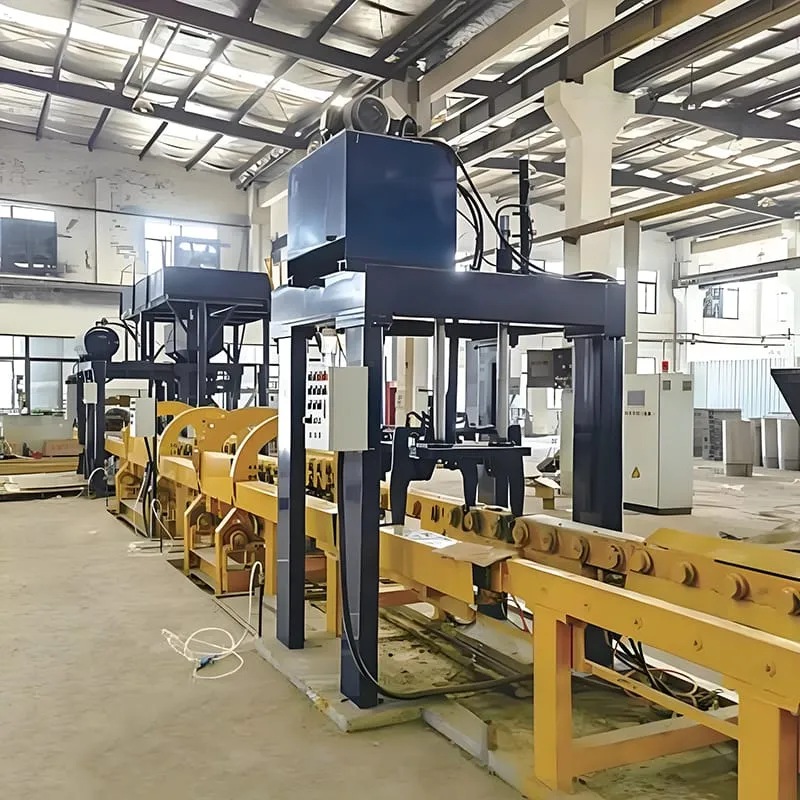

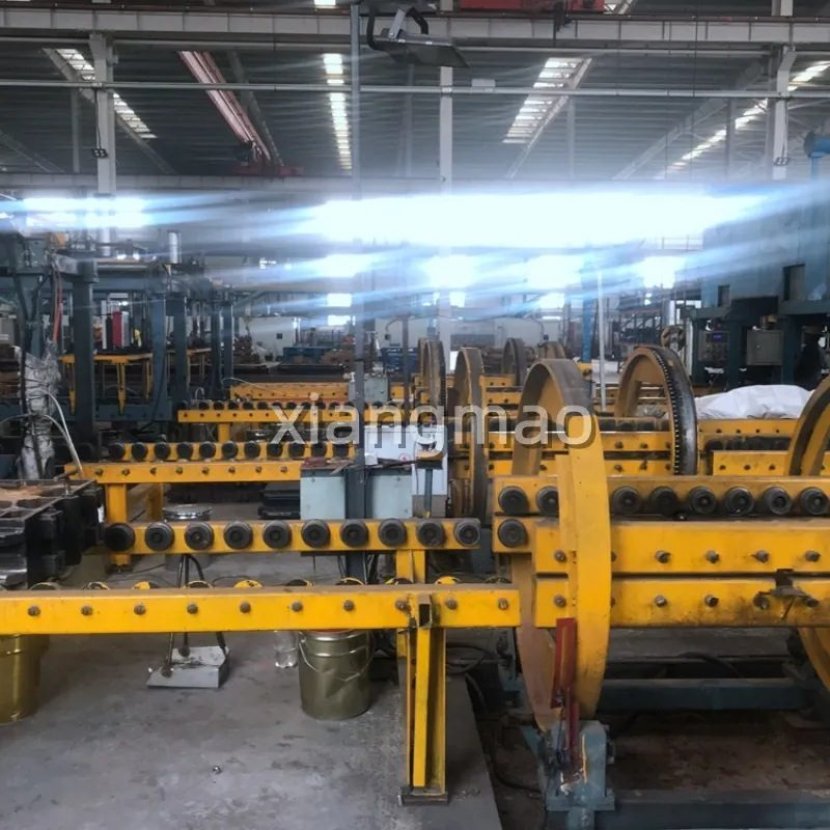

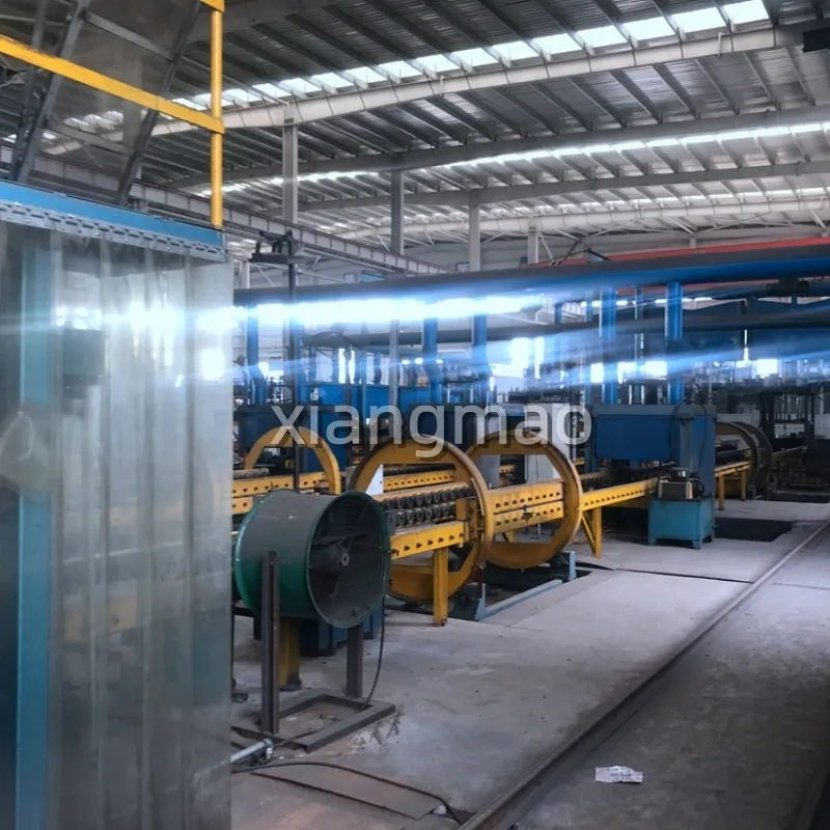

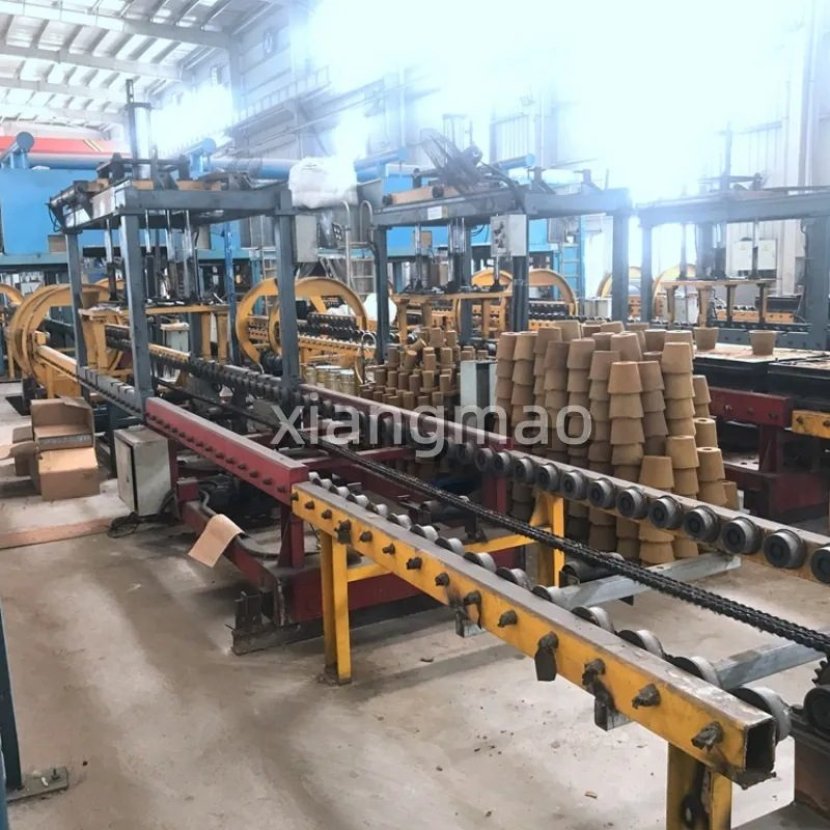

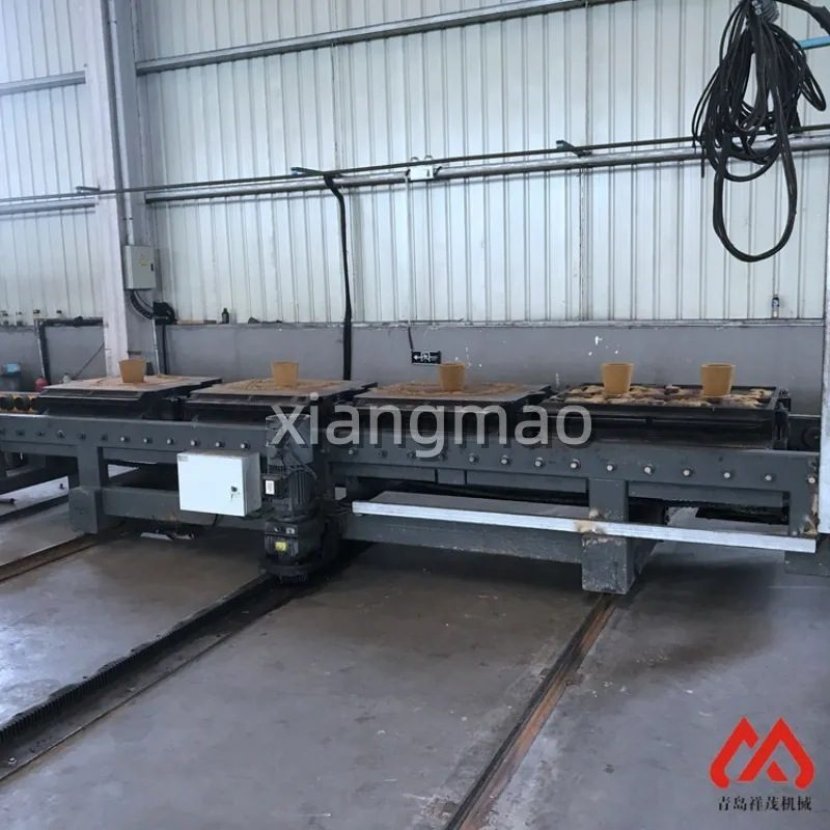

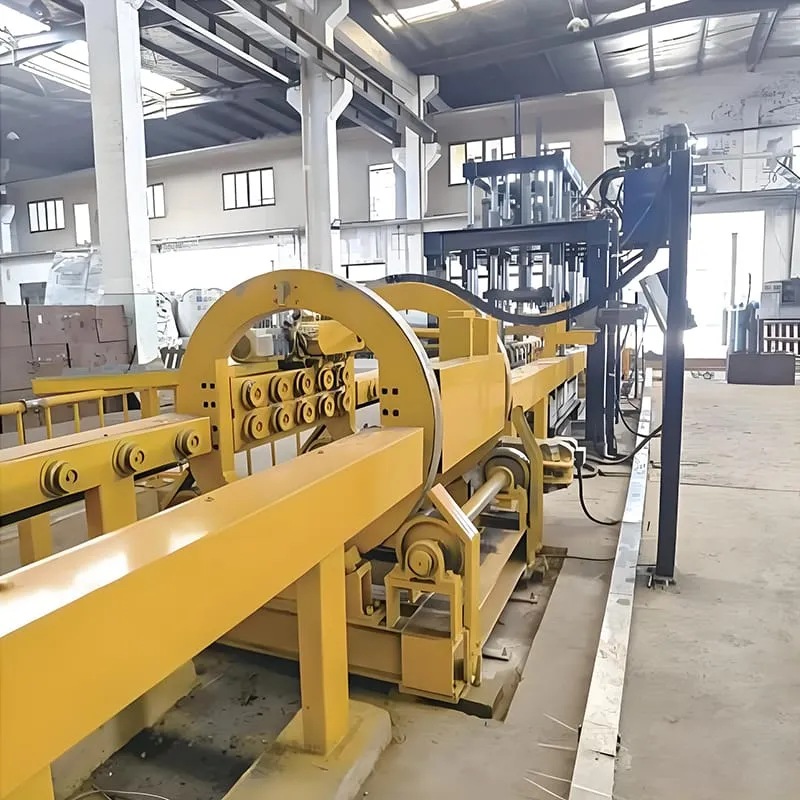

Iron Mold Sand Covering Cast Grinding Media Balls Production Line

Product Description:

Harnessing hydraulic and pneumatic systems, this case optimizes their combination and adopts an

open, flexible conveyance, multi-level supply drive. It includes a molding line, casting line, and two motorized roller tracks. The molding line features two stepper box feeders, dividing it into three independent

zones: opening, molding, and closing. This line ensures non-interference across six areas with complementary functions. Two motorized tracks manage sand boxes for molding and casting lines, preventing interference and enhancing production efficiency.

Specifications:

The line includes covered sand molding, co-box, casting, sub boxes, metal cooling, coating, etc.

Design basis and main parameters:

1. Production: 5,000 tons/year (based on ball diameter D80 min)

2. Operation: Three shifts (8 hours each)

3. Annual working: 300 days

4. Ball diameter: Dia 60mm - Dia130mm

5. Productivity: 100 models/h

6. Dimensions: Upper/Lower plate 420x420mm

7. Online Mold: Approx. 120 pairs

Analysis of mold action sequence:

mold separation (up/bottom) → scrabble ball → bottom turnover → 4-station clean → inspect → heat mold → 4-station sand injection → inspect → bottom turnover → close mold.

Advantages of Iron mold coated sand casting line:

1. Compact area: 10,000 tons/year line covers ~300 m².

2. Minimal labor: 4 permanent jobs.

3. Low energy: <100kw.

4. Product qualification >98%.

5. Versatile: One line adapts to multiple molds/products, reducing costs.

6. Compatible with various pouring methods for different products.
