Iron Based Coated Sand Casting Line for Produce Casting Grinding Balls Automotive Crankshafts

Product Description

Casting Steel Grinding Media Balls Making Production Line

This case utilizes the performance characteristics of hydraulic and pneumatic systems, optimizes the combination, and adopts an

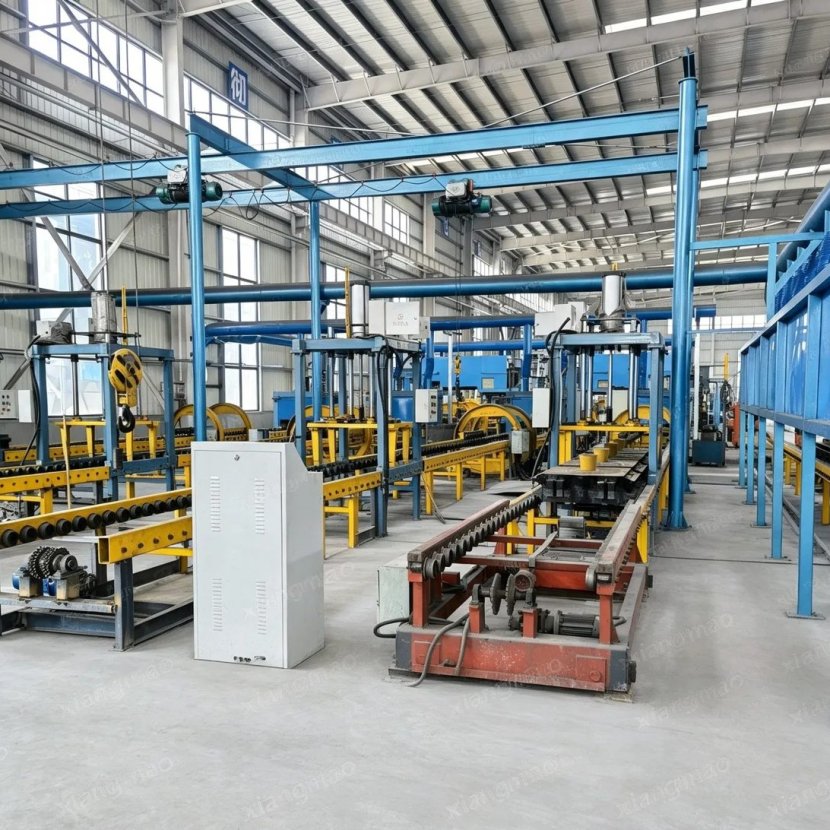

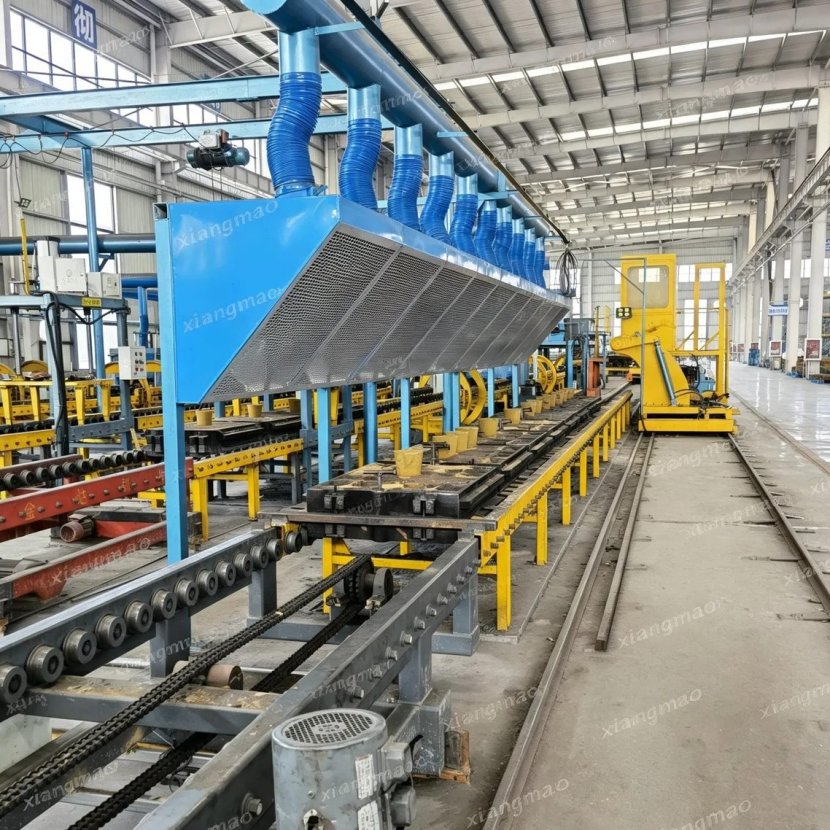

open+flexible conveying+multi-level supply drive method. The entire line consists of a molding line, a casting line, and two motorized roller tracks. The molding line is equipped with two stepper box feeders, which divide the molding line into three independent

operating areas: the opening area, the molding area, and the closing area. The entire line achieves non-interference in the actions of the six areas and has complementary functions. Two motorized roller tracks are used to input or output sand boxes for the molding line and the casting line, achieving the function of non-interference between the operation of the casting line and the molding line. The advantage of this operating structure is that whether the molding line or the casting line lags behind, it does not affect the operation of the other line, and the two lines have complementary functions, greatly improving the efficiency of the production line

We also provide automatic pouring machine. hot metal transfer system.heat treatment euipment.automatic separation and sort equipment.grinding ball metal mold.

The production process of grinding ball casting line:

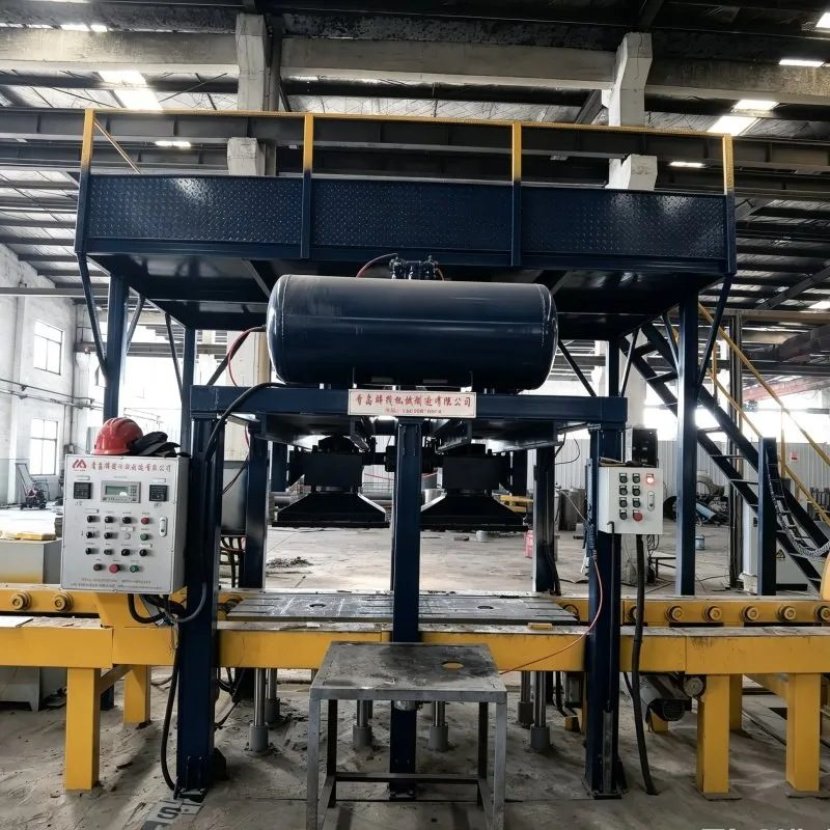

Preheat grinding ball mold into a certain temperature→Grinding ball mold into molding station and shooting sand→Operator checks(If the sand is not shot well into the mold cavity,the operator will repair this part)→Close mold→ Pouring molten metal liquid→Opening mold,then grinding ball coming out from the mold→Cleaning the residual sand→shooting sand again.

Details Photo

Product Technical Parameter

Customer Case

Company Profile

Certifications

FAQ

About Xiangmao Complete Line for Grinding Balls:

What is the annual output capacity of this production line?

The production line has an output capacity of 30,000 tons per year.

What is the drive method used in this system?

The system utilizes a hydraulic drive method combined with a start drive.

Does the production line support customization?

Yes, we offer full customization, minor customization, flexible customization, and customization from samples or designs.

What is the minimum order quantity?

The minimum order quantity is 1 set.

What are the available payment terms?

We accept LC, T/T, D/P, PayPal, Western Union, and small-amount payments.

What is the lead time for production?

The average lead time is 3-6 months for both peak and off-peak seasons.

Is the product certified?

Yes, the product meets ISO 9001:2000 and ISO 9001:2008 certification standards.

What is the floor area required for this line?

The designed floor area is L43m * W14m, based on workshop design status.
