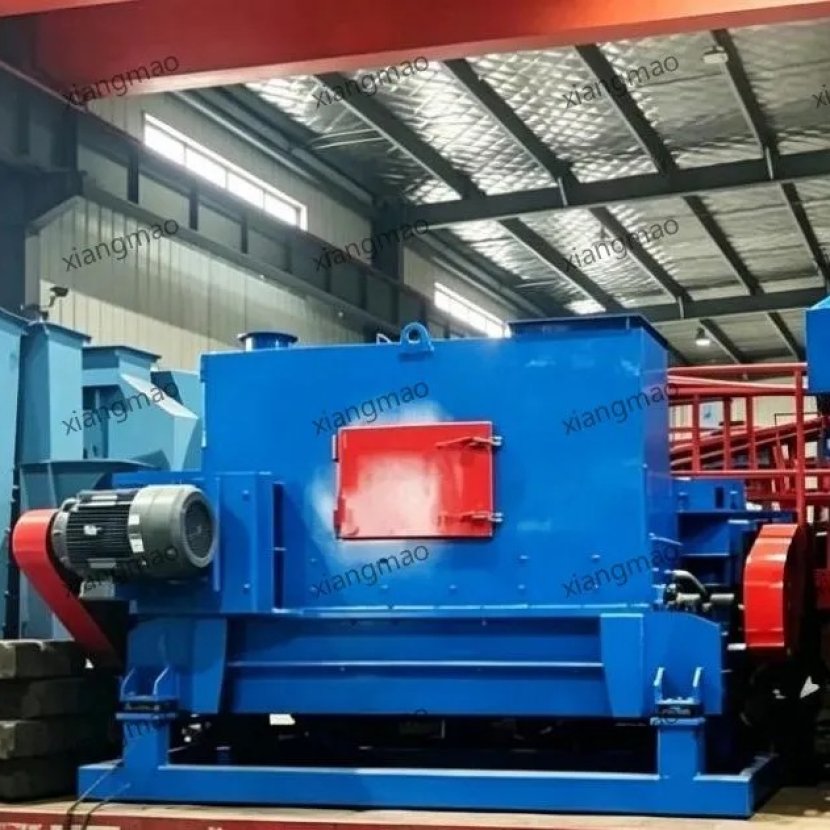

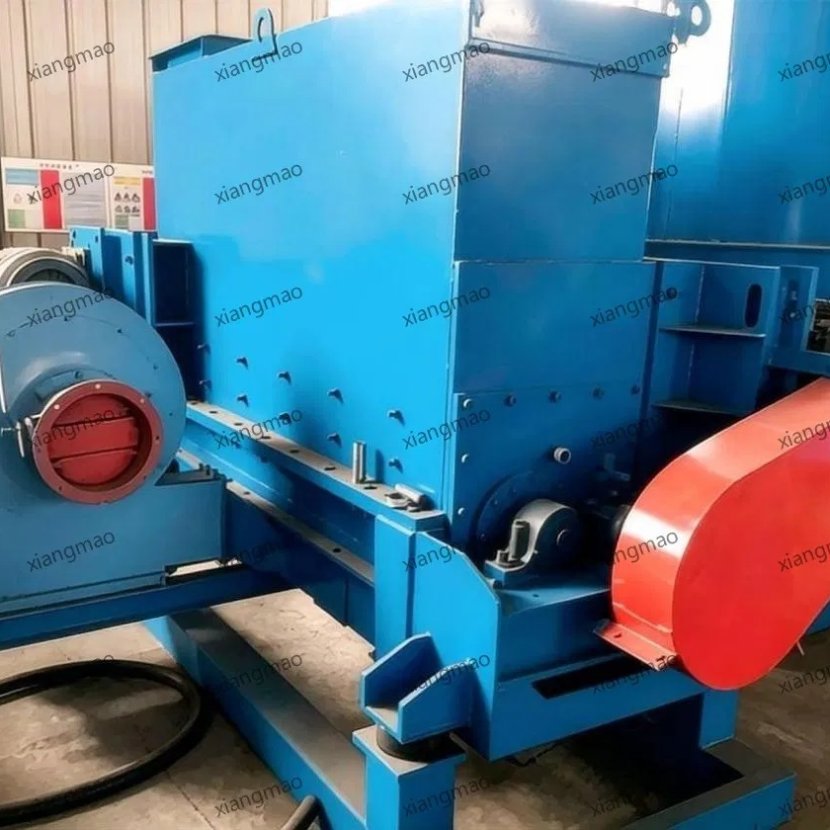

S53 Series Attrition Sand Reclamation Machine

Product Description

Product Description of Attrition Scrubber Regenerator

The Attrition Scrubber Regenerator is a high-efficiency sand reclamation device based on mechanical attrition and frictional peeling principles, specifically designed to remove residual fired binder films (resin, silicate, or coated layers) from used foundry sand. It is widely used in reclamation systems for no-bake resin sand, CO-silicate sand, and shell sand. Through intense rubbing, impact, and shearing between a high-speed rotor and wear-resistant liners, sand particles are stressed and abraded against each other, effectively stripping off inert surface layers. This restores the original activity and surface cleanliness of quartz sand, reducing Loss on Ignition (LOI) to ≤0.5%—meeting high-quality mixing process requirements.

This machine is suitable for new green foundries, smart sand system upgrades, or retrofitting of outdated reclamation lines. It can be integrated with crushers, coolers, screens, magnetic separators, and dust collectors to form a complete sand reclamation line, achieving zero waste discharge and sand reuse rate ≥95%—significantly reducing raw sand consumption and solid waste disposal costs, supporting sustainable manufacturing.

Working Principle

1.  Feeding Stage

Used sand (typically after shakeout or primary crushing) is fed uniformly into the regenerator via belt conveyor or bucket elevator. Sand temperature should be ≤60°C to protect equipment and enhance reclamation efficiency.

2. Attrition Regeneration Stage (Core Process)

Sand enters the regeneration chamber formed by a high-speed rotor and wear-resistant liners. The rotor accelerates sand particles, causing intense impact and rubbing against the liners. Simultaneously, particles shear, abrade, and roll against each other under high stress, peeling off the sintered surface films. The process is dry reclamation—no water or chemicals required—making it energy-efficient and eco-friendly.

3.  Discharge & Dust Control

Regenerated sand continuously discharges from the bottom outlet to downstream cooling, screening, and magnetic separation processes. The fully enclosed design with a pulse cartridge dust collector efficiently captures dust, with emissions ≤5 mg/m³—compliant with national standards.

4. Intelligent Monitoring System

Optional vibration sensors, temperature sensors, and current monitoring enable real-time equipment status tracking, preventing overload or abnormal wear for long-term reliability.

Main technical parameter

Key Features:

High Reclamation Rate, Superior Sand Quality

Regenerated sand LOI ≤0.5%, low gas evolution, excellent flowability—can replace 90–95% of new sand, significantly reducing raw material costs.

Dry Reclamation, Energy-Saving & Eco-Friendly

No water or chemicals required—zero wastewater; energy consumption 40–60% lower than wet reclamation—ideal for green foundries.

Robust Structure, Wear-Resistant & Durable

Rotor blades, liners, and housing use NM400 steel, ceramic composite, or tungsten carbide cladding—critical components last 1–3 years depending on conditions.

Easy Maintenance, Long Service Intervals

Features quick-opening inspection doors and modular liners—wear parts can be replaced without disassembling the entire machine, minimizing downtime.

Intelligent Control, Stable Operation

Optional PLC + HMI touchscreen enables start/stop, fault alarms, data logging, and remote monitoring—supports MES integration.                           Versatile & Widely Applicable

Suitable for furan, alkaline phenolic, silicate, and shell sands—adaptable to various grain sizes and binder systems.

Typical Applications:

High-efficiency reclamation of used sand after shakeout in resin sand lines

Core equipment in spent sand recycling systems for silicate sand foundries

Sand reclamation and purification in shell core-making lines

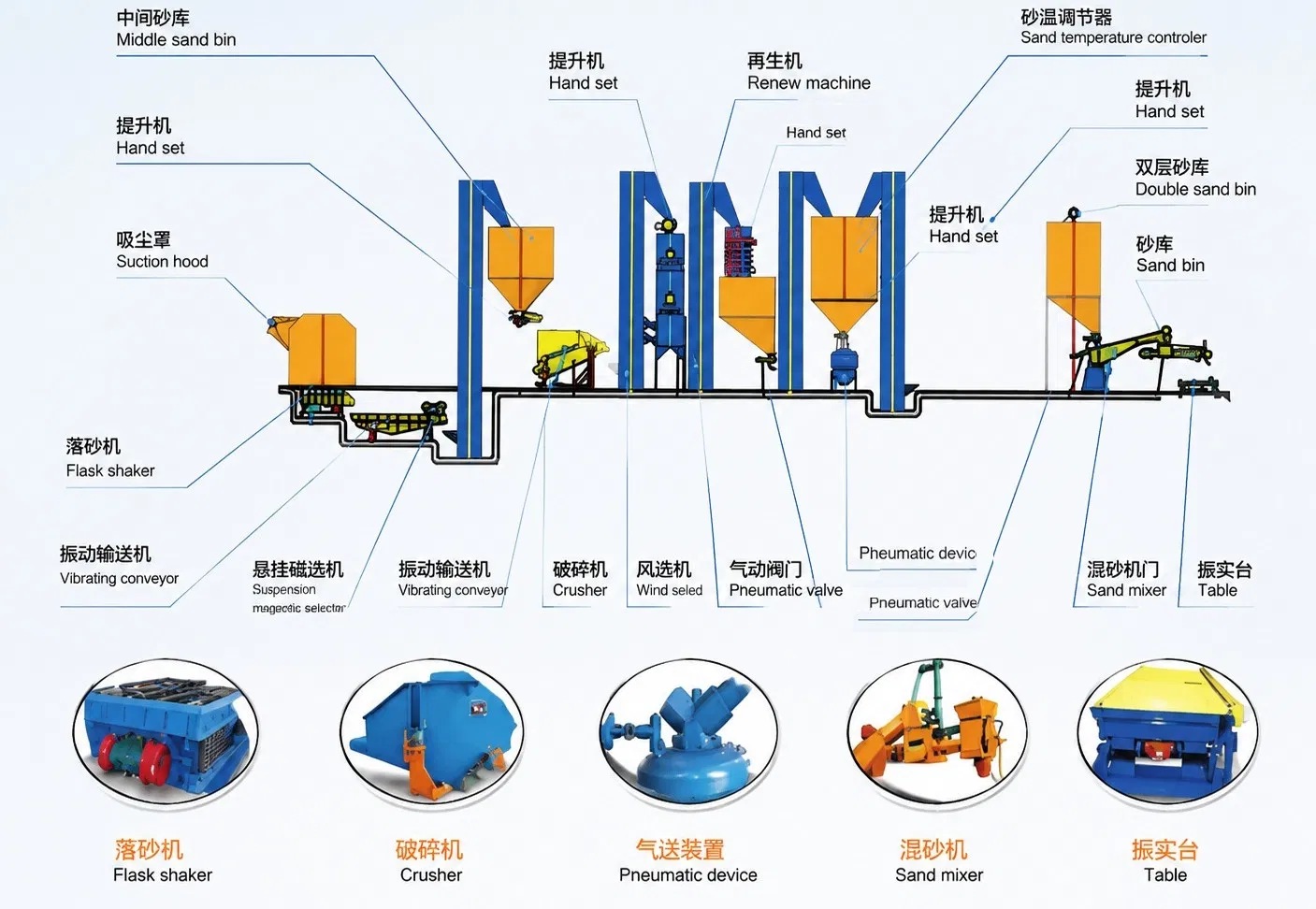

Integrated with crushers, fluidized bed coolers, screens, and magnetic separators for full reclamation

Core environmental equipment for new green smart foundries

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

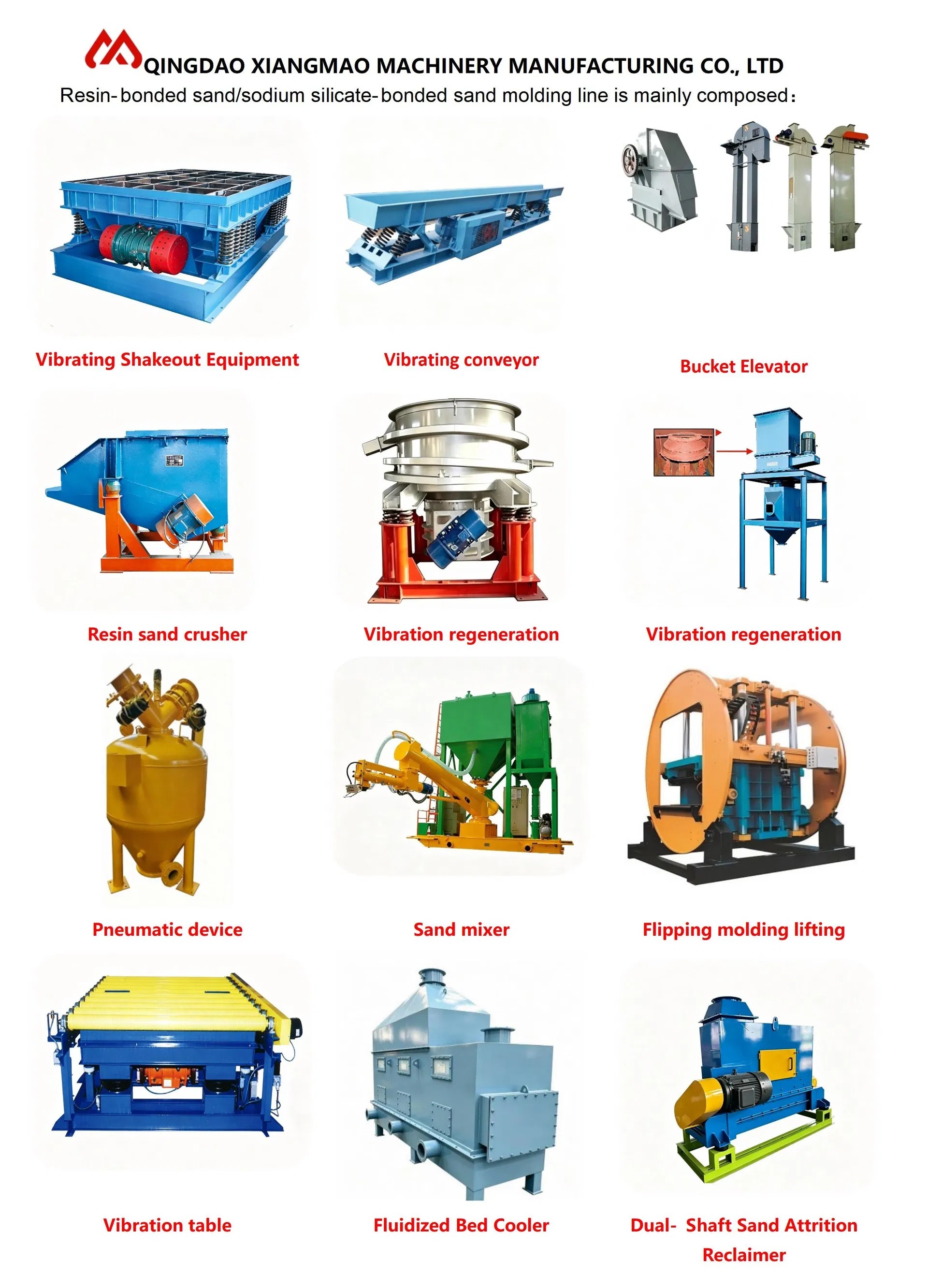

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

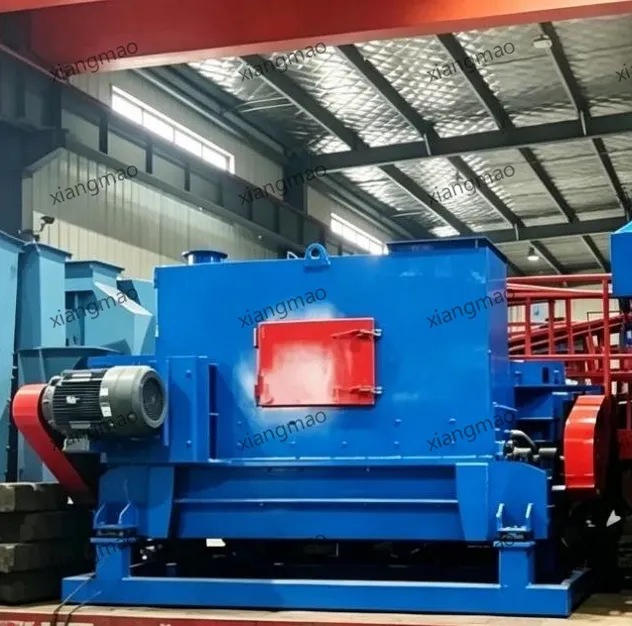

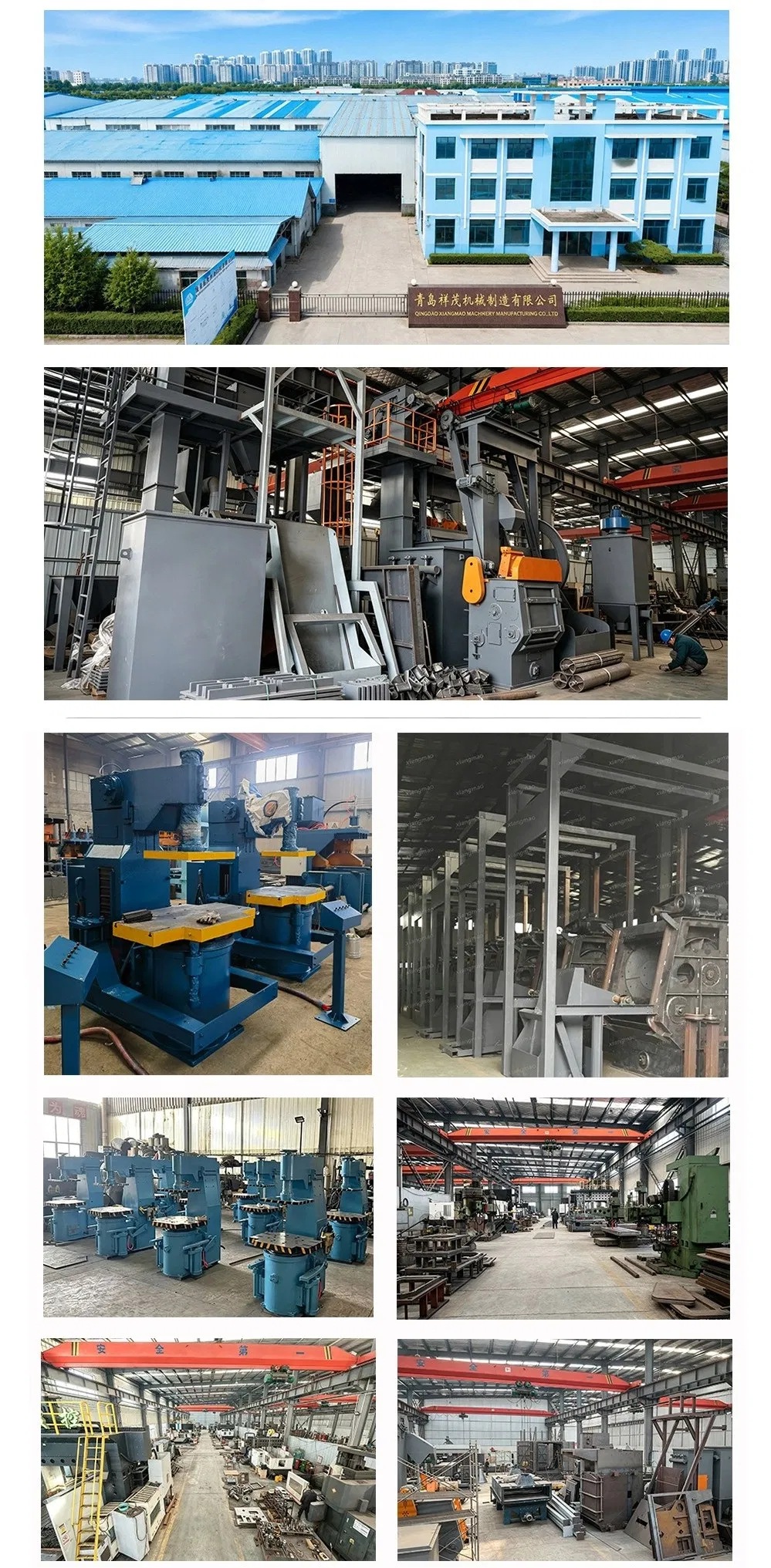

Manufacturing Workshop

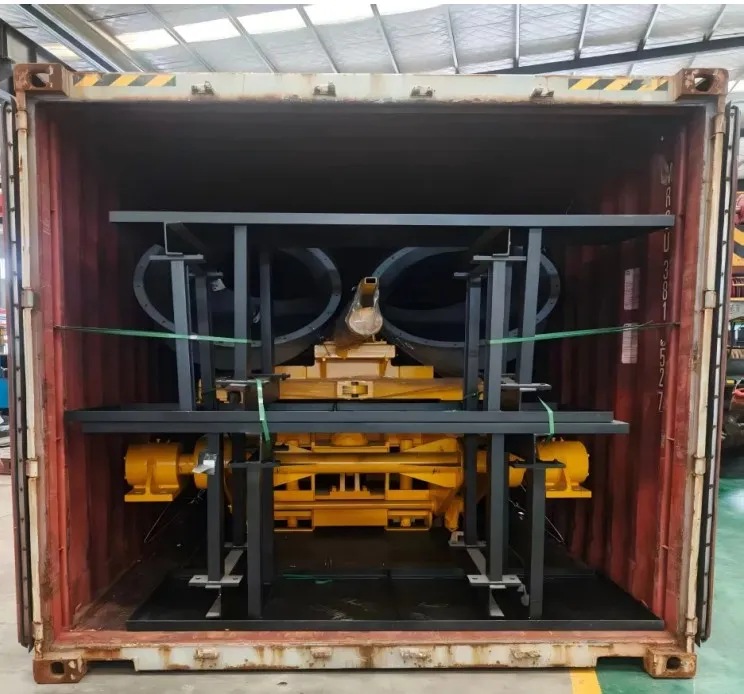

Packing & Delivery
