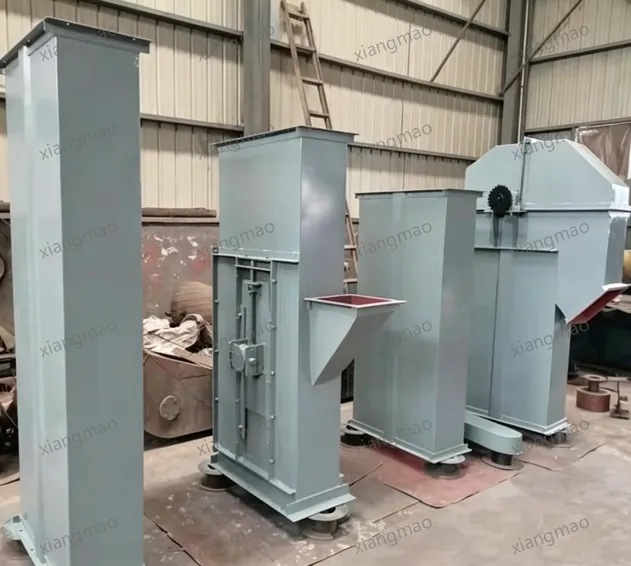

Y37 Series Bucket Elevator for Foundry Sand

The Y3716 series bucket elevator is a vertical conveying equipment commonly used in mechanized casting factories. It is mainly used to lift old sand, waste sand, new sand, clay sand, coke powder, clean iron pellets, etc. It can also be used to lift materials such as clay powder and clay molding sand. When combined with belt conveyors and other equipment, it can be arranged into various forms of conveying systems. This machine has the characteristics of small external dimensions, small footprint, high lifting height, good sealing, and compact layout.

Product Description

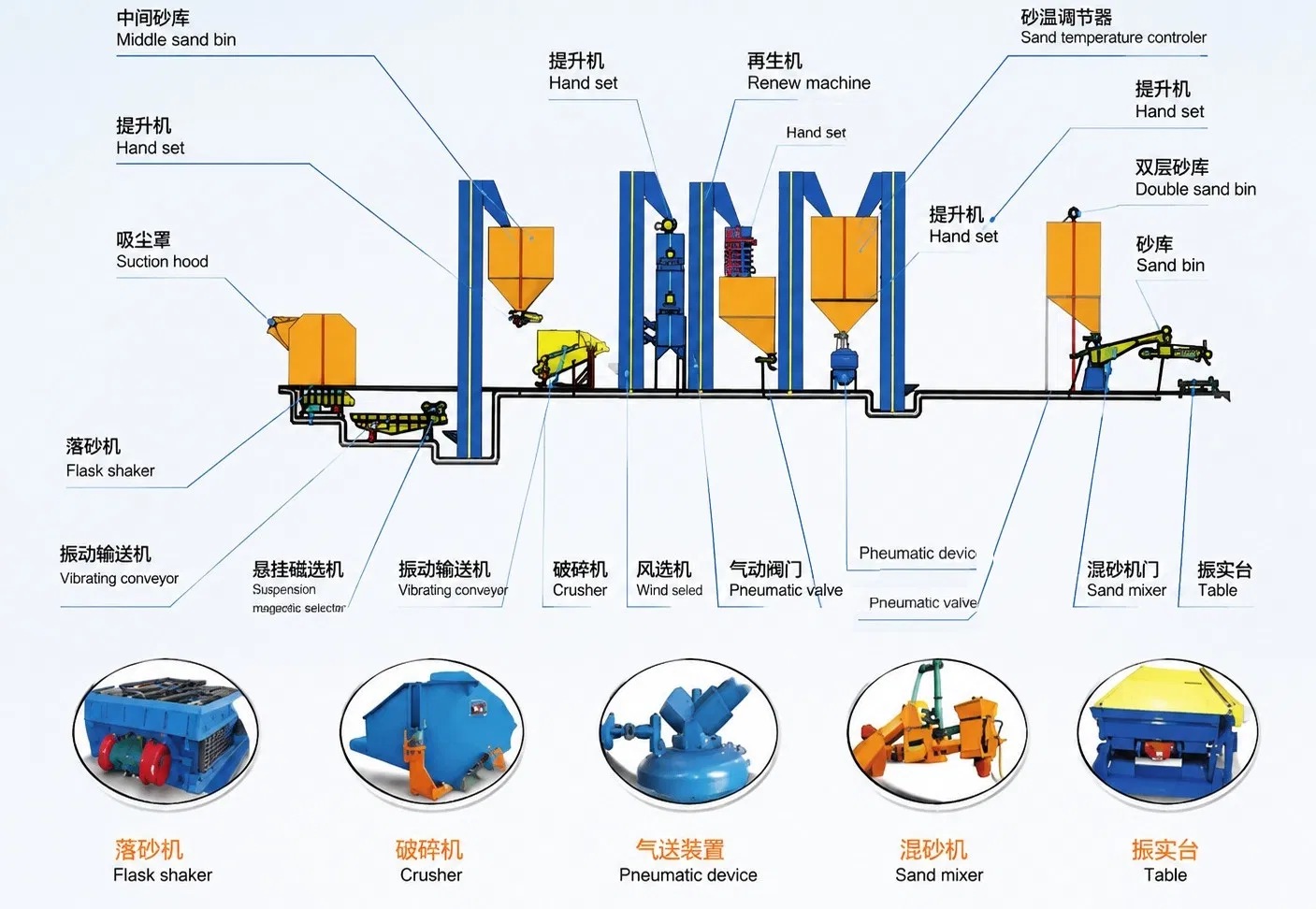

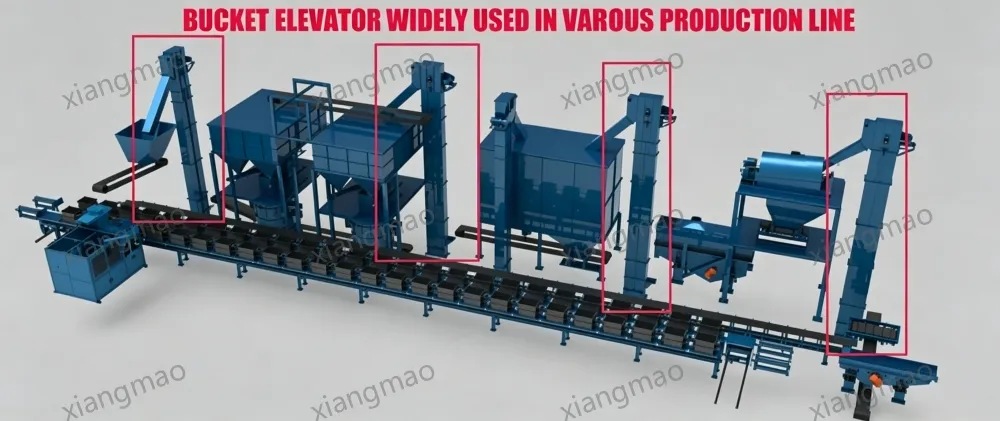

BUCKET ELEVATOR WIDELY USED IN VARIOUS PRODUCTION LINE

Product Technical Parameter

Applications:

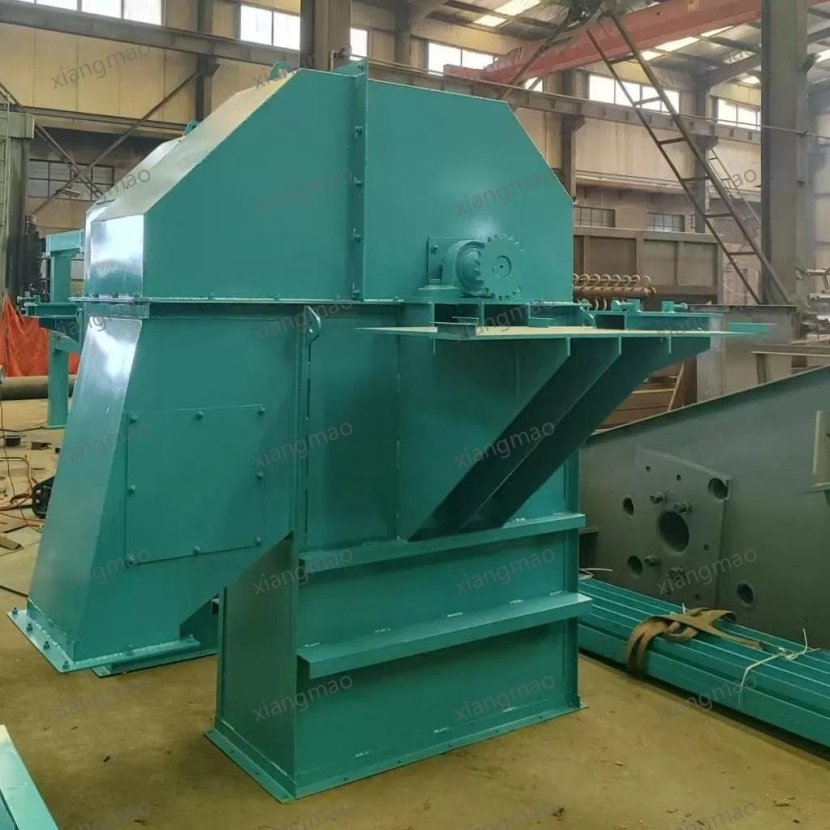

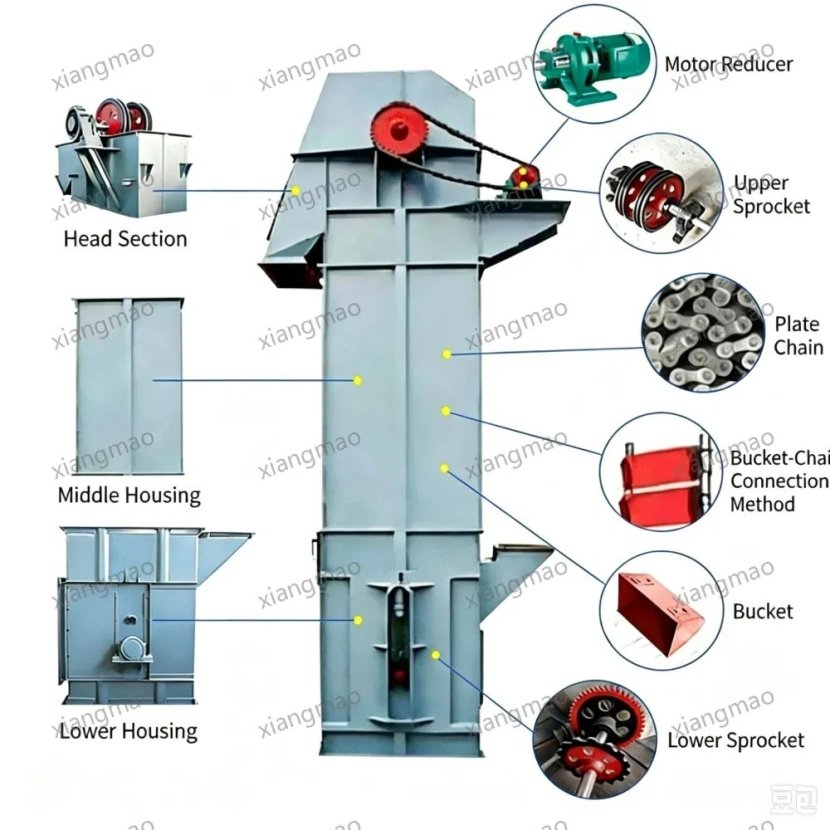

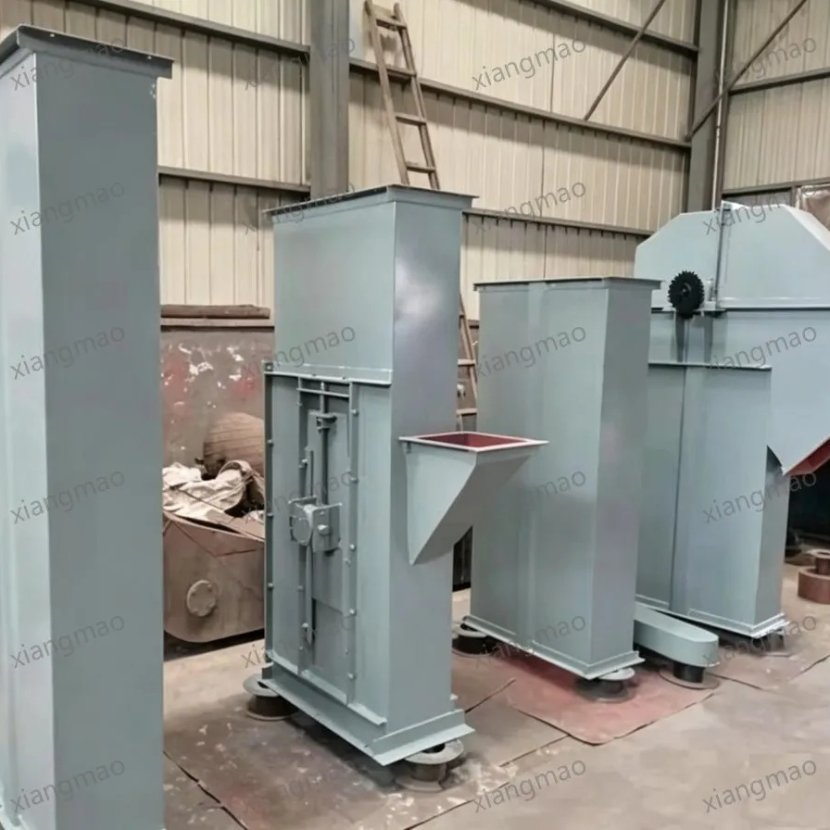

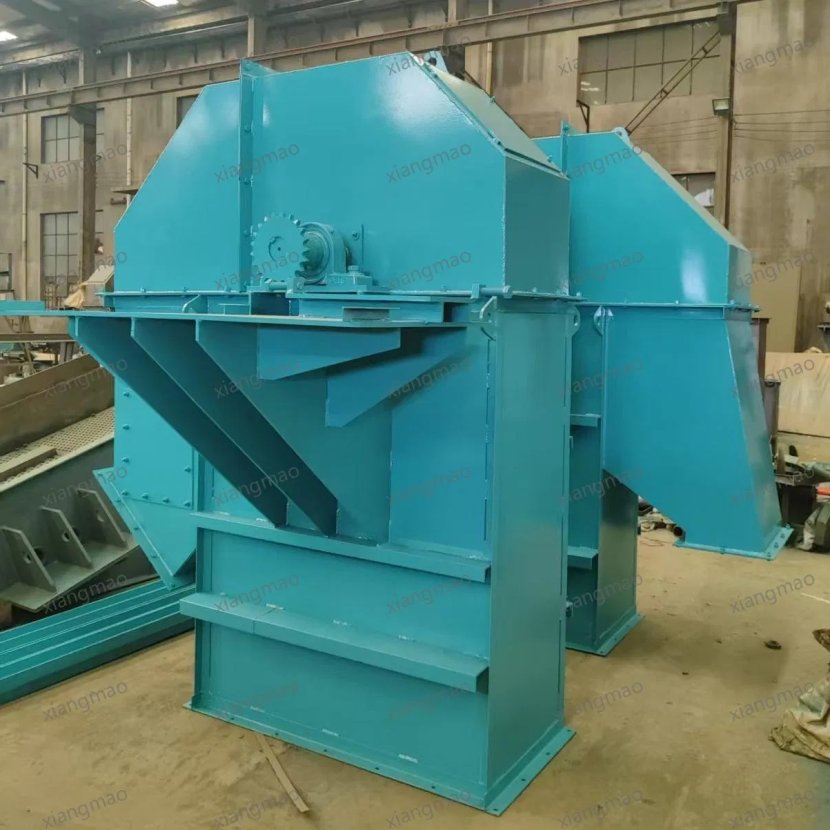

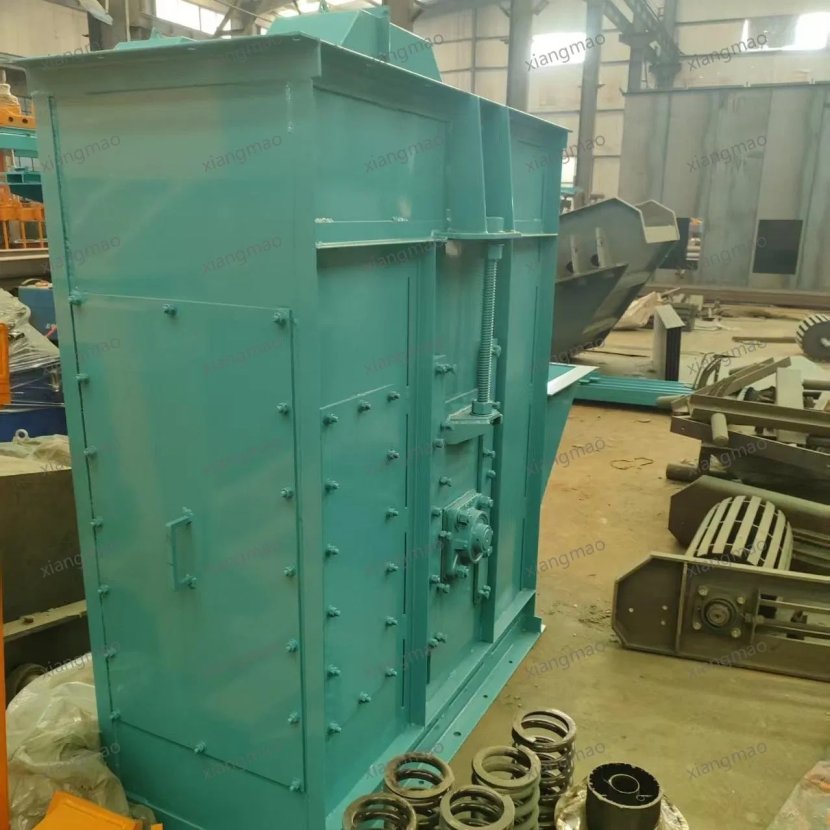

Details Photo

Feature:

1.The transmission drum adopts an olive shape, with a symmetrical herringbone shaped guiding pattern rubber surface cast on the surface. The transmission is reliable, not easy to slip or deviate, and extends the working life of the adhesive tape.

2. The main shaft of the transmission drum adopts double row spherical roller bearings, which have high load capacity and are easy to maintain and adjust.

3. Adopting a large roller type backstop, installed at the other end of the drive device, with low speed and low wear, the lifting belt will not reverse during disassembly, assembly, and maintenance of the drive device.

4. The driving device adopts a shaft mounted gear reducer, and the gears are made of high-quality alloy steel, with carburizing, quenching, and grinding processes. The tooth surface hardness is high and the bearing capacity is large.

5. The tail wheel adopts a drum shaped squirrel cage structure to ensure that it does not stick to sand or deviate. Adopting a lever type heavy hammer tensioning device, it can adapt to different forces on the tape.

6. The hopper, feed inlet, and discharge chute of this machine are all made of stainless steel, which has the advantages of non stick and corrosion resistance, and is very advantageous for conveying materials with high moisture content.

7. This machine is equipped with an electromagnetic braking three-phase asynchronous deceleration motor, which is characterized by power-off braking (i.e. braking during sudden power outages or when workers are off duty). The principle is to use the attraction and disengagement of the electromagnet to generate braking torque between the friction plate and the motor end cover, so as to stop the motor and prevent the machine from reversing and blocking the feeding port due to the gravity of the hopper containing materials.

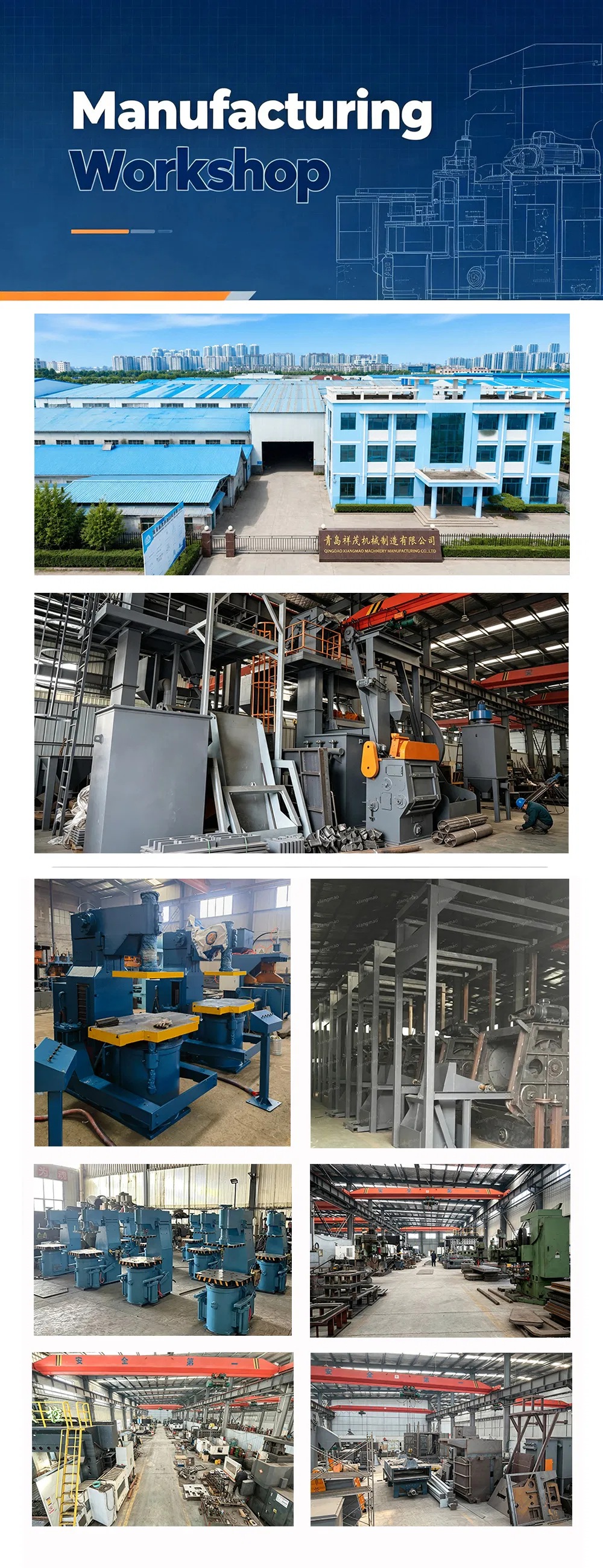

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

About Qingdao xiangmao machinery manufacturing co., ltd

Our company always adhere to the principle of "quality first, service forever, to meet customer needs as the core. We have first-class production technology and equipment, committed to continuous research and innovation, in strict accordance with relevant standards, industry standards and enterprise production standards to ensure the highest product quality and production efficiency. All equipment is also thoroughly checked and evaluated for quality to ensure complete customer satisfaction.

The company undertakes the following projects:

1.20-200t/h turnkey engineering and single machine supporting equipment of mechanized clay sand treatment production line.

2. Turn-key project of cold-hardened resin sand mechanized production line with annual production of 1000-20000t castings.

3. Turn-key project of thermal coated sand production line with annual output of 1000-6000t.

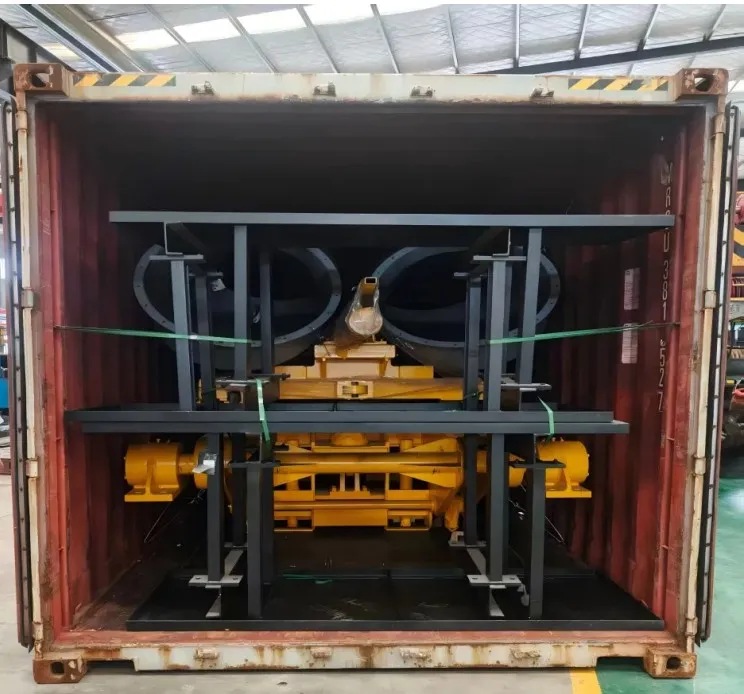

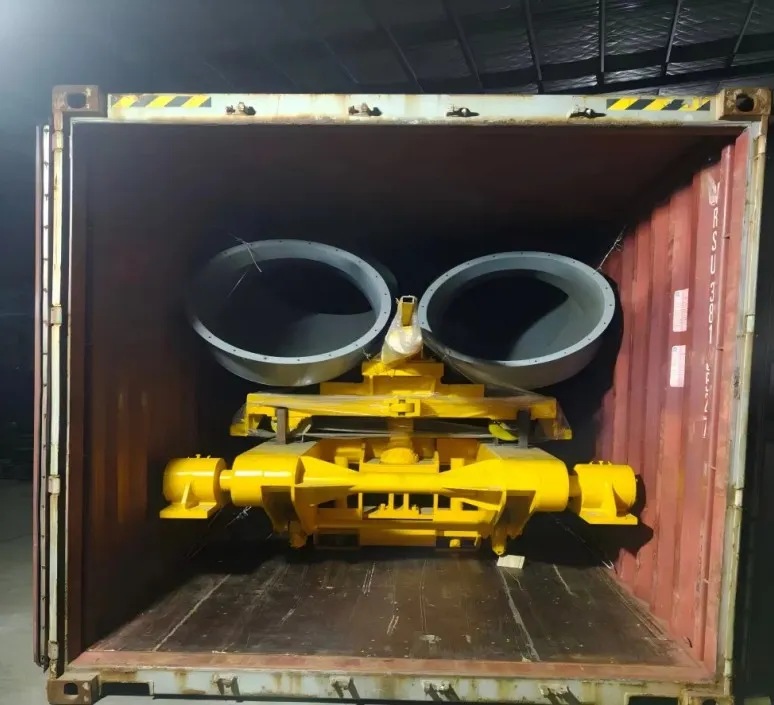

Packing & Delivery

FAQ

1.How many days do you need to produce this machine?

This is specially designed machine according to your specific requirement. From engineers designing to production completion, it needs about 30-45 days.

2. What does your factory do regarding quality control?

We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.

3.What's your machine quality guarantee?

Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.

4.Could you give installation and commissioning overseas? How long will it take?

Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.

Small machines usually takes 5 days, while big machines usually takes about 20 days.

5.How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
