S56L Series Multi-Function Vibratory Reclaimer

Product Description

S56L Series Multi-Function Vibratory Reclaimer

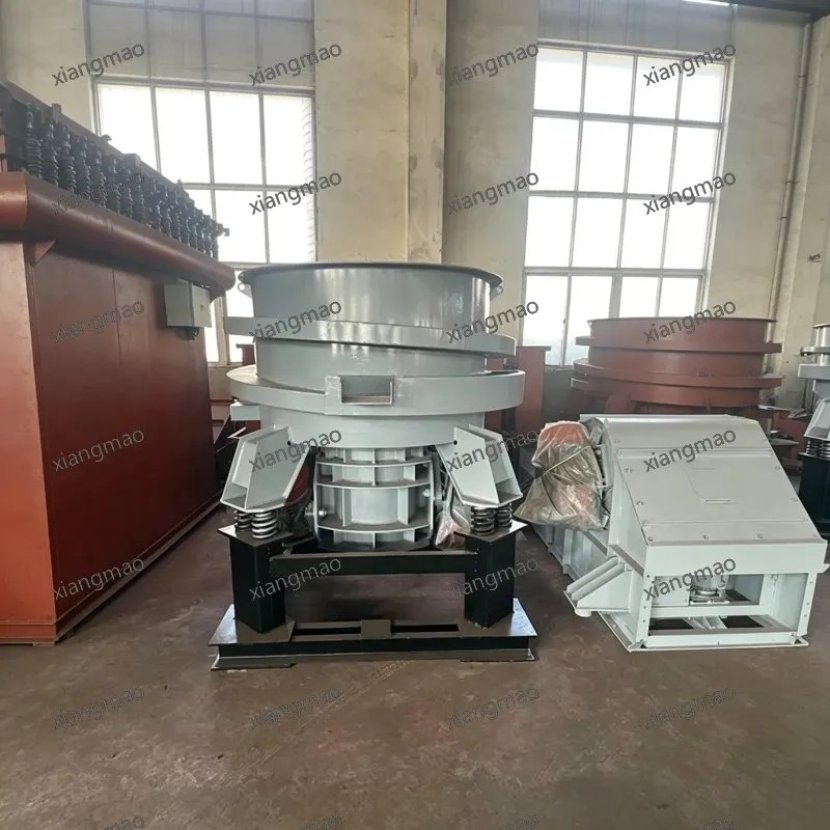

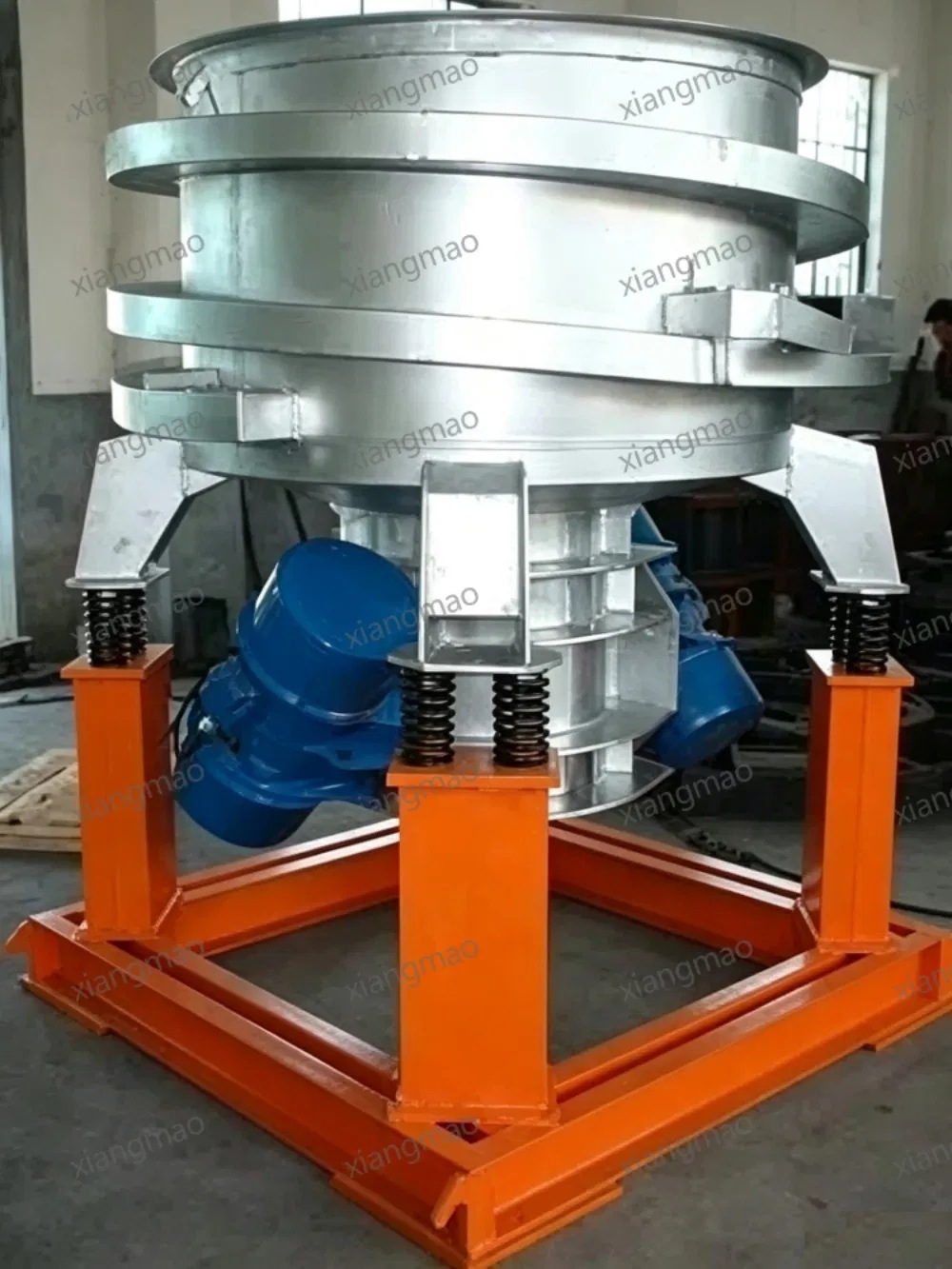

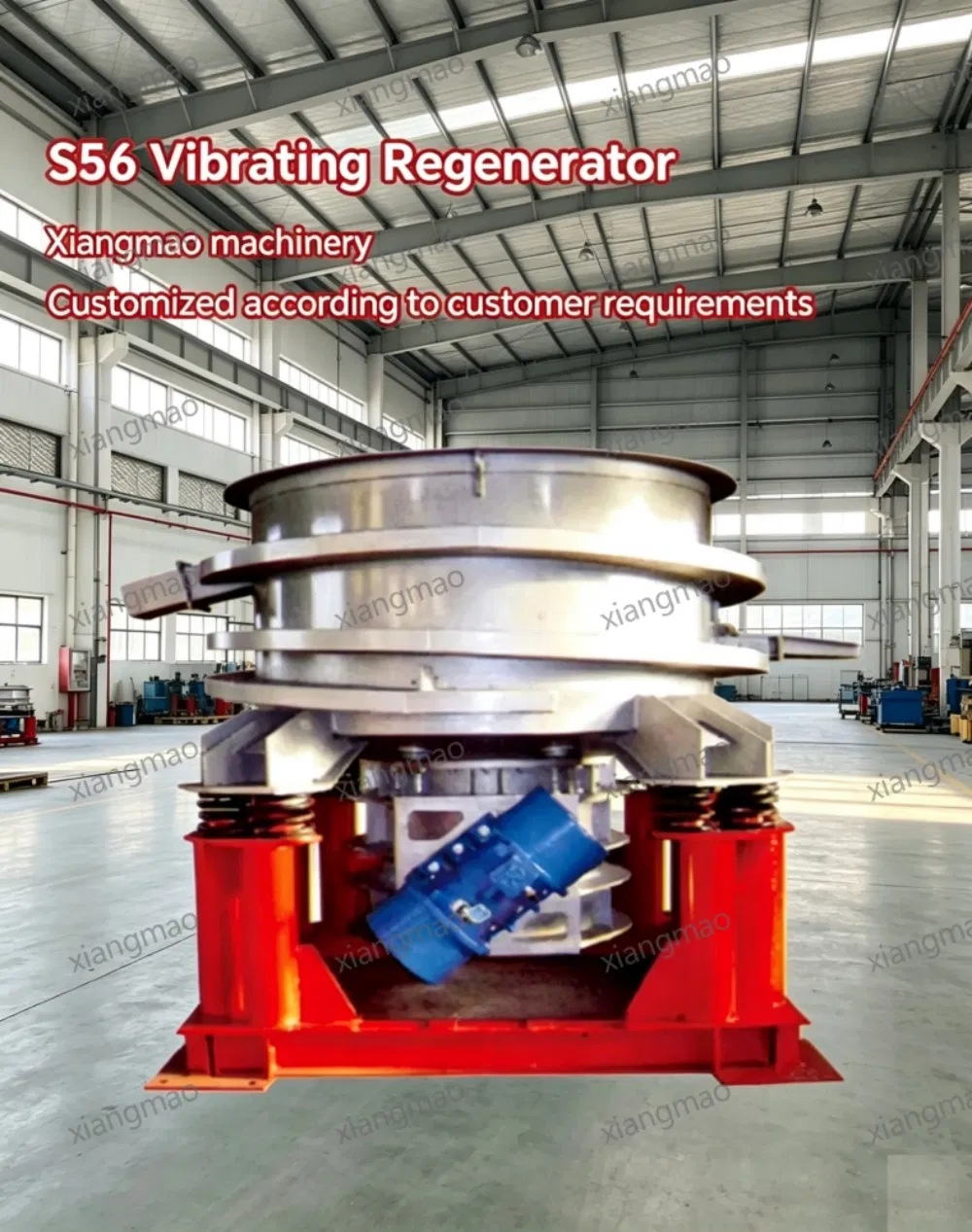

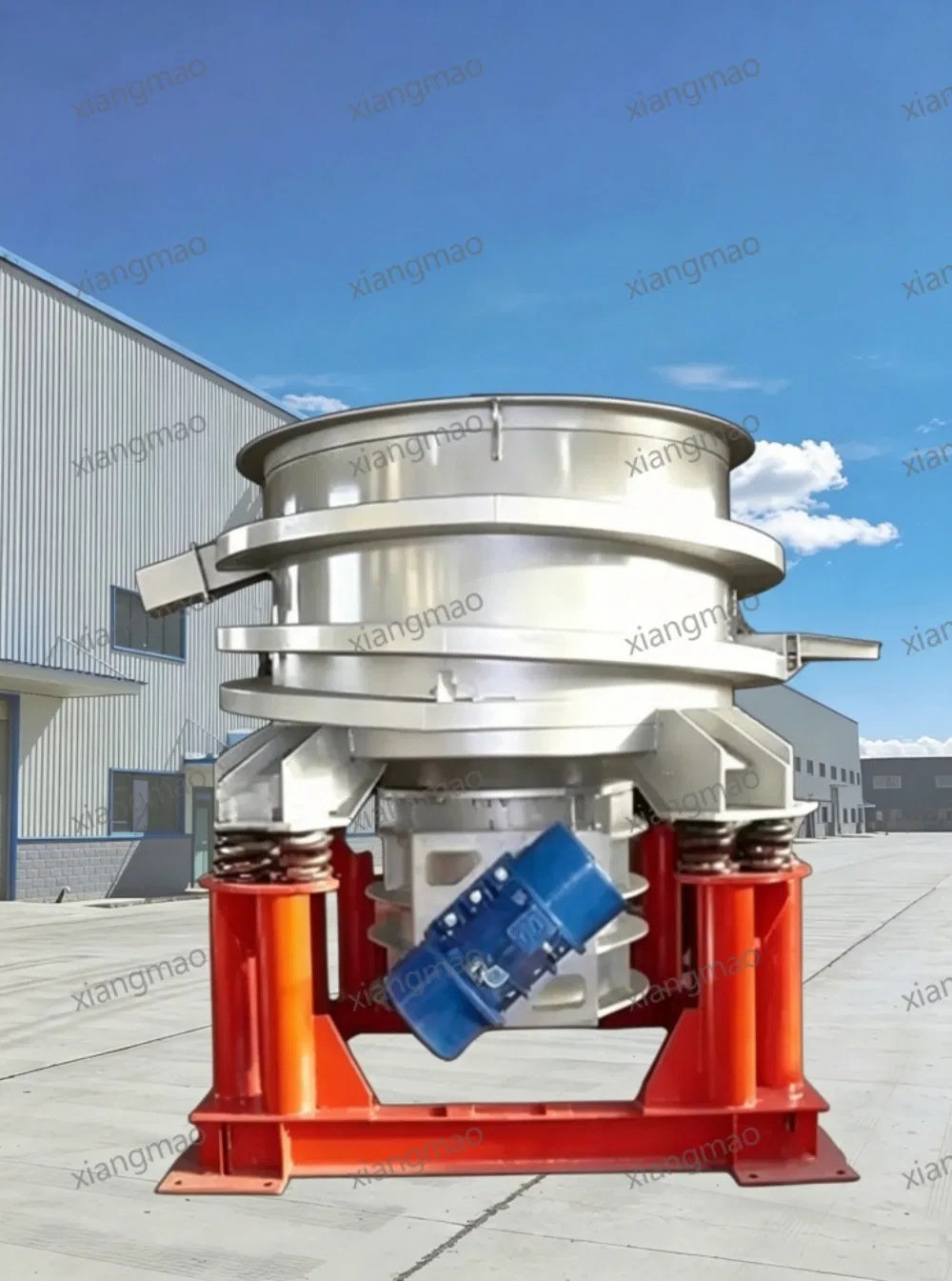

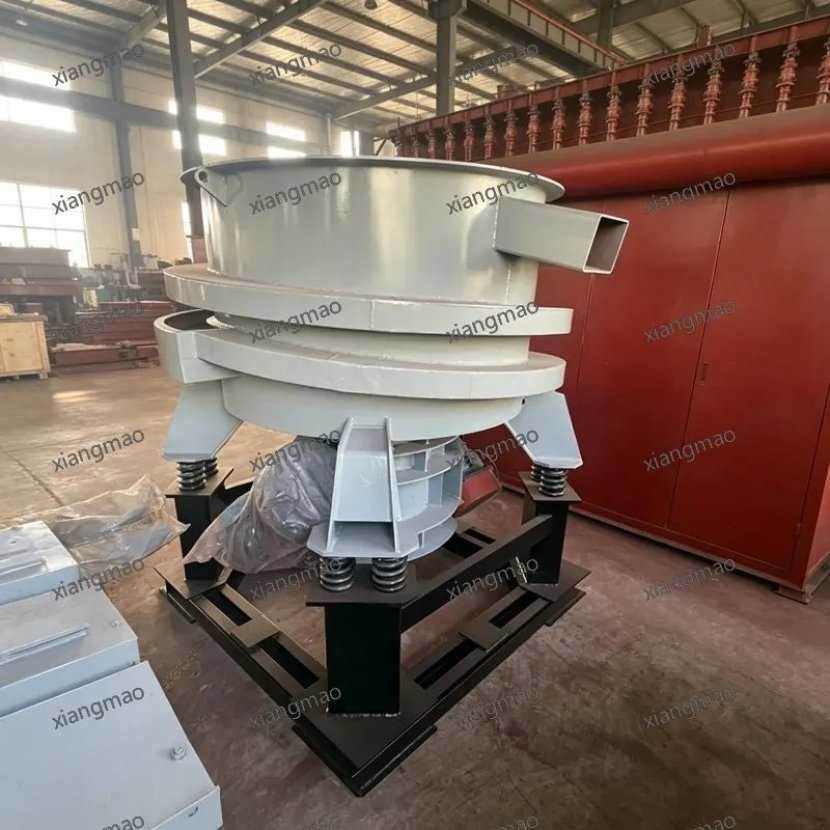

The S56L Series Multi-Function Vibratory Reclaimer is a high-efficiency sand reclamation system engineered for foundries to crush, screen, de-dust, and pre-cool reclaimed green sand, resin-bonded sand, or sodium silicate sand in a single unit. Featuring a two-mass elastic vibration structure, multi-stage composite screens, and air-solid separation technology, it produces regenerated sand with intact grain shape, clay content ≤0.3%, and loss on ignition (LOI) ≤1.5%. The sand is suitable for direct reuse in high-precision molding lines, achieving a >95% sand reclamation rate—dramatically reducing new sand consumption and landfill waste for sustainable casting.

Working Principle:

Infeed: Lumpy reclaimed sand (with metal fragments, sand agglomerates) enters the reclaimer.

Deagglomeration: High-frequency vibration and impact against internal baffles break lumps into individual grains.

Multi-Stage Screening: 2–3 screen decks (e.g., 6×6 mm / 1×1 mm) separate:

• Usable reclaimed sand

• Oversize contaminants (tramp metal, chills)

• Fines (<0.15 mm)

Dust Extraction: Built-in negative-pressure duct removes fines via cyclone + baghouse—emissions ≤10 mg/m³.

Discharge: Clean sand conveyed back to muller; contaminants and dust collected separately.

Specification

Key Technical Features:

All-in-One Design – Lower CAPEX & Footprint

Combines crushing, screening, dedusting, and cooling in one unit—replacing conventional "crusher + screen + collector" setups. Reduces equipment count by 50% and saves floor space.

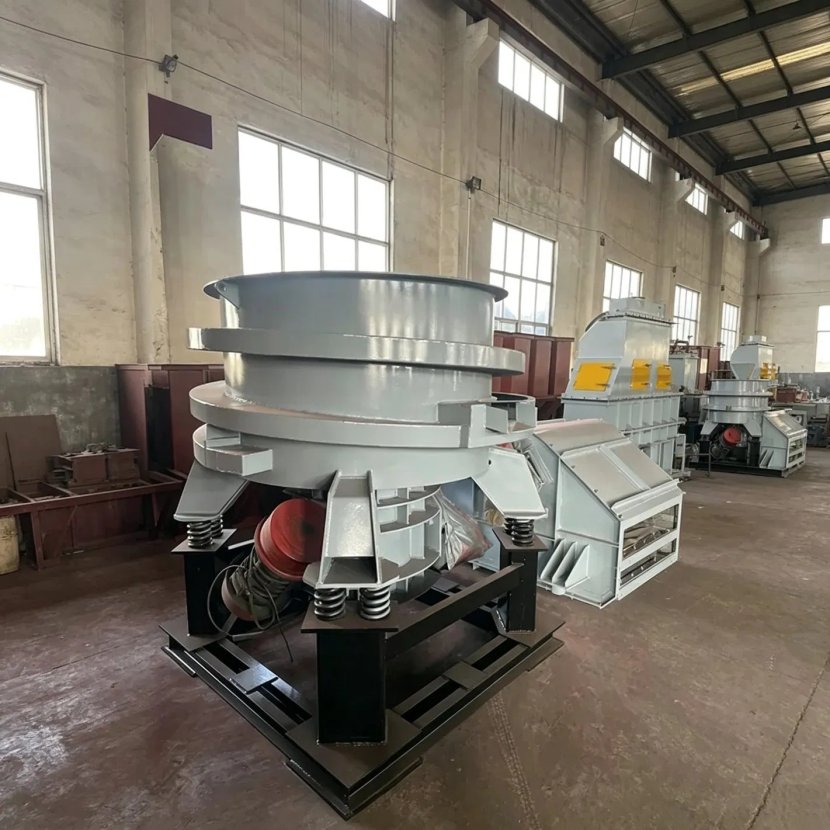

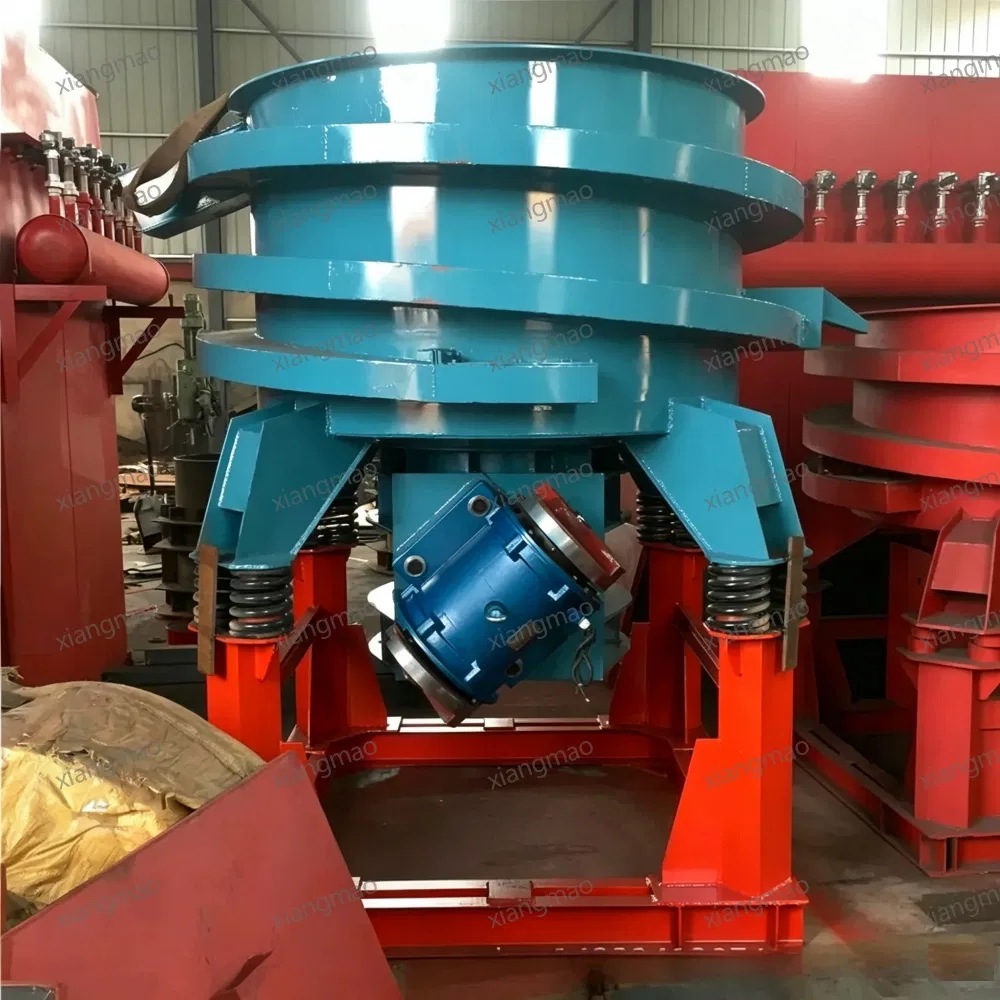

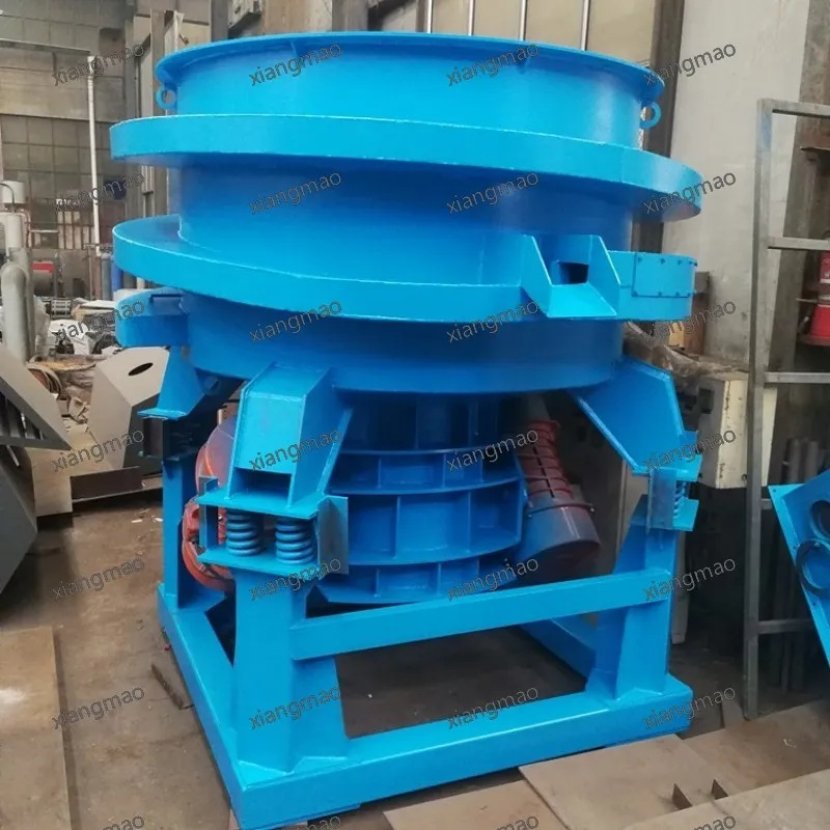

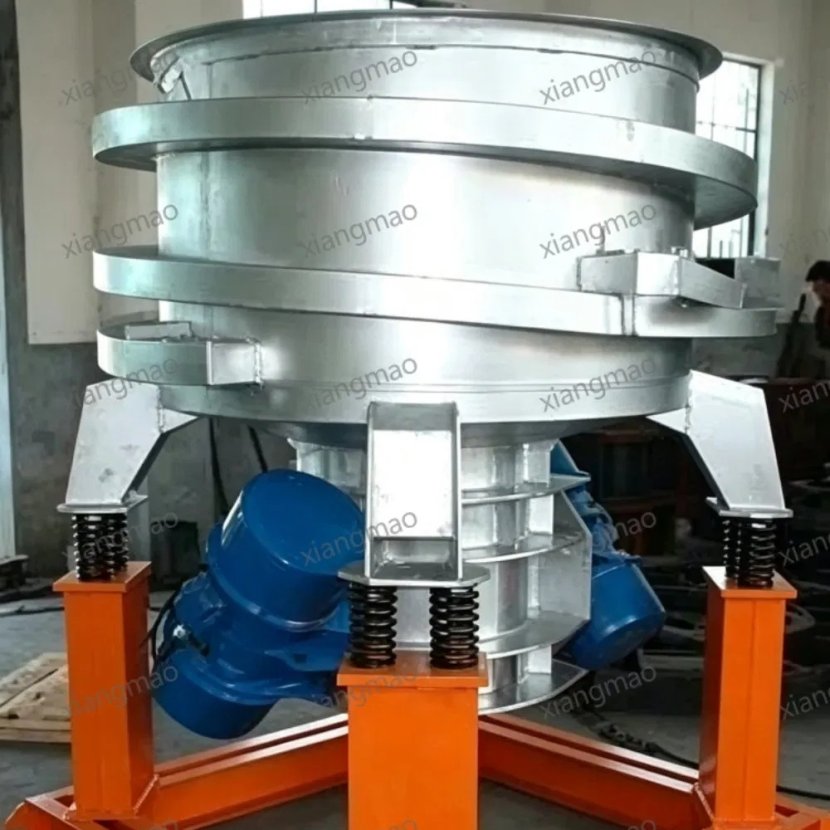

Two-Mass Low-Transmission Vibration – Stable Operation

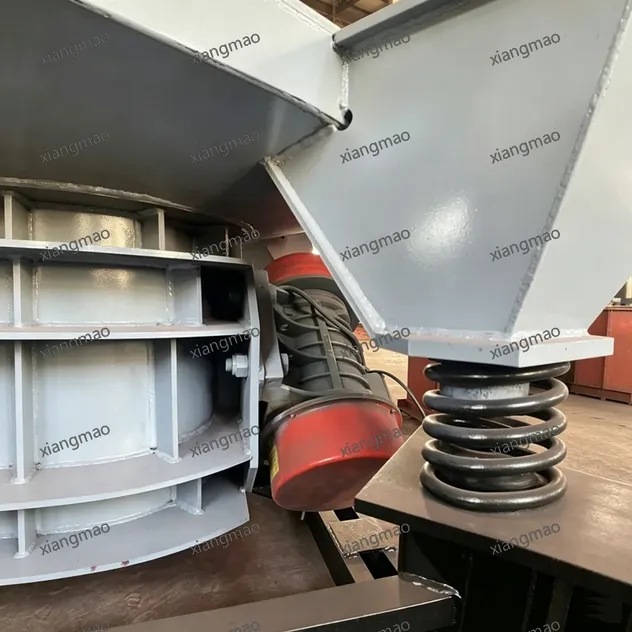

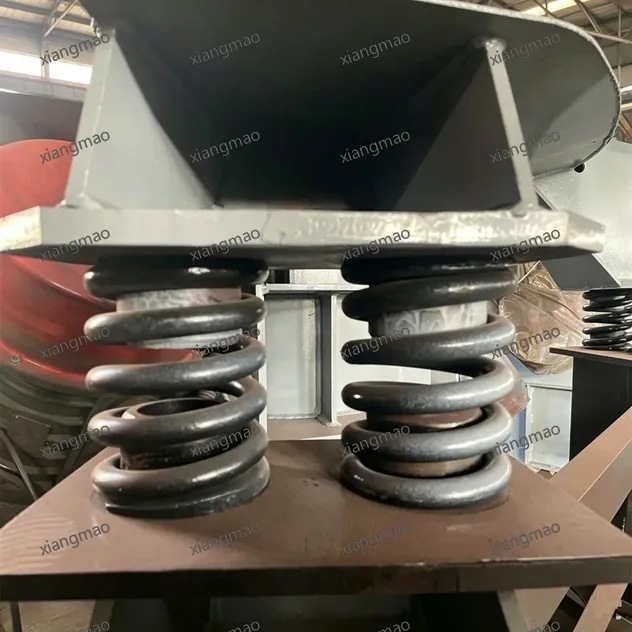

Active and isolated masses linked by rubber springs transmit ≤10% dynamic load to foundation—no massive concrete base required.

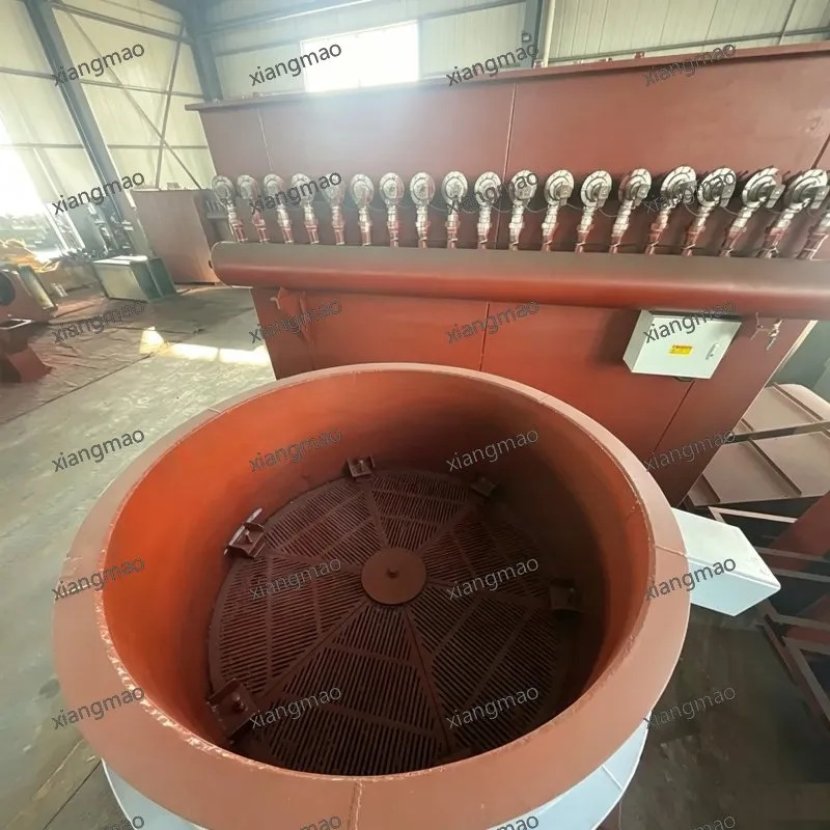

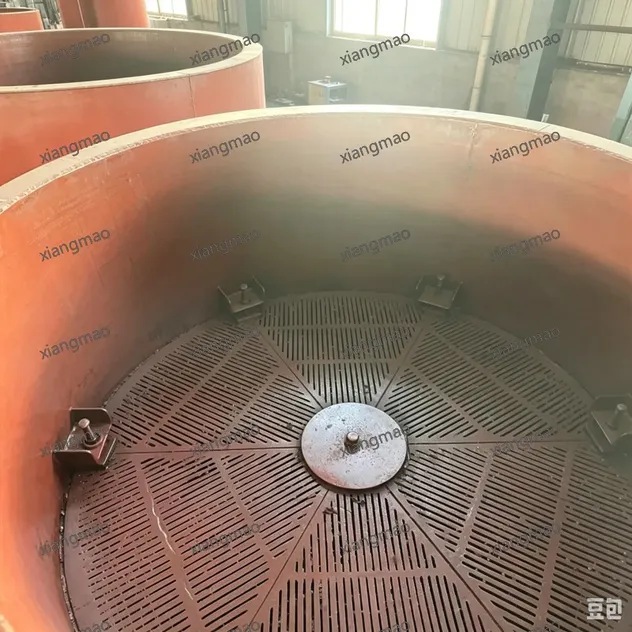

Modular Screen Decks – Process-Flexible

Screen apertures and layers easily swapped for green sand, furan, or alkaline phenolic systems—custom grading on demand.

Low-Damage Reclamation – Preserves Sand Integrity

No high-speed rotors—minimizes grain fracture. Regenerated sand angularity coefficient ≤1.35, enhancing permeability and green strength.

Smart Control & Eco-Certified

PLC manages vibration, airflow, and discharge. Fully enclosed with dual-stage dust collection—emissions ≤10 mg/m³, compliant with GB 39726 and EU BREF.

Typical Applications:

Automotive Foundry: Green sand reclamation for engine blocks/heads—>95% reuse

Pipe & Valve Plant: Furan sand recycling for ductile iron fittings—cuts new sand cost

Steel Casting Shop: Sodium silicate sand processing—minimizes landfill

Green Demonstration Line: Core unit in "zero-waste sand" closed-loop system
