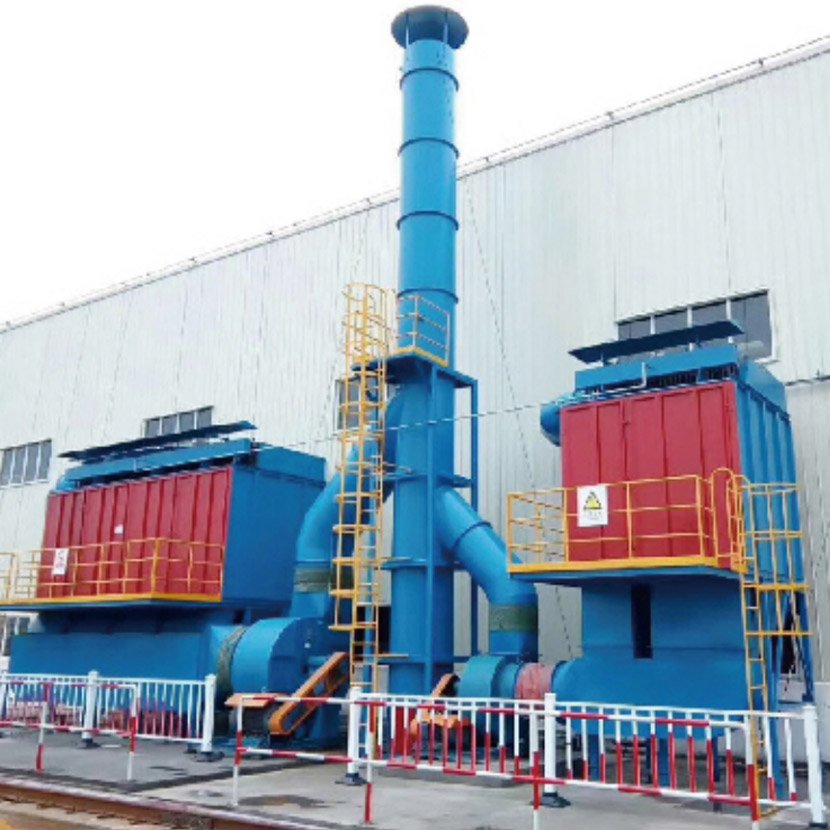

BHMC Pulse Bag Type Dust Collector

Environmental Protection Dust Removal Equipment

PREVIOUS NEXT

Product Details

Model	Filtering Area (m²)	Air Volume (m³/h)	Inlet Dust Concentration (g/m³)	Filtering Airspeed (m/min)	Working Resistance (Pa)	Outlet Dust Concentration (g/m³)	Dust Removing Pressure (MPa)
BHMC-32	32	2880–4800	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-48	48	4320–7200	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-60	60	5400–9000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-72	72	6480–10800	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-90	90	8100–13500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-120	120	10800–18000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-150	150	13000–22500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-180	180	16200–27000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-210	210	18900–31500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-250	250	22500–37500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-270	270	24300–40500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-300	300	27000–45000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-340	340	30400–51000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-420	420	37800–63000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-500	500	45000–75000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-600	600	54000–90000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-740	740	66600–111000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-870	870	78300–130500	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-1000	1000	90000–150000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
BHMC-1100	1100	99000–165000	< 1000	1.5–2.5	800–1800	< 80	0.4–0.6
