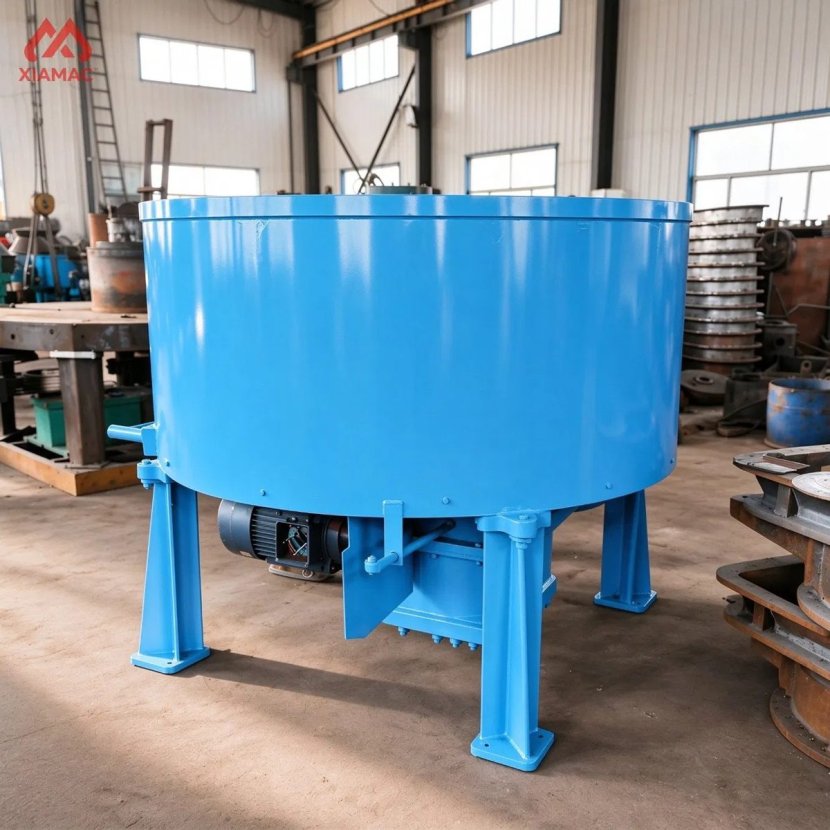

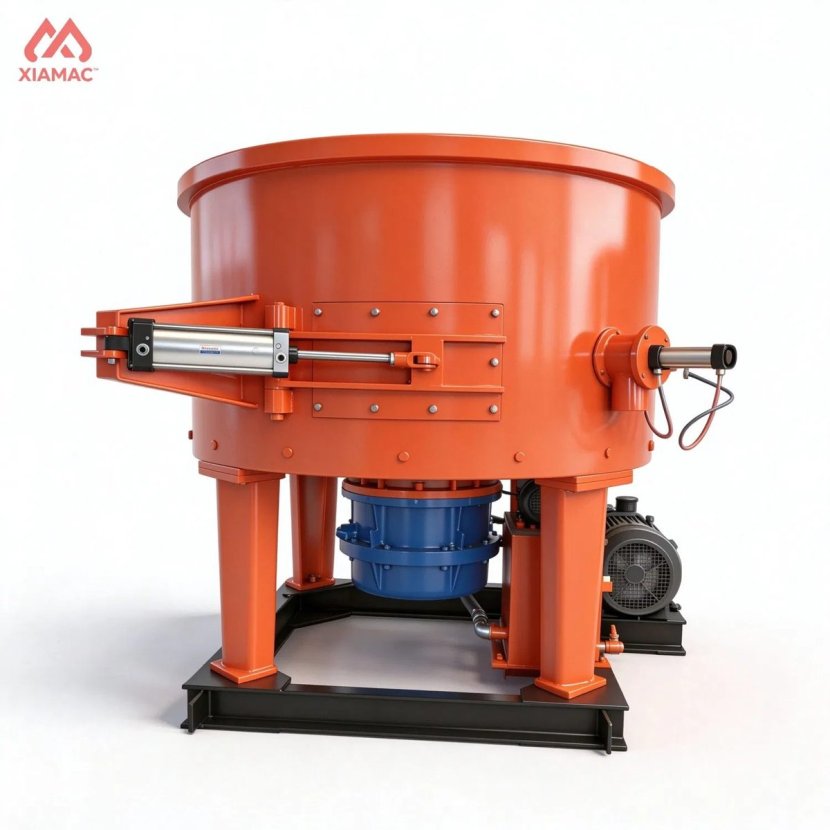

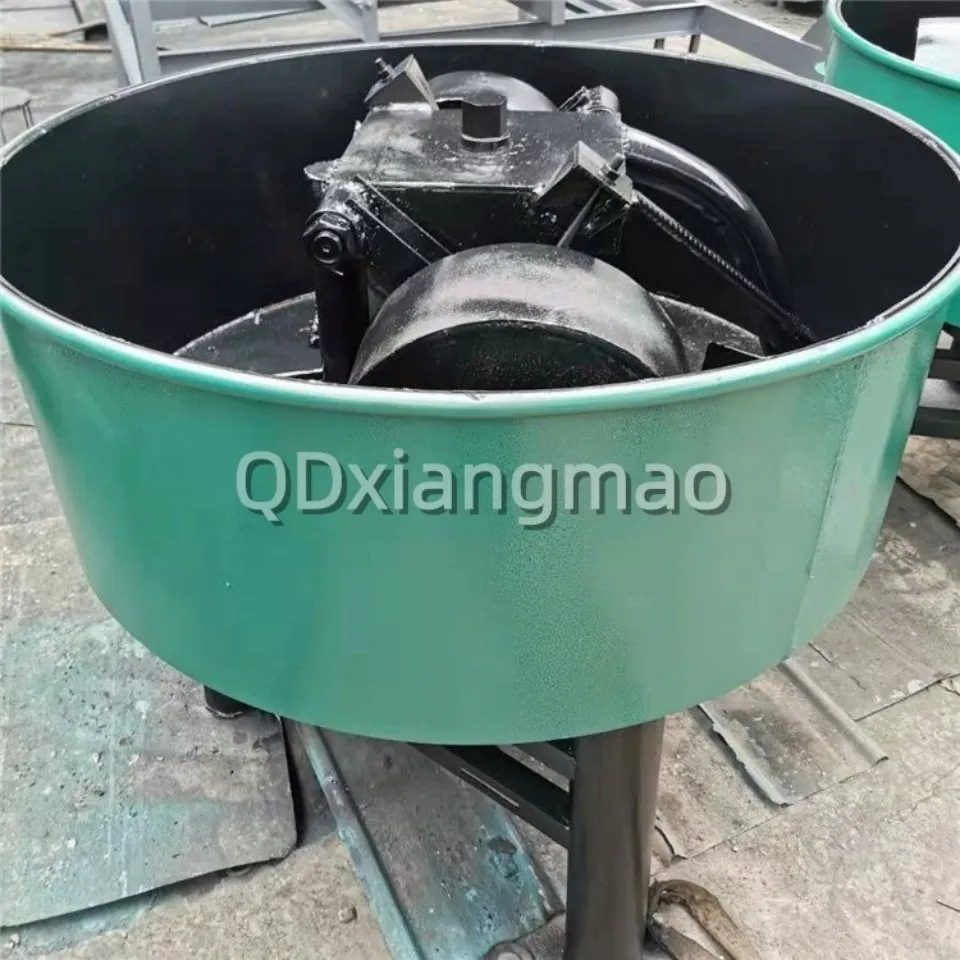

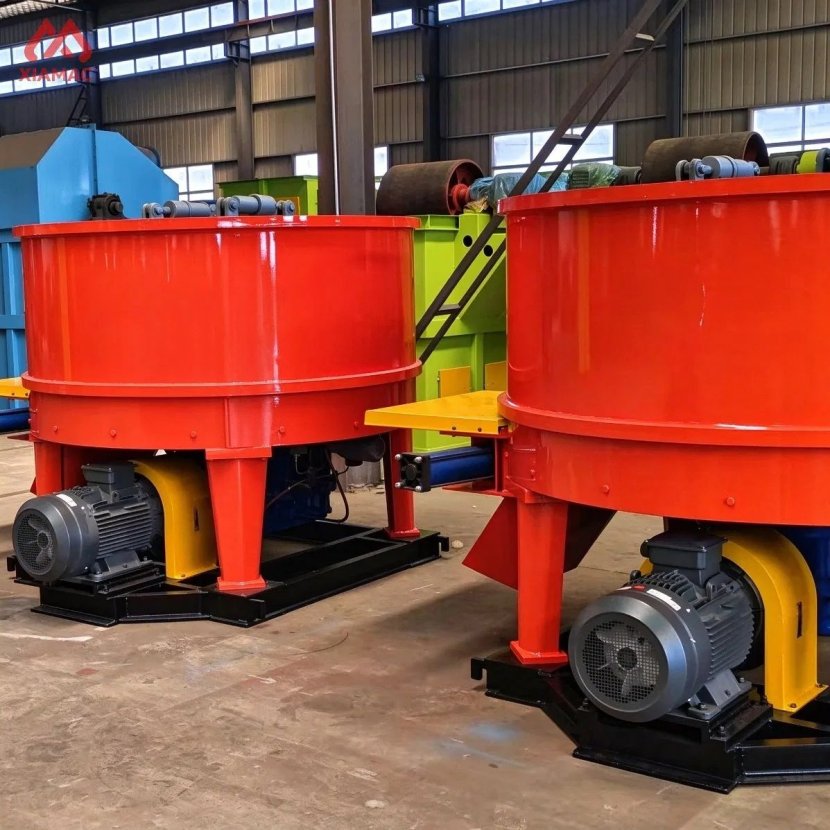

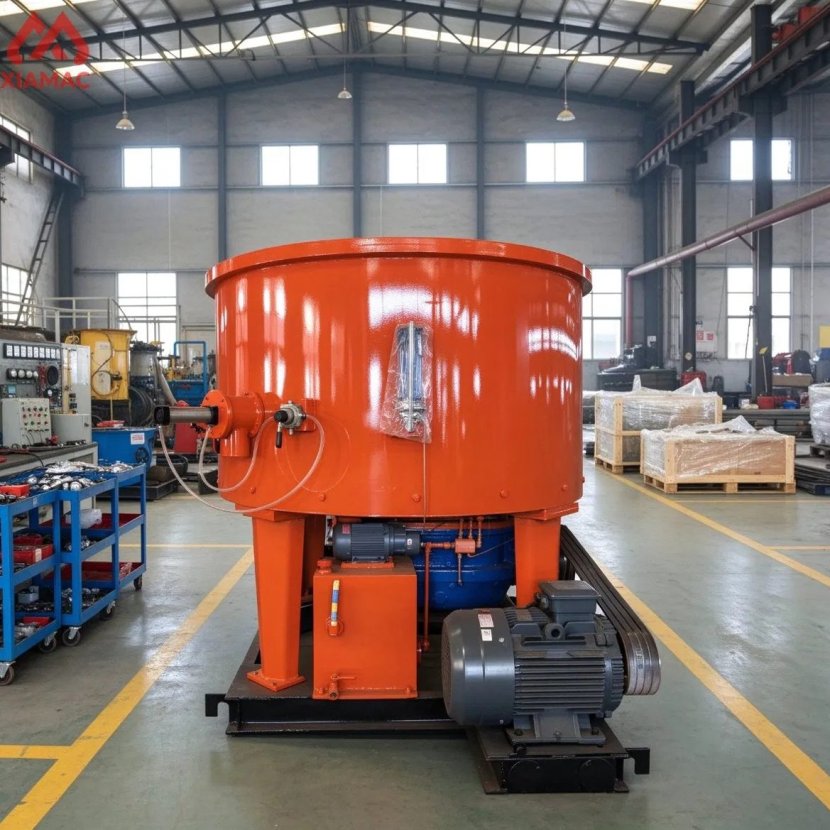

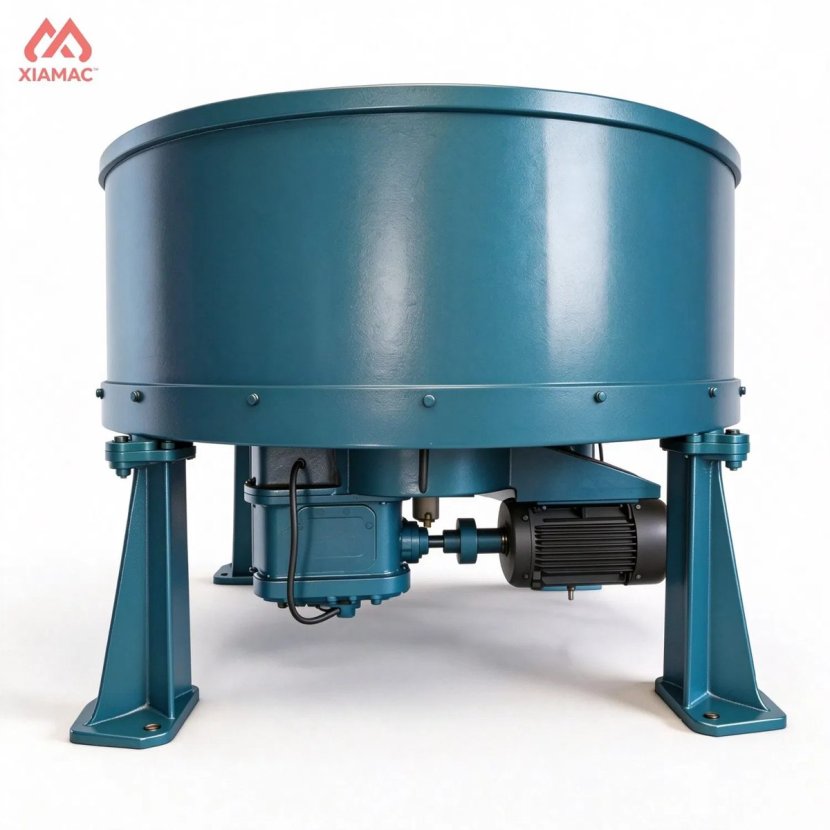

S11 Series Sand Mixing Machinery/Clay Sand Mixer Machine

Product Description

S11 Series Sand Muller for Green Sand

I. Application range:

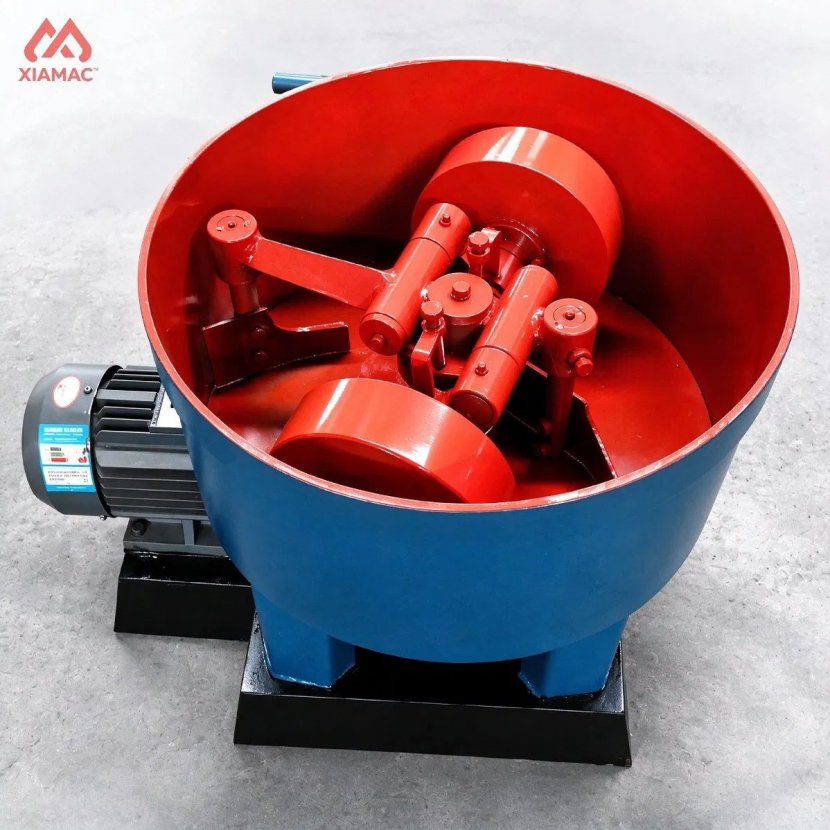

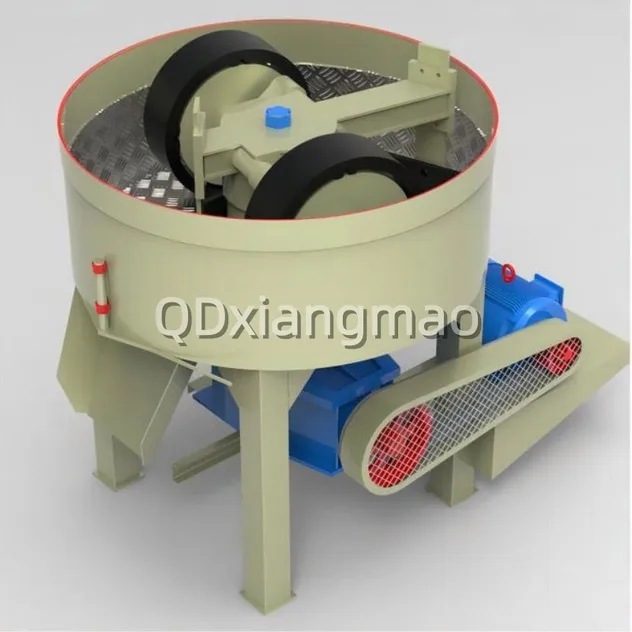

S11 series muller type sand mixer is a typical batch sand mixing equipment widely used in foundry industry. It adopts two muller rollers and scrapers. With the rotation of the pan and cross arm, the muller rollers exert rolling, grinding and kneading force on sand materials, while scrapers turn over and loosen sand, to fully mix sand, bentonite, coal powder, water and additives. It can make binder uniformly coat sand grains and obtain high-quality molding sand.

This machine is suitable for mixing green clay sand, water-glass sand and partial resin sand. The pan liner and muller wheels adopt wear-resistant cast iron for long service life. Compact structure, stable operation, easy maintenance and low failure rate. Optional automatic feeding, discharging and PLC control system.

It is widely matched with molding lines in small and medium foundries for iron casting, steel casting and alloy casting. Customized pan diameter and capacity available. We supply installation guidance and complete after-sales service.

Specification

High efficiency Rotor type clay sand mixer

for foundry green sand line

Features and Advantages: Optimized matching of "S" scraper and high speed rake type rotor, large sand mixing capacity, good and uniform sand mixing, better moulding sand performance.

Aluminum oxide wear-resistant ceramic bottom lining plates, alloy block surfacing scraper, new type filler, can greatly improve service life of wearing parts.

Soft start, alloy steel gear and lubrication controller can ensure steady and reliable transmission system and loaded operation.

The latest rotary unloading door opens flexibly and operates reliably.

Maintenance door for easy maintenance and sand cleaning.

Steel structure base for convenient machine installation.

Packing & Delivery

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

Manufacturing Workshop

FAQ

1. High sand mixing efficiency, good sand quality and wide application range.

2. New materials such as diabase cast stone, tungsten carbide surfacing, and No. 2 packing improve the life of wearing parts.

3. Hydraulic coupling, alloy steel gear, lubrication control machine, ensure the transmission system is stable and reliable, and can load start and overload protection.

4. Rotary discharge door is flexible and reliable.

5. Models with a diameter of ≥1600 mm are equipped with a steel chassis for ease of use and installation.
