Turntable Shot Blasting Machine PLC Controlled Steel Shot Abrasive Blasting Equipment Motor Customizable Power Easy

Product Description

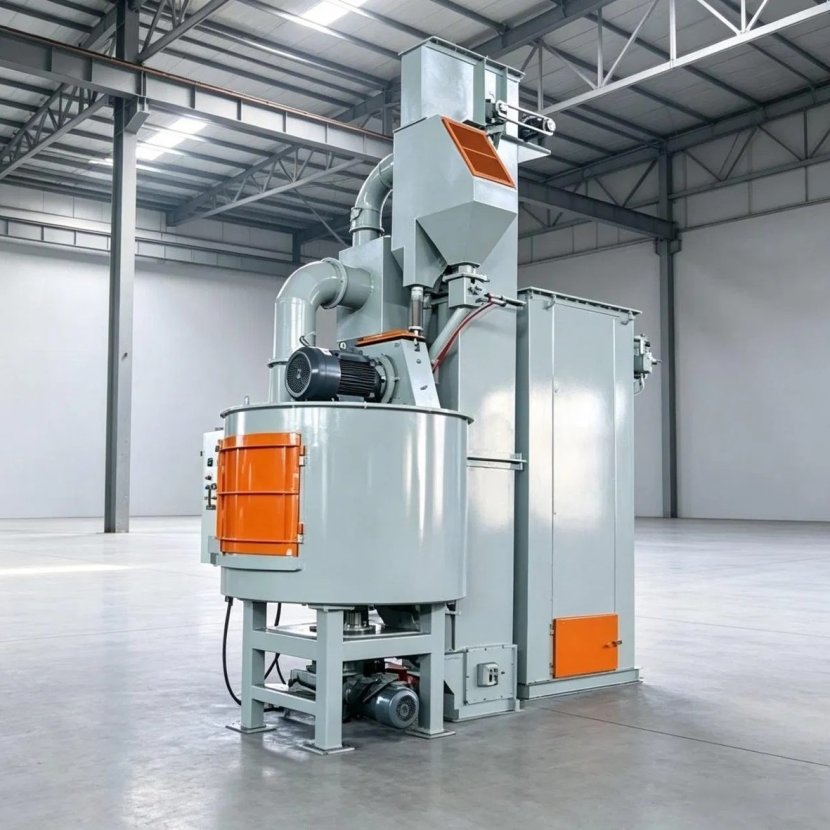

Xiangmao high-performance Rotating/rotary table shot blasting machine

Ideal for cleaning sand and oxide scale from flat, thin-walled, or collision-sensitive parts in casting, forging, and heat treatment workshops. Also used for surface strengthening treatment.

Rotating table shot-blasting machines offer a simple, versatile, and cost-effective surface treatment solution.

Parts are placed on the rotating table: Their surfaces are subject to shots from turbines.

Table diameter ranges from 500 to 2500mm, with a load capacity up to 1500 Kg.

No pit required; includes a self-cleaning dry cartridges dust collector.

Cleans dies, forgings, castings, welded and brazed parts.

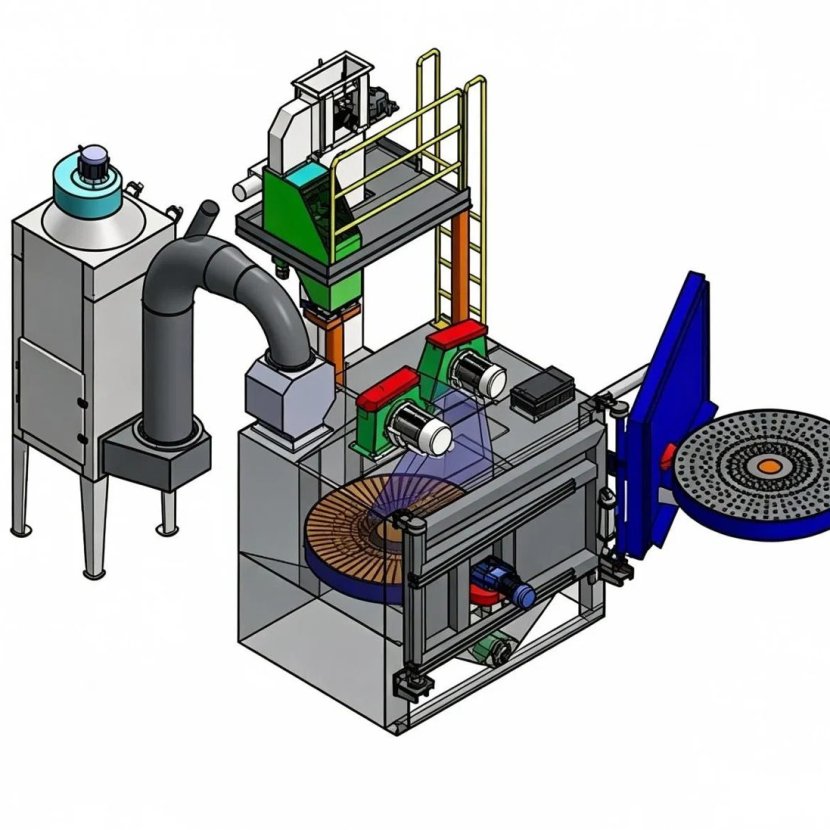

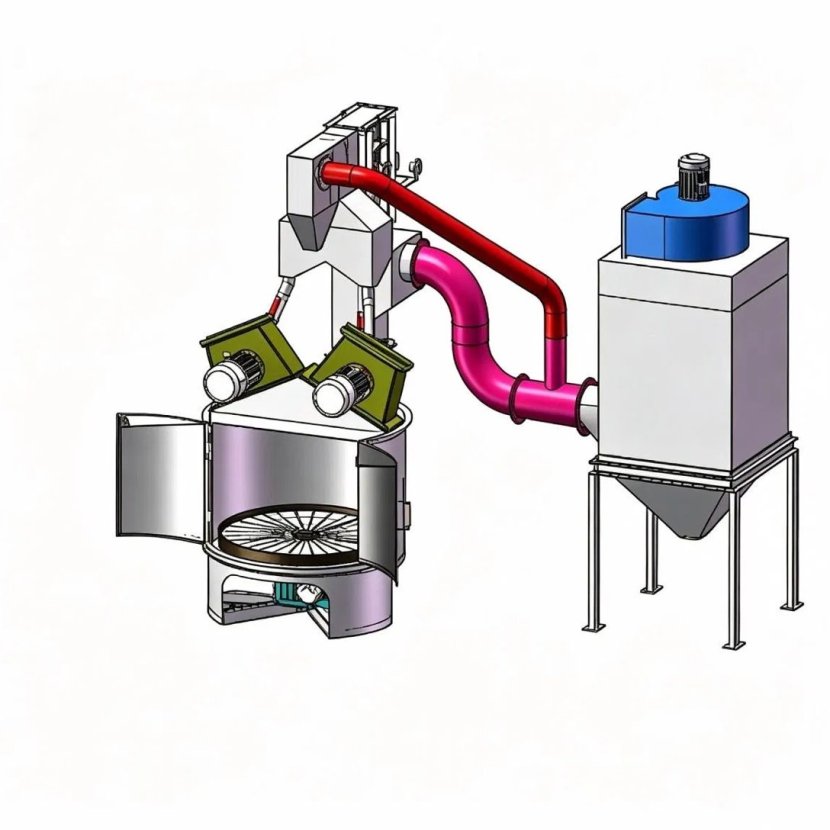

Key Configurations

1. Cabinet Body

The welded cabinet body includes the shell, top cover, and internal protection. The shell's bottom surface has a shot media collection pan connected to the turntable mechanism frame. Cabinet walls and top cover are bolted. Interior lined with Mn13 plates; top cover houses fixed shot blasting unit.

2. Turntable Mechanism

Turntable inside the cabinet is driven by a coupling. It includes a mesh disc with a perforated Mn13 liner plate, preventing large debris from reaching the base plate. A scraper plate collects shot media, channeling it into the elevator via a chute.

3. Shot Blasting Unit

Composed of impeller, blades, distributor wheel, and directional sleeve. The impeller's high-speed rotation carries shot media, which is ejected and accelerated by blades to clean workpieces.

Application

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery is a specialized sand casting equipment manufacturer, integrating R&D, design, and production.

Produces resin sand casting lines, clay sand reclamation equipment, V-process casting lines, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machines; Core shelling machinery, core shooting machines, Jolt Squeeze Molding Machines, and a full range of casting molding machinery.

ISO9001 certified, our product quality is recognized globally. Exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil, and more, we earn trust through quality and professional service.

We provide comprehensive support, including installation, commissioning, and training. For turnkey projects, our engineers offer dedicated on-site technical support.

Manufacturing Workshop

Certifications

Why Choose Us?-xiangmao machinery

OEM/ODM capabilities;

Competitive pricing & bulk discounts;

Fast shipping & customs clearance support;

Turnkey project solutions;

Shot Blasting Equipment;

Sand Blasting Equipment;

Shell coated sand casting line; Machining equipment;

Sand regeneration equipment; Environmental Protection System.

FAQ

Q: What is your parts going to be blasted?

A: Tell us the parts to be blasted, and we'll select the right machine for you.

Q: What is the max and min dimension of your parts?

A: Provide dimensions, and we'll design a suitable machine to save costs.

Q: How many pieces of your parts blasted per day in 8 hours?

A: Based on your needs, we design a machine with suitable capacity.

Q: What is the lead time of our shot blasting machine?

A: Small machines are often in stock.

Big machines take 45 to 60 days lead time.

Q: Are the machine tested before shipping?

A: Yes, all machines are tested before shipment.

Q:  What's your quality guarantee?

A: Quality is guaranteed for one year.

Q: Can you provide overseas installation? Duration?

A: Yes, customer covers travel costs; installation takes 2-25 days.

Small machine takes 2 to 4 days.

Big machine takes 20-25 days.

Q: Do you provide after-sales service overseas?

A: Yes, with partnered service centers in key areas.

Q: What documents do you provide for export?

A: Full export package (Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?

A: Contact us via email/phone for a quote, then confirm with a PO.
