Durable Resin Sand Mixer with Double-Arm Design for Casting Use/Automatic Resin Sand Processing Mixing Machine Continuous Resin Sand Mixer

Product Description

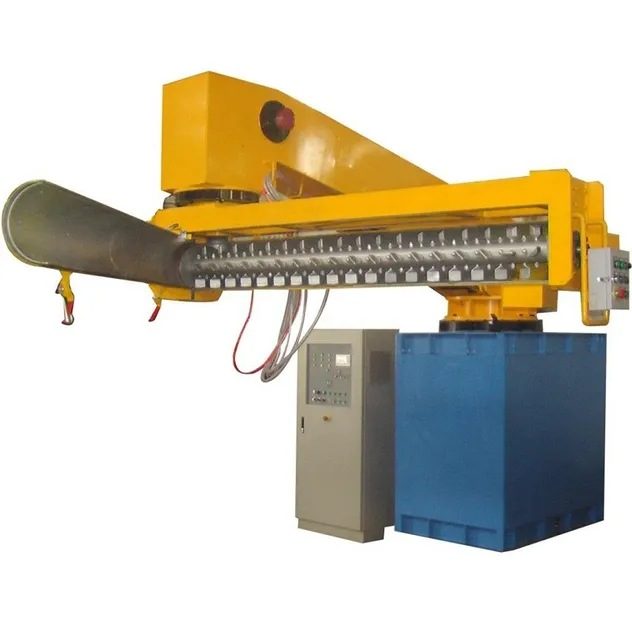

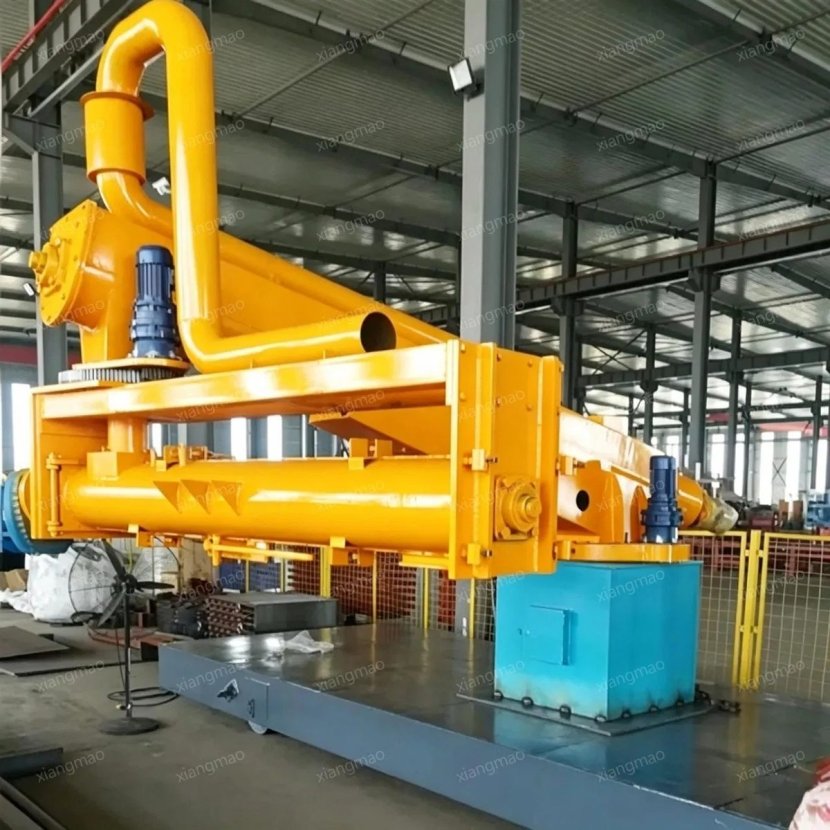

The S255 double-arm rotary sand mixer

S25-Series double-arm continuous resin sand mixer is special continuous mixing equipment for foundry self-hardening sand production. It is mainly used for mixing furan resin sand, alkaline phenolic resin sand and sodium silicate sand, widely matched with resin sand reclamation lines for steel casting, iron casting and non-ferrous casting workshopsQingdao An....

Equipped with two rotary mixing arms, the machine covers a large working radius. While one arm is working for continuous sand mixing and discharging, the other arm can stand-by or be cleaned, realizing flexible on-site operation for multi-station molding and core-making. The binder feeding system consists of gear pump and diaphragm pump, realizing accurate metering for resin and hardener with stable flow rate.

The mixing cage adopts full-open split-type structure. Mixing blades are easy to inspect, adjust and replace, greatly reducing daily maintenance workload. Short mixing time, no head-tail residual sand, complete material discharge after shutdown. Uniform mixed sand guarantees stable molding and core-making qualityMade-in-Ch....

Whole machine adopts PLC + touch-screen control with complete safety interlock protection. Parameters such as sand flow, resin and hardener adding ratio can be preset and stored. Dust-removal interface can be reserved at sand outlet to reduce dust and odor on working site. It can work independently or integrate with resin sand regeneration system for automatic production line. Customized output and arm rotation radius are available according to customer workshop layout.

Main Features

Double-arm rotary design, large working coverage, suitable for multi-station molding and core-shooting production

Gear pump & diaphragm pump for binder feeding, accurate metering of resin and hardener

Full-open split mixing cage, convenient for blade maintenance and cleaning

Short mixing cycle, no residual head-tail sand, stable sand quality

PLC automatic control, multi-groups of formula storage, easy parameter adjustment

Optional dust removal & deodorization interface to improve workshop environment

Support customized capacity, arm length and layout for different foundry conditions

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

Manufacturing Workshop

Certifications

FAQ

If you want to learn more, please click on contact us.

Q1:What are the main functions of the resin sand reclamation line?

A1:This production line automatically recycles, purifies and reclaims waste resin sand after casting. It effectively solves the problems of sand waste, solid waste accumulation and high cost of new sand purchase. The reclaimed sand can be reused directly for molding, greatly reducing production costs and meeting environmental protection standards.

Q2: What is the recycling rate of reclaimed resin sand?

A:The reclamation process is stable and reliable, with a sand recycling rate of over 90%. Dust and residual resin film are completely removed. The performance of reclaimed sand is close to new sand, which can replace more than 90% of new sand for molding, saving long-term raw material costs.

Q3:Is the production line space-saving? Can it adapt to existing workshops?

A:Adopting modular and compact design, the whole line can be customized according to workshop size, site layout and capacity requirements. It is suitable for both new workshops and old factory renovations with convenient installation and commissioning.

Q4:What is the automation level? Does it require many workers?

A:The whole line adopts centralized intelligent control, realizing full automatic operation from shakeout, conveying, crushing, reclamation, sand storage to sand mixing. Only 1-2 workers are required for supervision, which greatly saves labor cost with stable performance and low failure rate.

Q5:Is the equipment environmentally compliant? How to control dust?

A:Fully enclosed operation with pulse dust removal system ensures thorough dust collection without overflow. It fully meets domestic environmental inspection standards and export environmental requirements, supporting green and compliant production.

Q6:Is customized production line available?

A:Customized solutions are available according to customer hourly output, casting types and used sand conditions. We provide small, medium and large complete resin sand processing lines, as well as customized sand mixing, conveying and storage systems to support one-stop foundry sand treatment solutions.
