Product Description

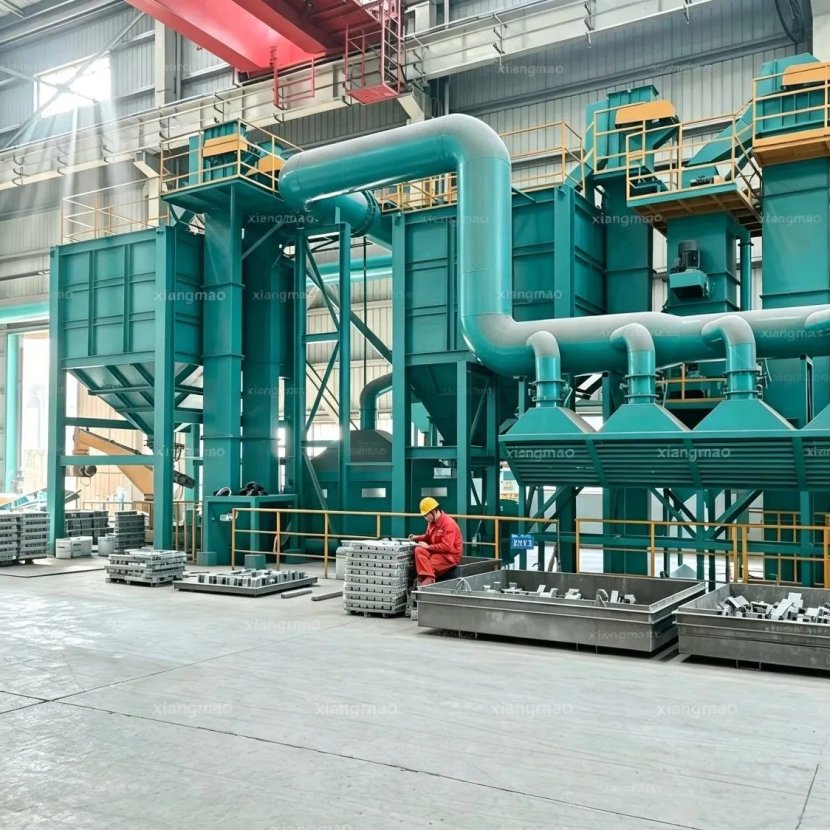

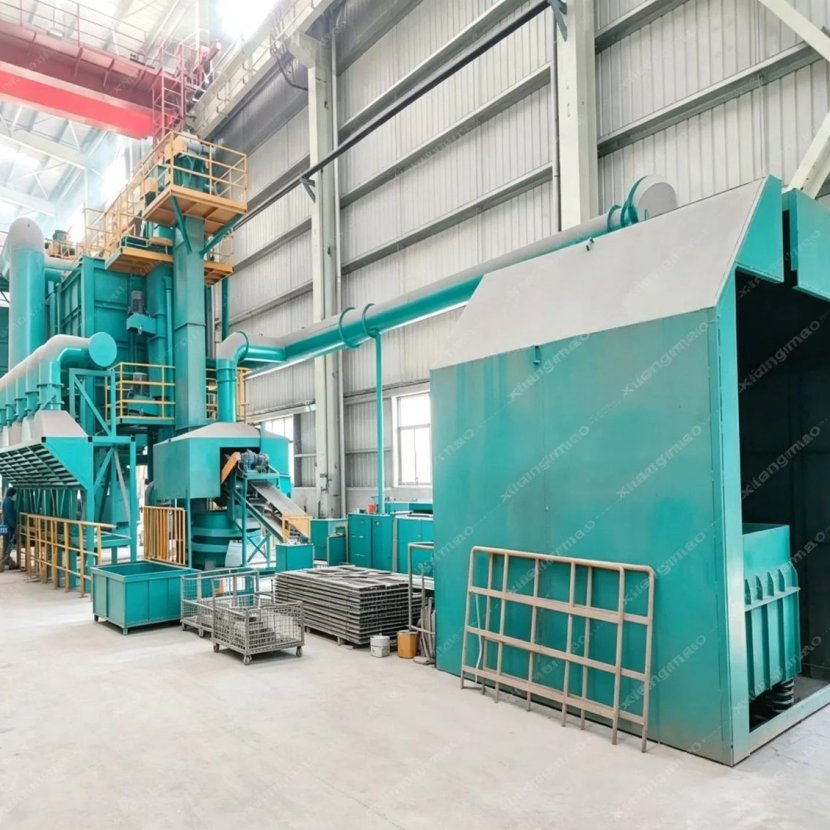

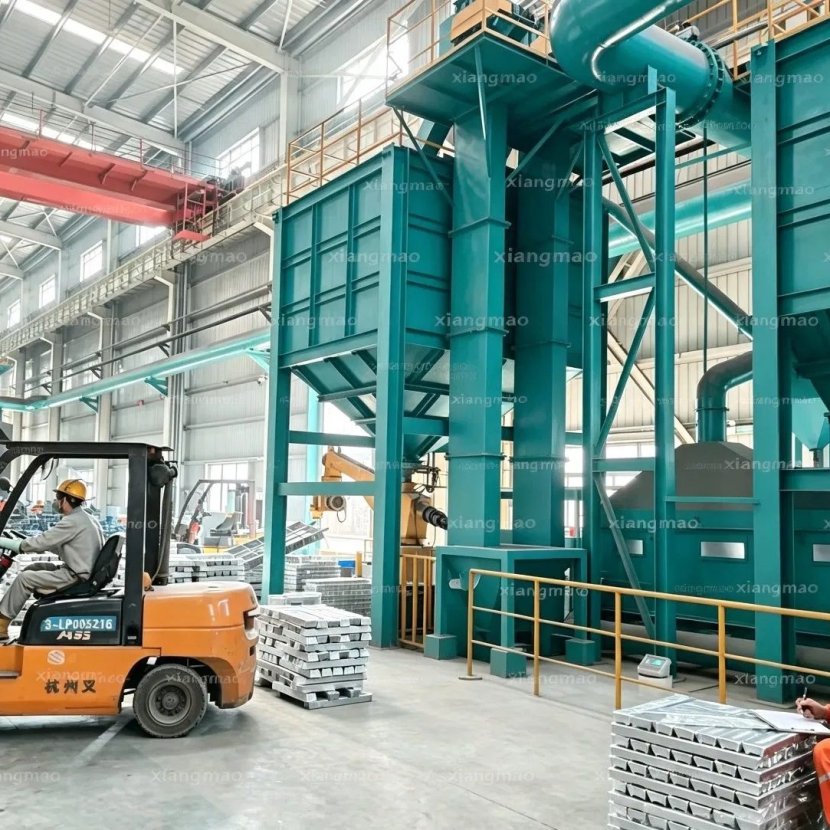

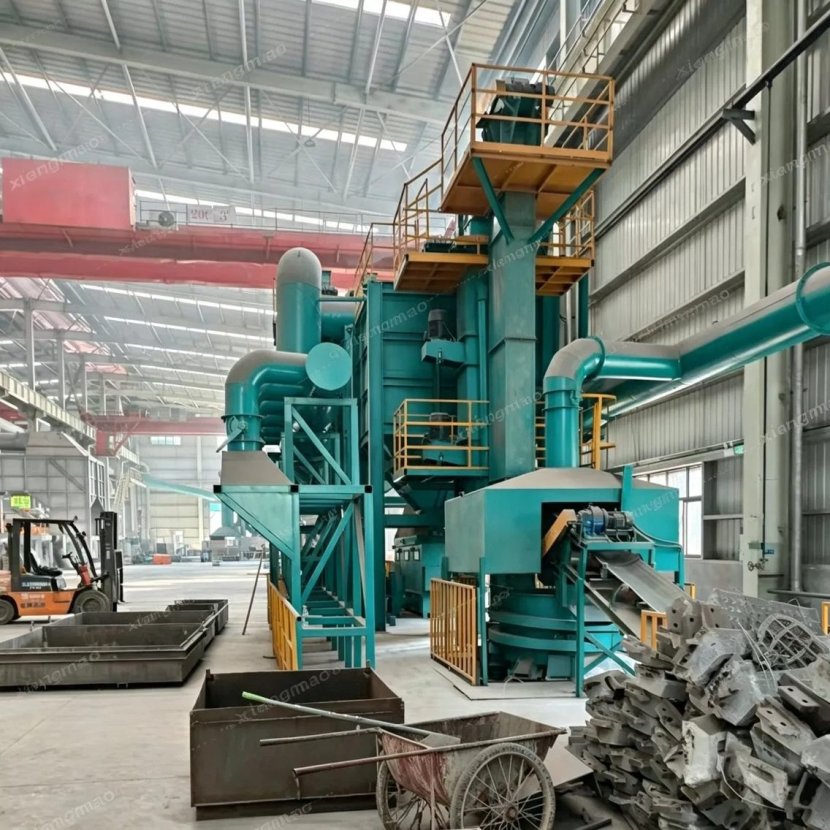

The resin sand reclamation line

The resin sand reclamation line is core complete equipment for foundry industry. It performs a full automatic processing of used resin sand: shakeout, crushing, magnetic separation, air separation, sand reclamation, temperature adjustment, sand storage and sand mixing. Reclaimed sand can be recycled continuously, greatly cutting cost of fresh sand purchase and reducing solid waste discharge to realize green casting. Adopting modular structure, the whole line features flexible layout and high automation. It is widely adopted in resin sand foundry workshops for engineering machinery, valves, auto spare parts and machine tool castings.

Core Components & Technological Process

1. Shakeout: Separate castings from used sand by flask shaker.

2. Conveying & Magnetic Separation: Vibrating conveyor transports sand; suspension magnetic separator removes iron scraps and metal impurities.

3. Crushing: Crusher breaks agglomerated sand lumps.

4. Air Separation: Wind separator removes dust and residual coating film.

5. Sand Reclamation: Reclaimer rubs and strips residual resin film on sand grain surface.

6. Sand Temperature Control: Sand temperature regulator stabilizes sand temperature for consistent mixing performance.

7. Sand Storage: Intermediate sand bin & double sand bin store and buffer reclaimed sand.

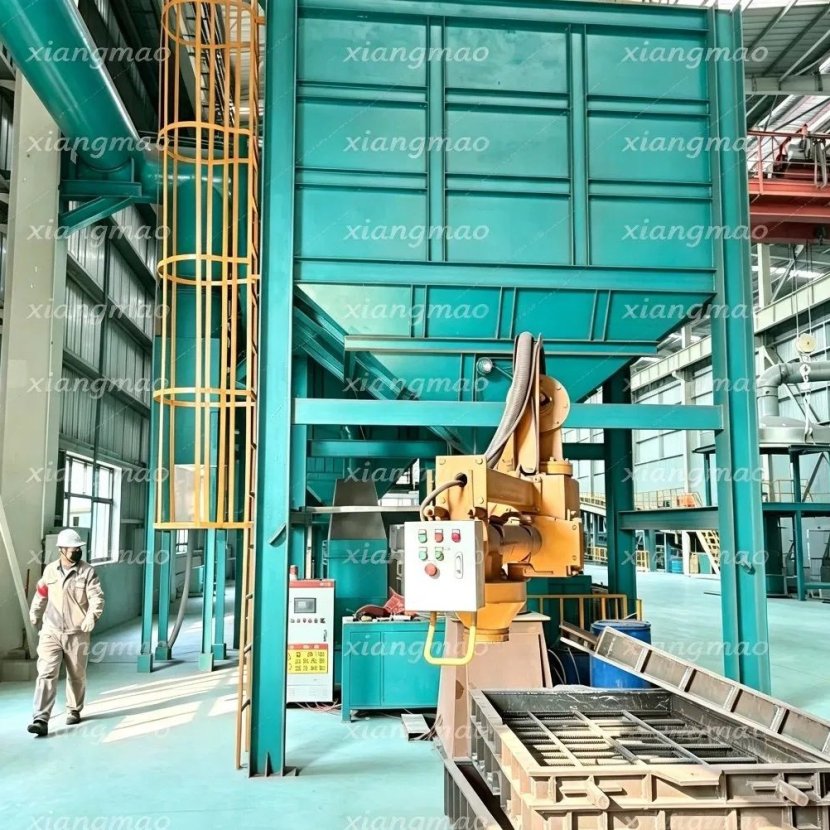

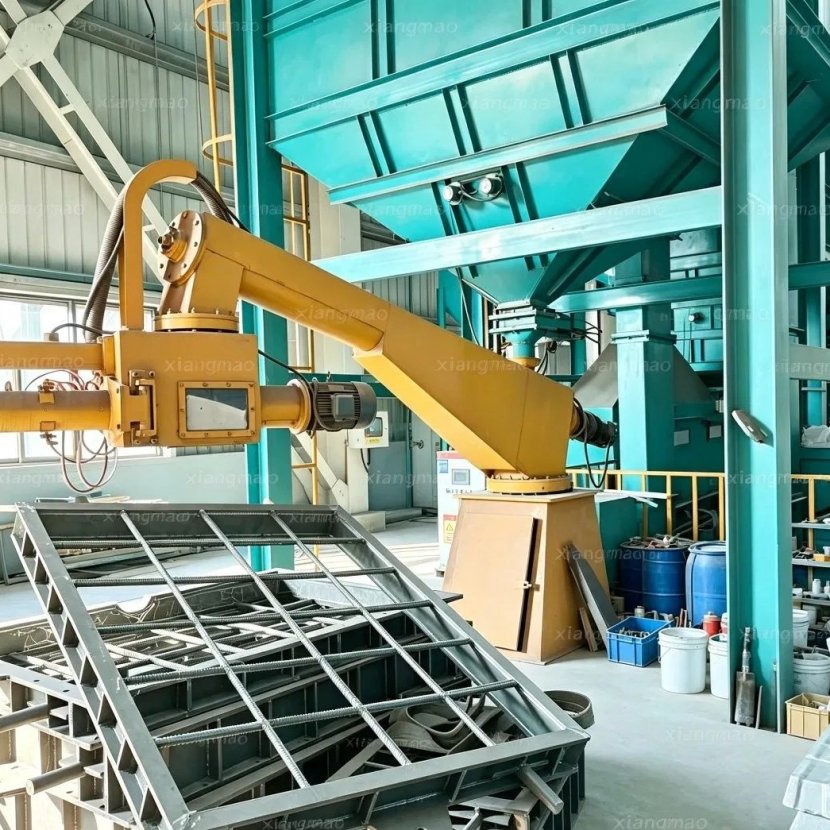

8. Automatic Sand Mixing: Reclaimed sand is delivered to sand mixer, mixed with resin and curing agent for molding sand.

9. Molding & Compaction: Prepared molding sand is transported to vibration table for casting molding.

Key Advantages

High casting precision:Resin sand mold has strong stability and low collapsibility, reducing dimensional errors and surface defects of castings.

Efficient production:Automated operation shortens the molding and curing cycle, improving production efficiency by 30%-50% compared with traditional sand casting.

Wide applicability:Suitable for small-batch and mass production of castings with complex structures, thick or thin walls, and various material types.

Environmental friendliness:Sand regeneration technology and waste treatment system minimize resource waste and environmental pollution.

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

Manufacturing Workshop

Certifications

FAQ

If you want to learn more, please click on contact us.

Q1:What are the main functions of the resin sand reclamation line?

A1:This production line automatically recycles, purifies and reclaims waste resin sand after casting. It effectively solves the problems of sand waste, solid waste accumulation and high cost of new sand purchase. The reclaimed sand can be reused directly for molding, greatly reducing production costs and meeting environmental protection standards.

Q2: What is the recycling rate of reclaimed resin sand?

A:The reclamation process is stable and reliable, with a sand recycling rate of over 90%. Dust and residual resin film are completely removed. The performance of reclaimed sand is close to new sand, which can replace more than 90% of new sand for molding, saving long-term raw material costs.

Q3:Is the production line space-saving? Can it adapt to existing workshops?

A:Adopting modular and compact design, the whole line can be customized according to workshop size, site layout and capacity requirements. It is suitable for both new workshops and old factory renovations with convenient installation and commissioning.

Q4:What is the automation level? Does it require many workers?

A:The whole line adopts centralized intelligent control, realizing full automatic operation from shakeout, conveying, crushing, reclamation, sand storage to sand mixing. Only 1-2 workers are required for supervision, which greatly saves labor cost with stable performance and low failure rate.

Q5:Is the equipment environmentally compliant? How to control dust?

A:Fully enclosed operation with pulse dust removal system ensures thorough dust collection without overflow. It fully meets domestic environmental inspection standards and export environmental requirements, supporting green and compliant production.

Q6:Is customized production line available?

A:Customized solutions are available according to customer hourly output, casting types and used sand conditions. We provide small, medium and large complete resin sand processing lines, as well as customized sand mixing, conveying and storage systems to support one-stop foundry sand treatment solutions.
