Advanced Vibration Fluidized Bed Cooler with Essential Component Green Sand Casting Line Sand Reclamation Regeneration Equipment Line Iron Shot Blasting Machine

Product Description

vibrating boiling boilig bed

S86 series foundry Boiling Cooling Bed class ensures a effective separation of dead clay as well as cooling of sand using a unique water heat transfer system. An all-in-one system eliminates the need for a separate sand cooler and sand classifier.

Foundry boiling cooling bed is designed for Hot conditions as Asian And African Continental.

Foundry boil cooling bed is used to get perfect temperature of returning sand before entering in sand mixture.

Specification

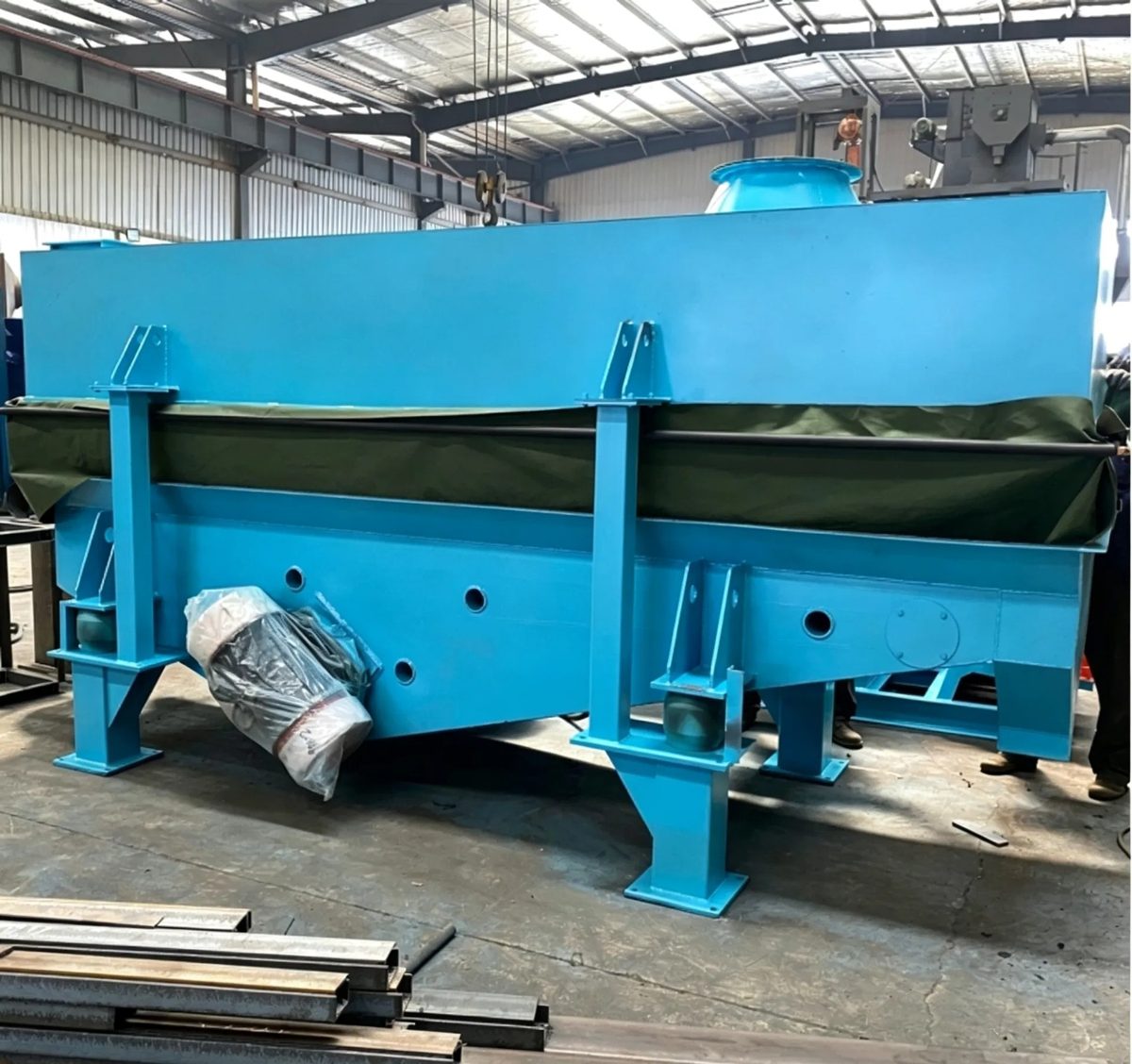

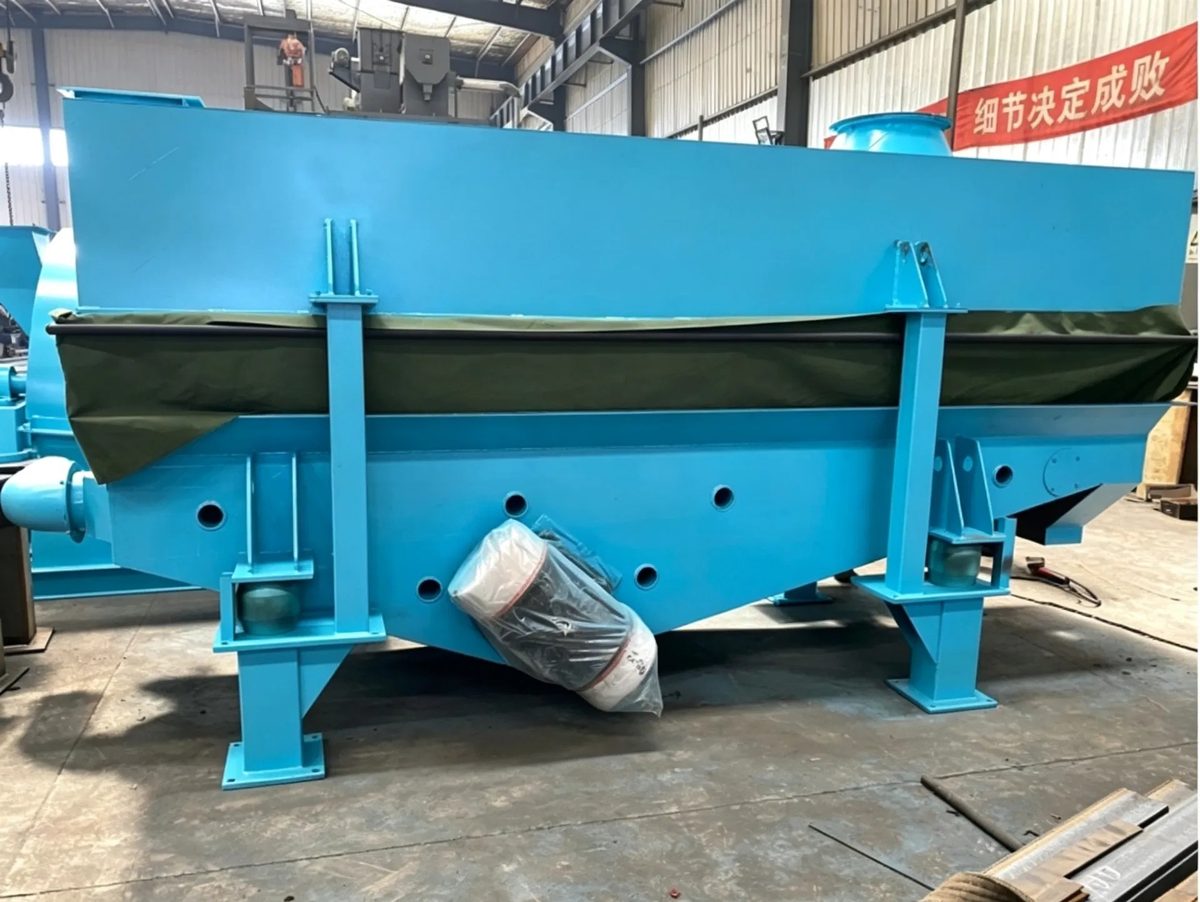

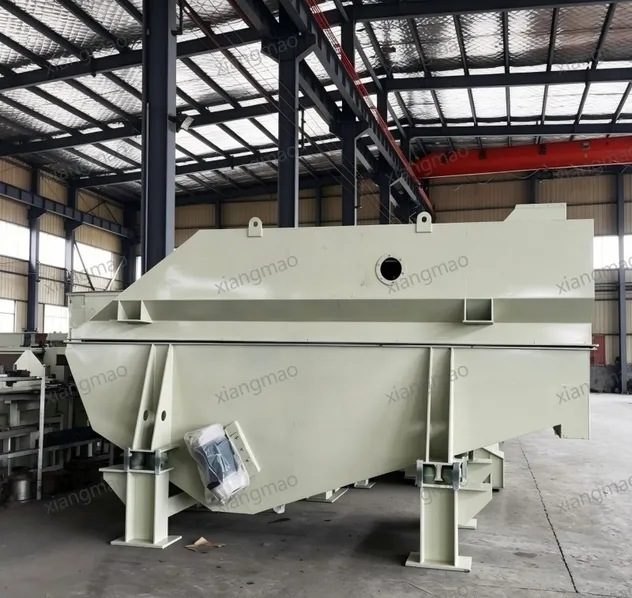

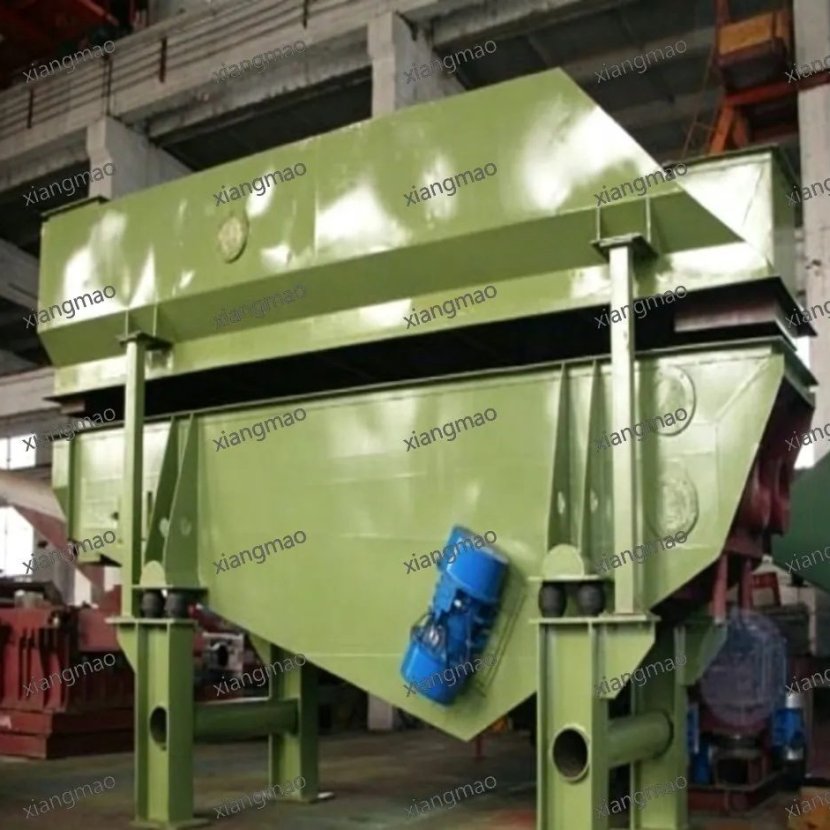

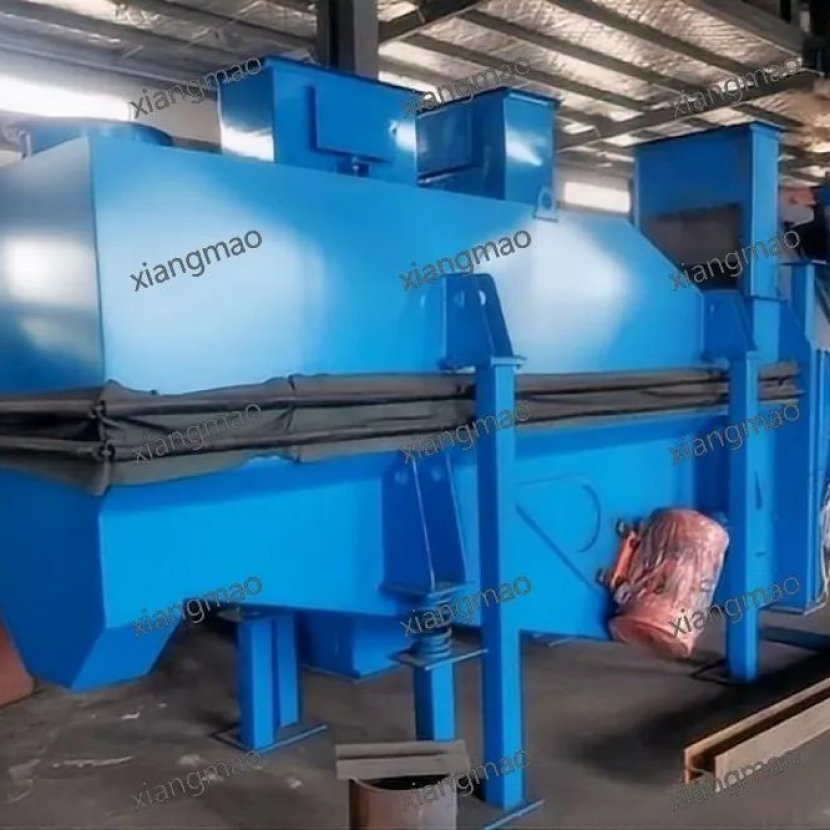

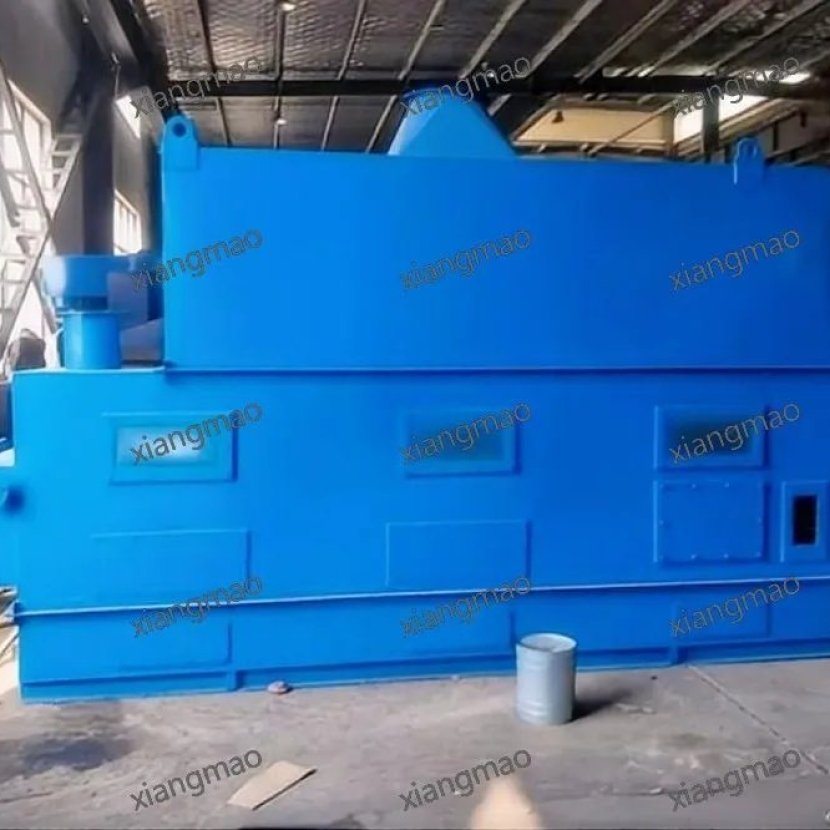

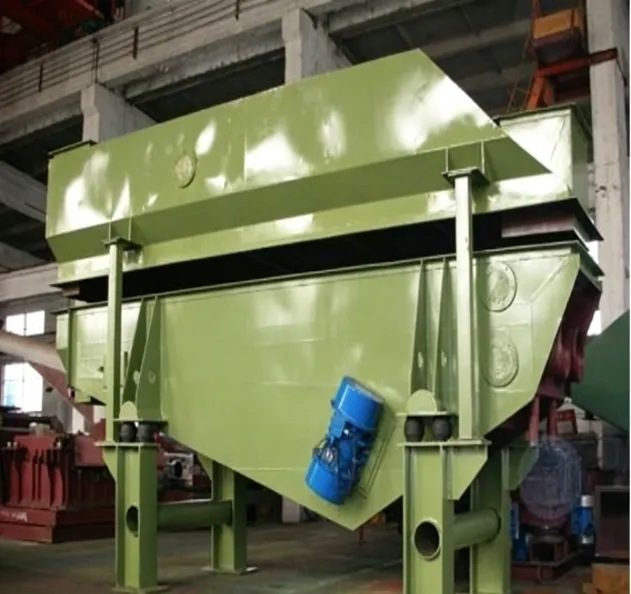

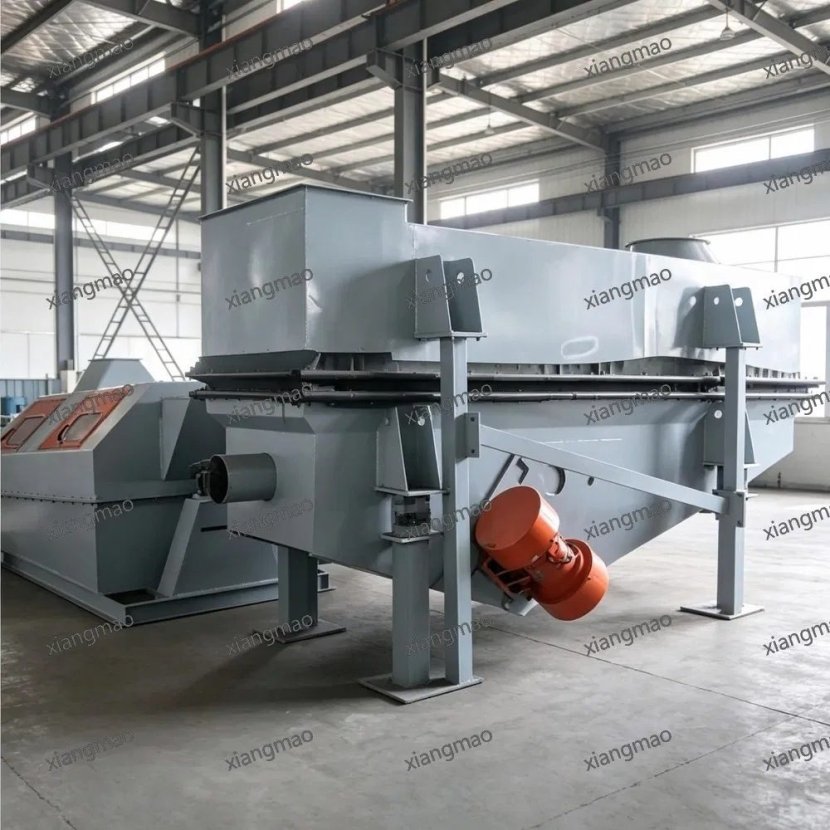

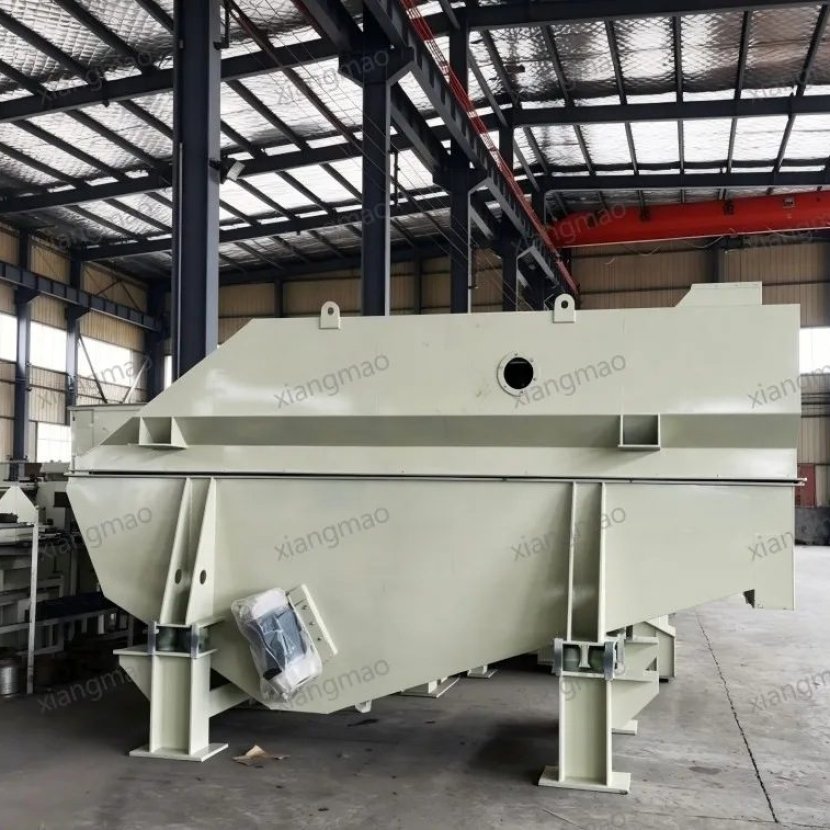

Vibration Fluidized Bed Cooler Foundry Green Sand Cooler

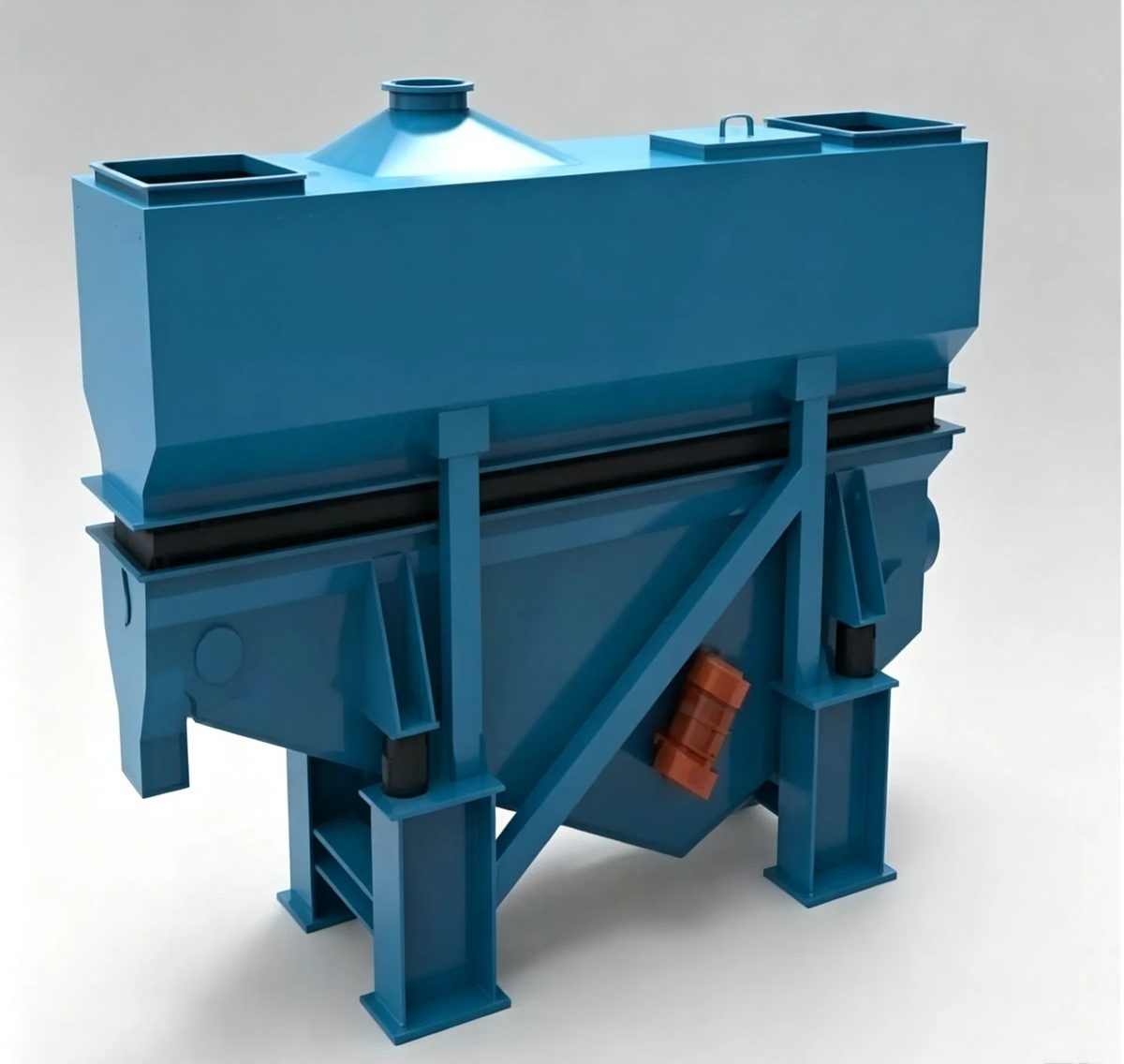

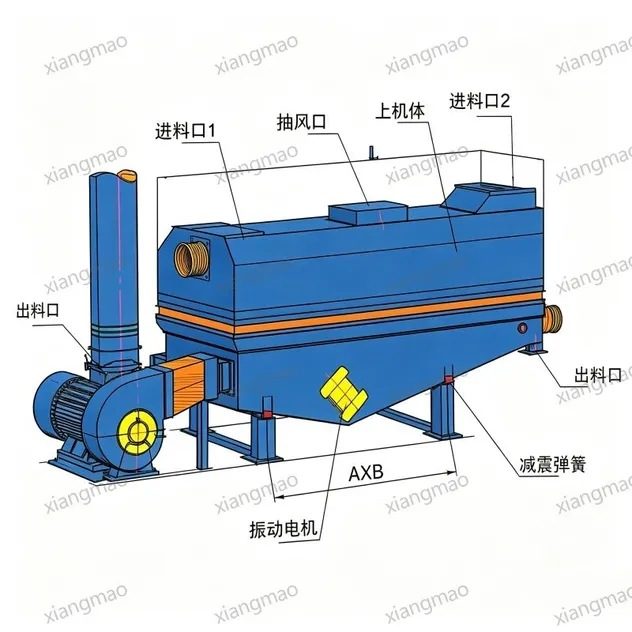

The vibratory boiling cooling bed consists of a bed of porous fish scale plates, a blast system, an exhaust system and a humidification system agitator.

The hot old sand falls into the orifice plate of the vibrating boiling cooling bed, and while advancing in the direction of vibration, it is sprayed with water through the humidifier. The blast system blows cold air into the lower part of the fish scale plate, so that the hot sand is in a boiling state, and the air is fully in contact with the hot sand, which takes away the water vapor in the hot sand and discharges it by the exhaust system, and the hot sand achieves the purpose of cooling.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Green sand hexagonal sieve use 6x16mm or 8x18mm screens to crush and separate bigger clay sands(>4-5mm) into smaller size. Rotating sieve is hexagonal size. Inlet side is bigger and higher and outlet side is smaller and lower. Thus, 30-40% used sands go into sieve.We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Molding machine and Sand Reclamation Machine. We also design custom production line of green sand casting prodcution.

Packing & Delivery

Application:

Green/clay sand casting molding line mainly consists of sand shakeout machine,vibration conveyor,suspension magnetic separator,magnetic separaton belt conveyor, elevator,hexagonal sandscreen,fluidized bed, sand (auxiliary)electronic scale, sand mixer,etc, equipped with dust collecting system.

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Manufacturing Workshop

Certifications

FAQ

Please enter the title here

1.How many days do you need to produce this machine?

This is specially designed machine according to your specific requirement. From engineers designing to production completion, it needs about 30-45 days.

2. What does your factory do regarding quality control?

We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.

3.What's your machine quality guarantee?

Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.

4.Could you give installation and commissioning overseas? How long will it take?

Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.

Small machines usually takes 5 days, while big machines usually takes about 20 days.

5.How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
