Customized Foundry Mold Upender Flipping Ejection Machine 180° Turnover for Sand Casting Molding Line

Product Description

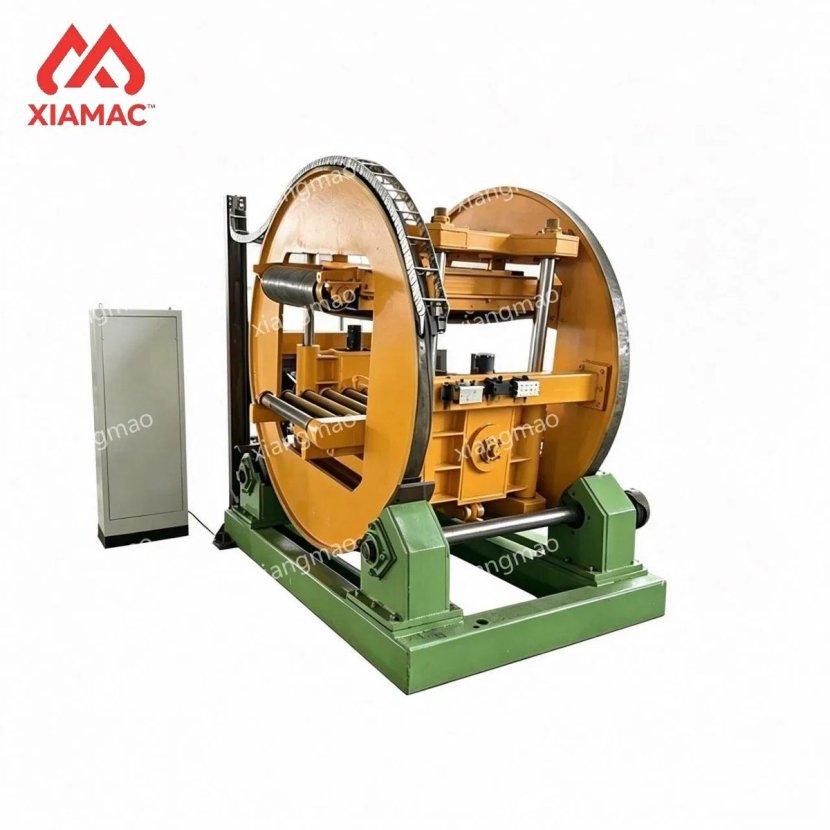

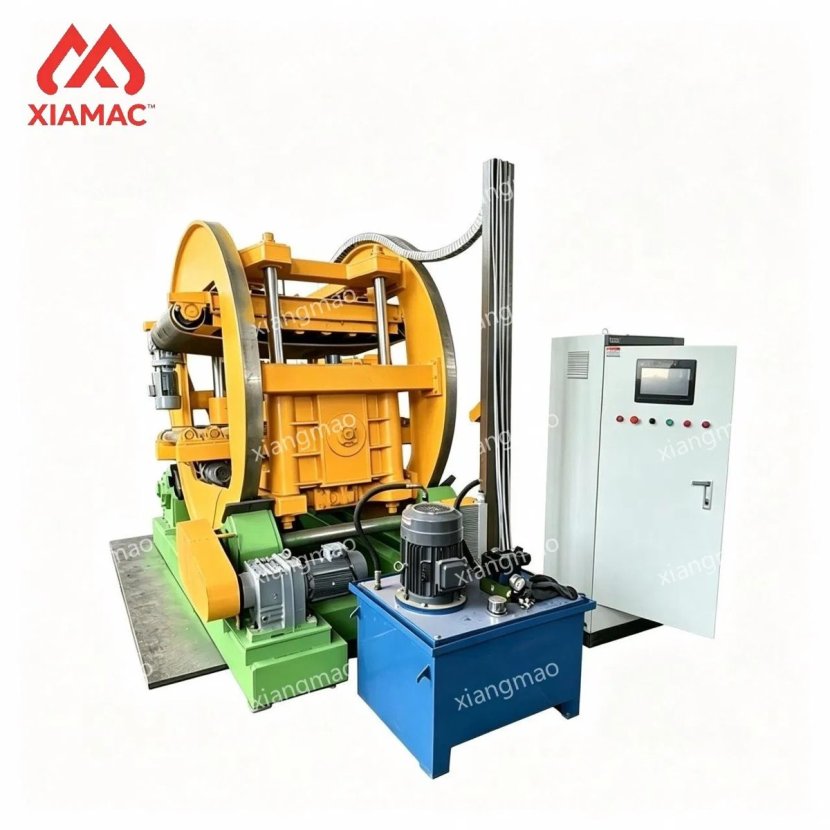

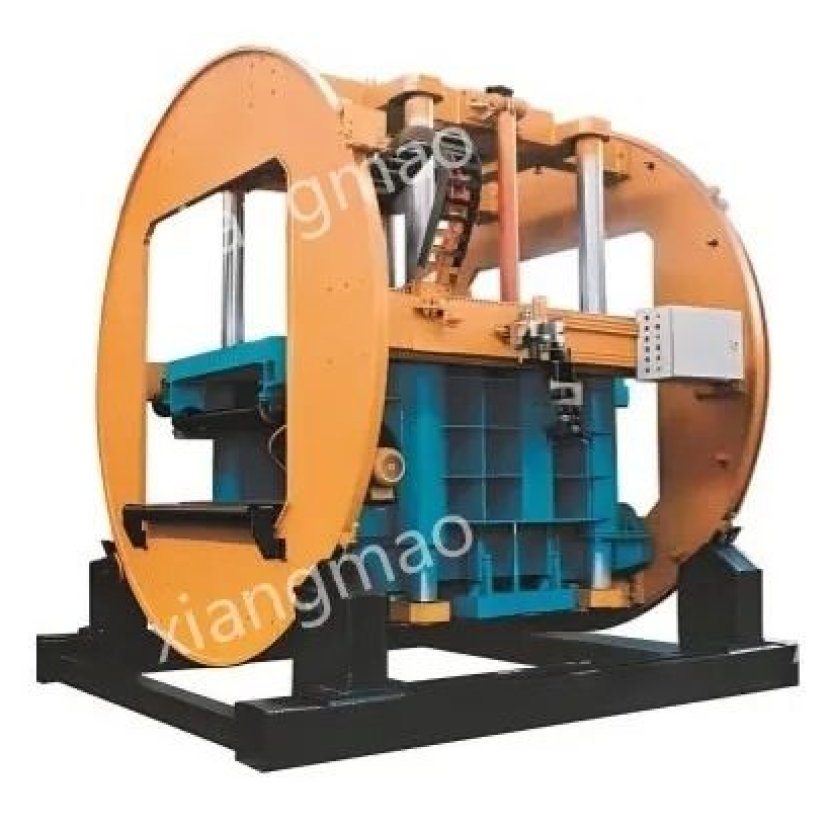

Automatic flipping and ejection machine for casting

Our Automatic Mould Inversion & Pattern Withdrawal Machine is a critical piece of equipment in modern resin sand and self-hardening sand molding lines. It performs precise 180° flipping and synchronized pattern withdrawal after the sand has been compacted, ensuring the integrity of the sand mold while significantly improving production efficiency and worker safety. Ideal for both manual and fully automatic foundry systems.

Key Features

High-Precision Synchronized Lifting: Dual hydraulic cylinders with proportional control ensure dynamic synchronization accuracy ≤2 mm and steady-state accuracy ≤0.1 mm, preventing mold damage during pattern withdrawal.

Gentle 180° Inversion: Smooth flipping motion via servo-controlled reducer or hydraulic motor minimizes vibration, protecting delicate patterns and fragile molds.

Universal for Various Molding Processes: Compatible with flask (boxed) and flaskless (boxless) molding, suitable for horizontal parting, vertical parting, and core-setting operations.

Robust & Durable Construction: Heavy-duty steel frame with stress-relieved welding, designed for continuous operation in harsh foundry environments.

Smart Control System: Siemens S7-300 PLC + HMI interface enables one-button operation, fault diagnosis, and integration with automatic molding lines.

Customizable for Your Line: Adjustable stroke, speed, and clamping force based on pattern size, sand type, and production rhythm.

Product Technical Parameter

Typical Applications:

Resin Sand Molding Line

After compaction, the machine flips the sand box and withdraws the pattern to prepare for core setting or pouring.

Large Casting Production

Handles heavy patterns (e.g., engine blocks, pump housings, valve bodies) with high stability and repeatability.

Automated Foundry Workshop

Integrates with conveyors, robotic arms, and pouring systems for fully unmanned operation.

Pattern Maintenance & Inspection

Provides easy access to the pattern after withdrawal for cleaning, coating, or quality check.

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Manufacturing Workshop

Packing & Delivery

FAQ

Q1: Can i have your quotation?

A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the

suitable machine.

Q 2: How to operate and maintain the machine?

A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in

the best status for you; At last, we also provide abroad technical training service.

Q 3: Where is your factory located ? How can I visit it ?

A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.

Q 4 :What's dimension of your workpiece ?

A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.

Q 5: Can you guarantee you quality?

A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory

,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our

production completely.
