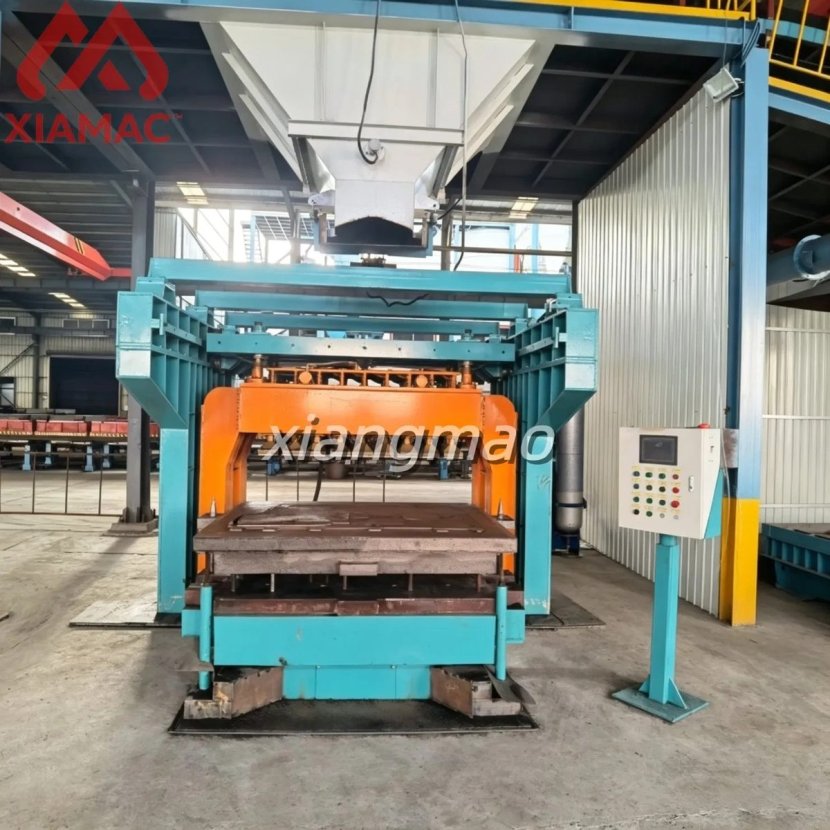

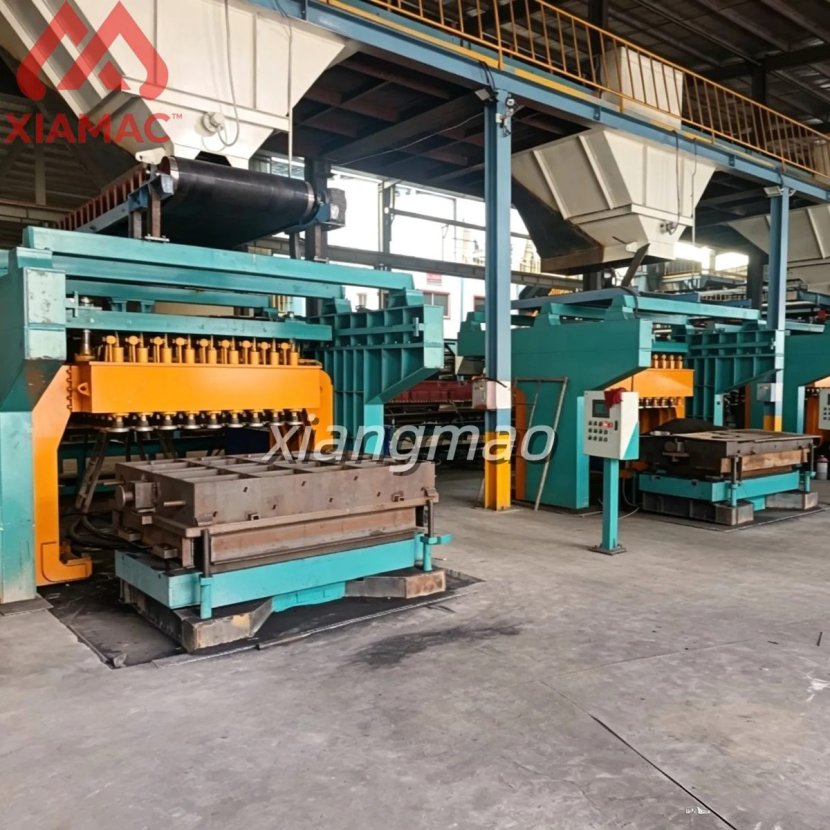

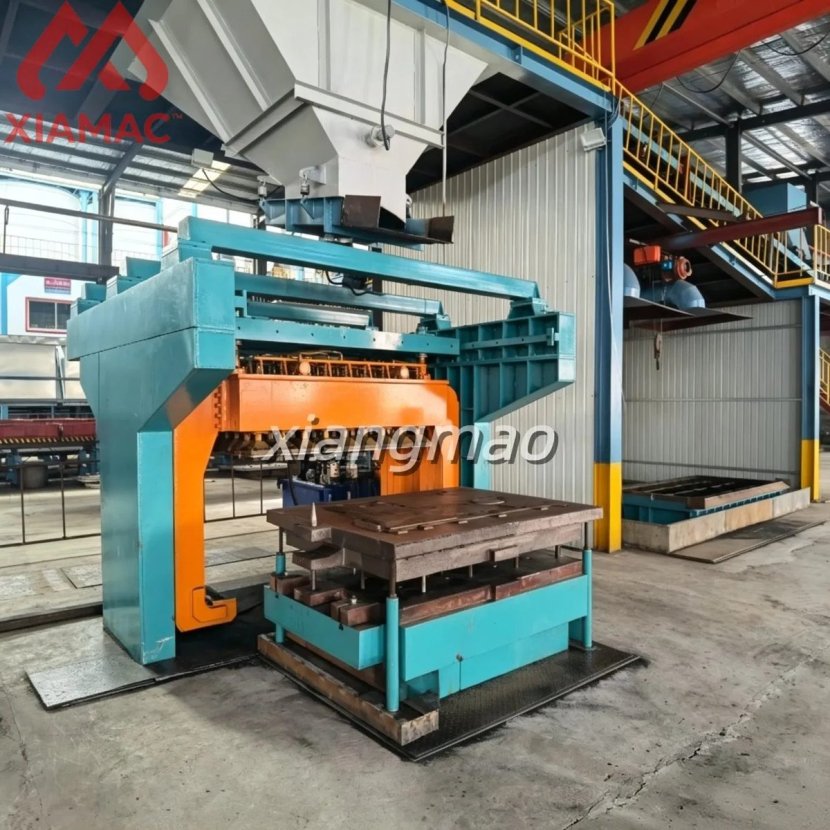

Automatic Multi-RAM Sand Molding Machine for Casting Flange, Wheel Hub and Reducer Box

Foundry Machinery Manufacturer Design Sand Casting Moulding Machine Green Sand Jolt Squeeze Molding

Product Description:

Our Iron Casting Molding Machine excels in green sand casting, creating sand mold patterns for cooling iron casting parts.

Our Jolt Squeeze Molding Machines use jolting tech to boost compressive stress, achieving sand mold hardness up to HB90.

The pneumatic machine semi-automatically molds single-sided templates for small batch castings, with spring micro-vibration and strong compaction for uniform molds.

Buffer springs in the shock part effectively reduce foundation impact.

It features all-pneumatic components for global functionality, ensuring simple operation and easy maintenance.

Easy operation with visual monitoring of sand molds enhances productivity.

Key characteristics of this machine include:

1. Pneumatic multi-piston compaction avoids oil leakage, suitable for complex model molding with 48 pistons.

2. Compaction is internal force-based, with pistons and hooks creating efficient pressure distribution.

3. Dual compaction from pistons and workbench achieves high, uniform sand mold hardness, with minimal sand consumption and optimal cavity hardness.

Specification

Packing & Delivery

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. specializes in R&D, design, and production of sand casting equipment. With 10,000+ sq. meters of facilities and 100 employees, our senior engineers provide customized casting solutions.

We produce resin sand casting lines, clay sand reclamation equipment, V-process casting, EPC modeling, sand preparation, shot blasting, core shelling, core shooting, Jolt Squeeze Molding Machine, and full casting machinery.

FAQ

Q1: What casting products is this machine suitable for?

A: Ideal for mass production of auto parts, valve castings, pump bodies, mechanical accessories, gray iron, and ductile iron castings.

Q2: What is the advantage of multi-head compaction over ordinary machines?

A: Multi-head balanced pressure ensures uniform mold density, solving uneven hardness issues and reducing defects.

Q3: Can the machine customize the sand box size and parameters?

A: Yes, we fully customize table size, compaction stroke, molding pressure, and station parameters per customer's casting needs.

Q4: How about the after-sales service?

A: 12-month full warranty, lifetime tech support, factory-price parts. Free remote debugging, paid on-site training.
