QGW-Series steel pipe external wall shot blasting machine is a special through-type surface pretreatment equipment for steel pipe outer surface cleaningnanchenmac....
Product Description

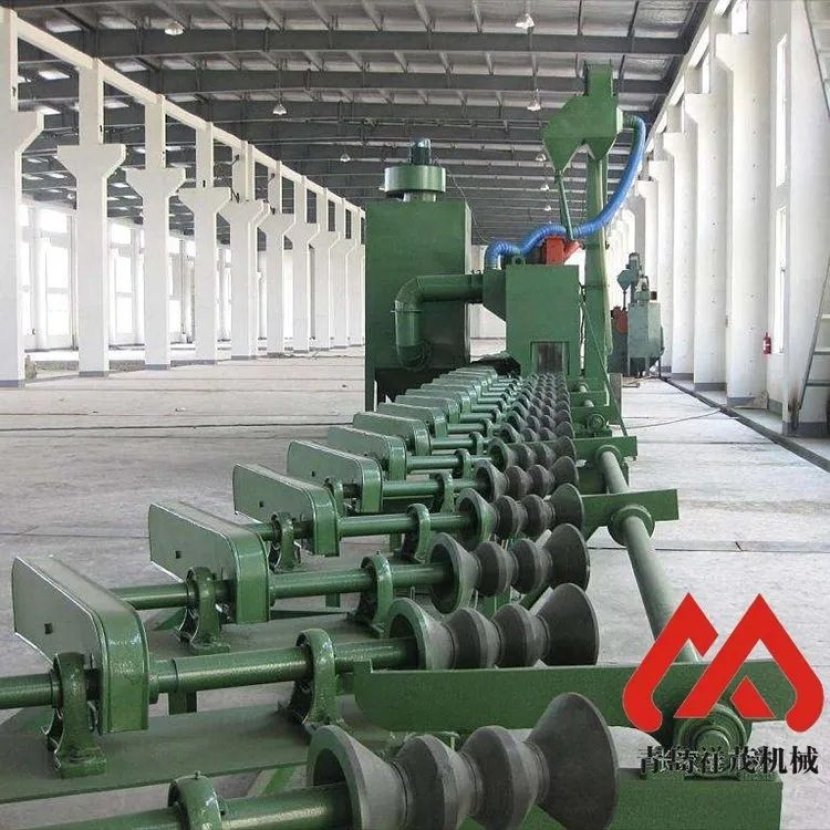

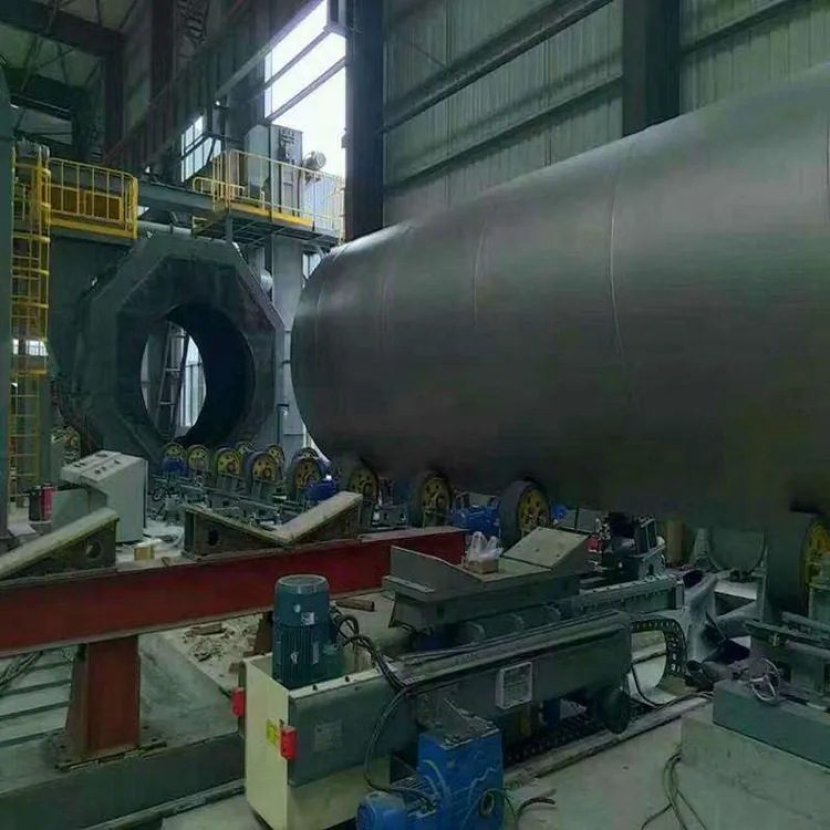

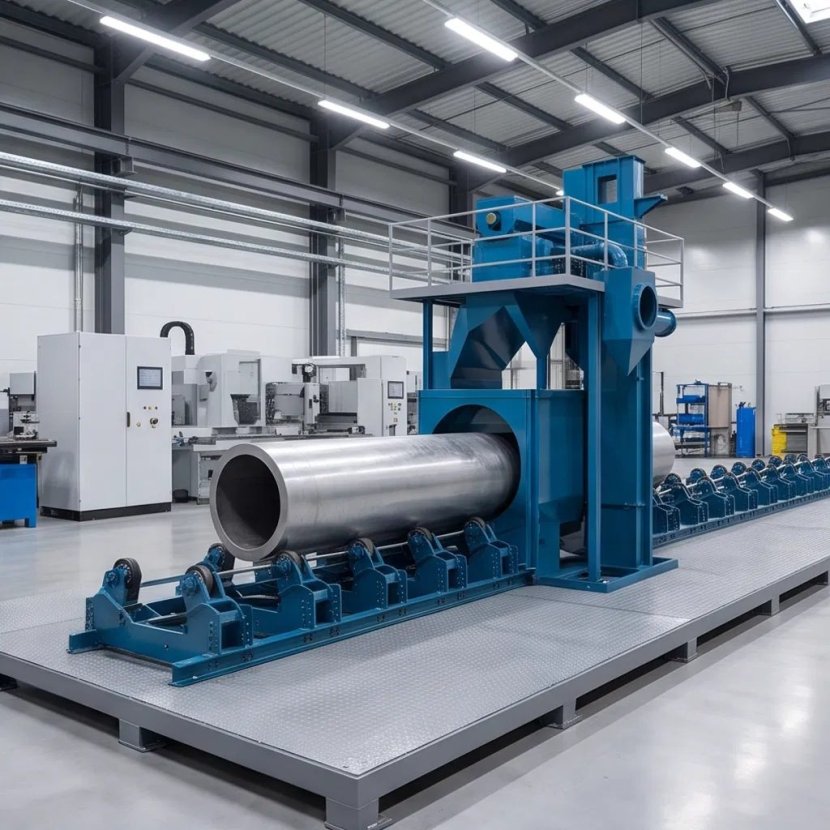

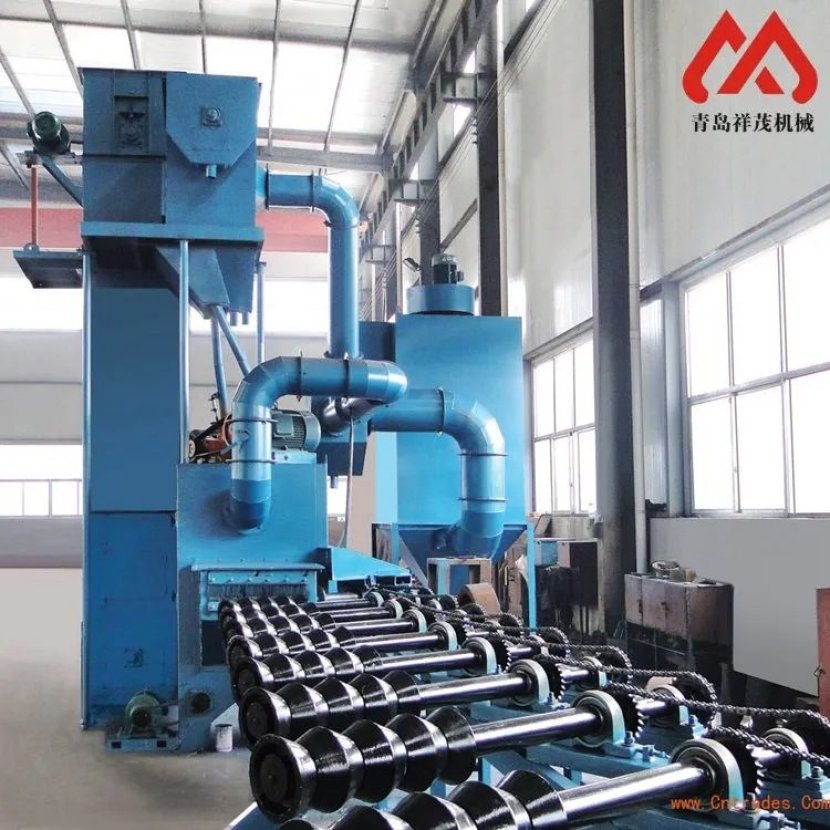

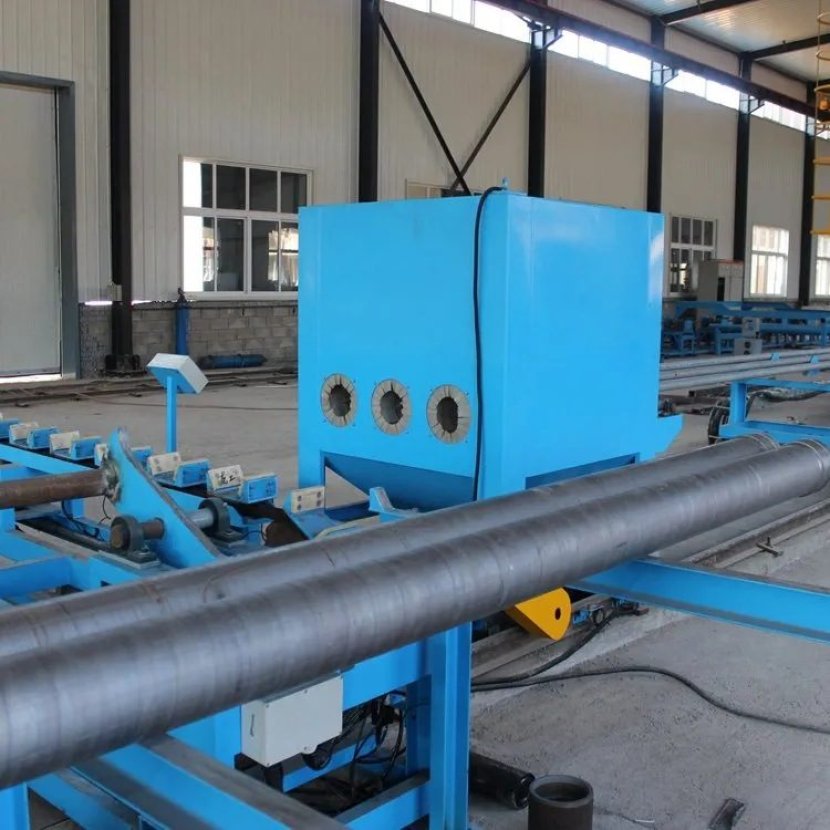

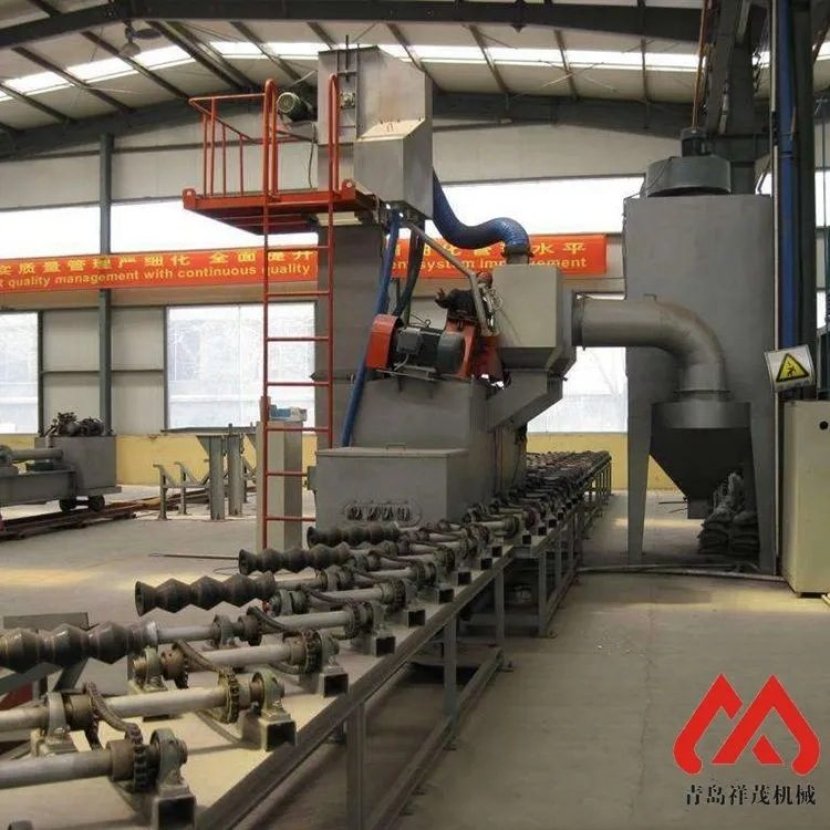

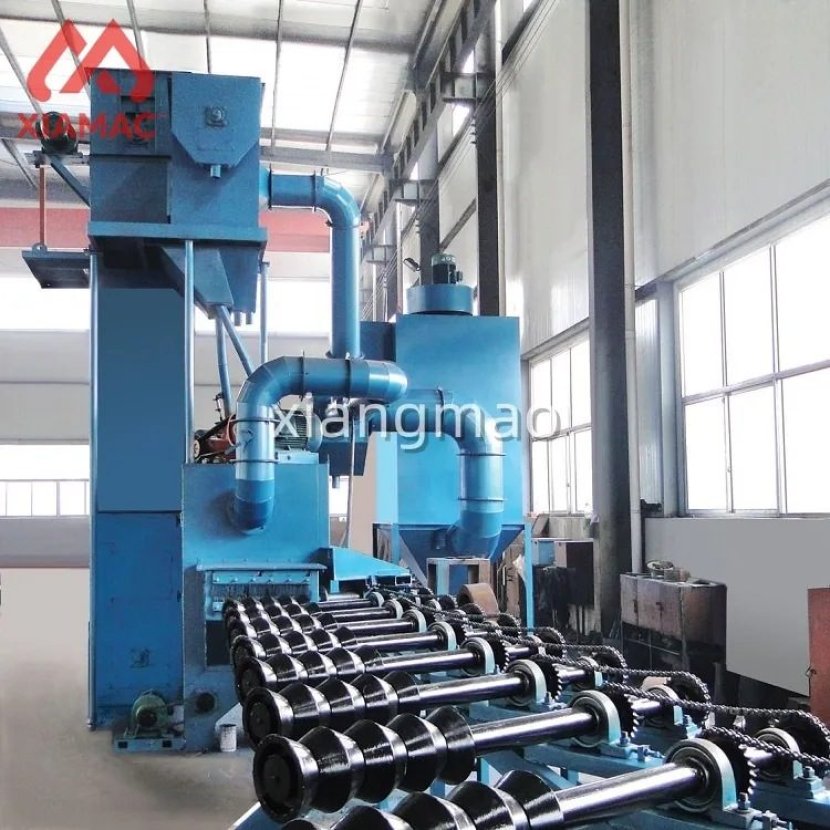

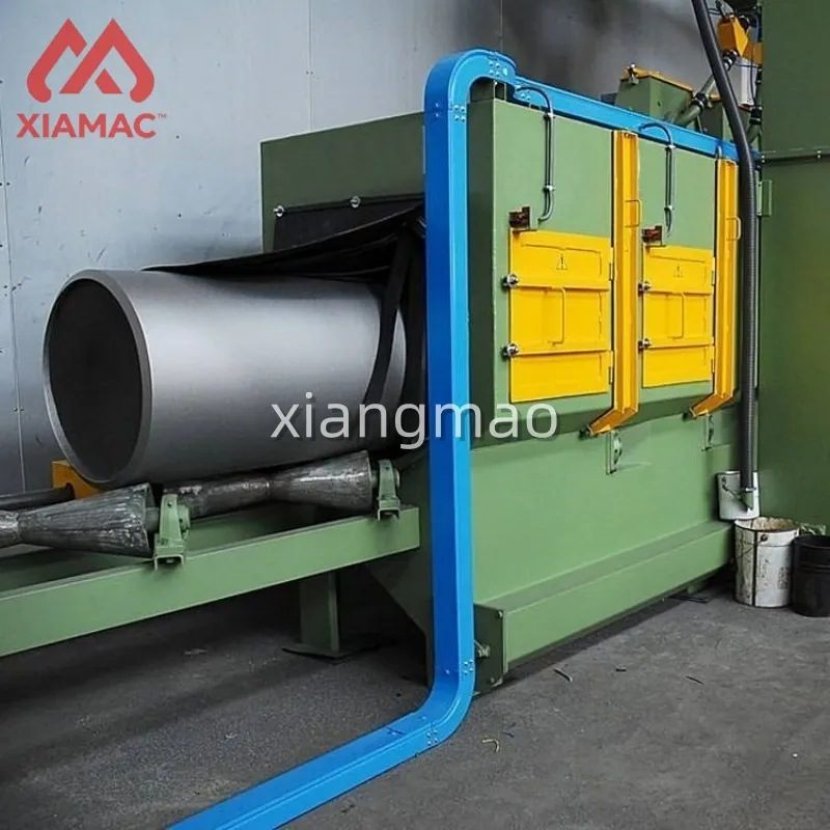

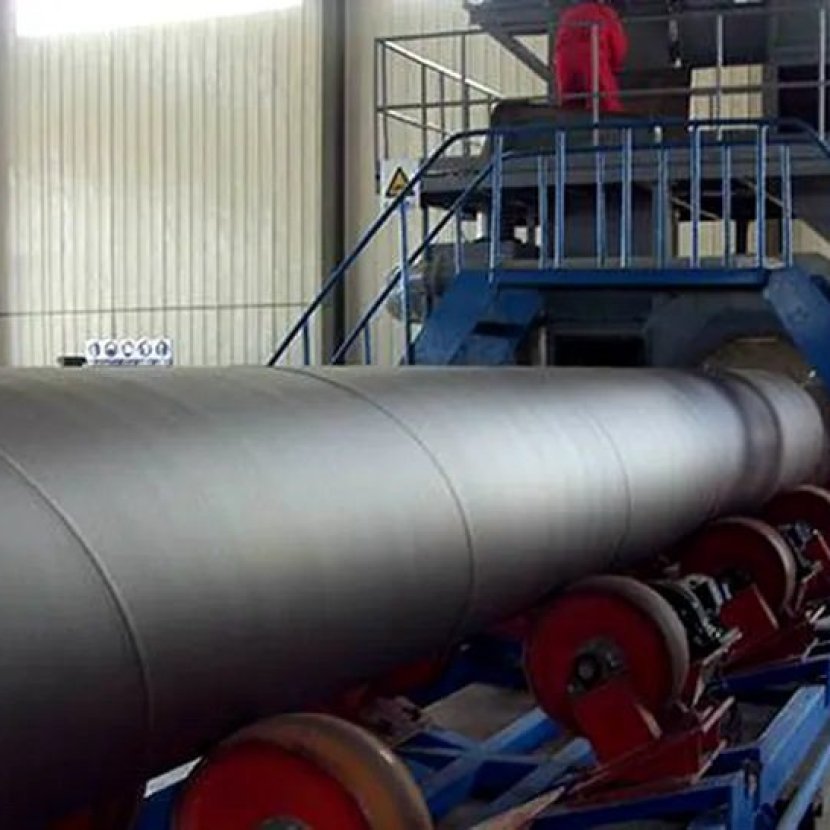

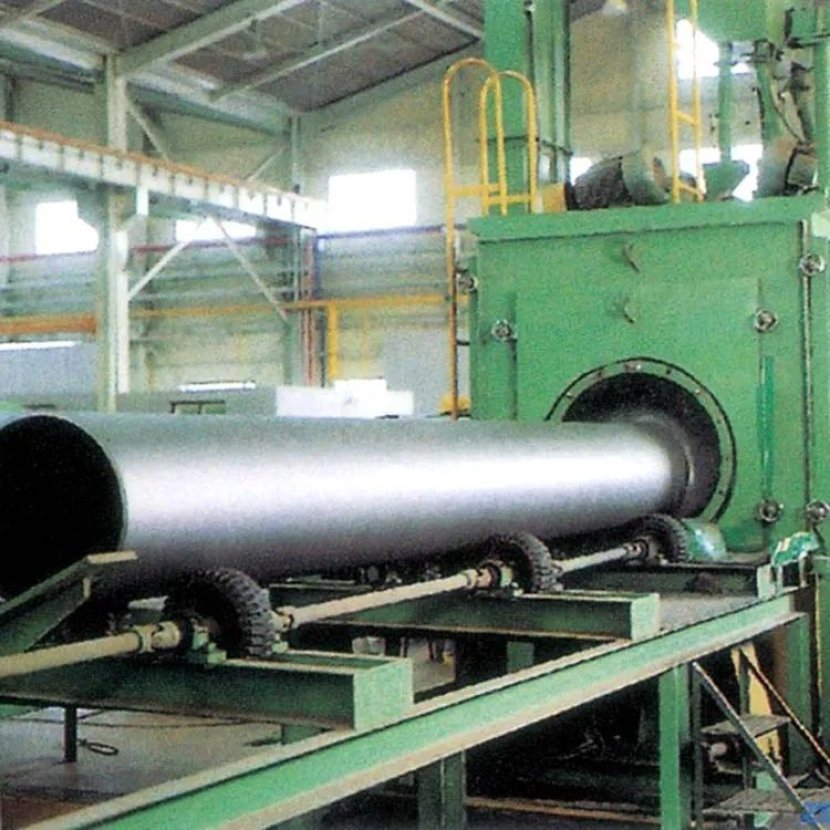

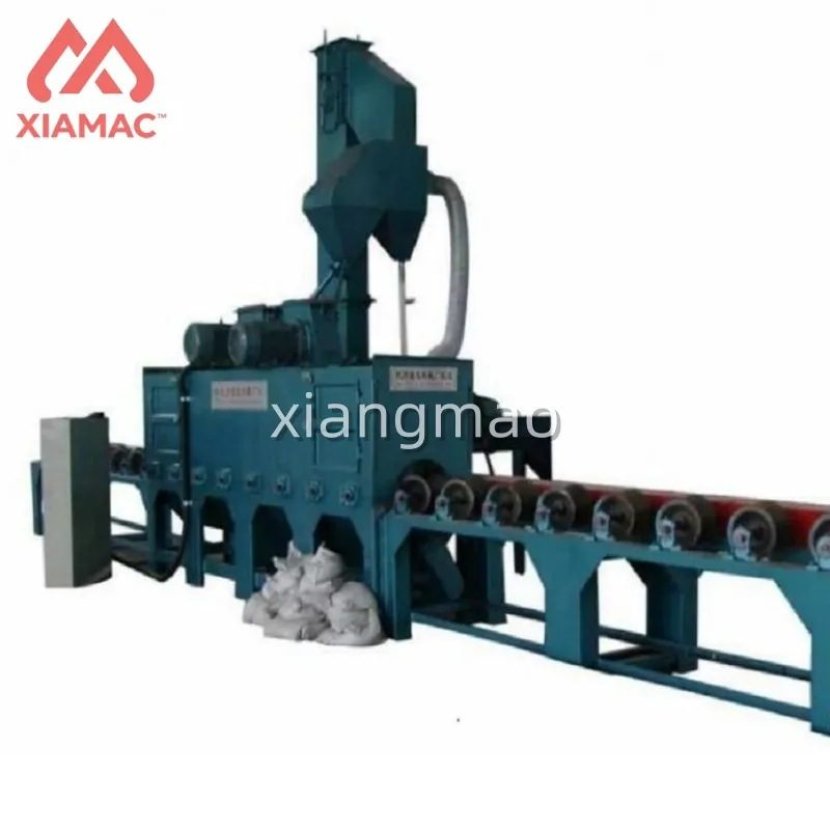

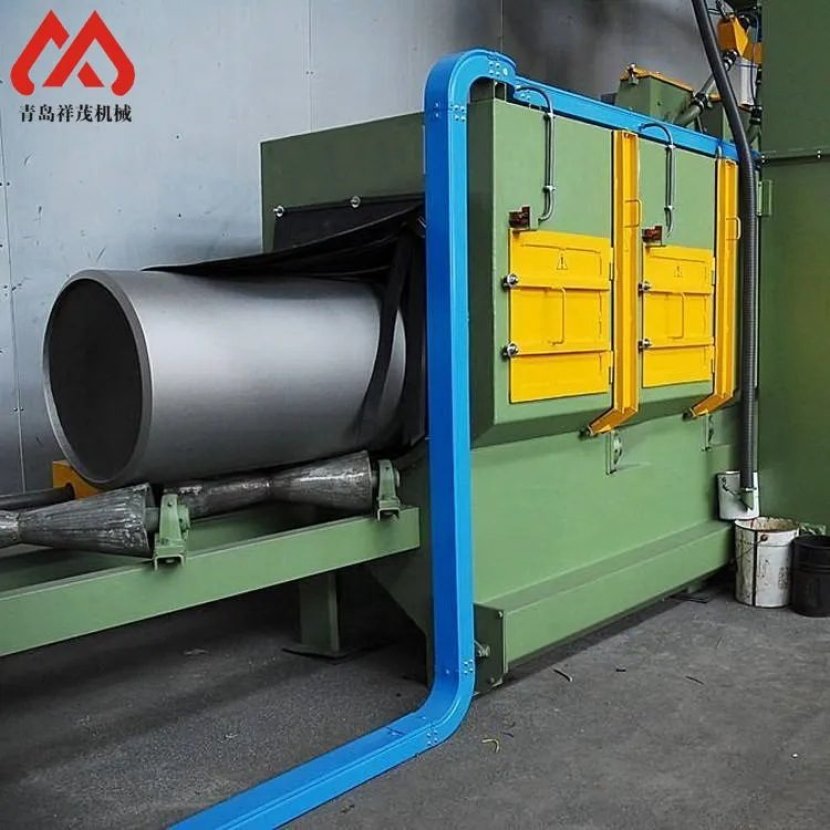

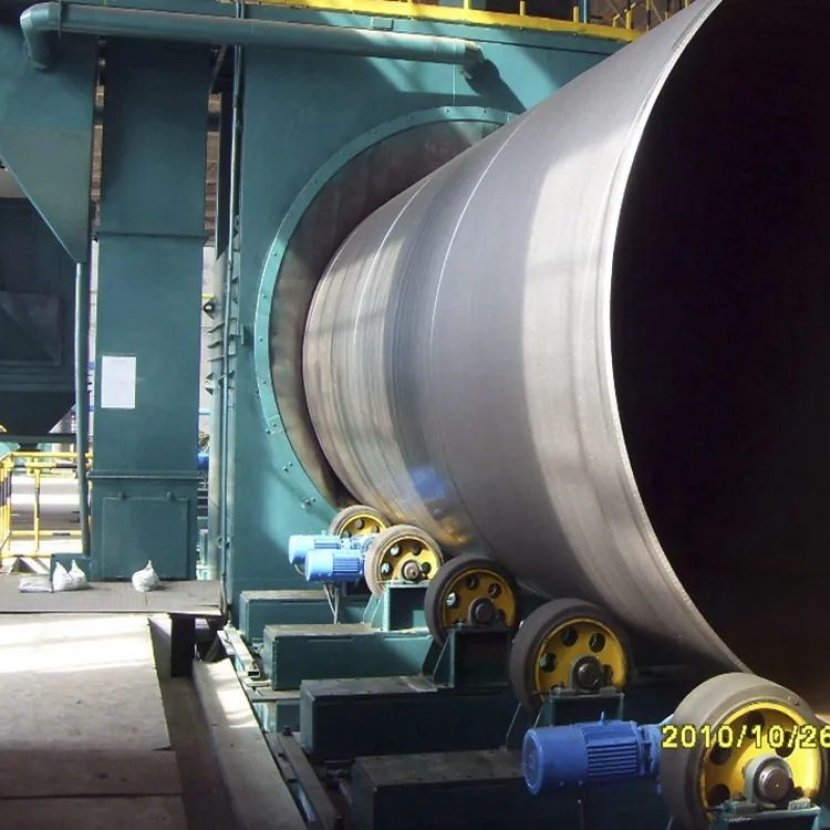

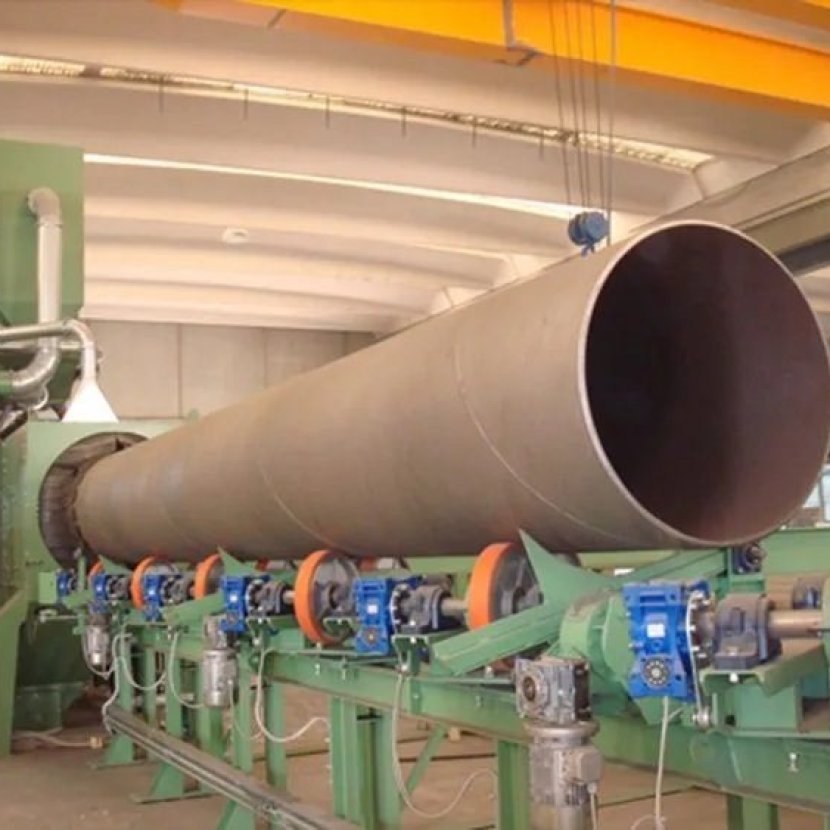

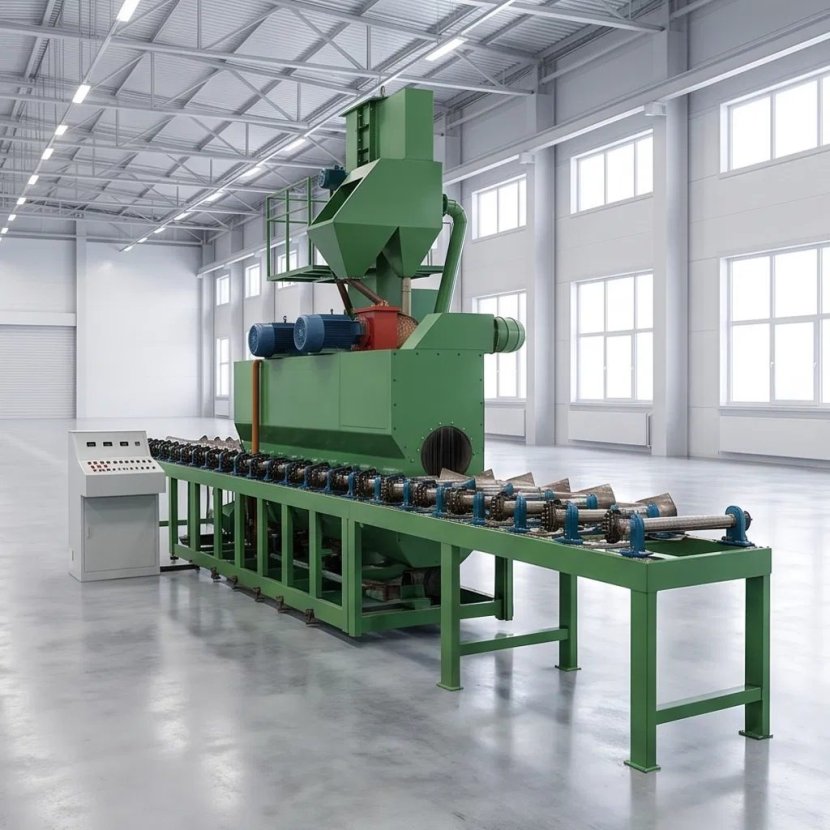

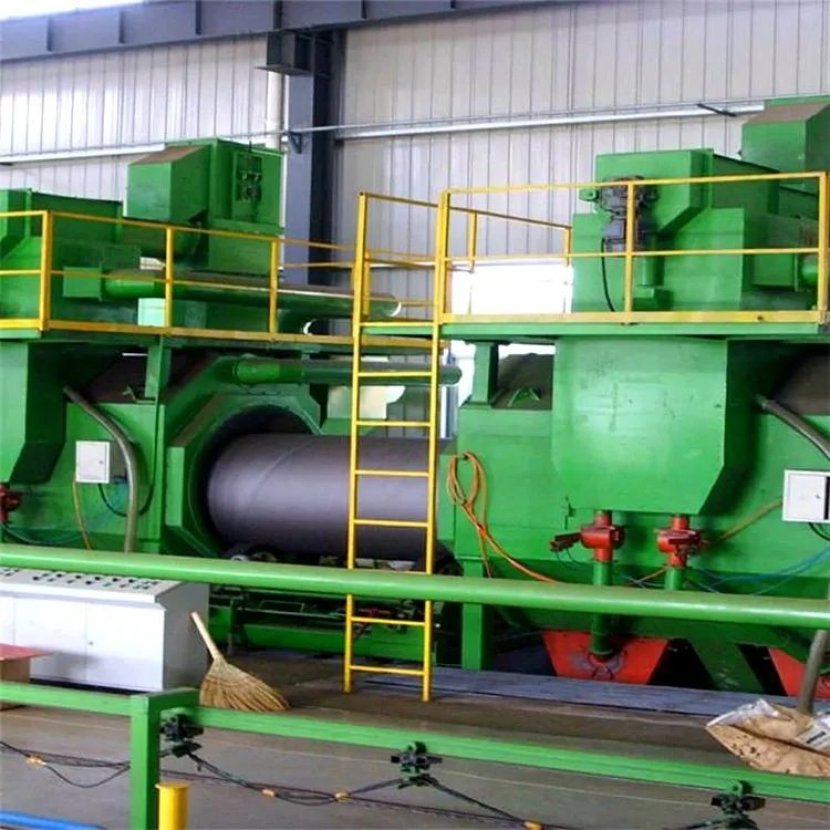

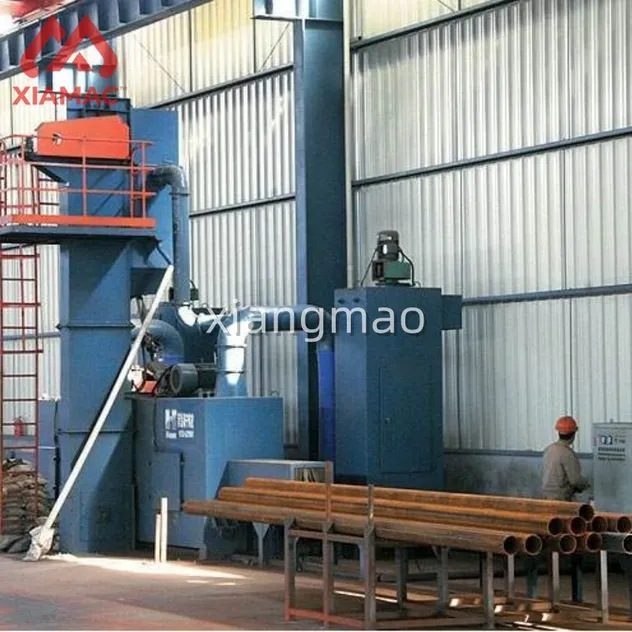

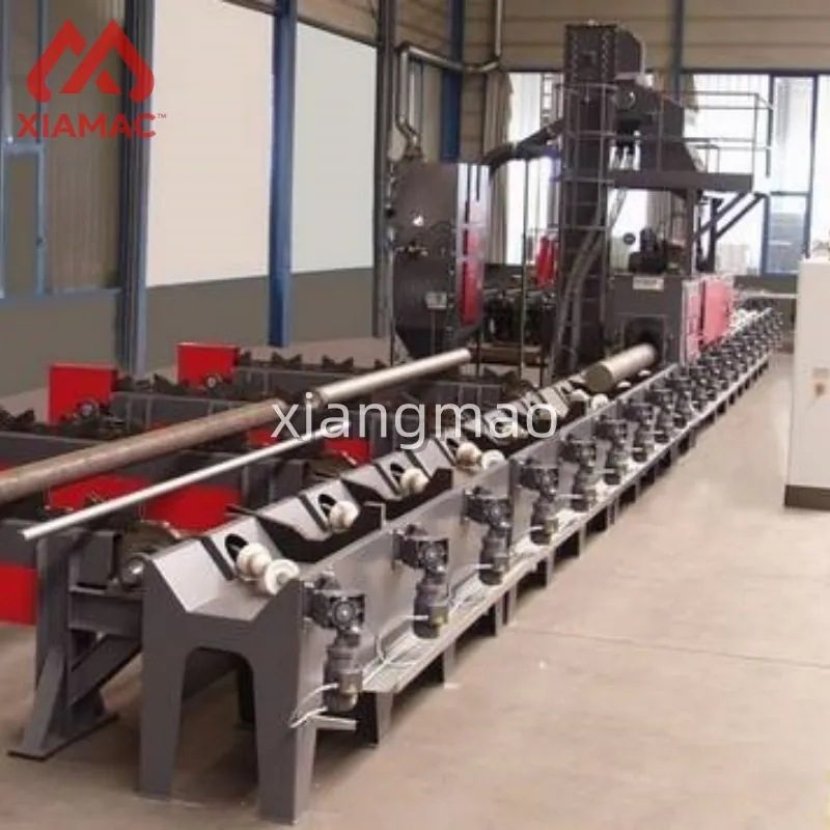

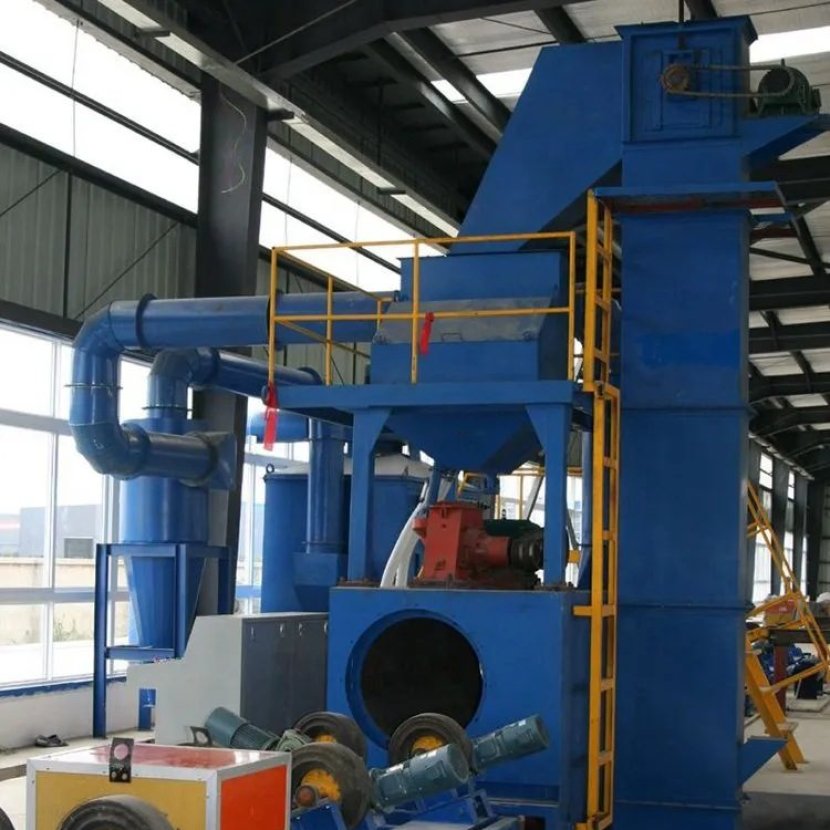

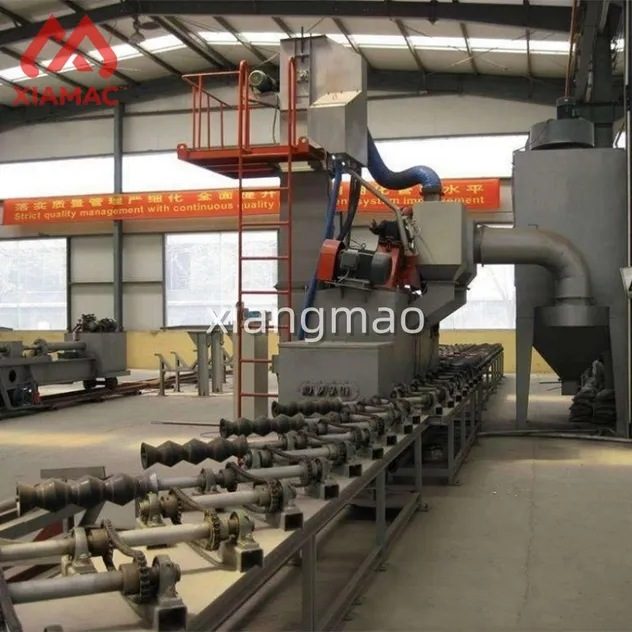

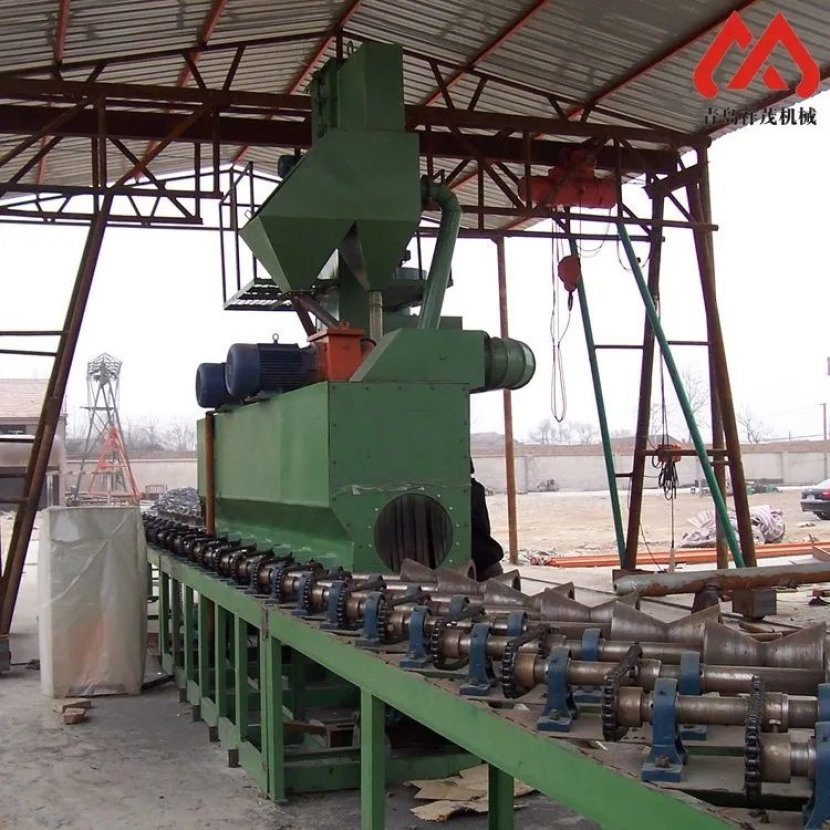

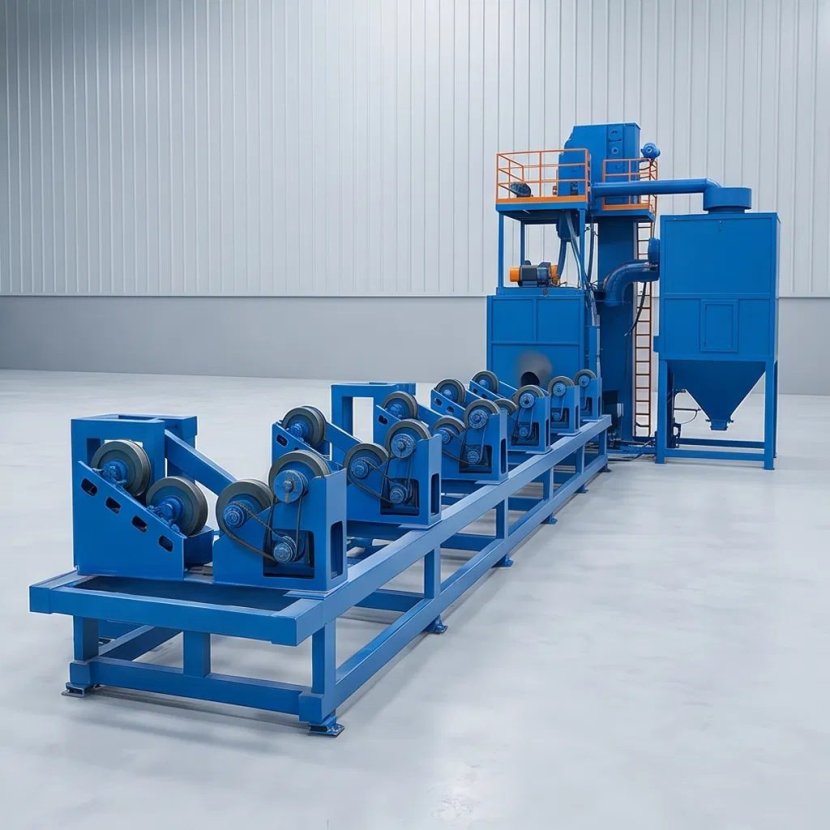

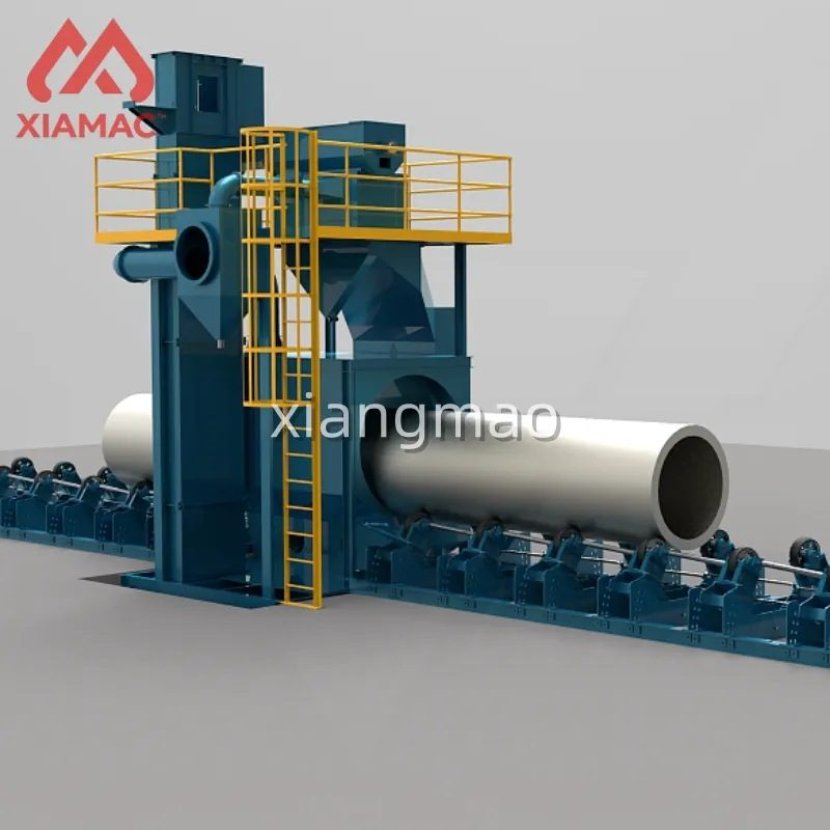

Steel pipe outer wall shot blasting machine
QGW-Series steel pipe external wall shot blasting machine is a special through-type surface pretreatment equipment for steel pipe outer surface cleaningnanchenmac.... Adopting V-skew roller conveying structure, the steel pipe rotates 360° while moving forward continuously through the blast chamber. High-speed steel shot ejected by blast wheels impacts the pipe outer surface to thoroughly remove rust, mill scale, welding slag and other contaminants.
After blasting, the pipe surface can reach Sa2.0-Sa2.5 cleanliness grade complying with ISO 8501-1 standard, forming proper surface roughness, greatly improving adhesion of anti-corrosion coating such as 3PE, FBE and bitumen paint. It is the ideal pretreatment equipment for steel pipe anti-corrosion production line.
The whole set consists of blast chamber, high-efficiency blast wheels, bucket elevator, full-curtain air separator, pulse cartridge dust collector, skew roller conveyor and PLC & touch-screen control system. Abrasive media is recycled and purified automatically, with high separation efficiency and low abrasive consumption. Multi-layer sealing rubber curtains reduce shot leakage. Wear-resistant protective liners are equipped inside blast chamber for long service life.
Features Of Steel pipe outer wall shot blasting machine :
360° full-circumference uniform blasting for steel pipe outer wall, stable cleaning quality
Continuous through-feed working mode, high production efficiency for mass production
PLC + touch-screen automatic control, easy operation and parameter adjustment
Automatic abrasive recycling & purification system, low running cost
Pulse cartridge dust collector, low dust emission, meets environmental protection requirements
Wear-resistant liners inside blast chamber, long service life, convenient maintenance
Flexible customization on pipe diameter, processing speed and overall layout
Technical parameter of Steel pipe outer wall shot blasting machine
According to your requirements, the most suitable machines will be designed for your workpieces please indicate the following details.
1. What kind of workpiece will you clean?
2. The workpiece size, length, width and height of maximum workpiece?
3. How many workpiecs do you want to clean per day?
Based on this question, the detailed technical proposals will be sent to you for reference.
Specification
| Item | QGW-300 | QGW-720 | QGW-1200 | QGW-1500 | QGW-2800 |
|---|---|---|---|---|---|
| Pipe Diameter(mm) | Φ50-300 | Φ159-720 | Φ219-1016 | Φ325-1600 | Φ1016-2800 |
| Cleaning Speed(m/min) | 2-10 | 2-6 | 1-6 | 1-6 | 1-2 |
| Blast Wheel Qty | 2-4 | 4-6 | 6-8 | 6-8 | 8 |
| Power per Blast Wheel(kW) | 11 | 15 | 18.5 | 22 | 22 |
| Abrasive Size | Φ0.8-1.2mm Steel Shot | Φ0.8-1.2mm Steel Shot | Φ0.8-1.2mm Steel Shot | Φ0.8-1.2mm Steel Shot | Φ0.8-1.2mm Steel Shot |
| Total Shot Flow Rate(kg/min) | 180-260 | 260-380 | 380-480 | 420-520 | 480-550 |
| Cleaning Grade | Sa2.0-Sa2.5 (ISO8501-1) | Sa2.0-Sa2.5 (ISO8501-1) | Sa2.0-Sa2.5 (ISO8501-1) | Sa2.0-Sa2.5 (ISO8501-1) | Sa2.0-Sa2.5 (ISO8501-1) |
| Surface Roughness(μm) | 40-75 | 40-75 | 40-75 | 40-75 | 40-75 |
| Conveyor Type | V-skew roller, 360° rotating feeding | V-skew roller, 360° rotating feeding | V-skew roller, 360° rotating feeding | V-skew roller, 360° rotating feeding | V-skew roller, 360° rotating feeding |
| Separator | ≥99%Full-curtain air-wash, ≥99% efficiency | ≥99%Full-curtain air-wash, ≥99% efficiency | ≥99%Full-curtain air-wash, ≥99% efficiency | ≥99%Full-curtain air-wash, ≥99% efficiency | ≥99%Full-curtain air-wash, ≥99% efficiency |
| Elevator | Bucket elevator | Bucket elevator | Bucket elevator | Bucket elevator | Bucket elevator |
| Dust Collector | Pulse cartridge dust collector | Pulse cartridge dust collector | Pulse cartridge dust collector | Pulse cartridge dust collector | Pulse cartridge dust collector |
| Control System | PLC + Touch screen | PLC + Touch screen | PLC + Touch screen | PLC + Touch screen | PLC + Touch screen |
| Initial Shot Loading(kg) | 800-1200 | 1200-1600 | 1600-2000 | 2000-2300 | 2300-2500 |
| Total Installed Power(kW) | 80-100 | 100-130 | 130-150 | 150-170 | 170-180 |
| Remark | Pipe length & non-standard customization available | Pipe length & non-standard customization available | Pipe length & non-standard customization available | Pipe length & non-standard customization available | Pipe length & non-standard customization available |
