Q37 Hook Type Shot Blasting Machine Automatic Abrator Steel Casting Surface Cleaning Rust Removal Equipment for Foundry Metal Parts

Product Description

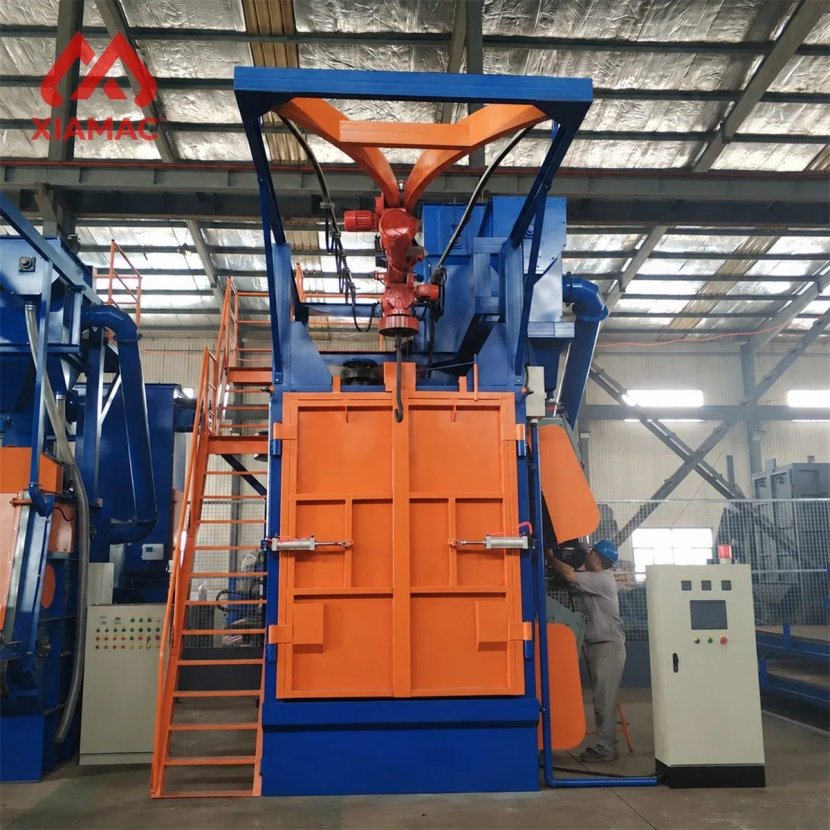

Hook type shot blasting machine

7-15 Minutes per Cycle High Efficiency Cleaning Fast cleaning cycle maximizes production throughput. Castings 7-15min, welded parts 5-10min.

360° No-Blind-Spot Cleaning No Workpiece Flipping Hook self-rotation ensures full surface coverage including complex cavities. Eliminates manual flipping.

One Machine for Castings, Forgings, Welded Parts & Steel Structures Versatile compatibility with various workpiece shapes and sizes. No special requirements for workpiece structure.

Single/Double Hook Options 40-50% Higher Productivity Double hook Y-track design eliminates downtime. One hook cleans while another loads/unloads. Increases output by 40-50%.

SA2.5 Cleaning Grade Meets ISO 8501-1 Near-white metal finish with Rz 25-50μm surface profile. Ideal for painting, welding and anti-corrosion coating.

Pitless Design 30% Lower Installation Cost Installs directly on flat concrete floor. No deep foundation required. Saves civil construction costs.

500-8000kg Load Capacity Customizable Up to 10000kg Full model coverage from small precision parts to extra-large heavy castings and forgings.

ZGMn65 Steel Liners 17,000+ Hours Service Life Chamber liners work-harden under impact. Reduces maintenance downtime and replacement costs.

≥99% Shot Recycling BE Type Full-Curtain Separator Gravity and airflow dual screening. Extends blade life, reduces abrasive consumption and operating costs.

Emission ≤15mg/m³ Two-Stage Dust Collector Cyclone + pulse jet baghouse system. Dust removal efficiency ≥99.5%. Meets environmental export standards.

Shot Peening Strengthening Extends Service Life Generates 0.2-0.5mm compressive residual stress layer. Eliminates internal stress, improves fatigue strength.

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Specializing in R&D, design, and production of sand casting equipment.

Produces resin sand casting lines, clay sand reclamation equipment; V-process, EPC modeling equipment; Sand prep and shot blasting; Core shelling, shooting machines, Jolt Squeeze Molding Machine, and more.

ISO9001 certified, recognized globally. Exported to Russia, Asia, Middle East, Africa, Indonesia, Brazil, and beyond, trusted for quality and service.

Comprehensive support from installation to training. On-site engineers for technical support on turnkey projects.

Manufacturing Workshop

Certifications

FAQ

For more information, please contact us.

1.Q:How to choose the right machine?

A:Show the biggest size,weight,productivity of your wokpiece,will design the best solution for you.

2. Q: What payment term?

A:T/T,L/C, 30% deposit by T/T,balance is before shipment.

3. Q:How to delivery the machine?

A: By 40'HQ container or by Truck.

4.Q:How to Install machine?

A:1-1 install assistance & operation training on site by experienced engineer for big and complicated machine.

Normal machine supply the installation manual,photo and video.

5.Q:After sale service?

A:Full stock for spare parts, regular after sale service and 24/7 hours on line.

6. Q:Why choose us?

A:We focus on surface cleaning over 10 years,supply you one-stop solution with professional design.
