Heavy-Duty Hook Turntable Shot Blasting Machine for Gear Strengthening

Product Description

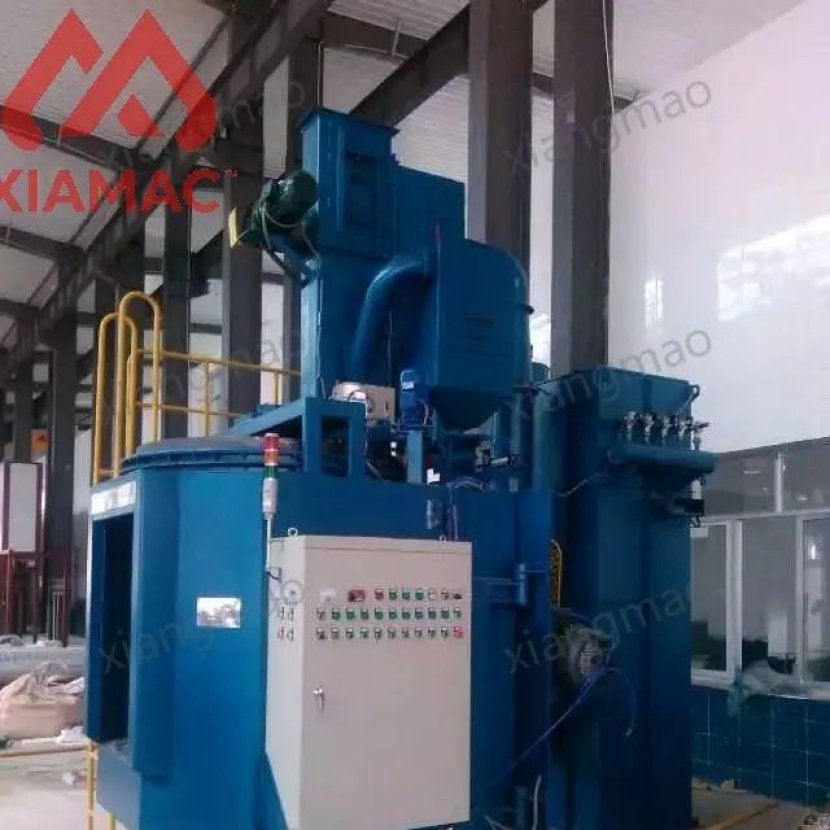

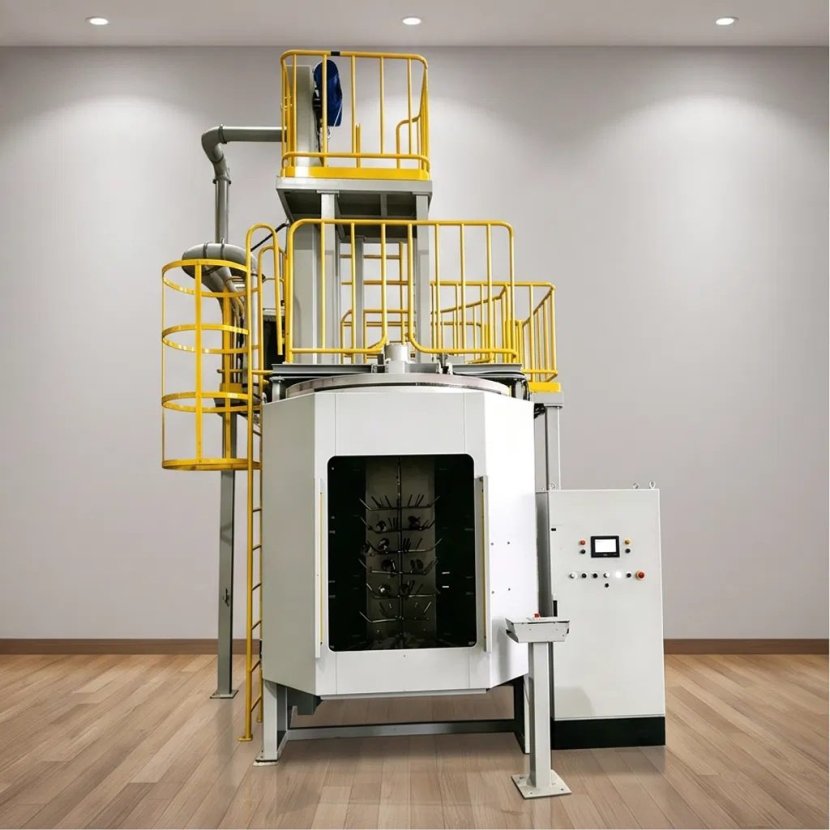

Hook Turntable Shot Blasting Machine

Hook Turntable Shot Blasting Machine is a device used for surface cleaning and strengthening of metal workpieces.

Main component:

Hook Turntable Mechanism: the core components of the equipment, comprising the hook assembly and drive system.

Two sets of hanging systems allow loading on one side while cleaning occurs on the other.

Shot Blasting Chamber: Equipped with wear-resistant liners to prevent shot splatter and dust leakage. High-speed shot blasting wheels are mounted on the top or sides.

Abrasive Recirculation System: Comprises a screw conveyor system, elevator, separator, and other components.

Dust Collection System: Captures and treats dust generated during shot blasting, ensuring emissions meet standards and protecting the environment.

Electrical Control System: Manages overall equipment operation, fault diagnosis, and more.

Application of Hook Turntable Shot Blasting Machine:

machine for sale

Crankshafts

Gear wheels

Connecting rods

Automotive gear parts

Coil springs

Turbine blade (Aircraft)

Air frame components

Suspension springs

Medical implants

Application

Production Process of Shot Blast Peening Machine

Transportation System:

2-4 rotating carousel chambers allow one chamber to process (shot blasting or peening) while others to load and unload work-pieces. A higher production efficiency is insured.

Hanger with self rotating function keep work-pieces rotating while processing for a high abrasive coverage.

Blasting chamber:

The engineering team uses 3-D dynamic simulation design blast turbines layout to ensure that the steel shot ray can cover the surface of the workpiece 360 degrees.

Shot blasting chamber with Mn13 steel guard plate which has high impact toughness and high service life, fully realize the reflection funcation of abrasive and improve the cleaning quality.

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

Manufacturing Workshop

Certifications

FAQ

Question about hook Turntable type shot blasting machine:

1.Q:How to choose the right machine?

A:Show the biggest size,weight,productivity of your wokpiece,will design the best solution for you.

2. Q: What payment term?

A:T/T,L/C, 30% deposit by T/T,balance is before shipment.

3. Q:How to delivery the machine?

A: By 40'HQ container or by Truck.

4.Q:How to Install machine?

A:1-1 install assistance & operation training on site by experienced engineer for big and complicated machine.

Normal machine supply the installation manual,photo and video.

5.Q:After sale service?

A:Full stock for spare parts, regular after sale service and 24/7 hours on line.

6. Q:Why choose us?

A:We focus on surface cleaning over 10 years,supply you one-stop solution with professional design.
