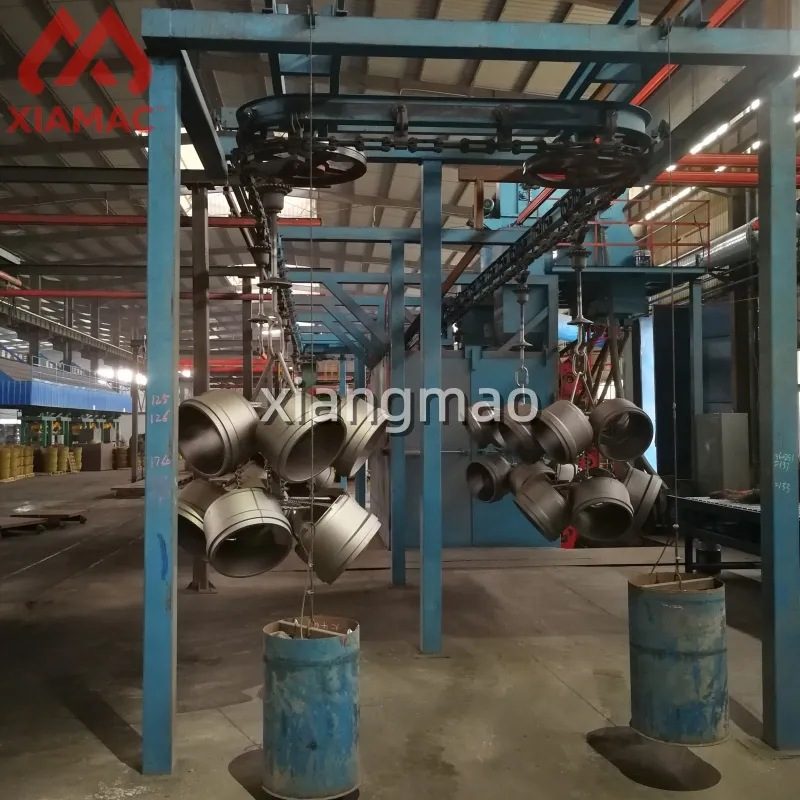

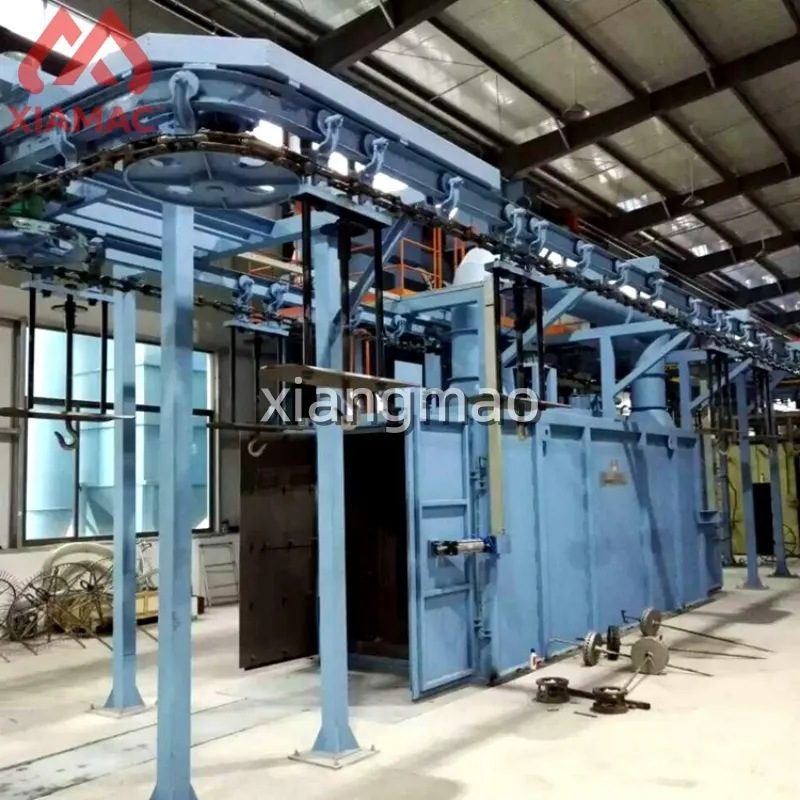

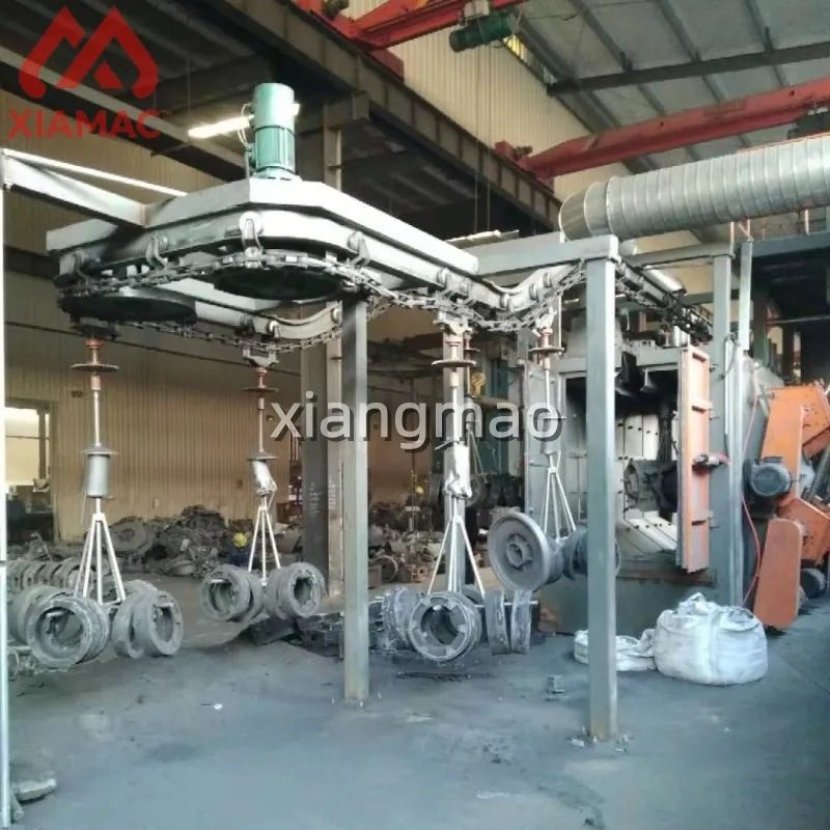

Q48series Step-Through Catenary Shot Blasting Machine

Product Description

Q48 series step-type hanging chain shot blasting machine

Q48 series step-type hanging chain shot blasting machine is an intermittent overhead conveyor surface cleaning equipment. Different from continuous models, it delivers workpieces to the blasting chamber and stops accurately for fixed-position rotary blasting. The workpiece rotates 360° during cleaning to ensure no dead-angle removal of sand, rust, oxide scale and welding slag. It features stable operation, thorough cleaning effect and low workpiece deformation. Ideal for medium and large complex-shaped castings, pump bodies, valve parts and engineering machinery components.

Q4810 Hanger Chains Pass Through Type Wheel Blaster / Sand Blasting Machine

Catenary hanging chain shot blasting machines are divided into three types: Q38 continuous type, Q48 step-through type and Q58 accumulating type. Workpieces are hung on overhead hooks and conveyed into blasting chamber.

Q38 continuous model: chain runs non-stop, high throughput, suitable for simple mass parts and inline coating line.

Q48 step-through model: workpiece stops and rotates at fixed blasting station, achieving thorough cleaning for complex castings.

Q58 accumulating model: independent trolley control, flexible mixed production for multi-type workpieces.

It removes foundry sand, oxide scale, welding slag and rust for castings, forgings and welded components. Widely used in auto parts, foundry, engineering machinery industry.

Product feature:

1. Applicable for large welding structures such as section steel, steel strucutre, constructure machinery and so on;

2.It adopt transportation model of orbit hook hanging workpiece;

3.High production efficiency.

Production Application:

It mainly used for surface cleaning of machinery manufacturing (including light industrial machinery, constructure machinery, engineering machinery, mining machinery and so on), pressure vessels, autombile and shipbuilding, construction, chemical, electrical and machine tool industry.

Application

Packing & Delivery

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

Manufacturing Workshop

Our Advantages :

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & sand peening Machine competitive with good quality.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.

Certifications

FAQ

Q : Do you have after-sale service?

A : Yes, we have perfect after-sale service.

Q : How long can your spare parts be used?

A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours. Kinds of guard board can be used for more than 3000 hours.

Q : How about your company ?

A: Our company is a professional manufacturer of shot blasting machine in china , we have exported to more than 30 countries and regions , and got good comments from overseas and domestic.

Q: What standards are you carrying out for your products?

A: We produce according to the ISO9001 and ISO14001 rules.

Q: How to install the machine?

A: We will arrange 1~2 engineers to your factory to guide installation and assembly.

Q: What's your international market?

A: We Have exported to about 30 countries and regions all around the world, such as, the USA, France, Singapore, Australia,Middle East, Brazil, Peru and so on.

Q: Do you have the right to export?

A: Yes, we registered in the Customs and gained the right to export by ourselves.
