Double Hook Shot Blasting Machine for Foundry Casting Surface Treatment

Hook Type Shot Blasting Machine

Hook-type shot blasting machines working with high-velocity abrasive impact to clean various workpieces, finding widespread application in casting, forging, machinery manufacturing, automotive components, steel structures, and other industries.

Product Advantages:

It's the most popular and widely used model.

The advantages of hook type shot blasting machine is lie in flexibility, cleaning effectiveness, automation levels, applicability, and production efficiency

- Strong workpiece adaptability for flexible handling of complex structures

- 360° rotation ensures uniform shot coverage of surfaces, cavities, welds, and hard-to-reach areas.

- Wide hook load capacity ranging from tens of kilograms to hundreds of tons.

- Uniform and thorough cleaning with no blind spots. Typically equipped with 2-8 shot blasting wheels impacting surfaces from multiple angles to completely remove rust, scale, oil, sand, slag, burrs, and other contaminants.

- Automatic shot recycling:screw recovery, separator, and screening system achieves over 95% utilization, reducing consumable costs.

- Comprehensive safety protection: Equipped with multiple safety interlock devices

- Lowers overall costs and enhances production efficiency.

Technical Parameter

Specification

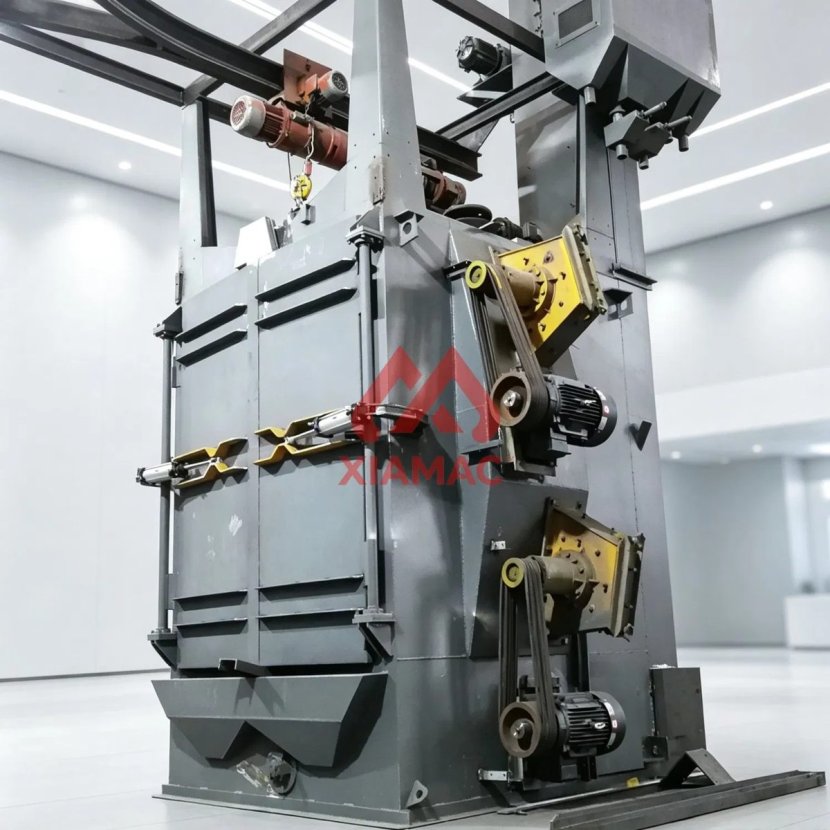

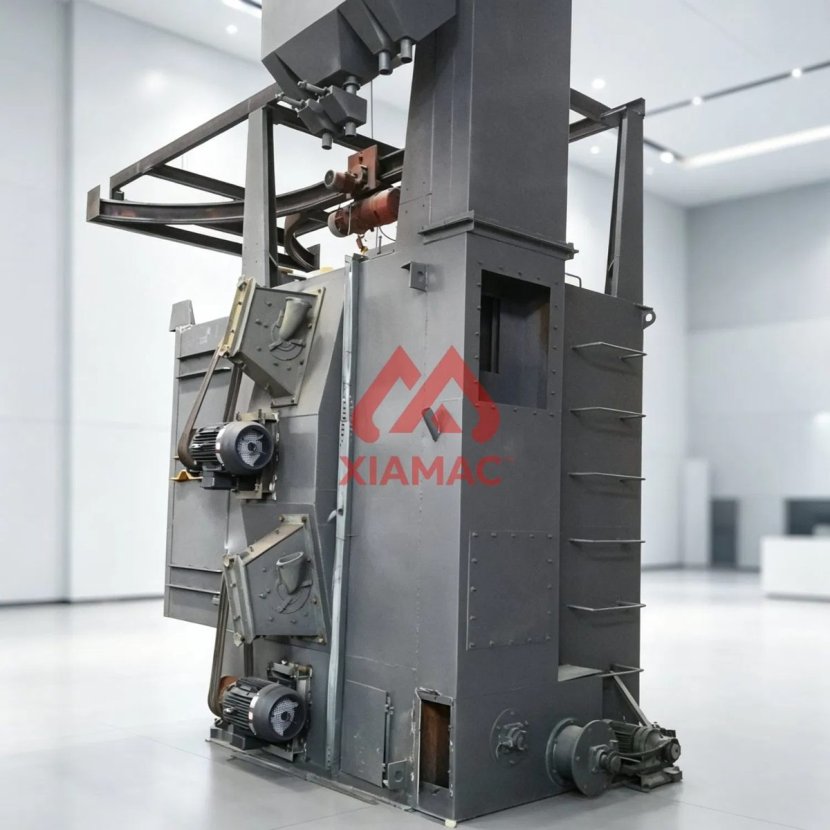

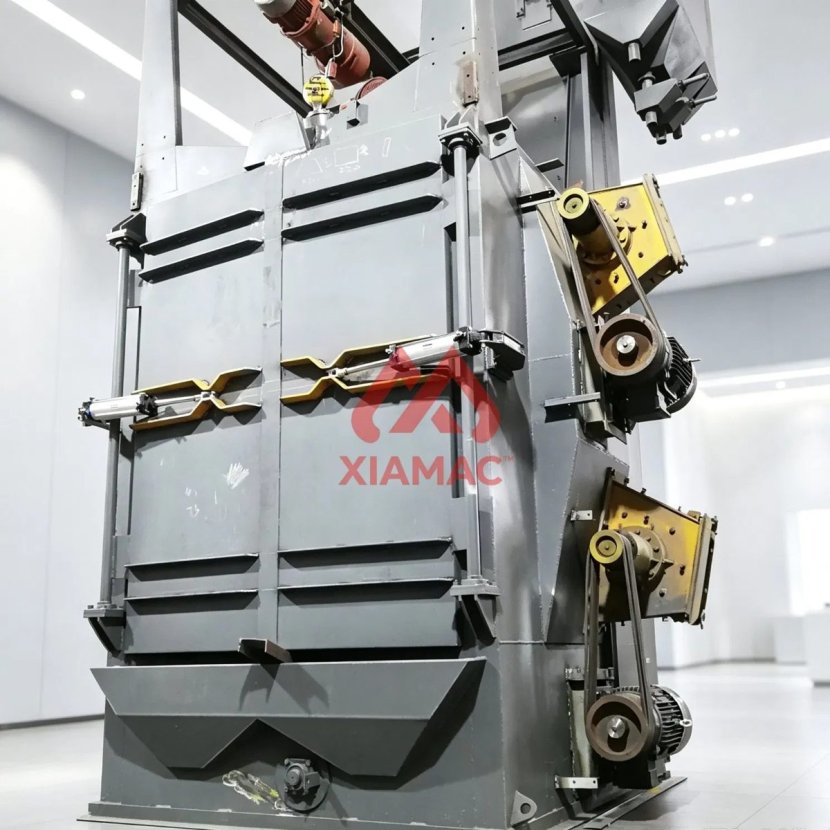

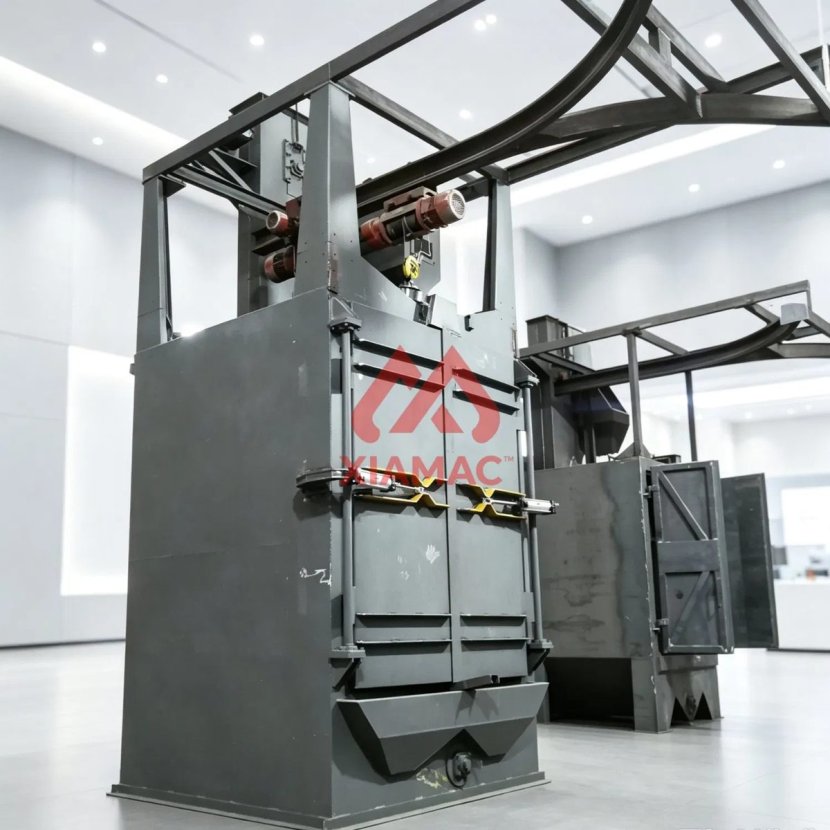

The Q37 series hook-type shot blasting machine is a high-performance industrial equipment, specially designed for surface cleaning and strengthening of various components such as valves, steel structures

and aluminum alloy parts.

Shot Wheel / Shot Blasting Wheel

The shot wheel is the core working component of a shot blasting machine. Its core function is to project abrasives at high speed via centrifugal force through a high-speed rotating impeller, so as to achieve the surface cleaning of workpieces.

Electric Control System

Model: Automatic ( manual type is available). Control Unit: PLC.Emergency Stop: on main control panel and rollers conveyors.Power Indicator: available on control panel.

BLASTING CHAMBER

Blasting Wheels: Mounted on the left side wall of the blasting chamber. Angle will be customized according to workpieces. Hot Area: The right inside of the blasting chamber is called the hot area, protected by In alloy liners. Doors: Manual or pneumatic type area available.

DUST COLLECTION SYSTEM

Fan: Sucks dust from blasting chamber through pipes Gravity Dust Collector: Catches big particle size dust by gravity as first-stage dust collection. Dust Collection: Bag type & cartridge type according to different filters. Efficiency: 99.9%

Product Application

This machine is for surface cleaning or strengthening treatment of small castings, forgingparts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.

Packing & Delivery

After Sales Service

Standard Warranty: 12 months .

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.
