Q378 Hook Type Shot Blasting Machine /Cleaning Machine and Deburring Machine for Car Auto Parts of Castings & Construction Machinery

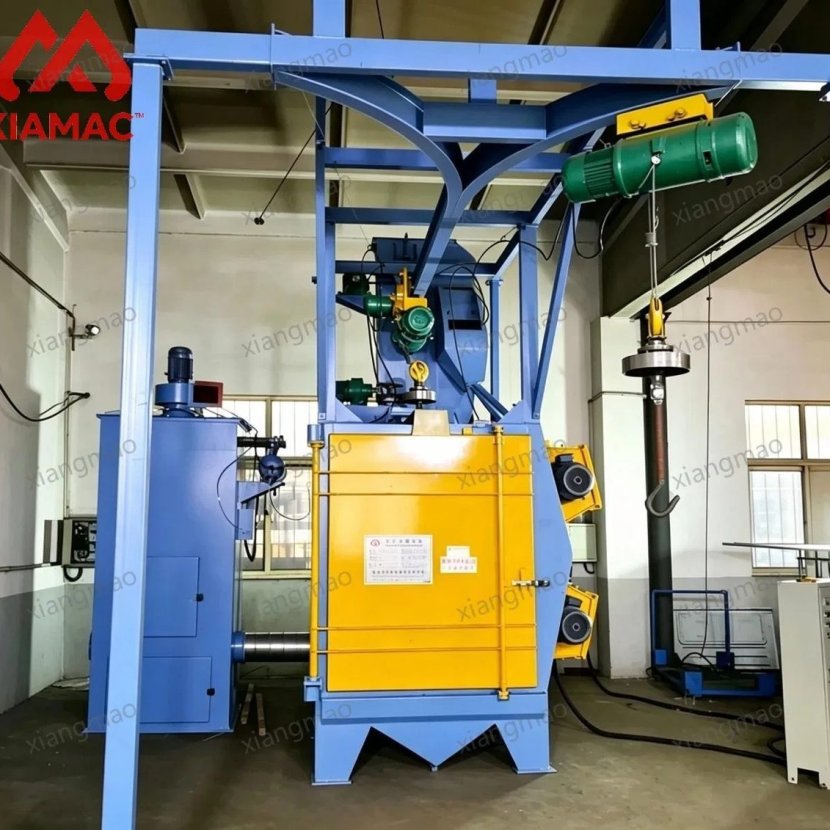

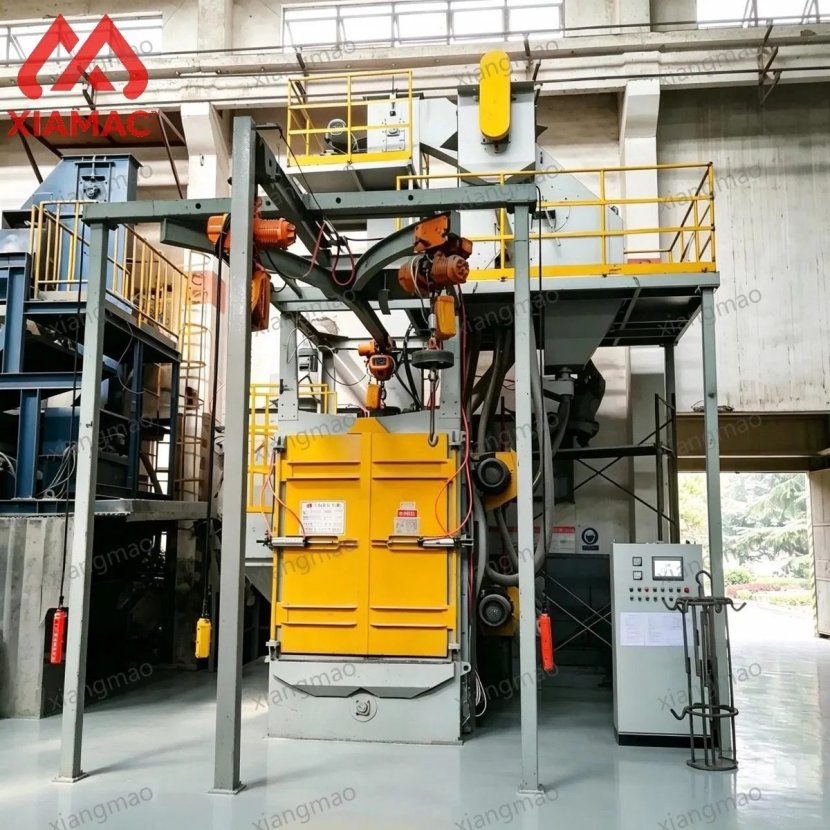

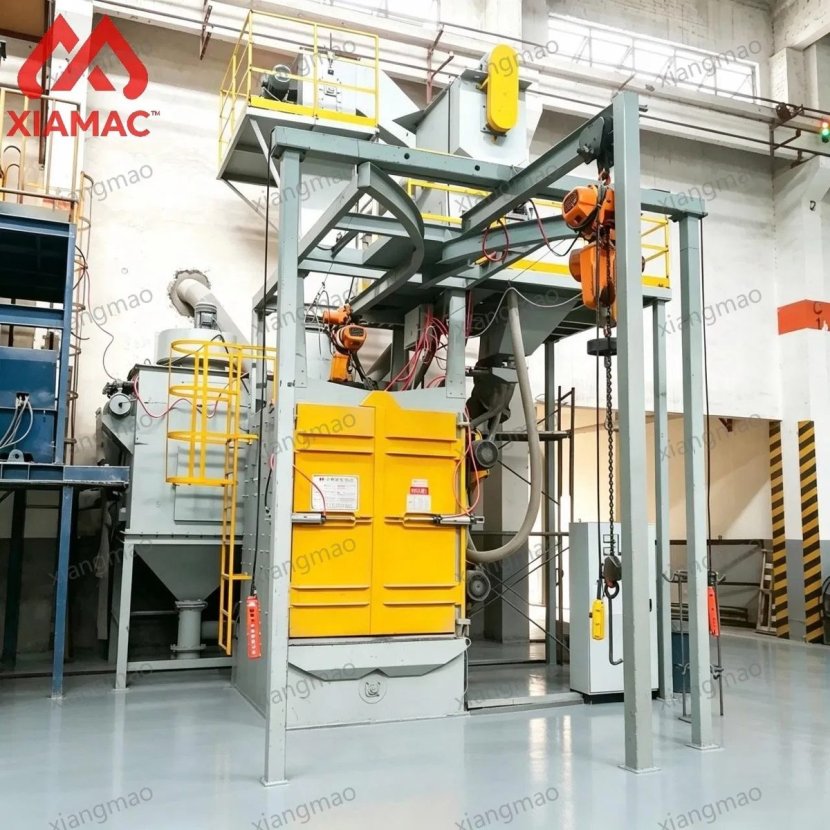

Hook Type Shot Blasting Machine

Hook-type shot blasting machines working with high-velocity abrasive impact to clean various workpieces, finding widespread application in casting, forging, machinery manufacturing, automotive components, steel structures, and other industries.

Product Advantages:

It's the most popular and widely used model.

The advantages of hook type shot blasting machine is lie in flexibility, cleaning effectiveness, automation levels, applicability, and production efficiency

- Strong workpiece adaptability for flexible handling of complex structures

- 360° rotation ensures uniform shot coverage of surfaces, cavities, welds, and hard-to-reach areas.

- Wide hook load capacity ranging from tens of kilograms to hundreds of tons.

- Uniform and thorough cleaning with no blind spots. Typically equipped with 2-8 shot blasting wheels impacting surfaces from multiple angles to completely remove rust, scale, oil, sand, slag, burrs, and other contaminants.

- Automatic shot recycling:screw recovery, separator, and screening system achieves over 95% utilization, reducing consumable costs.

- Comprehensive safety protection: Equipped with multiple safety interlock devices

- Lowers overall costs and enhances production efficiency.

Technical Parameter

Specification

The Q37 series hook-type shot blasting machine is a high-performance industrial equipment, specially designed for surface cleaning and strengthening of various components such as valves, steel structures

and aluminum alloy parts.

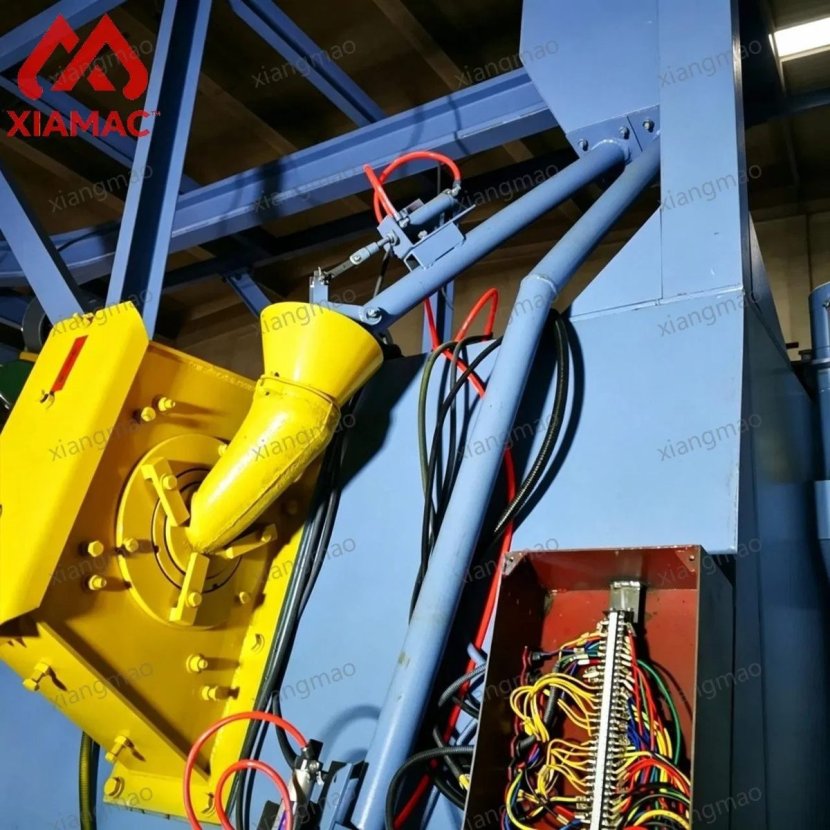

Shot Wheel / Shot Blasting Wheel

The shot wheel is the core working component of a shot blasting machine. Its core function is to project abrasives at high speed via centrifugal force through a high-speed rotating impeller, so as to achieve the surface cleaning of workpieces.

Electric Control System

Model: Automatic ( manual type is available). Control Unit: PLC.Emergency Stop: on main control panel and rollers conveyors.Power Indicator: available on control panel.

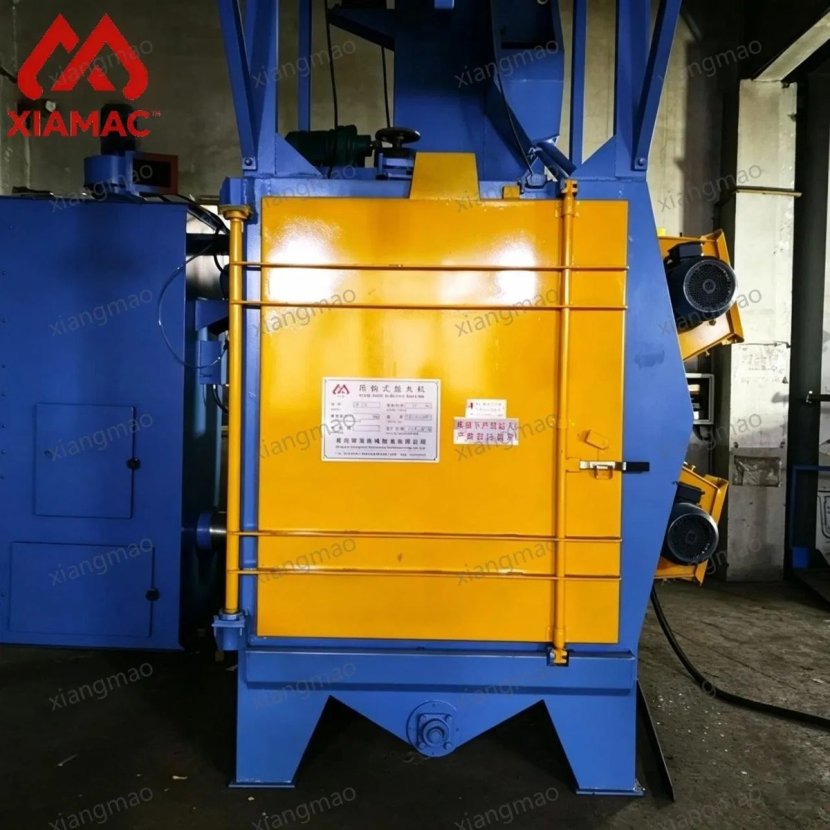

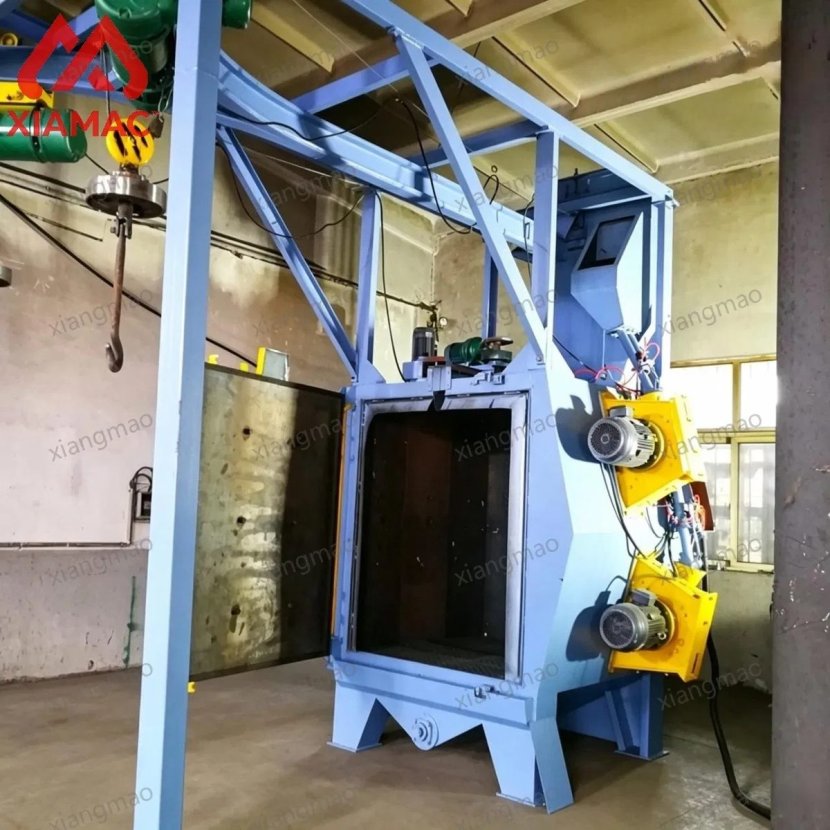

BLASTING CHAMBER

Blasting Wheels: Mounted on the left side wall of the blasting chamber. Angle will be customized according to workpieces. Hot Area: The right inside of the blasting chamber is called the hot area, protected by In alloy liners. Doors: Manual or pneumatic type area available.

DUST COLLECTION SYSTEM

Fan: Sucks dust from blasting chamber through pipes Gravity Dust Collector: Catches big particle size dust by gravity as first-stage dust collection. Dust Collection: Bag type & cartridge type according to different filters. Efficiency: 99.9%

Product Application

This machine is for surface cleaning or strengthening treatment of small castings, forgingparts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.

Packing & Delivery

After Sales Service

Standard Warranty: 12 months .

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

Company Profile

QINGDAO XIANGMAO MACHINERY MANUFACTURING CO., LTD

QINGDAO XIANGMAO MACHINERY is a world-known producer of shot blasting machines with knowledge and experience for more than 10 years, we offers a large range of shot blasting equipment. We can offer shot blasting machine which is tailor-made for diverse requests, because we have our own development, engineering, production and after-sales service.

Mianly Products

FAQ

1.Q:How to choose the right machine?

A:Show the biggest size,weight,productivity of your wokpiece,will design the best solution for you.

2. Q: What payment term?

A:T/T,L/C, 30% deposit by T/T,balance is before shipment.

3. Q:How to delivery the machine?

A: By 40'HQ container or by Truck.

4.Q:How to Install machine?

A:1-1 install assistance & operation training on site by experienced engineer for big and complicated machine.

Normal machine supply the installation manual,photo and video.

5.Q:After sale service?

A:Full stock for spare parts, regular after sale service and 24/7 hours on line.

6. Q:Why choose us?

A:We focus on surface cleaning over 10 years,supply you one-stop solution with professional design.
