The Catenary / Overhead Hanging Chain Shot Blasting Machine (often referred to as the hanging chain shot blasting machine) is a continuous-pass shot blasting equipment, which is divided into two major categories: continuous type and accumulation-feeding step-by-step type.
Product Description
overhead Shot Blasting Machine

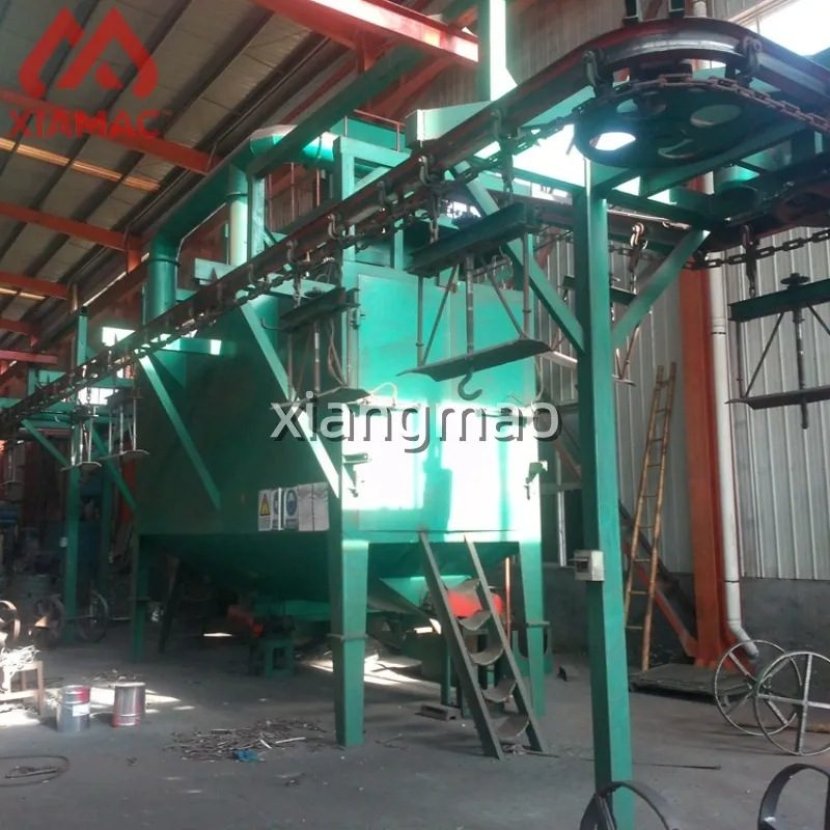

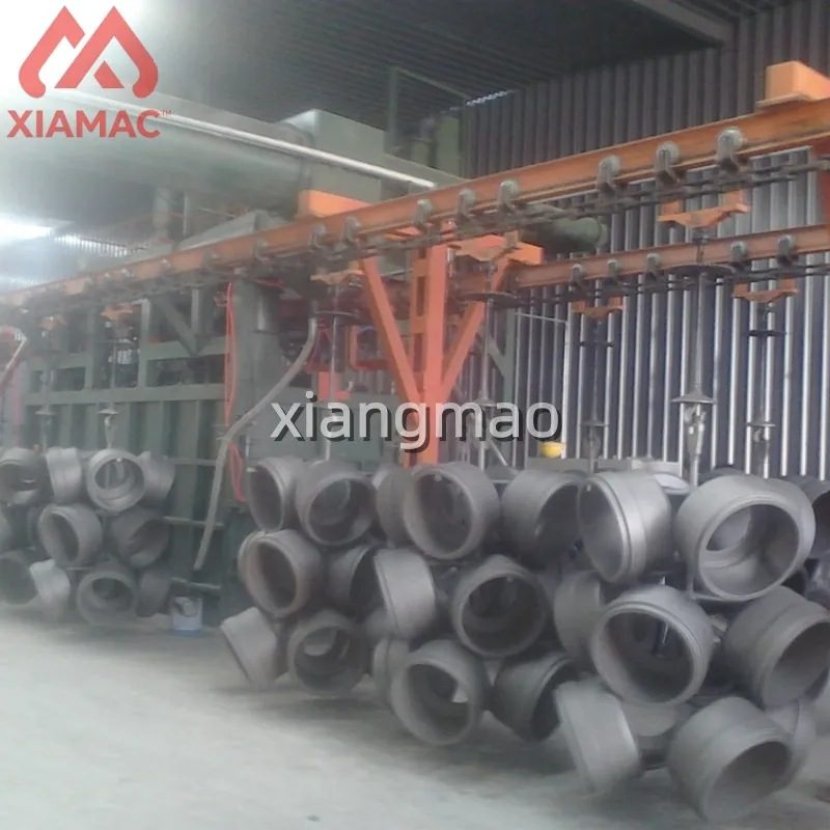

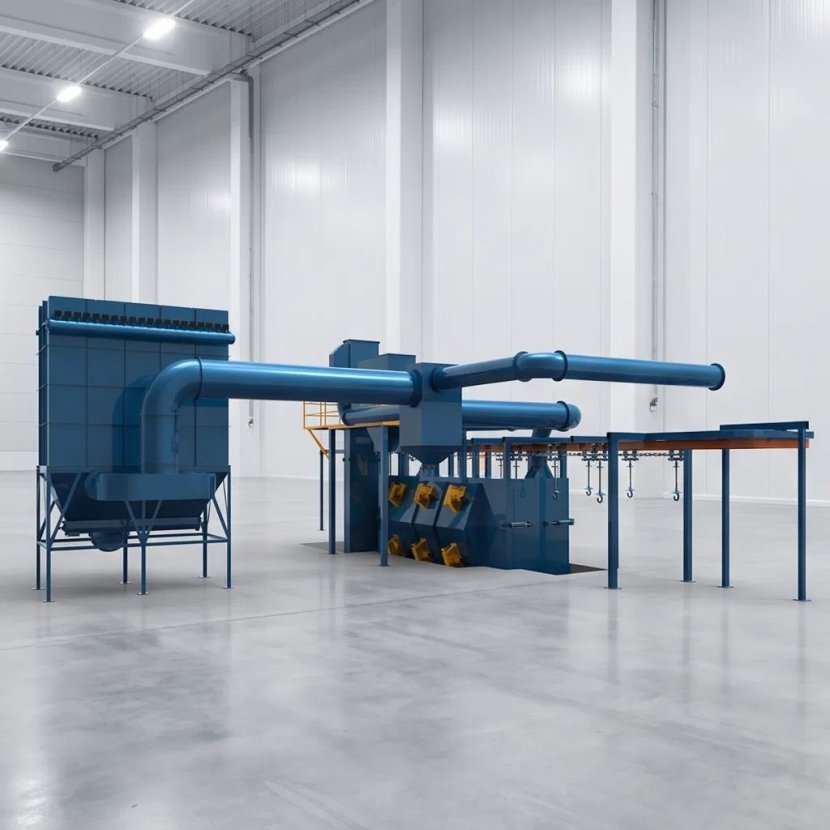

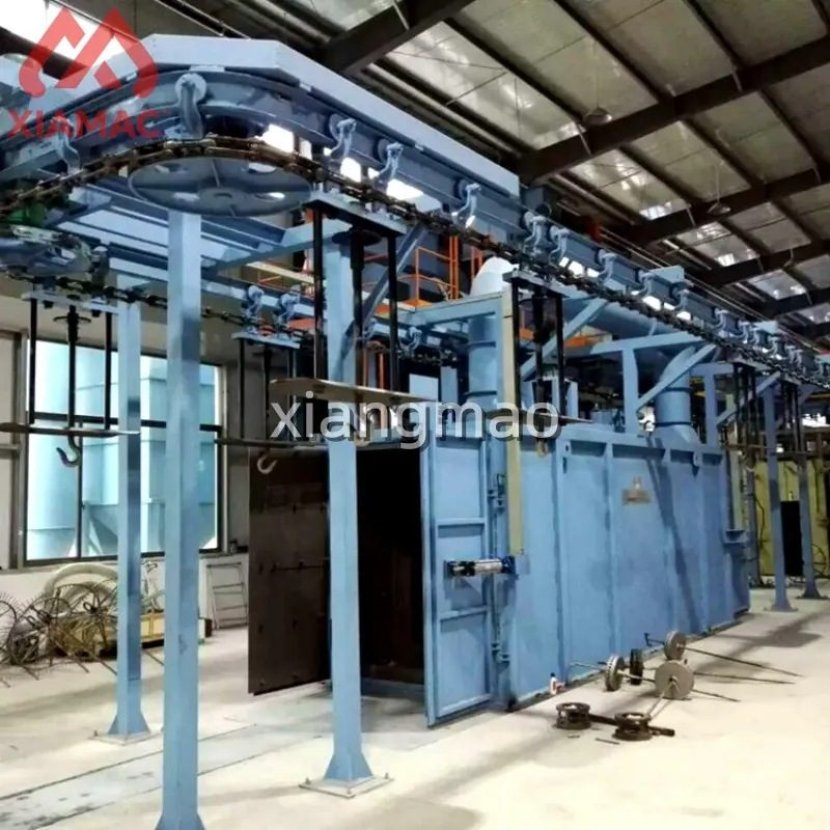

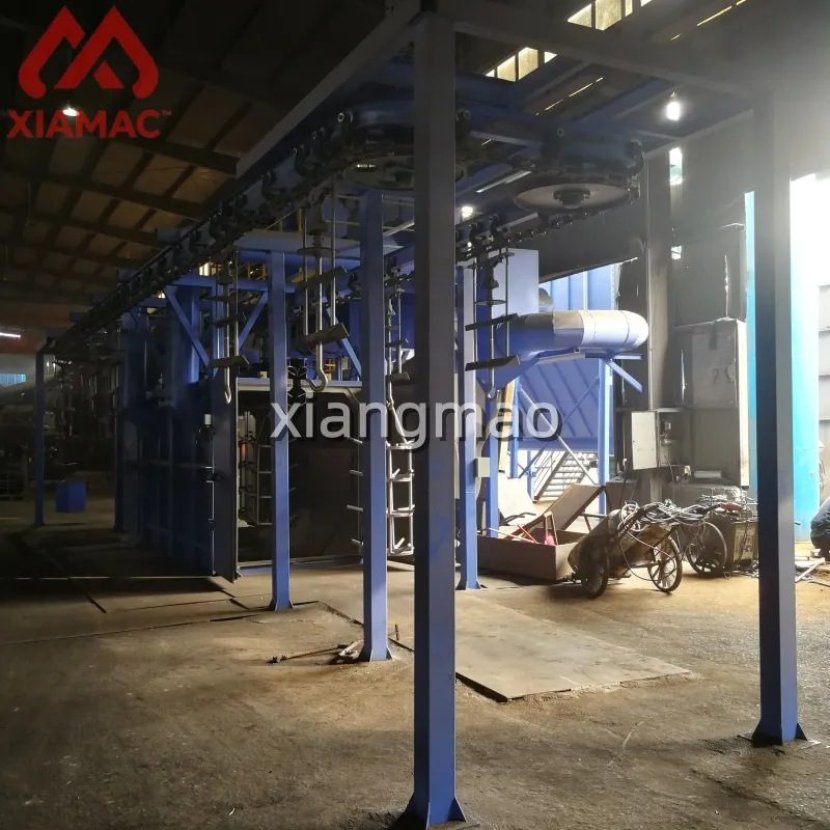

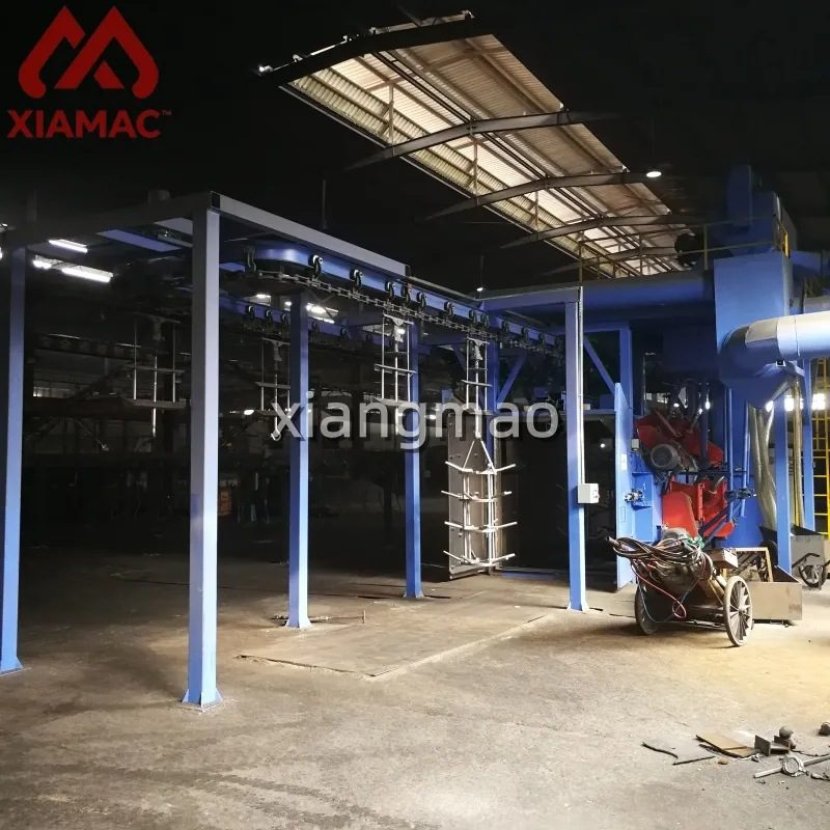

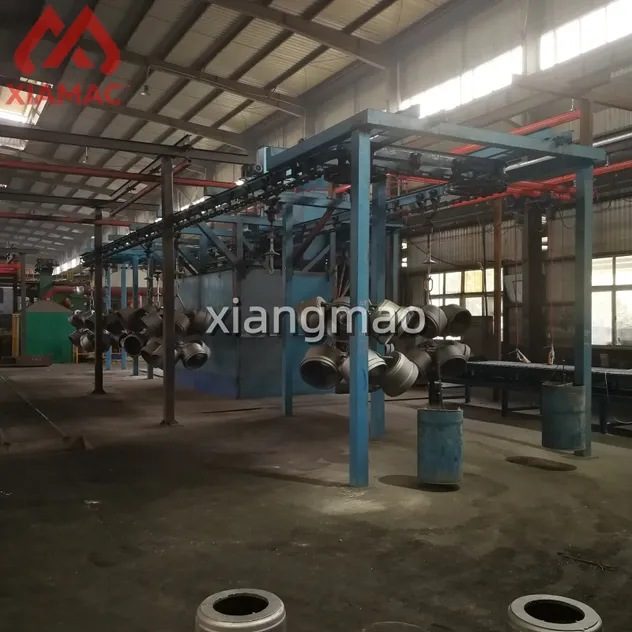

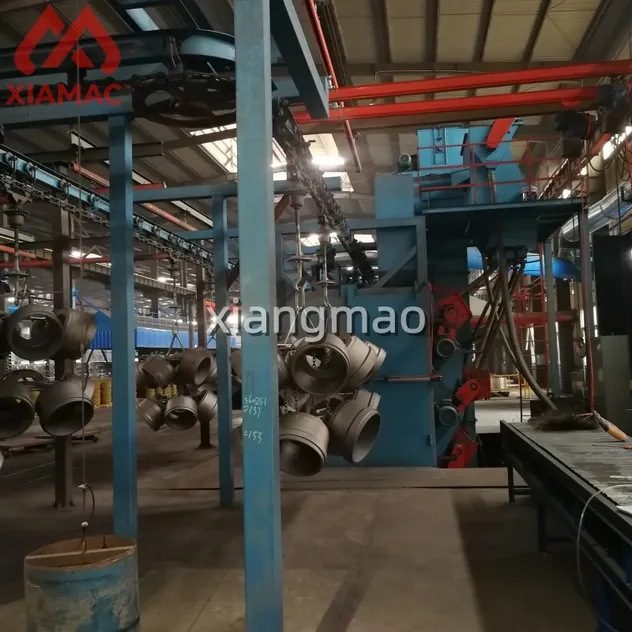

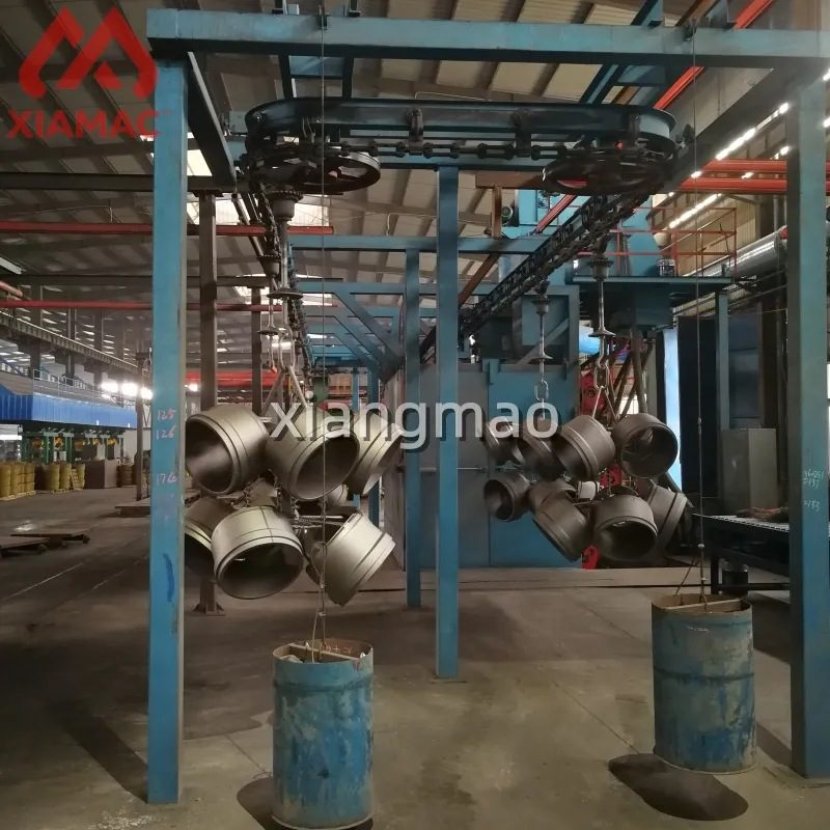

The Catenary / Overhead Hanging Chain Shot Blasting Machine (often referred to as the hanging chain shot blasting machine) is a continuous-pass shot blasting equipment, which is divided into two major categories: continuous type and accumulation-feeding step-by-step type. The workpiece is continuously fed into the cleaning chamber along the overhead catenary track via a hanging hook. Inside the blasting chamber, the workpiece rotates while being impacted by high-speed steel shot, achieving one-time completion of sand removal, oxide scale removal, rust removal, and surface stress strengthening treatment on the workpiece surface.
Features Of Pass Overhead Hanging Chain Automatic Shot Blasting Machine :
Complete systems quoted
One supplier for all components
Proven abilities - Industry leader
Quality components
Proven technology
Custom designs - Flexible layouts
Simple integration into existing manufacturing processes
Wide range of system sizes and variants
complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.
QH69 shot blasting machine is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.
Technical parameter of overhead Hanging Chain shot blasting machine
According to your requirements, the most suitable machines will be designed for your workpieces please indicate the following details.
1. What kind of workpiece will you clean?
2. The workpiece size, length, width and height of maximum workpiece?
3. How many workpiecs do you want to clean per day?
Based on this question, the detailed technical proposals will be sent to you for reference.
| Item | Continuous moving type | Step moving type | Continuous moving type | ||||
|---|---|---|---|---|---|---|---|
| Productivity | Hook/h | 38-50 | 60-120 | 20 | 40-60 | 40 | 40 |
| Lifting weight | Kg/hook | 300 | 400 | 300 | 1000 | 300 | 1000 |
| Max. Workpiece Size | mm | Φ(500-700) *1600 | Φ(500-850) *1900 | Φ(500-900) *1600 | Φ(600-1300)*1900 | Φ(400-800)*1600 | Φ(400-1200)*2200 |
| Abrasive flow rate | kg/min | 4*250 | 6*250 | 2*250 | 6*250 | 4*250 | 6*360 |
| Cleaning space size | Mm | 5000*2200 *2600 | 6000*2600 *3000 | 2900*1800 *3200 | 3050*2600 *3000 | 3200*2200 *2800 | 3200*2800 *3800 |
| Speed of chain | m/min | 0.35-3 | 0.35-3 | 3-8 | 3-8 | 0.8-3 | 0.8-3 |
| Lifting distance of pendant chain | mm | 600-800 | 600-100 | 600-1000 | 700-1400 | 500-900 | 500-1300 |
| Ventilation capacity | M3/h | 10480 | 14500 | 5000 | 14500 | 10480 | 18000 |
| Power | kw | 83 | 131.7 | 52.8 | 114.7 | 83.5 | 188 |
| Outline dimension of shot blasting machine | mm | 11810*3200 *7250 | 15300*3700 *7700 | 11450*3100 *6450 | 9450*3700 *7700 | 13250*3400 *7250 | 17700*6615 *8300 |
Application

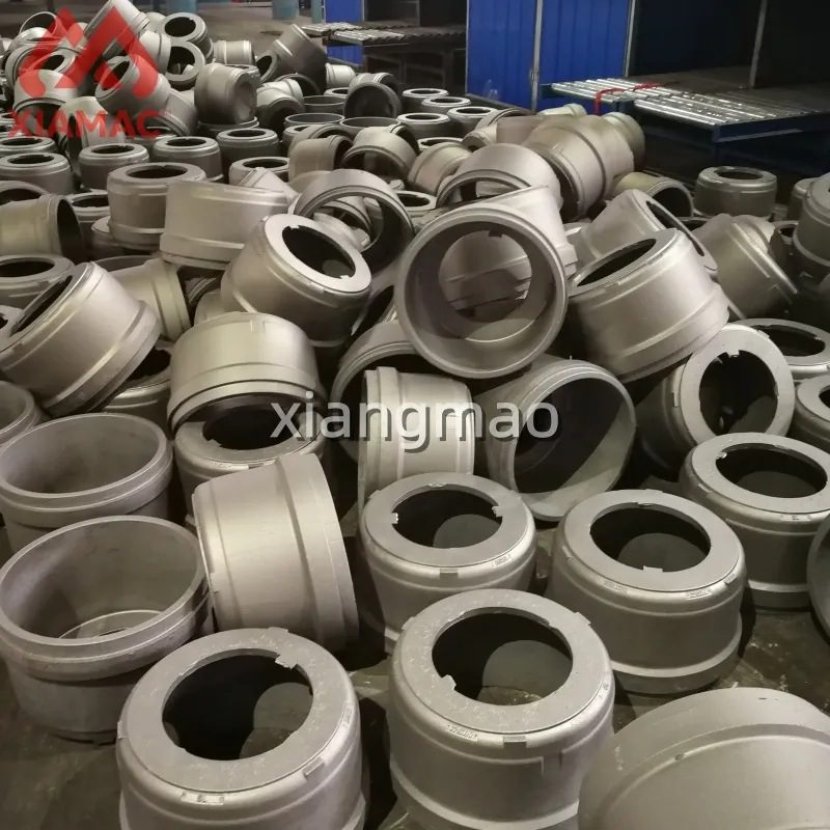

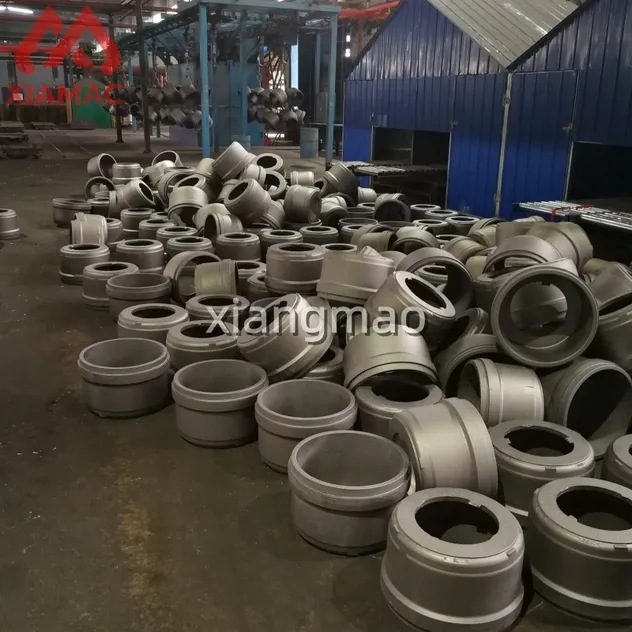

| Agriculture industry Shot blasting: Tractor components, water pumps, farm implements, etc. |
|---|
| Automobile industry Shot blasting: Engine blocks, cylinder heads, break drums, etc. |
| Building & infrastructure industry Shot blasting: Structural steel, bars, transmission & television towers, etc. |
| Transportation industry Shot blasting: Engine blocks, axle & crank shafts, diesel engine components, etc. |
| Oil & gas industry Surface preparation: Pipes coating with paper, cement, epoxy, polythene, coal tar, etc. |
| Mining industry Shot blasting: Bulldozer, dumpers, crushers, land fill equipments, etc. |
| Foundry industry Shot blasting: Automobile, tractor, scooter & motor cycle components, etc. |
| Aluminum casting industry Shot peening: Automobile, scooter & motor cycle components, etc. |
| Forging industry Shot blasting: Crank shafts, connecting rods, torsion bars, other forged components, etc. |
| Railway industry Shot blasting: Side frames, bolster, couplers, rail wheel, entire coach, etc. |
| Electrical industry Shot blasting: Motor body, transformer tank, transmission tower, etc. |
| Energy & power industry Shot blasting: Sturbines, boilers, switch gear components, wind mill blades, column, etc. Stainless steel industry Shot blasting: Strips, angles, channels, pipes, tee, etc. |
| Aviation industry Shot peening: Jet engine, blades, propeller, turbine, hubs, land gear components, etc. |
| Shipyard industry Shot blasting: Steel plates, angles, channels, beams, etc. |
| Steel mill industry Shot blasting: Strips, angles, channels, pipes, tee, etc. |
| Air polution control equipments Applications: Foundry, carbon black, furnace, cupola, etc. |
| Ceramic/paver industry Applications: Antiskid, footpath, hospital, government buildig, public places, etc. |
Packing & Delivery
Mainly products
| Tumblast Shot Blasting Machines Steel Belt Shot Blasting Machines, Tumble Belt Shot Blasting Machines, Drum Type Shot Blasting Machines, Rotary Barrel Shot Blasting Machines, Continuous Flow Shot Blasting Machines, Continuous Loop Belt Conveyor Through Blast Machines |
|---|
| Overhead Rail Shot Blasting Machines (Hanger Type Shot Blasting Machines, Spinner Hanger Shot Blast Machines, Overhead Monorail Shot Blast Machines, Hanger Pass Through Type Shot Blast Machines) |
| Tube and Bar and billet Blasting Machines (Internal and external wall of Steel Pipe Shot Blasting Machines , Cylinder Shot Blasting Machines , Round Bar Shot Blasting Machines, Square Billet Shot Blasting Machines) |
| Roller Conveyor Shot Blasting Machines For Profiles, Sheet (Steel Structure Shot Blasting Machines, Horizontal And Vertical Steel Plate Shot Blasting Machines, Steel Plate Pretreatment Line, Steel Strip Shot Blasting Machines, Marble / Stone Shot Blasting Machines, Aluminum Profile Shot Blasting Machines , Floor Tiles Shot Blasting Machines ) |
| Wire Rod Shot Blasting Machines (Single & Multistrand Longitudinal Blast Machines) |
| Rotary Bogie Table Shot Blasting Machines / Satellite Turntable Shot Blasting Machines |
| Wire Mesh Belt Shot Blasting Machines |
| Portable Shot Blasting Machines (Road Surface Shot Blasting Machines , Bridge Floor Shot Blasting Machines, Tunnel Shot Blasting Machines, Pipeline Shot Blasting Machines) |
| Marble / Concrete Block Shot Blasting Machines Roll Texturing Etching Machines |
| Spring Shot Blasting Machines Leaf Spring Shot Blasting Machine , Crank Axle Shot Blasting Machine , Link Rod Shot Blasting Machine Special Shot Blasting Machines (Closed Circuit Blasting Machines, Saw Blade Shot Blasting Machines, Robot Shot Blasting Machines, Squirrel-Cage Shot Blasting Machines) |
