Fully Automatic Cold Box Core Shooting Machine Core Shooter for Sand Core Making in The Ductile Iron Pipe Industry

Product Description

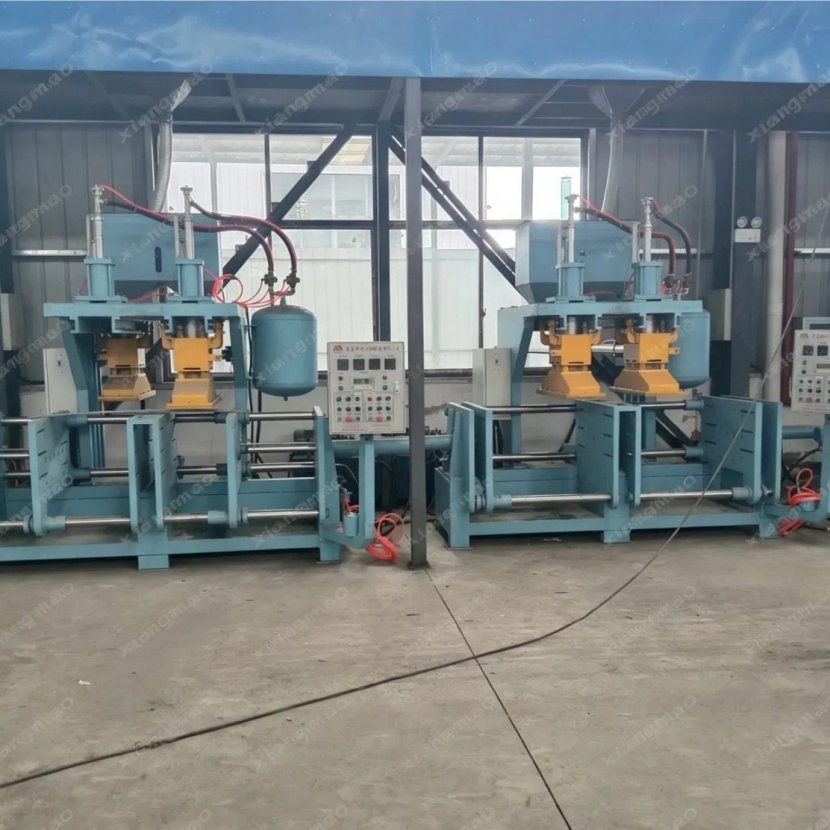

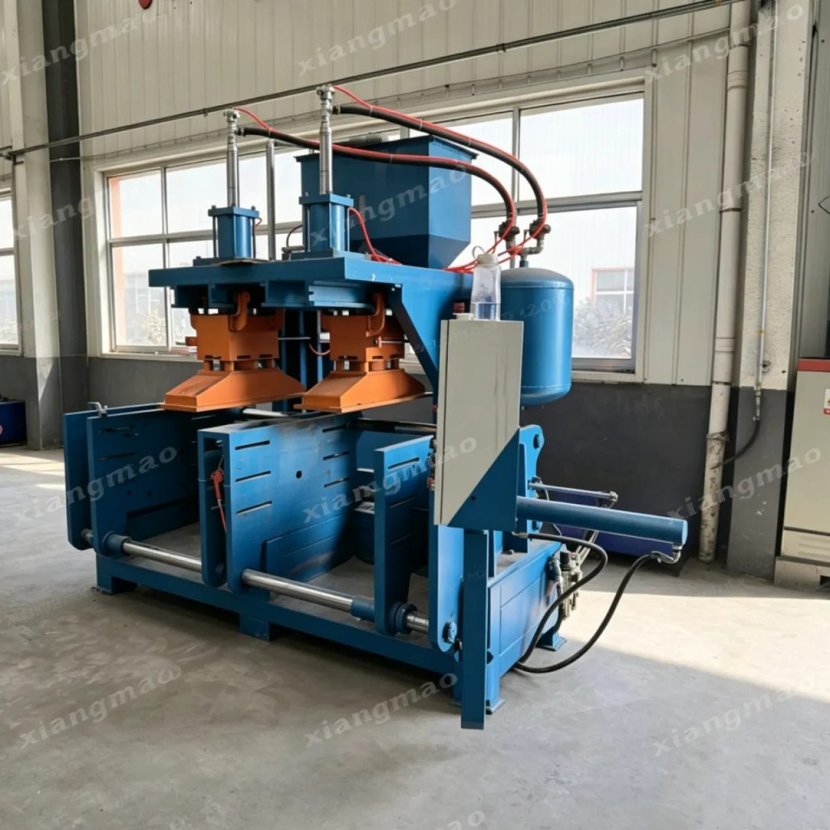

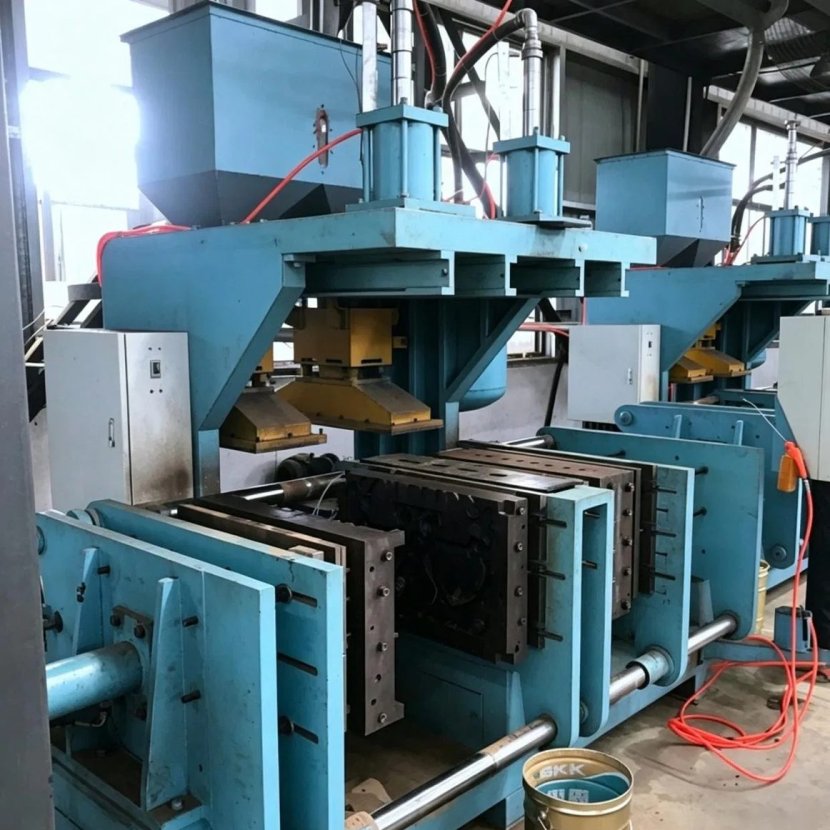

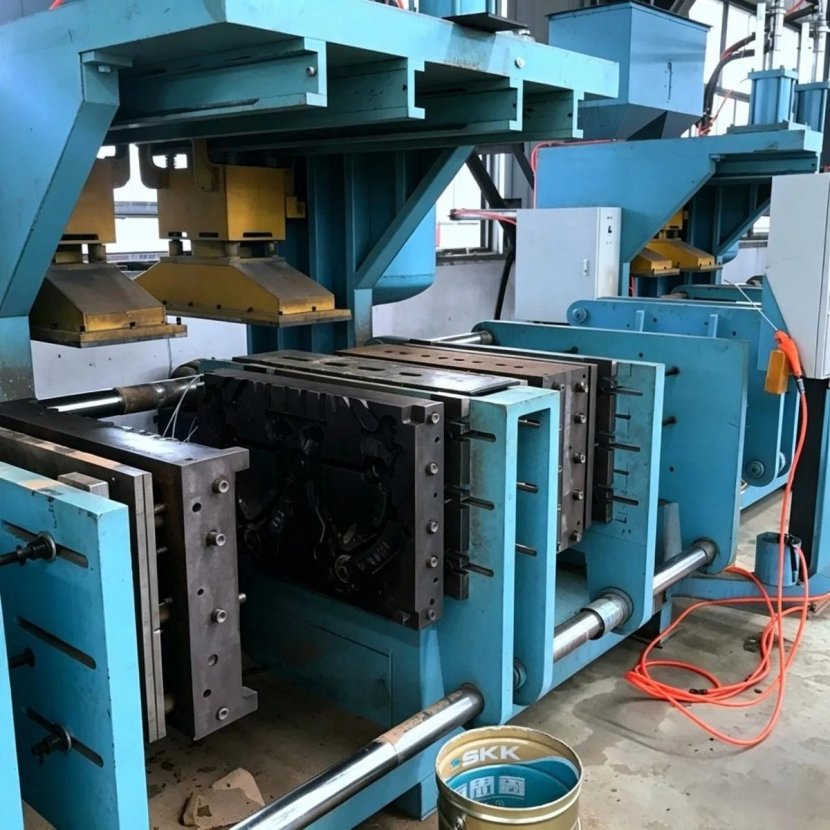

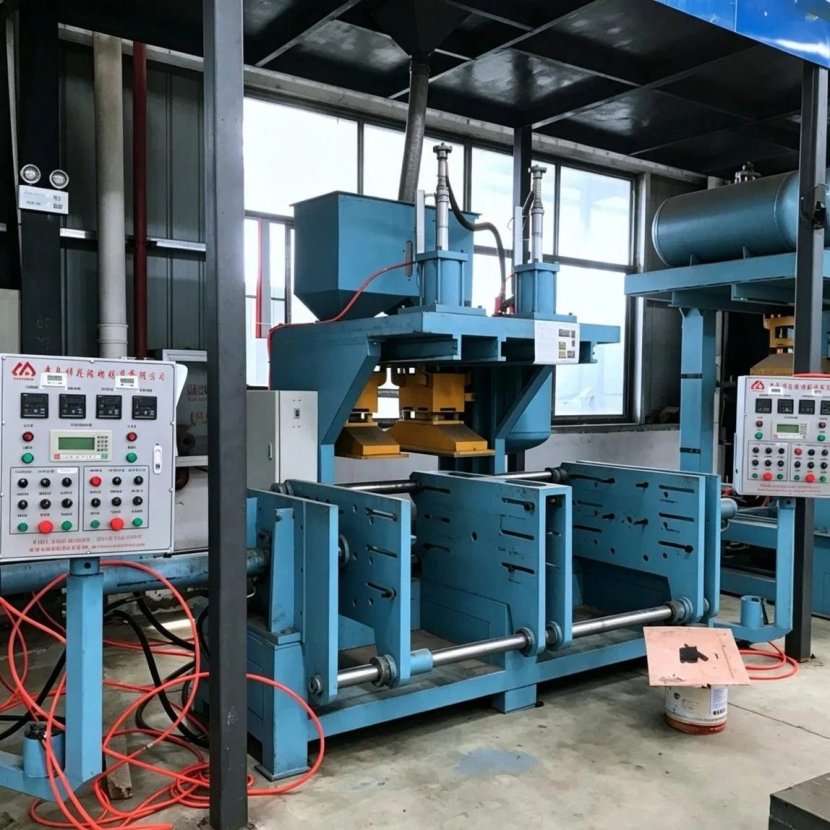

Z86 Series Hot Box Core Shooting Machine

Hot Box Core Shooting Machine, also named hot box core shooter, is a moulding equipment widely used in the foundry casting industry. High production efficiency, accurate size, smooth appearance, better sand core strength and hardness, and the ability to produce castings with complicated internal cavities. It's suitable for casting small and medium-sized casting cores such as automobiles, valves, and machine tools. It is ideal for casting enterprises to improve product quality and production efficiency. Both the vertical parting and horizontal parting can be used.

Product Technical Parameter

Specification

PRODUCT FEATURE:

· It is suitable for the phenolic resin-coated sand to be solidified by electric and steam heating to produce sand core or moulding sand with high strength and a good finish.

· PLC program control, LCD screen parameter setting, process display, fault diagnosis, manual/automatic / jog control, automatic digital display temperature control

· The sand shooting head is automatically cleaned and removed after the sand shooting, automatically sanded, no water cooling; alarm reminder to open the moulds, the middle slide removed to take out sand cores.

· The template movement adopts high-frequency quenching and rigid chrome-plated guide rail, which has high clamping precision and long service life; the mould can be multi-directionally pumped.

· Vertical type, 2-6 moulds opening type; Z94SG series double moulds opening, dual working station model completes two moulds production at the same time, for users to choose.

· Drive mode: pneumatic, hydraulic, or pneumatic-hydraulic combined drive; patterns, sandblasting quick-change plate device, and sand feeding device for users to choose.

· The equipment is equipped with optional components to make the equipment move quickly and without impact, longer service life.

· Electromagnetic overflow air-cooled hydraulic station reduces oil temperature and delays component fatigue.

· After the mould is opened, the template can be turned over 90° to complete picking up sand cores automatically and removed to take out sand cores.

ADVANTAGE:

· Ten years of production and design experience in Foundry.

· Equipment gets the international certification: CE, ISO14001, ISO9001.

· All designs adopt 3D Design.

· OEM&ODM factory, High-quality after-sales service.

· The equipment is environmentally friendly, safe, and cost-effective.

· All adopt general parts, easy to buy and replace.

· Exported to more than 30 countries and regions in the world

Packing & Delivery

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

Manufacturing Workshop

FAQ

Q:How to choose cold core shooter or hot core shooter?

A:Hot box core shooter is most popular.Cores are more rigid and keep longer time exposed in open air. Cold box core shooter is a little cheaper.

Q:Can you customize foundry sand core shooting machine (sand core shooter) according to customer pattern?

A:Normally our standard type can meet most customer requirements. If necessary, we can customize foundry sand core shooting machine (sand core shooter) according to customer pattern.

Q:What is application of core shooting machine?

A:Core shooting machine is automatic equipment to make sands cores for green sand molds. It can save cost and labors and promote productivity.
