Premium Multi-Contact Molding System for Enhanced Production Quality/Sand Molding Machine/Hydraulic Clay Sand Molding Machine/Clay Sand Casting

Product Description

Sand Casting Moulding Machine Green Sand Jolt Squeeze Molding Machine

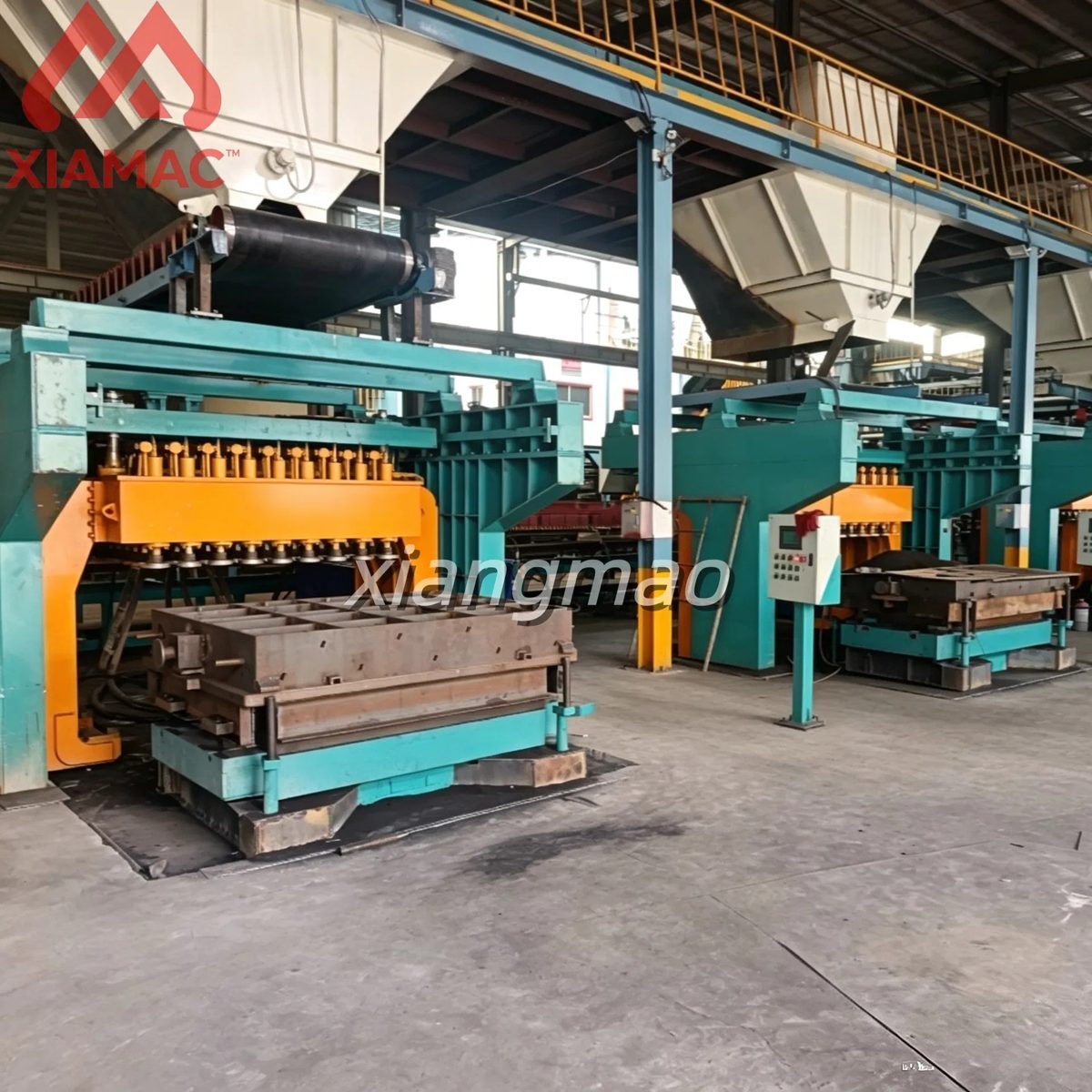

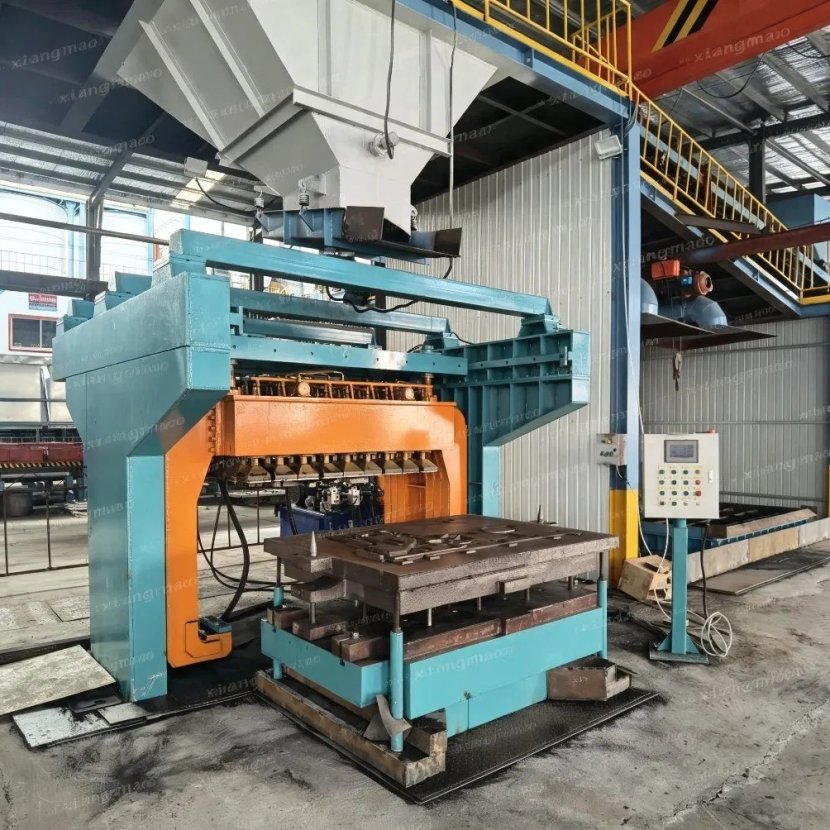

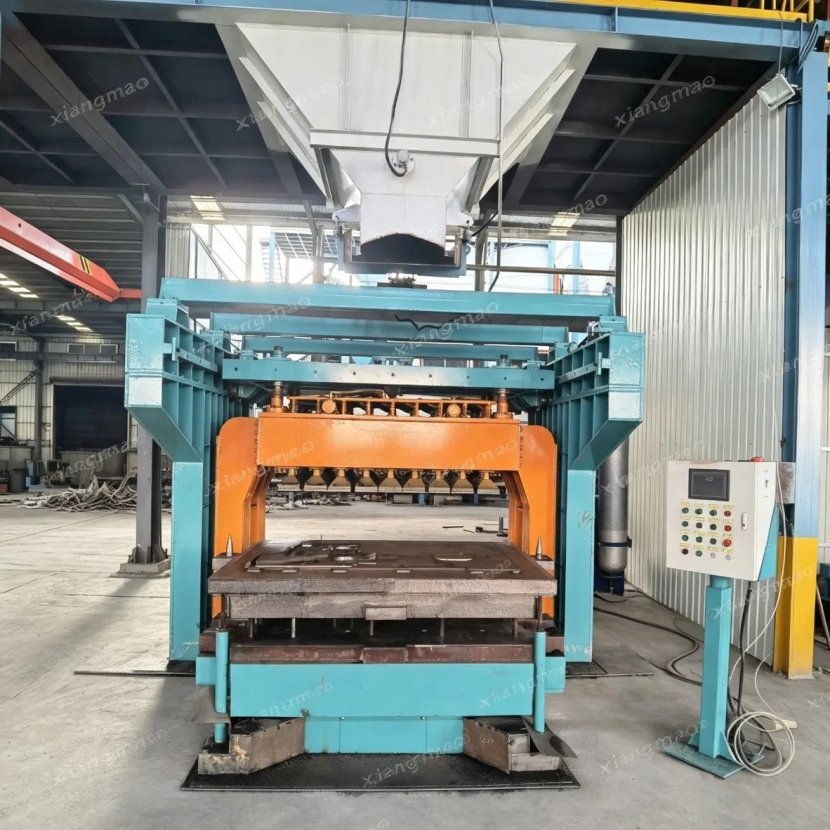

The equipment consists of a multi-contact pressure head composed of dozens of independent hydraulic/pneumatic contacts, each of which can extend and retract independently to adapt to the undulations of the mold. With the combination of vibration and high-pressure compaction, the clay sand inside the sand box is compacted to obtain a tight and uniform sand mold. Then, the top box is lifted to complete the mold making process.

• Shocking: To enable the molding sand to be initially filled and compacted

• Multi-contact compaction: Each contact adapts to the height of the mold, ensuring uniform compactness in both high and low positions, thus eliminating the significant hardness differences between deep and shallow areas of conventional flat compaction heads

• Mold lifting: The hydraulic mold lifting mechanism lifts the mold smoothly to prevent mold collapse and sand falling

Specification

Product Features:

The machine adopt cylinder, crank , connecting rod, synchronizing shaft achieve molding synchronously control part,all pneumatic components used to achieve the overall functionality,simple operation,easy maintenance.it is easy to operate,visual sand , the operational procedures can be humance and effective to increase productivity.

Application:

Jolt squeeze molding machine, pneumatic multi piston molding machine, hydraulic multi piston molding machine and others, can be used in a variety of casting workshop for green sand top and bottom sand molding, can be used alone or in the mechanized line, can also be used in a semi-automatic line.

XIANGMAO MACHINERY ADVANTAGE:

· Ten years of production and design experience in Foundry.

· Equipment gets the international certification: CE, ISO14001, ISO9001.

· All designs adopt 3D Design.

· OEM&ODM factory, High-quality after-sales service.

· The equipment is environmentally friendly, safe, and cost-effective.

· All adopt general parts, easy to buy and replace.

· Exported to more than 30 countries and regions in the world

Packing & Delivery

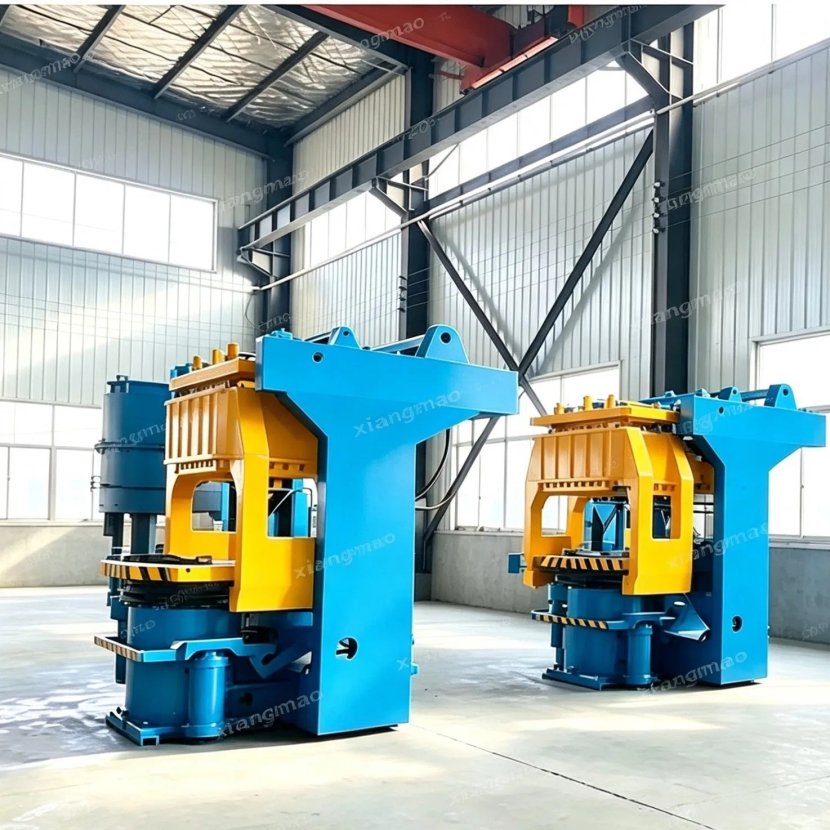

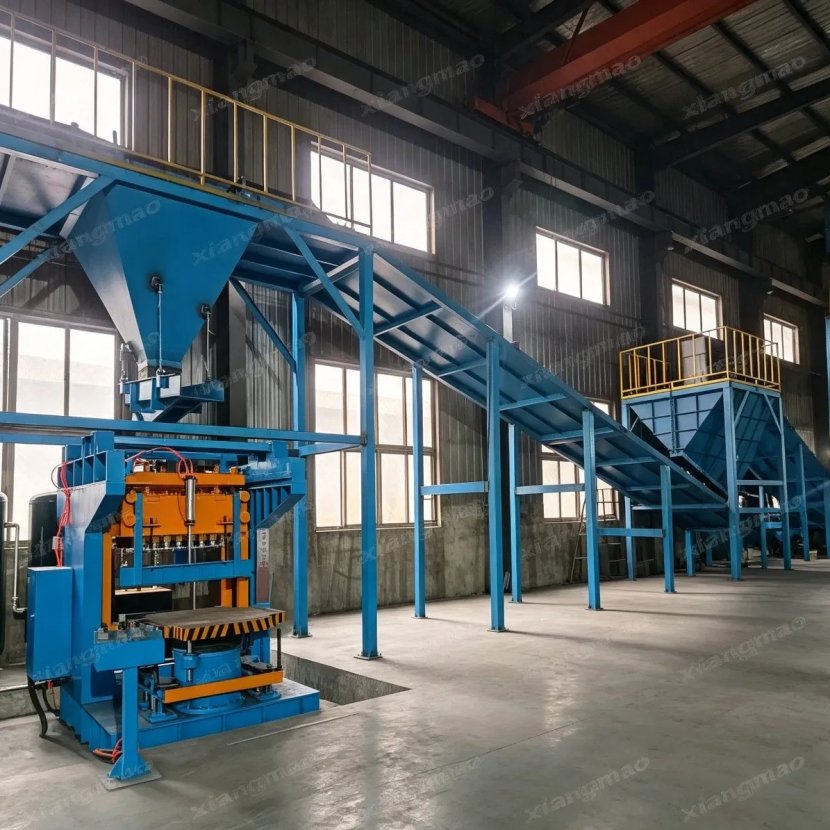

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

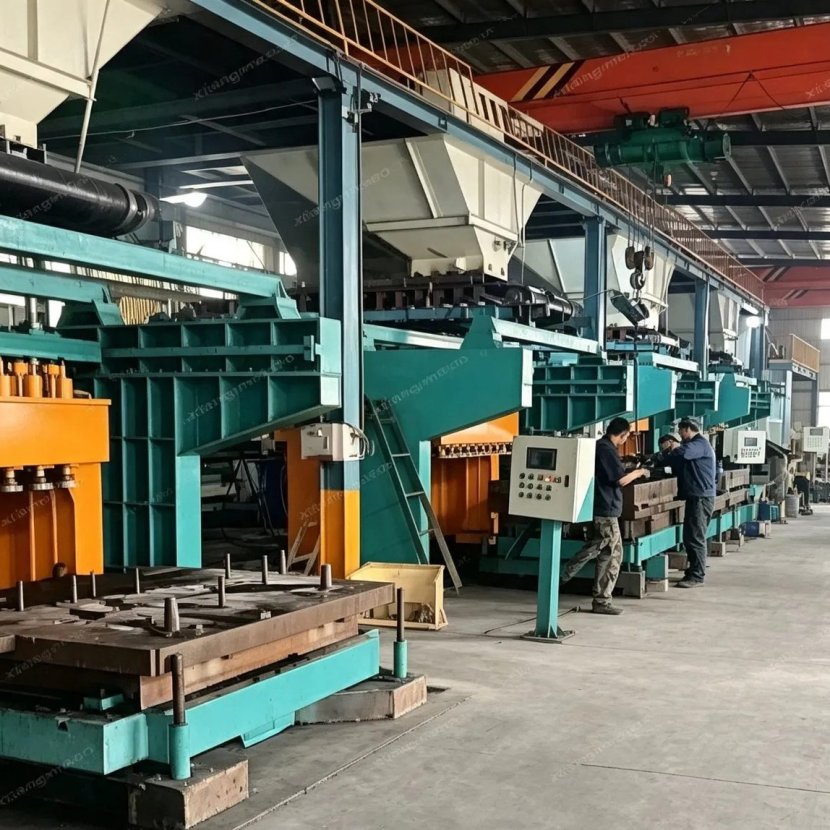

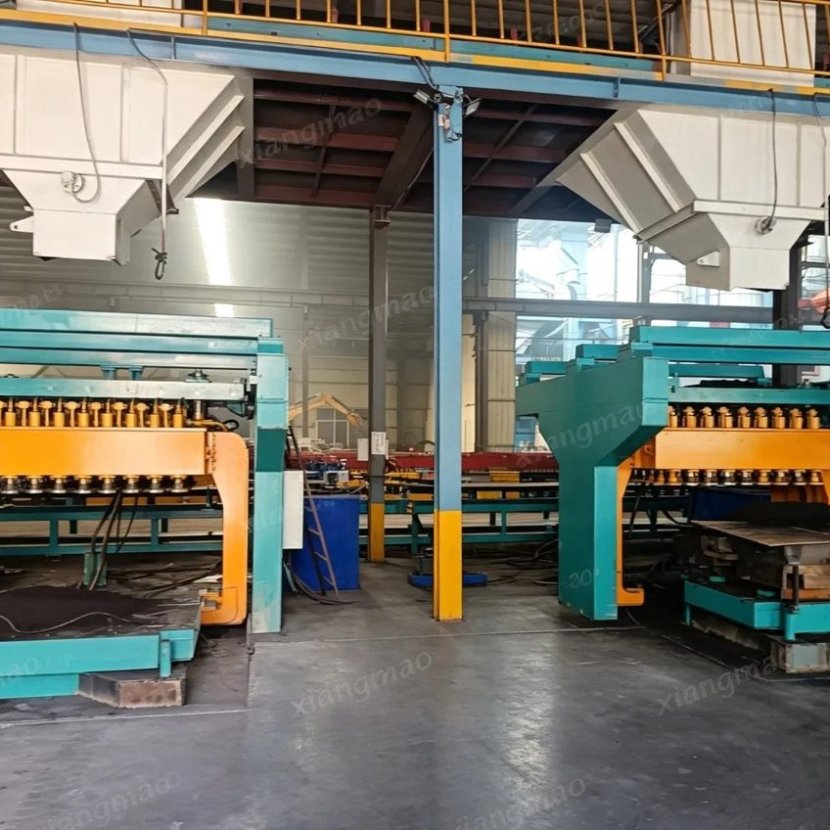

Manufacturing Workshop

FAQ

Q:How to choose cold core shooter or hot core shooter?

A:Hot box core shooter is most popular.Cores are more rigid and keep longer time exposed in open air. Cold box core shooter is a little cheaper.

Q:Can you customize foundry sand core shooting machine (sand core shooter) according to customer pattern?

A:Normally our standard type can meet most customer requirements. If necessary, we can customize foundry sand core shooting machine (sand core shooter) according to customer pattern.

Q:What is application of core shooting machine?

A:Core shooting machine is automatic equipment to make sands cores for green sand molds. It can save cost and labors and promote productivity.
