Advanced Foundry Green Sand Molding Machine for Precision Foundry Shell Core Shooting Casting Line Process

Foundry Machinery Design Sand Casting Moulding Machine Green Sand Jolt Squeeze

Product Description:

Our Iron Casting Molding Machine is popular for green sand casting, creating sand mold patterns for iron casting, resulting in high-quality parts post-cooling.

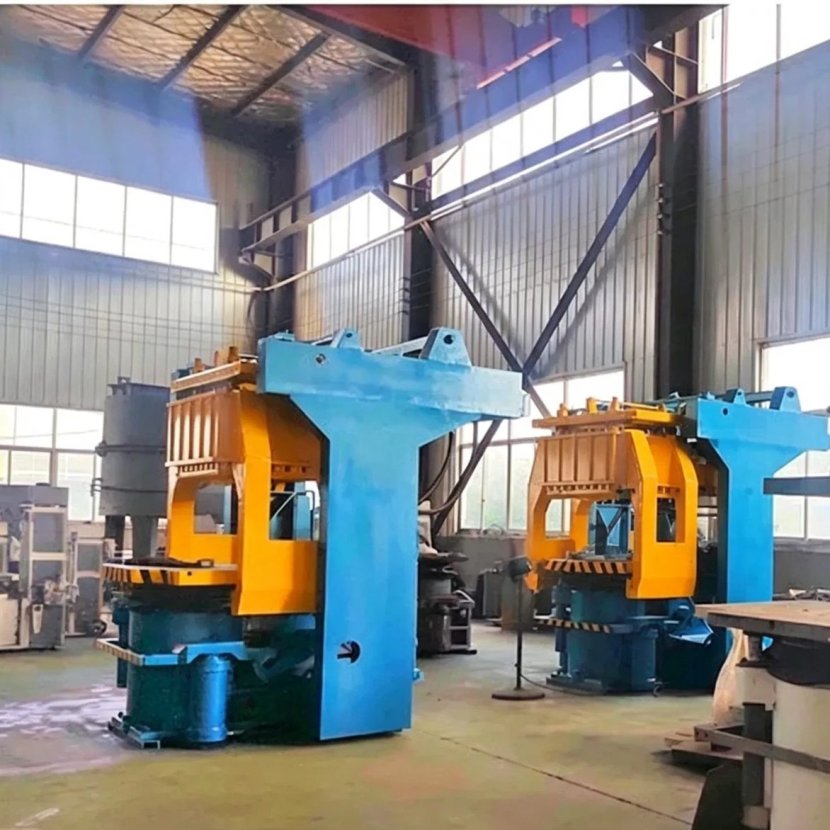

Green Sand Jolt Squeeze Molding Machines enhance compressive stress, achieving sand mold hardness up to HB90.

Pneumatic sand molding machine semi-automatically molds single flask templates for small batch castings. It uses micro-vibration compaction for tight, uniform sand molds.

The machine's buffer spring reduces impact to the foundation effectively.

The control system uses pneumatic components for easy operation and maintenance.

The machine offers easy operation and clear visibility, enhancing productivity.

Key features of this machine include:

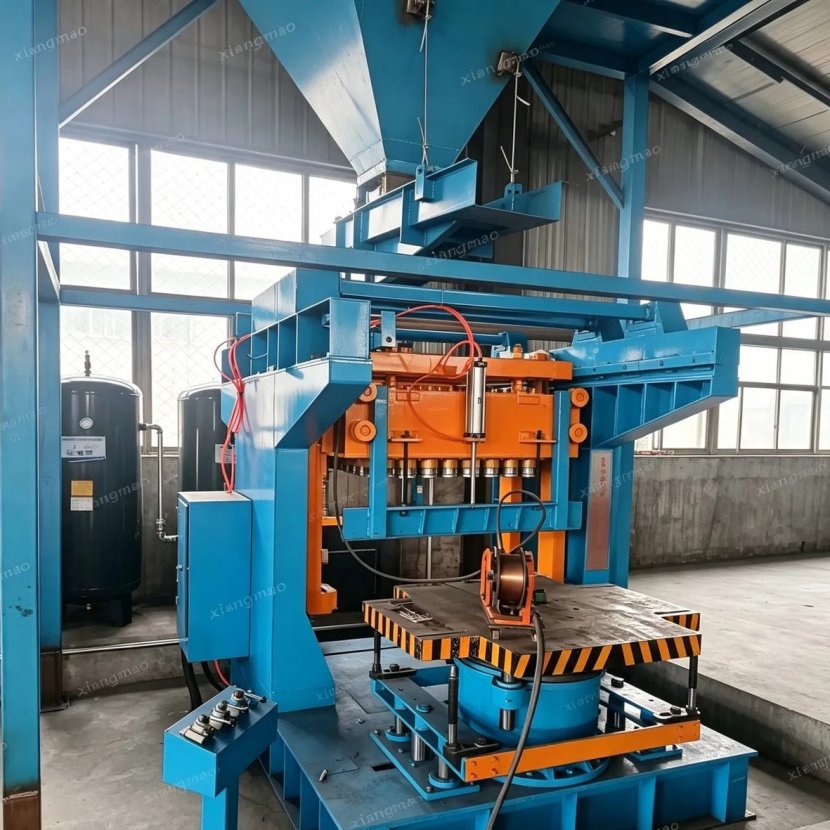

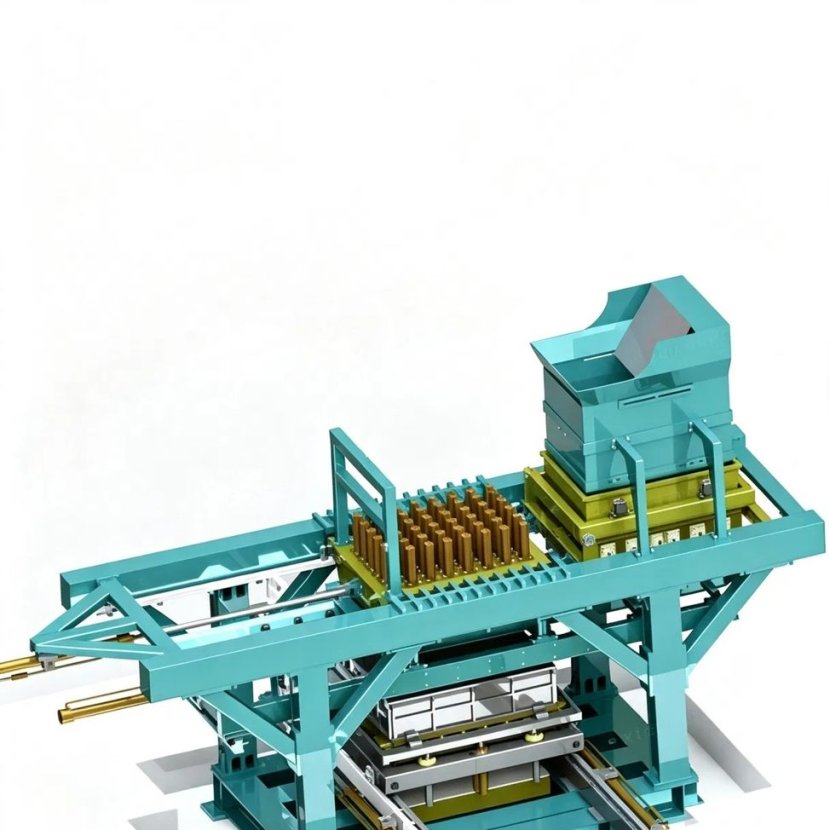

1. Pneumatic multi-piston compaction prevents oil leakage; it suits complex molds with 48 pistons.

2. During pressing, the frame is unstressed, and compaction occurs with the pistons, creating internal force.

3. Pistons compact sand and ram with the workbench, ensuring high, uniform sand mold hardness and reduced sand consumption.

Specification

Packing & Delivery

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. specializes in sand casting equipment with 10,000 sqm facilities. Backed by experienced engineers, we provide tailored casting solutions.

Production includes resin sand lines, clay reclamation, V-process casting, EPC equipment, sand prep, shot blasting, core machinery, Jolt Squeeze Molding Machines.

FAQ

Q1: What casting products suit this machine?

A: Ideal for mass-producing auto parts, valve castings, pump bodies, and iron castings.

Q2: What's the advantage of multi-head compaction?

A: Multi-head balanced pressure ensures uniform sand mold density, solving uneven hardness issues in traditional molds and reducing casting defects.

Q3: Can the machine customize the sand box size and parameters?

A: Yes, we customize table size, compaction stroke, molding pressure, and station parameters per customer's casting needs.

Q4: How about the after-sales service?

A: 12-month warranty, lifetime support, factory-price spare parts. Free remote debugging and paid on-site installation training.
