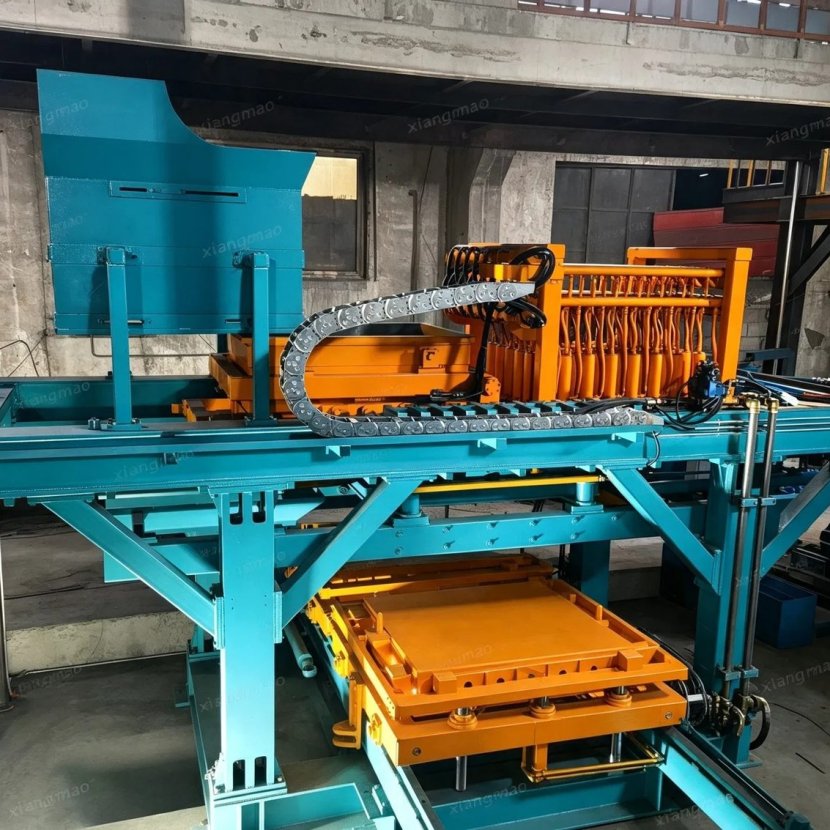

Green Sand Molding Machine for Metal Foundry Sand Plant Multi Squeeze Head Sand Casting Molding Equipment

Foundry Machinery Design Sand Casting Moulding Machine Green Sand Jolt Squeeze

Product Description:

Our popular Iron Casting Molding Machine excels in green sand casting, creating precise sand mold patterns for iron casting. After cooling, you receive a solid iron part.

Adopting jolting technology, our Green Sand Jolt Squeeze Molding Machines boost compressive stress, achieving sand mold hardness of HB90.

This pneumatic sand molding machine is for semi-automatic, single flask, single-sided molding of small batch castings. It uses spring micro-vibration compaction for a dense, uniform sand mold.

The machine's buffer spring effectively reduces foundation impact.

All pneumatic components ensure global function, simple operation, and easy maintenance.

User-friendly operation enhances productivity with visible sand molds.

Significant characteristics include:

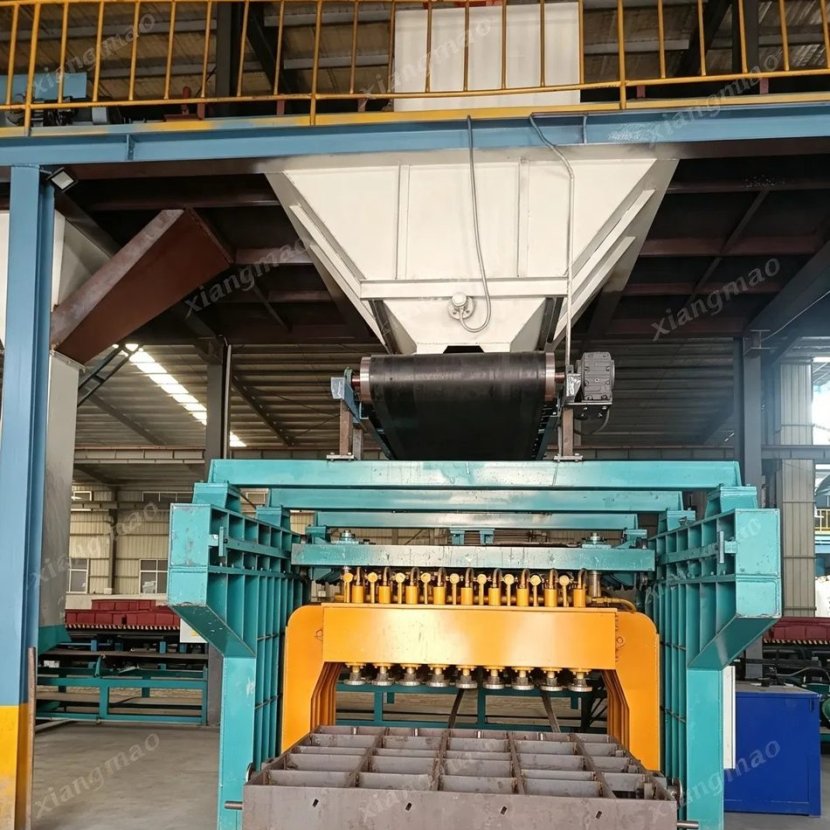

1. Oil-free pneumatic multi-piston compaction with moderate pressure suits complex models. Features 48 pistons.

2. During pressing, the frame is unstressed. Four pull rods connect pistons to the workbench, ensuring internal force compaction.

3. Pistons compact the sand mold and ram with the workbench, ensuring high, uniform hardness. Sand consumption is minimal, maintaining cavity hardness above HB80.

Specification

Packing & Delivery

Company Profile

Company Name

Qingdao Xiangmao specializes in sand casting equipment R&D, design, and production. Our 10,000+ sqm facility and 100-strong team, led by experienced engineers, deliver custom casting solutions.

Producing resin sand casting lines, clay sand reclamation equipment, V-process and EPC casting, sand prep, and shot blasting machines; core shelling, shooting, and Jolt Squeeze Molding Machines.

FAQ

Q1: What casting products suit this machine?

A: Ideal for mass production of auto parts, valve castings, pump bodies, mechanical accessories, and iron castings.

Q2: What advantage does multi-head compaction have over ordinary machines?

A: Multi-head balanced pressure ensures uniform mold density, solving traditional mold hardness issues and significantly reducing casting defects.

Q3: Can the machine customize the sand box size and parameters?

A: Yes, we customize table size, compaction stroke, molding pressure, and station parameters per customer's casting drawings and needs.

Q4: How about the after-sales service?

A: 12-month warranty, lifetime support, factory-price spare parts, free remote debugging, and paid on-site training.
