Product Description:

Iron Casting Molding Machine is our popular foundry machinery for green sand casting. It creates sand mold patterns for iron pouring; post-cooling produces iron cast parts.

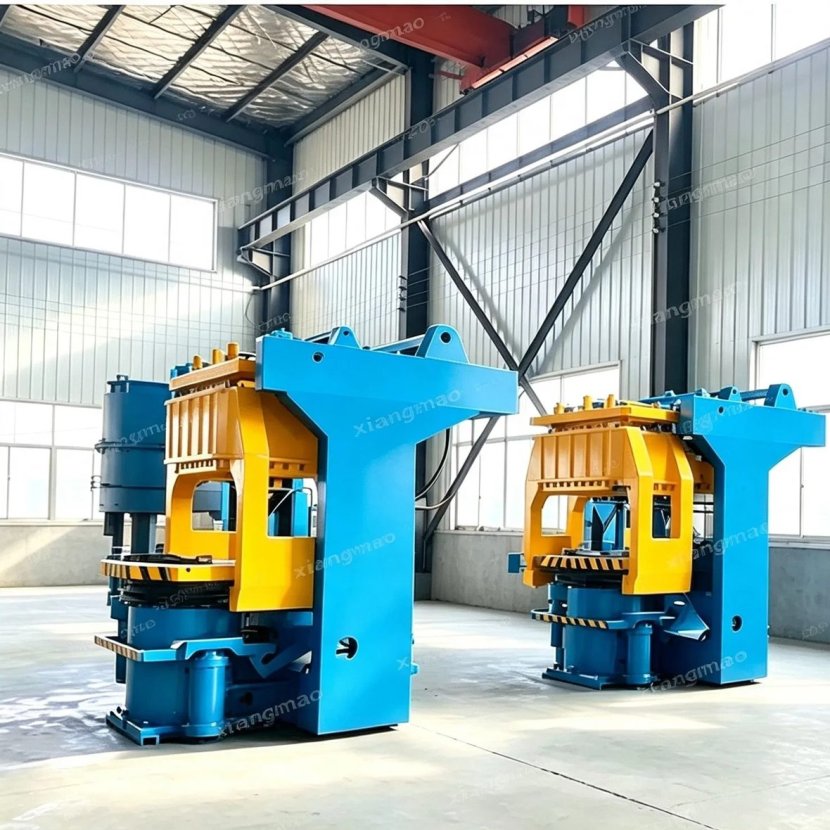

Green Sand Jolt Squeeze Molding Machines utilize jolting tech to boost compressive stress, achieving sand mold hardness up to HB90.

Pneumatic sand molding machine semi-automatically molds small casting templates in batches. Features spring micro-vibration compaction for strong, uniform sand molds.

The machine's shock part includes a buffer spring, effectively minimizing foundation impact.

The control employs all pneumatic components for global function, ensuring simple operation and easy maintenance.

The machine offers easy operation with visible sand molds, enhancing human operation and productivity.

Key characteristics of this machine include:

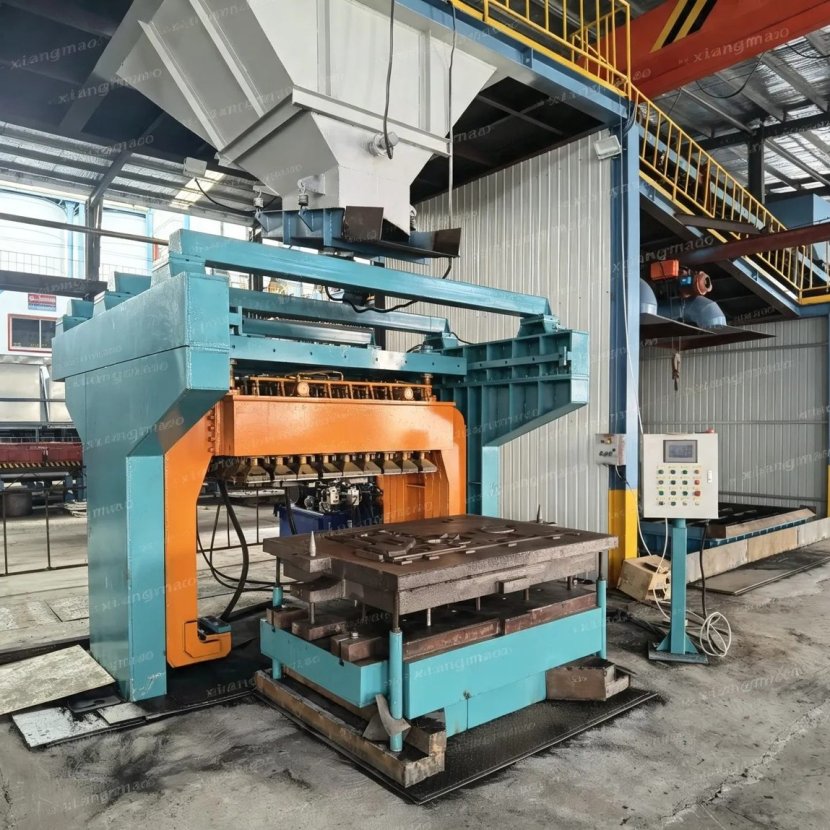

1. Pneumatic multi-piston compaction without oil leakage. Moderate pressure, no special sand requirements, 48pcs pistons, ideal for complex models.

2. During pressing, the machine frame is stress-free. Four pull rods hook onto the workbench for compaction with multi-piston extension, forming an internal force system.

3. In compaction, pistons compress sand mold and ram workbench. Result: high, uniform sand mold hardness, minimal sand use, cavity hardness above HB80.

Specification

Packing & Delivery

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. specializes in sand casting equipment with over 10,000 sq. meters of facilities and a 100-strong team. Senior engineers (10+ years experience) offer custom casting solutions.

Production includes resin sand casting lines, clay sand reclamation, V-process casting, EPC equipment, sand prep, shot blasting, core shelling, core shooting, Jolt Squeeze Molding and casting machinery.

FAQ

Q1: What casting products suit this machine?

A: Suitable for mass production of auto parts, valve castings, pump bodies, mechanical accessories, gray and ductile iron castings.

Q2: What is the multi-head compaction advantage?

A: Multi-head balanced pressure ensures uniform sand mold density, solving uneven hardness issues and reducing casting defects.

Q3: Can the machine customize the sand box size and parameters?

A: Yes, we tailor the working table size, compaction stroke, molding pressure, and station parameters to customer's casting needs.

Q4: How about the after-sales service?

A: 12-month full machine warranty, lifetime support, factory-price spare parts. Free remote debugging and paid on-site installation training.
