Hanger type shot blasting machine offers unmatched flexibility and versatility. Available in single hook I type and dual hooks Y type.

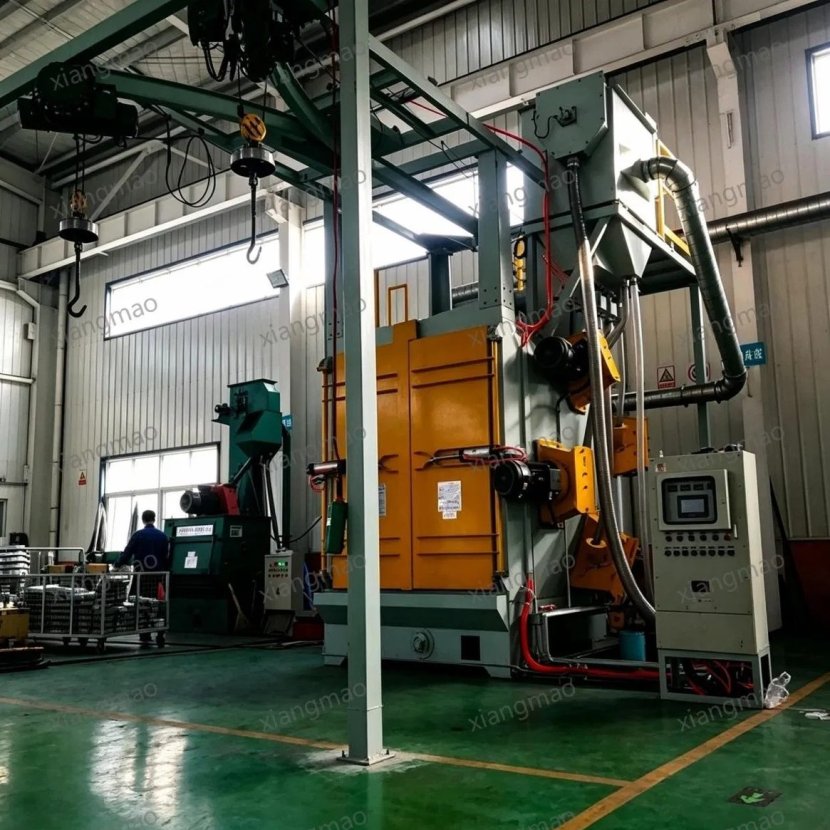

Q378 Hook Type Shot Blaster Wheel Blasting Equipment
Hanger type shot blasting machine offers unmatched flexibility and versatility. Available in single hook I type and dual hooks Y type.
Ideal for descaling forgings, desanding castings, removing burrs and scales, and treating surfaces of welded constructions.
Specification
Product Advantages:
It's the most popular and widely used model.
Hook type shot blasting machine boasts flexibility, cleaning efficacy, automation, applicability, and efficiency.
- Adapts to complex structures for flexible handling.
- 360° rotation guarantees uniform coverage of surfaces, cavities, welds, and hard-to-reach areas.
- Supports hook loads from tens of kg to hundreds of tons.
- Ensures thorough cleaning with 2-8 wheels targeting from various angles to eliminate rust, scale, oil, sand, slag, burrs, etc.
- Automatic shot recycling exceeds 95% utilization, reducing consumable expenses.
- Equipped with comprehensive safety interlocks.
- Reduces costs and boosts production efficiency.
Product Application
Designed for cleaning and strengthening small castings, forgings in foundry, building, chemical, motor industries, etc. Perfect for cleaning and blasting small production castings, forgings, and steel parts from sand, cores, and oxide. Suitable for heat-treated parts, especially thin-wall items not ideal for impact.
Technical Specifications
(Custom configurations available upon request.)
| Model | Q376 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 |
|---|---|---|---|---|---|---|
| Clean up maximum weight(kg) | 600 | 800 | 1000 | 2000 | 3000 | 5000 |
| Maximum external dimensions of the pendant(mm) | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2400 | 1700*2500 |
| hot blasting volume(kg/min) | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 |
| Elevator lifting capacity(t/h) | 24 | 30 | 30 | 45 | 45 | 60 |
| Separator separation volume(t/h) | 24 | 30 | 30 | 45 | 45 | 60 |
| Total power consumption (approximate)(kw) | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 |
Drawings & Dimensions
Our engineering team offers custom designs for specific project needs.
After Sales Service
Standard Warranty: 12 months.
Global Support: 24/7 technical support and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Qingdao Xiangmao Machinery Manufacturing Co., Ltd
Located in Huangdao District, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. specializes in sand casting equipment, integrating R&D, design, and production. With 10,000+ sqm of facilities and 100 staff, we deliver custom casting solutions backed by senior engineers with 10+ years of experience.
Resin sand casting lines, clay sand reclamation equipment; V-process casting, EPC (Lost Foam) equipment; sand prep and shot blasting machine; core shelling, shooting machines, Jolt Squeeze Molding Machine, full casting machinery range.
ISO9001 certified, our quality is globally recognized. Exported to Russia, Southeast Asia, Middle East, Africa, Indonesia, Brazil, earning trust with reliable quality and professional service.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
No-bake sand molding line
Green sand molding line
Molding machine & core machine
Negative pressure molding line
