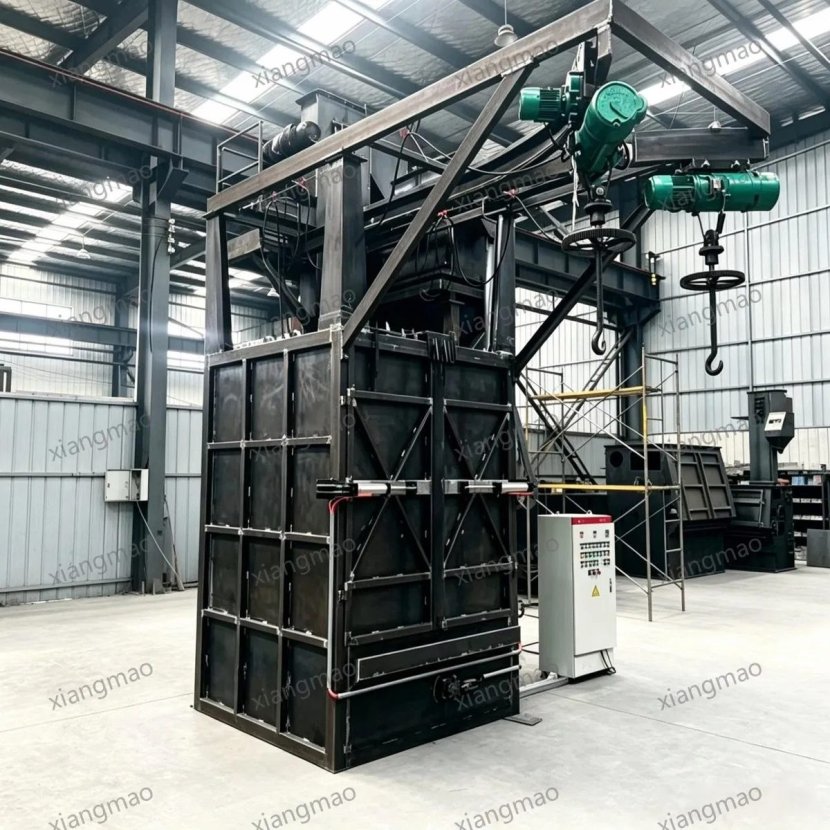

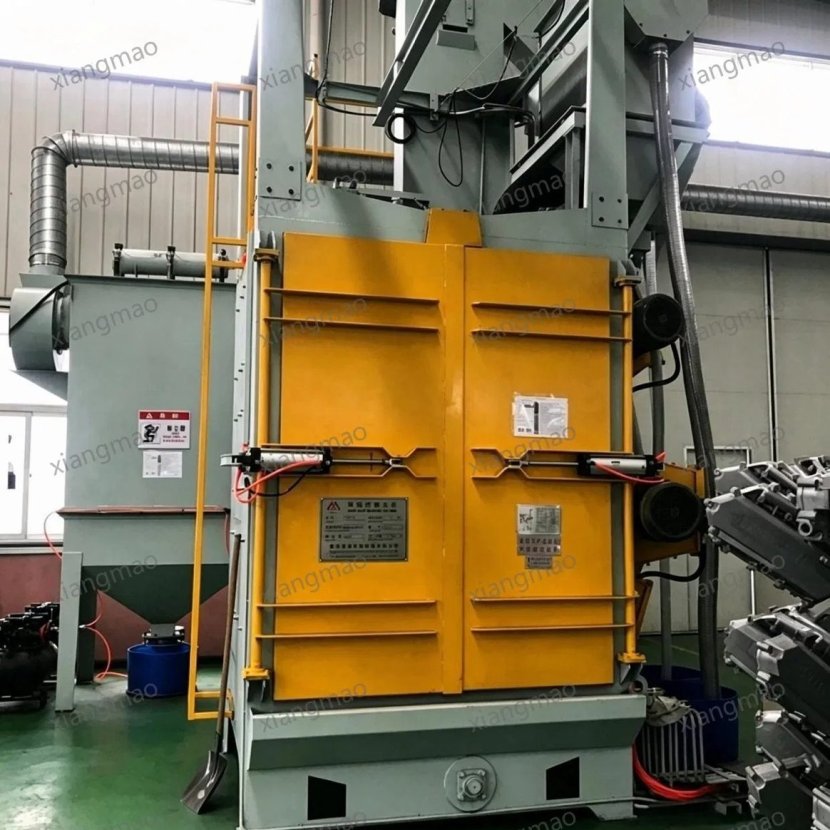

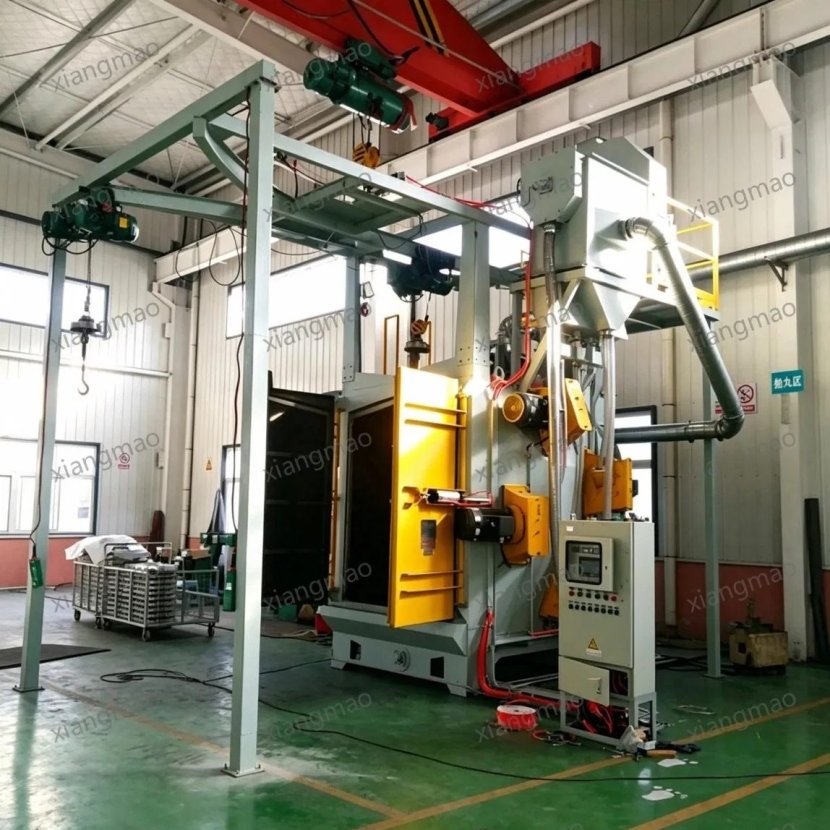

The hanger type shot blasting machine is versatile, available as single or double hook.
Q378 Hook Type Shot Blaster Wheel Blasting Equipment
The hanger type shot blasting machine is versatile, available as single or double hook.
Ideal for descaling forgings, desanding castings, deburring welded constructions, etc.
Specification
Product Advantages:
It's the most popular and widely used model.
The hook type shot blasting machine excels in flexibility, cleaning, and efficiency.
- Adapts to complex structures for flexible handling.
- 360° rotation ensures uniform shot coverage in hard-to-reach areas.
- Hook load capacity spans from kilograms to tons.
- No blind spots; equipped with 2-8 wheels for thorough cleaning.
- Shot recycling system achieves over 95% utilization, cutting costs.
- Safety protection with multiple interlock devices.
- Reduces costs and boosts production efficiency.
Product Application

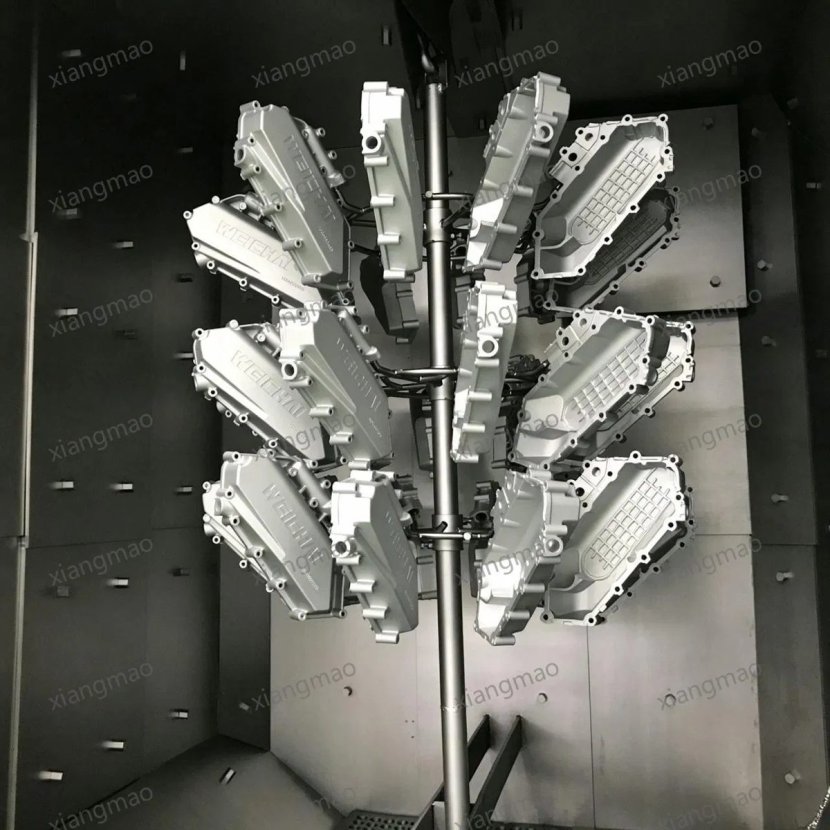

For surface cleaning/strengthening of small castings, forging parts in foundry, building, chemical, motor, and machine tool industries. Ideal for cleaning and blasting strengthening on small productions, castings, forging parts, and steel construction parts, removing sand, sand core, and oxide. Suitable for heat treatment parts, especially for slightness, thin walls not suitable for impact.
Technical Specifications
(Custom configurations available upon request.)
| Model | Q376 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 |
|---|---|---|---|---|---|---|
| Clean up maximum weight(kg) | 600 | 800 | 1000 | 2000 | 3000 | 5000 |
| Maximum external dimensions of the pendant(mm) | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2400 | 1700*2500 |
| hot blasting volume(kg/min) | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 |
| Elevator lifting capacity(t/h) | 24 | 30 | 30 | 45 | 45 | 60 |
| Separator separation volume(t/h) | 24 | 30 | 30 | 45 | 45 | 60 |
| Total power consumption (approximate)(kw) | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 |
Drawings & Dimensions
Tailored designs available for specific project needs.
After Sales Service
Standard Warranty: 12 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Qingdao Xiangmao Machinery Manufacturing Co., Ltd
Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. specializes in sand casting equipment, integrating R&D, design and production. With 10,000 square meters of facilities and about 100 employees, we offer customized casting solutions, guided by senior engineers with over 10 years of experience.
Production of resin sand casting lines, clay sand reclamation systems; V-process casting line, EPC (Lost Foam) equipment; sand preparation and shot blasting machine; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, and a full range of casting molding machinery.
ISO9001 certified, our quality is globally recognized. Our products export to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil, and more, earning trust through reliability and professional service.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
No-bake sand molding line
Green sand molding line
Molding & core machine
Negative pressure molding line
