Rubber Tumbler Belt Shot Blasting Machine Hook Shot Blaster Steel Structure Surface Clean Casting Catenary Type Shot Blasting Machine for Cleaning Metal Casting

Product Description

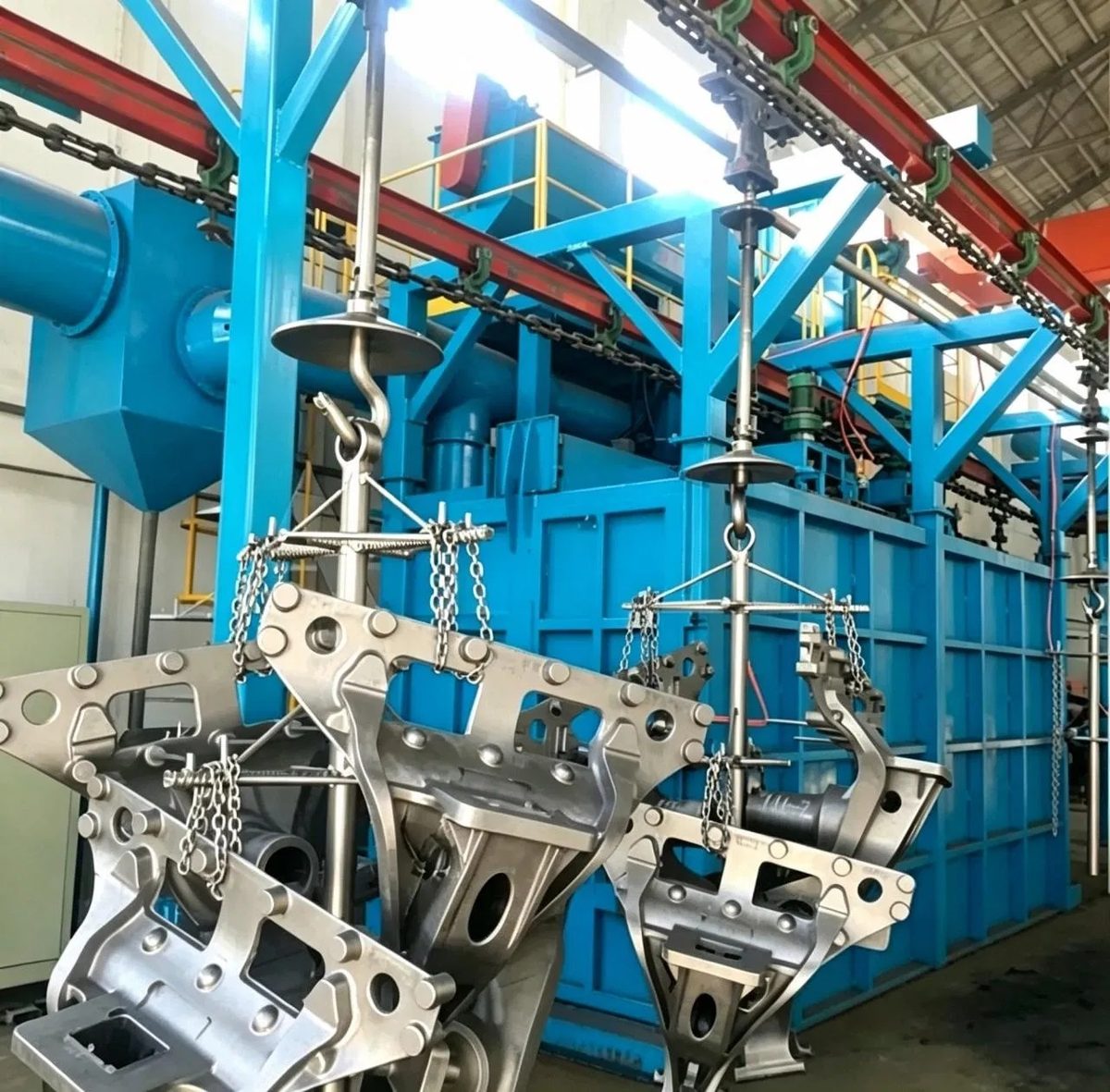

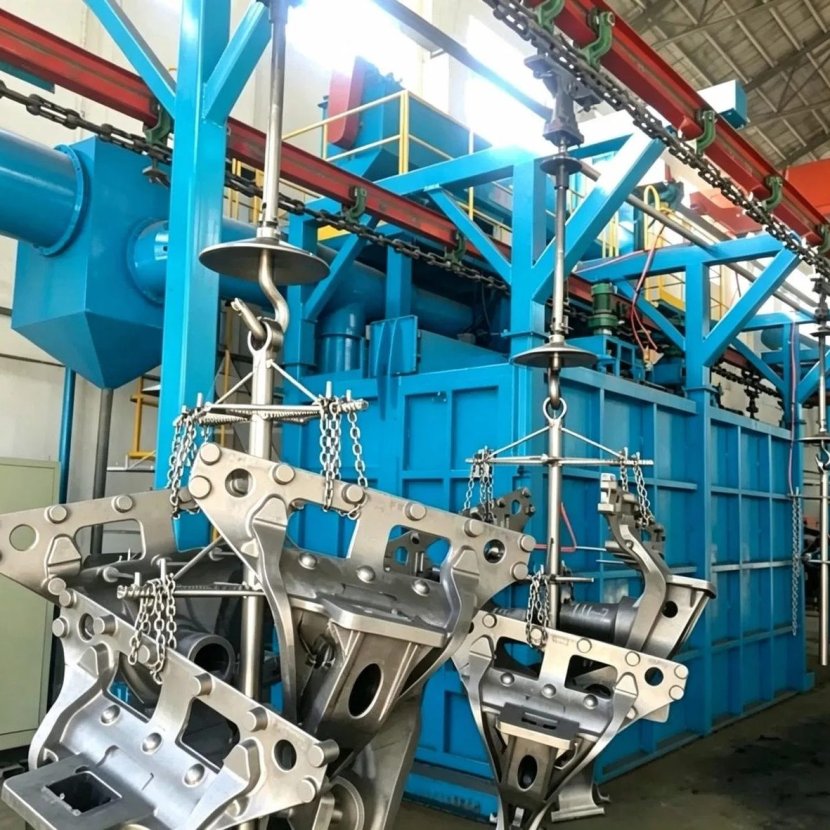

Q38/Q48/Q58 Hanging hook through shot blasting machine

From a structural form, can generally be divided by type Q38 series of continuous, Q48 series of ordinary catenary step-through, Q58 series of product release chain and other categories. Its working principle is the workpiece can be run continuously with hanging chain, running or using advanced stepper product release push hanging chain conveyor parts, as well as loading and unloading of the workpiece in the blast area were at a standstill, realize point and fixed-point shot blasting process handling, depending on the workpiece can be a single point hoists 50 ~ 2000kg, and high productivity, reliable, easy to hang on various parts of large quantities of clean-up, very applicable. Such as engine cylinder head, motor housing, gear, motorcycle engine casing, locomotive coupler yoke assembly, bogie components, hardware tool housing, water pumps and other clean-up effect is a plus. Ideal for cars, tractors, diesel engines, motors, valves, etc., etc. Generally in accordance with the requirements of users of the product design.

Q38/Q48/Q58 Hanging hook through shot blasting machine is used for surface cleaning and strengthening of steel structural part, castings, aluminum alloy parts and other spare parts. The machine is consists of shot blasting chamber, elevator, separator, screw conveyor, shot blasting wheel, abrasive control system, hook system, autorotation device, foundation, dust removal system and electrical control system, etc.

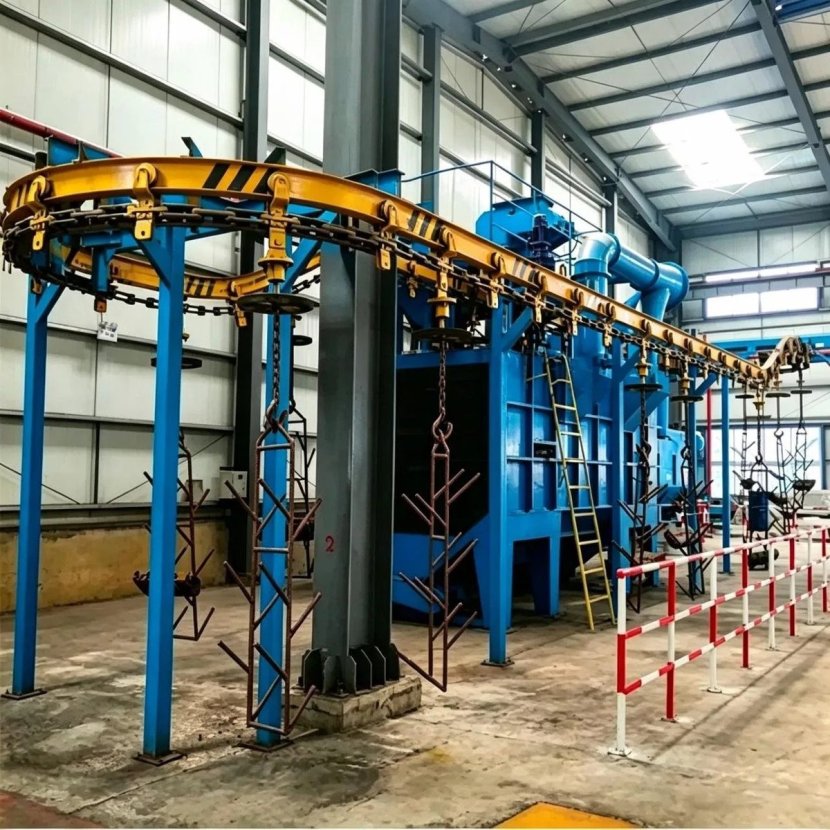

Q38 Catenary Progressive Overhead Rail Shot Blasting Machine

Q38 series overhead rail  Shot Blasting Machine uses the method of multistep fixed-point rotation blasting and cleaning, removing the sand and oxide skin on the casting surface, to reappear metal color. It is mainly used in car accessories and bolster, side frame, coupling, and frame of trail hook vehicle parts, at the same time also can clean the casting and small batch workpiece with similar size.

Workpiece

Casting, forging, weldment, wheel hub, bicycle frame, motor shell, machinery parts, cylinder and more parts for various industries: aerospace, automotive, foundry, forging, stamping, ship-building, steel construction, plastic process, chain, etc.

Transportation system

Overhead closed loop(endless circular) monorail system, with multiple lifting hooks, optional rotation motor, can blast workpiece by batches

Loading capacity

5-1000kg

Blast turbine

Number: 4-16

Power: 7.5-30 kw

Intelligent abrasive dosing system:

Service time max 20% longer, energy saved max 30%.

Features

Remove scale, rust and welding slag, increase adhesion of coating.

Rust removal grade: SA2.5-3.0.

Product feature:

Ferrous and non-ferrous castings

Heat treated forgings

Many kinds of castings

Die castings and much more

Lower value parts where part on part impingement is not an issue

When production requires dictate batch processing

Small to medium size castings, fabrications and heat-treated parts

It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing

It is an ideal choice for auto, tractor, diesel engine, motor and valve industry.

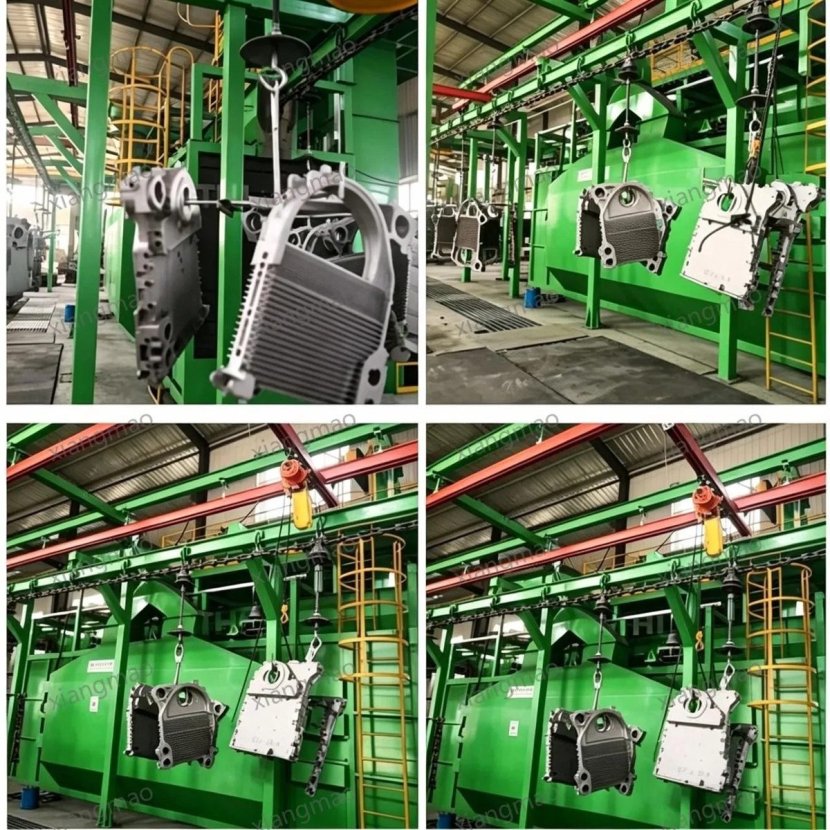

Application

Packing & Delivery

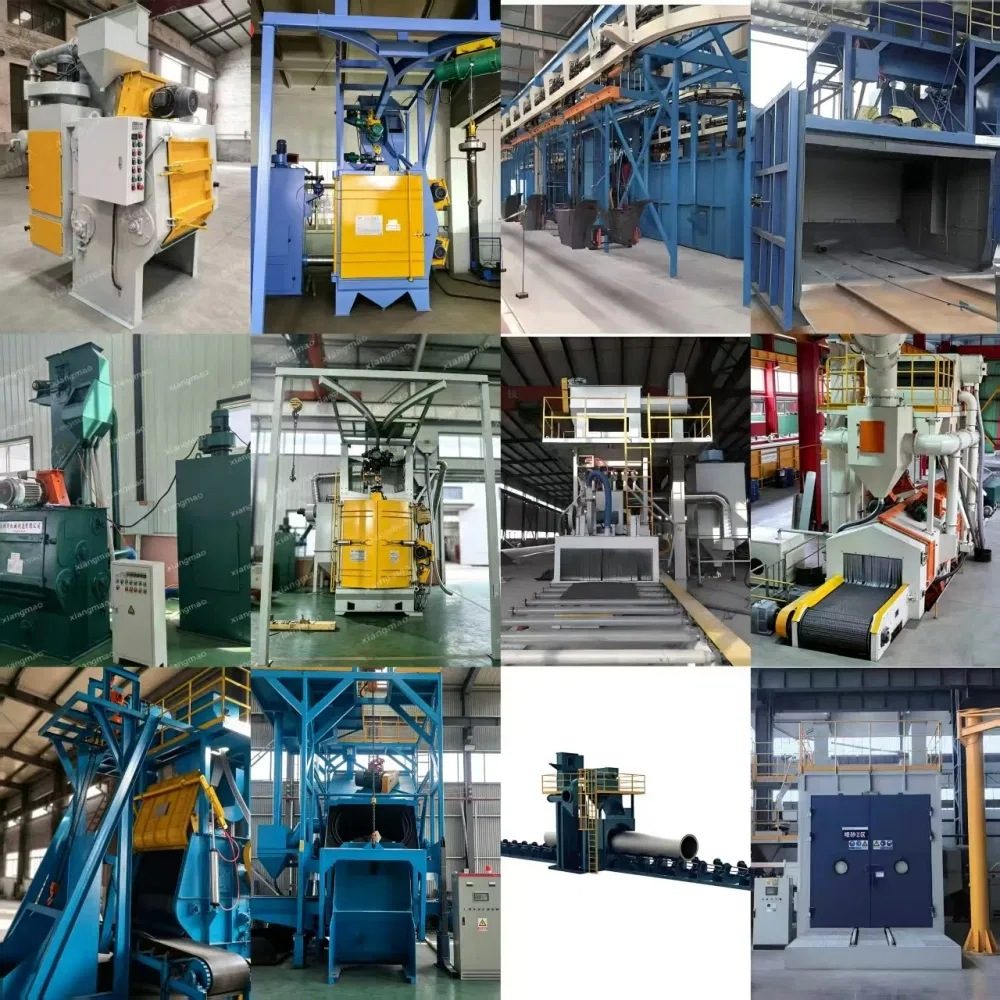

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

Manufacturing Workshop

Our Advantages :

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & sand peening Machine competitive with good quality.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.

Certifications

FAQ

Q : Do you have after-sale service?

A : Yes, we have perfect after-sale service.

Q : How long can your spare parts be used?

A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours. Kinds of guard board can be used for more than 3000 hours.

Q : How about your company ?

A: Our company is a professional manufacturer of shot blasting machine in china , we have exported to more than 30 countries and regions , and got good comments from overseas and domestic.

Q: What standards are you carrying out for your products?

A: We produce according to the ISO9001 and ISO14001 rules.

Q: How to install the machine?

A: We will arrange 1~2 engineers to your factory to guide installation and assembly.

Q: What's your international market?

A: We Have exported to about 30 countries and regions all around the world, such as, the USA, France, Singapore, Australia,Middle East, Brazil, Peru and so on.

Q: Do you have the right to export?

A: Yes, we registered in the Customs and gained the right to export by ourselves.
