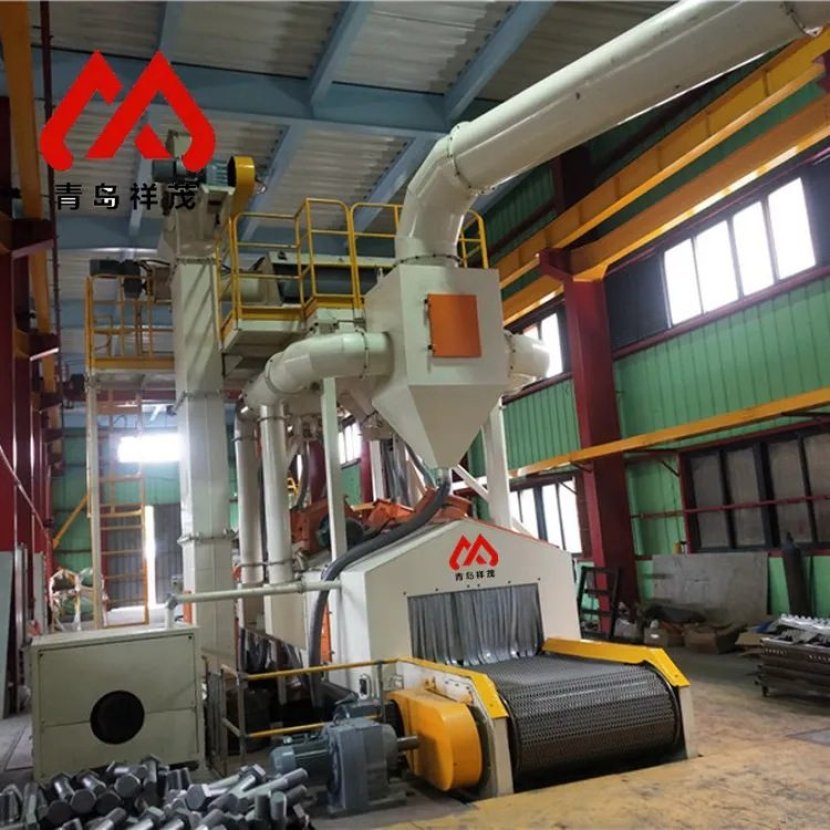

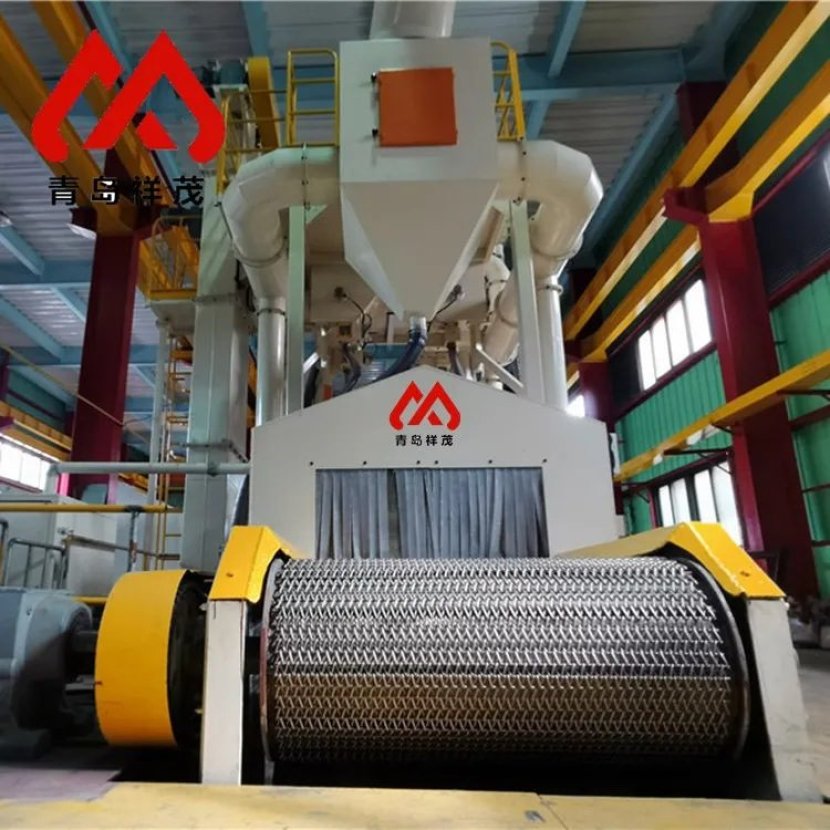

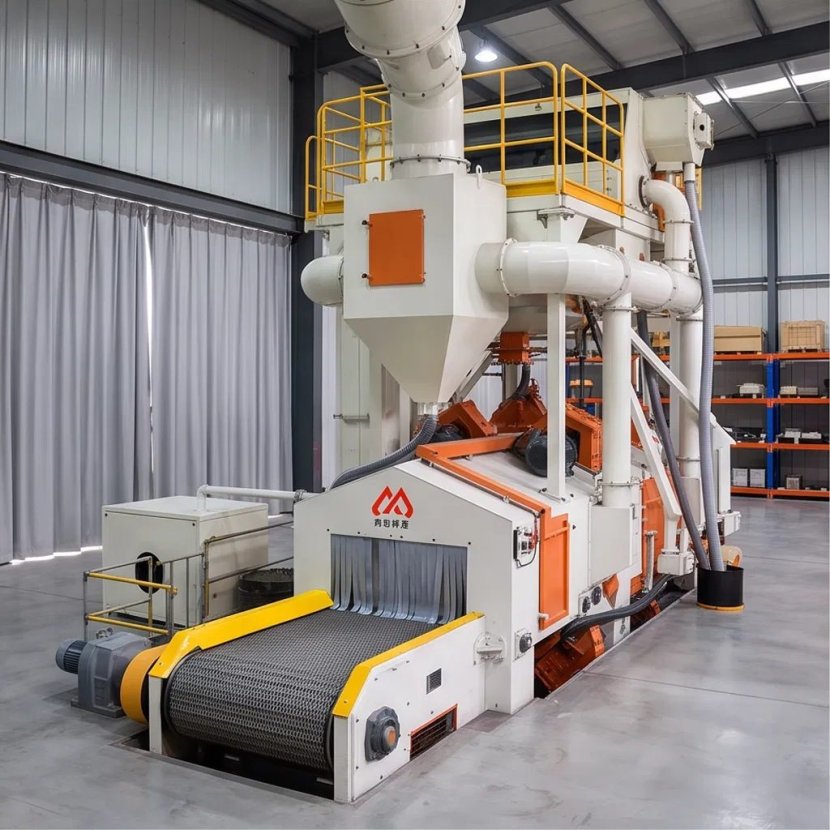

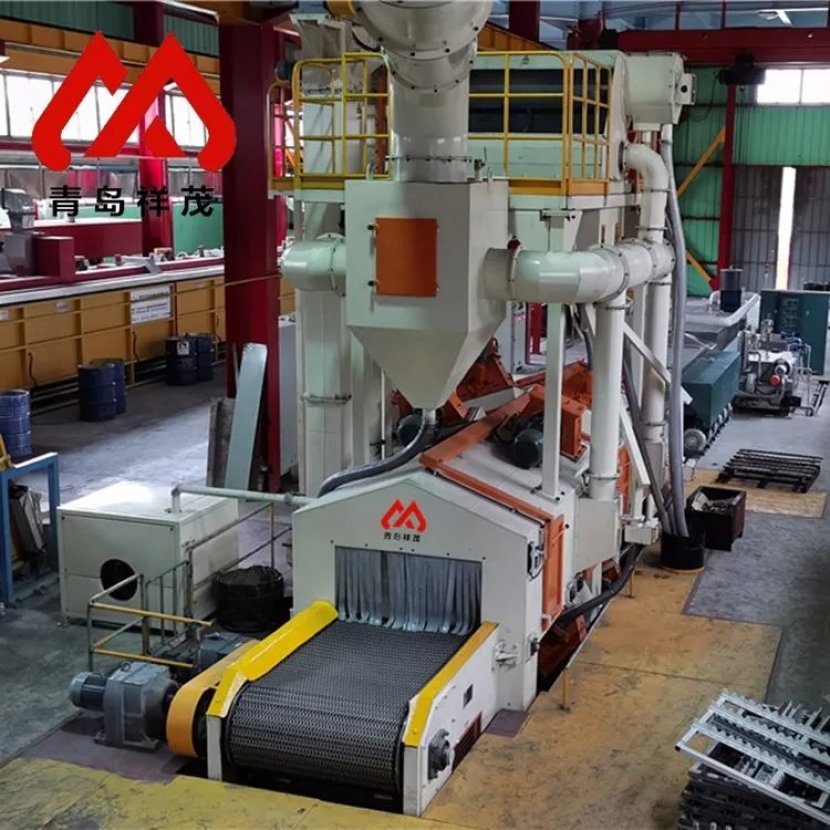

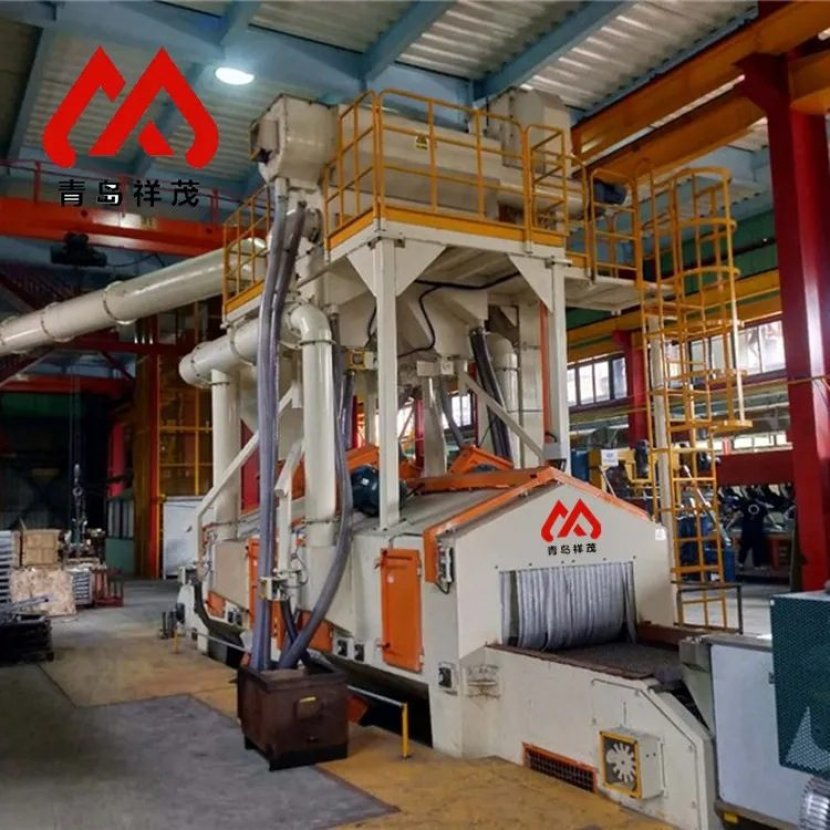

Wire Mesh Belt Blast Machines are a versatile option designed to blast clean work pieces on two sides in one pass through. Whether it's for heavy duty foundry applications or thin and fragile castings, our Wire Belt Mesh Blast Machines can handle any job.
Product Description
aluminium section/ profile wire mesh belt non-defrmation shot blasting machine with frequency converter
1. Wire mesh belt shot blasting machine introduction
Wire Mesh Belt Blast Machines are a versatile option designed to blast clean work pieces on two sides in one pass through. Whether it's for heavy duty foundry applications or thin and fragile castings, our Wire Belt Mesh Blast Machines can handle any job.
The blast chamber is bombarded with abrasive stemming from wheels situated both above and below the work as it passes through the chamber. The result is complete blast coverage with superior one pass continuous cleaning without damaging work pieces.
Wire Mesh Belt blast machines, specifically engineered for heavy duty applications in foundry, are equipped with a lower scalping deck and designed in accordance with heavy duty usage philosophy.
Xiangmao machinery's Wire Mesh Belt blast machines can blast work pieces that require a smooth or shockless pass through, such as flat, thin-walled, and fragile iron or aluminum alloy castings. Due to the position of blast wheels, bending of thin-walled work pieces and tilting of small light parts is avoided. Our machines are also designed to handle the high temperatures of work pieces that have been heat treated.
Wire Mesh Belt blast machines provide high-volume, cost effective performance for deburring, cleaning, descaling, deflashing, and etching.
2. Application
· Ideal for deflashing, descaling, deburring, sand removal, general cleaning
· Die castings, automotive wheels, ferrous and non-ferrous castings, weldments, fabrications, forged parts
· Small, medium, and large work, depending on machine configuration
3. Workpiece
· weldments
· aluminium profiles
· rims
· bicycle frame
· pot
· casting parts
· manhole cover
BLASTING CHAMBER
1. Shot blasting chamber is composed of the blasting chamber shell, (roller conveyor in chamber), blast turbines, air outlet, counting system and others.
2. The blasting chamber is welded with high-quality steel, and it have rolled Mn13 as guard plate to protect, which is install by riveting, which is durable and easy to maintain. The guard plate directly hit by the steel shot is 10mm thickness. Mn13 steel plate has high impact toughness, which can make full use of the reflected kinetic energy of the projectile and continue to effectively hit the surface of the workpiece, which is conducive to improving the cleaning quality and cleaning efficiency .

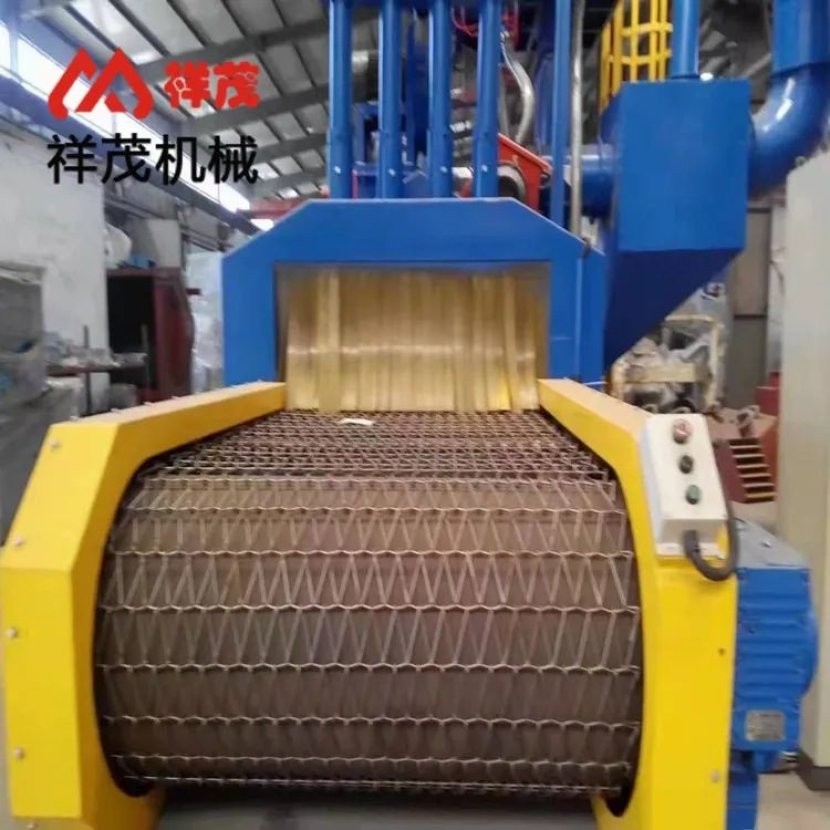

WIER MESH BELT TRANSPORT
1. Wire mesh belt conveyor speed 0.5~5.0m/min, frequency adjustable.
2. The mesh bag woven with rolled Mn13 steel wire has a service life of up to 3-5 years.
3. The net buckle is 60*90, steel wire weft ø8, steel wire weft ø6
4. To increase the bearing capacity, a roller bearing shaft is installed at the lower part of the mesh belt.
5. Drive hanging roller, passive roller.
6. The roller shafts in the shot blasting chamber are equipped with replaceable high chromium wear resistant sheathing.
| Technique Parameter |
|---|
| Items | Cast iron | Cast aluminium | Cast iron | Cast aluminium |
|---|---|---|---|---|
| Mesh belt width(mm) | 1250 | 1250 | 800 | 800 |
| Productivity(t/h) | 3.5/7.5 | Based on workpieces | 3.5/7.5 | Based on workpieces |
| Passing speed(m/min) | 0.5-2.5/1-5 | 0.5-2/1-4 | 0.5-2.5/1-5 | 0.5-2/1-4 |
| Number of blast turbines | 4/8 | 4/8 | 4/8 | 4/8 |
| Power of blast turbines(KW) | 11-18.5 | 7.5-15 | 11-18.5 | 7.5-15 |
Application
Packing & Delivery
Mainly products
Company Profile
Qingdao Xiangmao Machinery Manufacturing Co., Ltd
Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.
Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.
Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.
We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.
After sales service
One-to-one after-sales installation service
Video guidance
installation engineer guidance
Manufacturing Workshop
Certifications
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
