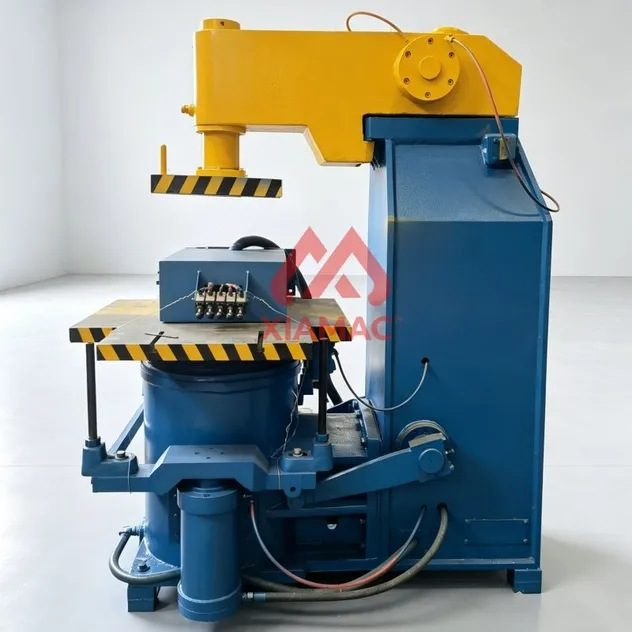

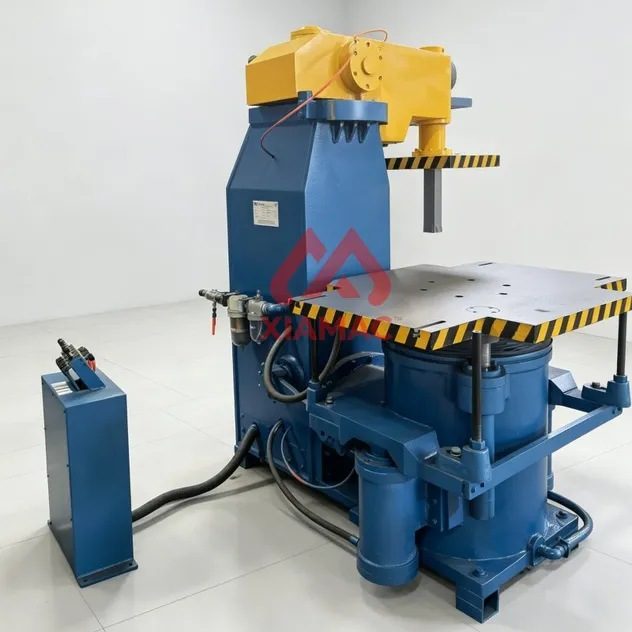

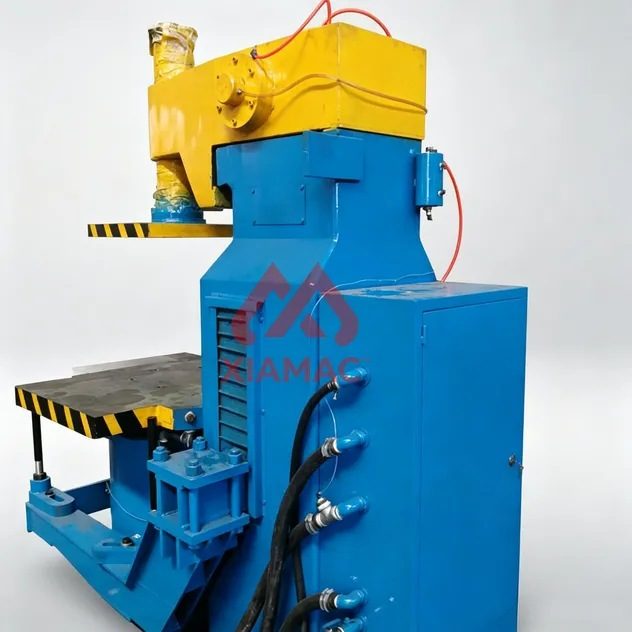

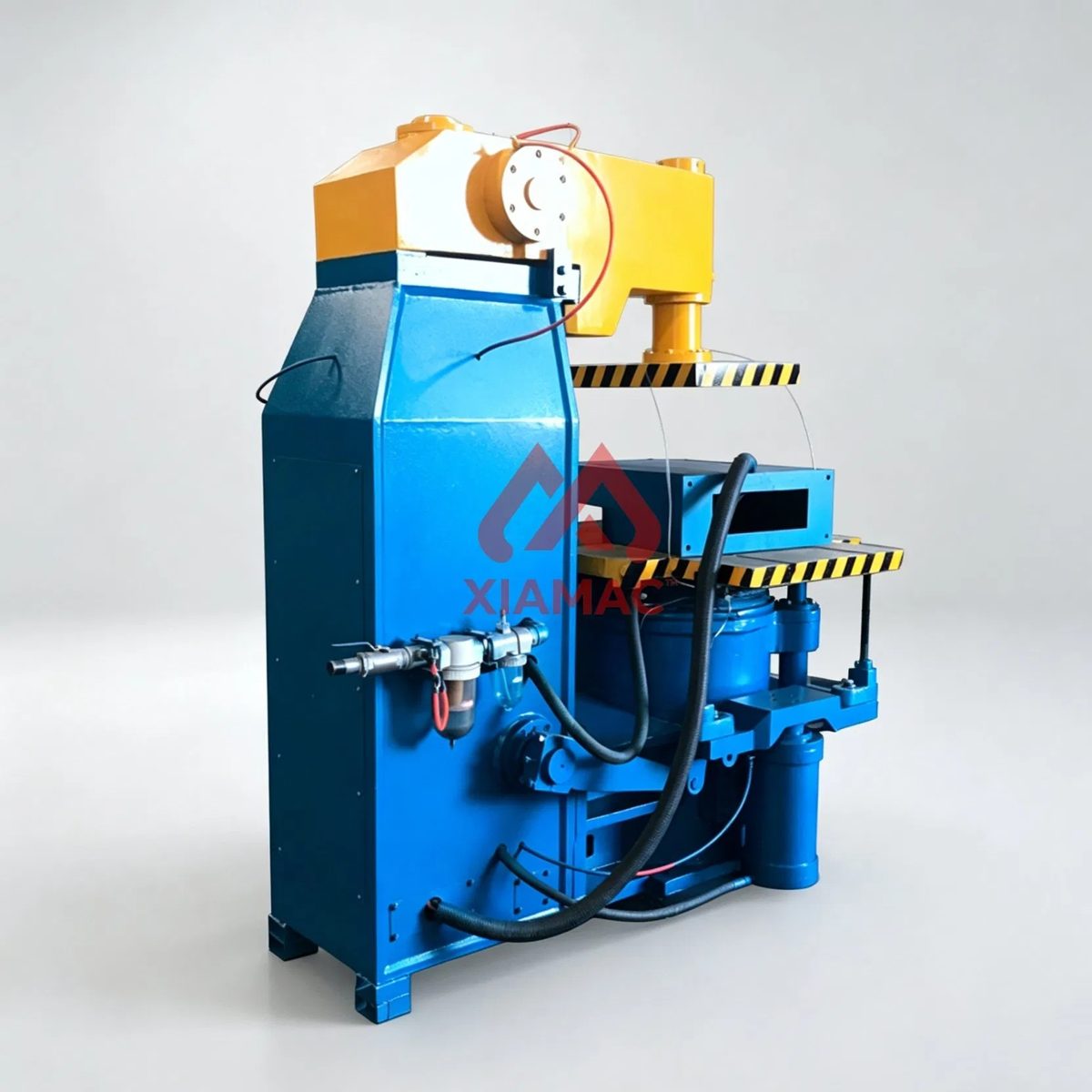

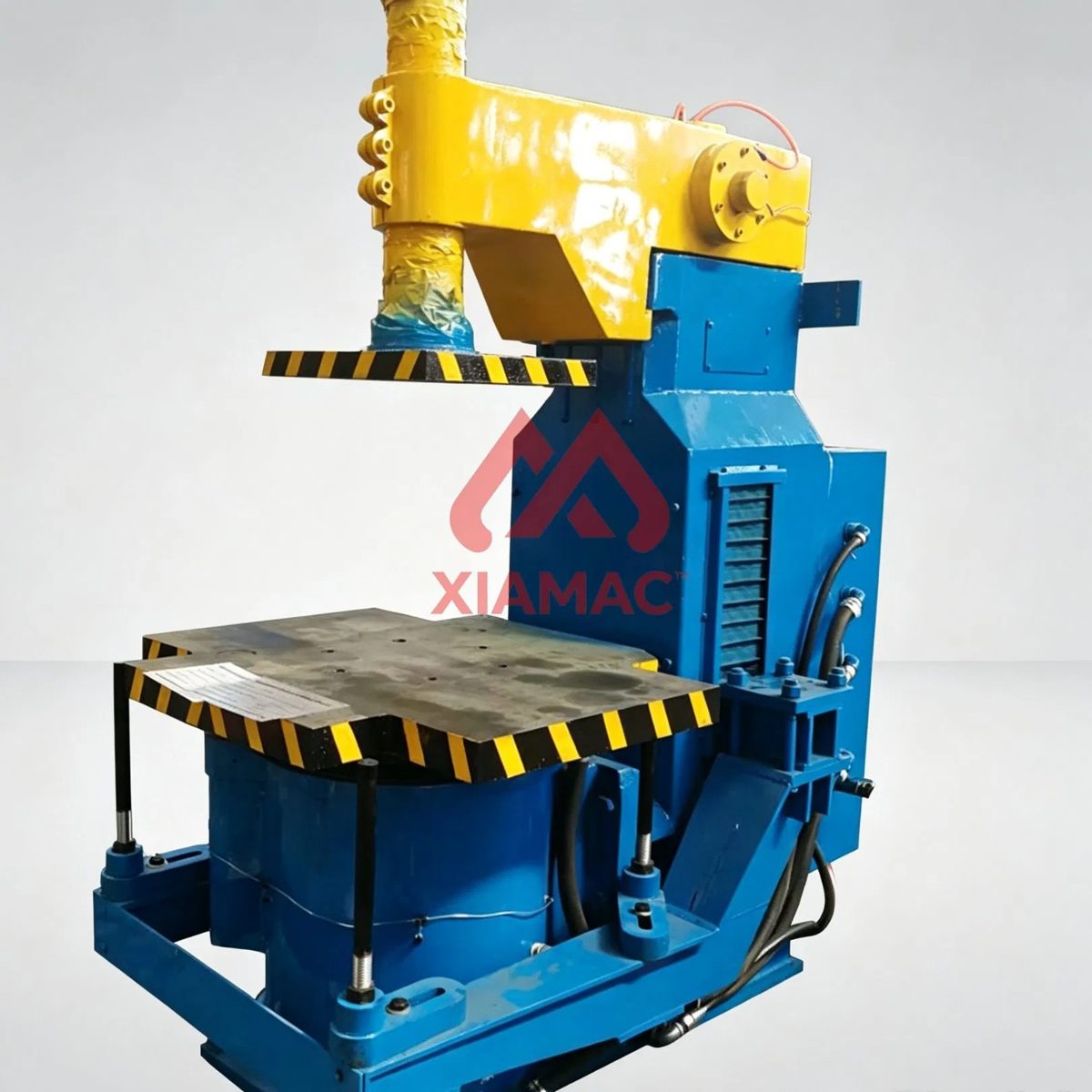

Advanced Z14 Pneumatic Micro-Seismic Molding Machine for Sand Casting/Foundry Clay Sand Casting Simutaneous Jolt Squeeze Molding Machine/Sand Molding Machine

Product Description

Sand Casting Moulding Machine Green Sand Jolt Squeeze Molding Machine

Foundry Equipment is our polupar machine for green sand casting process.

China Foundry Machinery Sand Casting Multi Piston Molding Machine can be used for making green sand mold( cope and drag of flask) in various foundry workshops, and can be used by a single machine or a mechanized assembly casting line, or a semi-automatic casting line.

Pneumatic multi-piston compaction is adopted without oil leakage; Moderate specific pressure, no special requirements for molding sand, it is suitable for complex model molding.

This machine adopts spring full buffer pneumatic microseismic mechanism, so there is no special requirement for foundation, The mold lifting adopts the structure of connecting rod synchronous shaft, and the speed is regulated by pneumatic oil, so that the mold lifting synchronization is good and the speed can be controlled freely.

Product Technical Parameter

Specification

Product Features:

The machine adopt cylinder, crank , connecting rod, synchronizing shaft achieve molding synchronously control part,all pneumatic components used to achieve the overall functionality,simple operation,easy maintenance.it is easy to operate,visual sand , the operational procedures can be humance and effective to increase productivity.

Application:

Jolt squeeze molding machine, pneumatic multi piston molding machine, hydraulic multi piston molding machine and others, can be used in a variety of casting workshop for green sand top and bottom sand molding, can be used alone or in the mechanized line, can also be used in a semi-automatic line.

XIANGMAO MACHINERY ADVANTAGE:

· Ten years of production and design experience in Foundry.

· Equipment gets the international certification: CE, ISO14001, ISO9001.

· All designs adopt 3D Design.

· OEM&ODM factory, High-quality after-sales service.

· The equipment is environmentally friendly, safe, and cost-effective.

· All adopt general parts, easy to buy and replace.

· Exported to more than 30 countries and regions in the world

Packing & Delivery

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

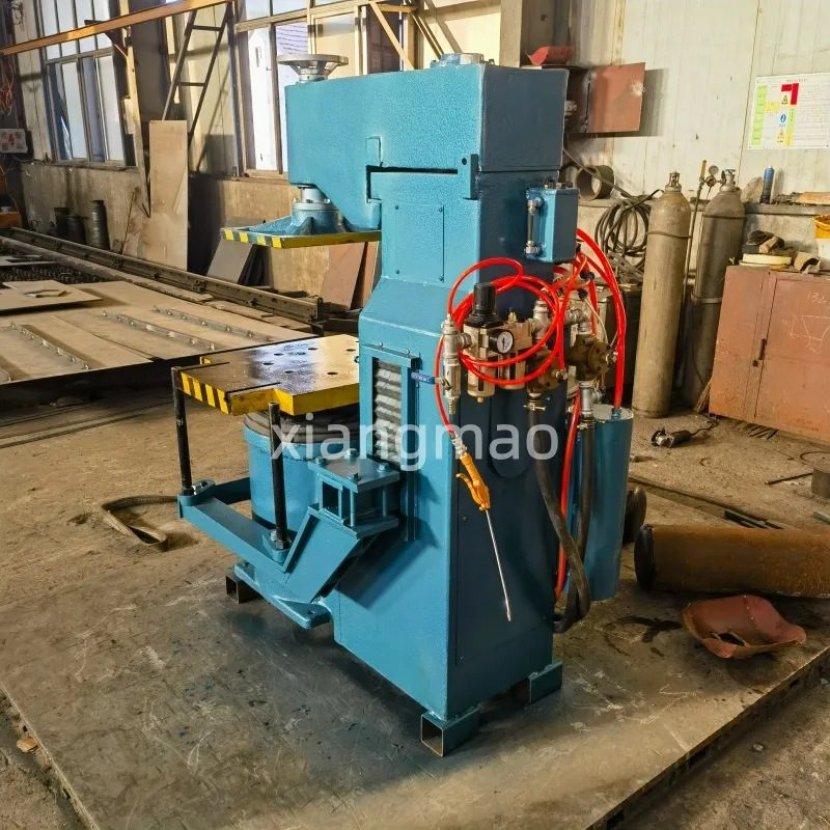

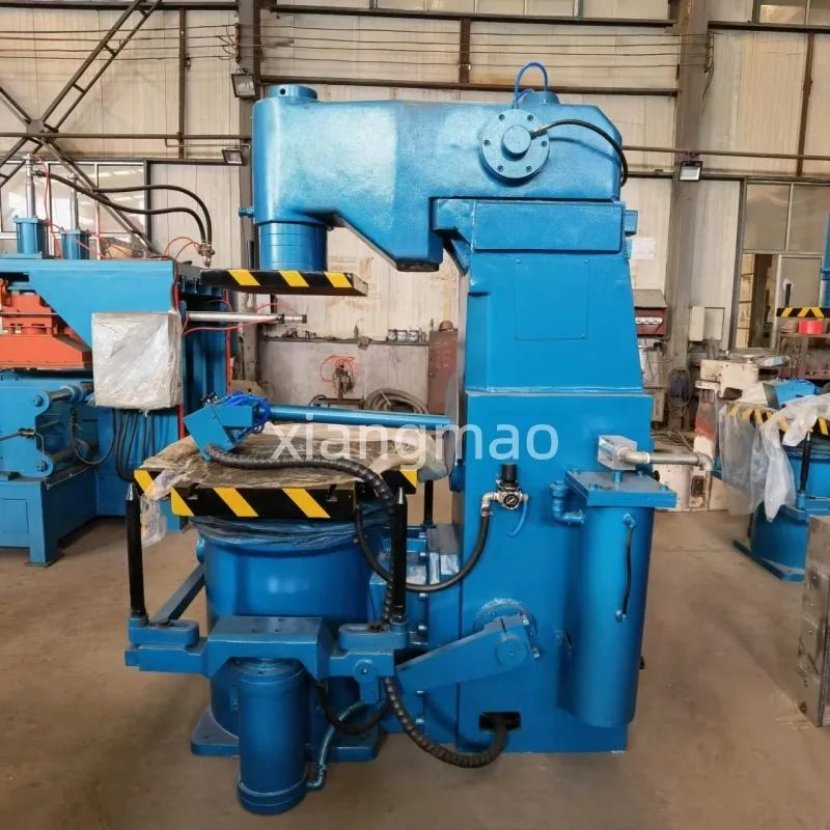

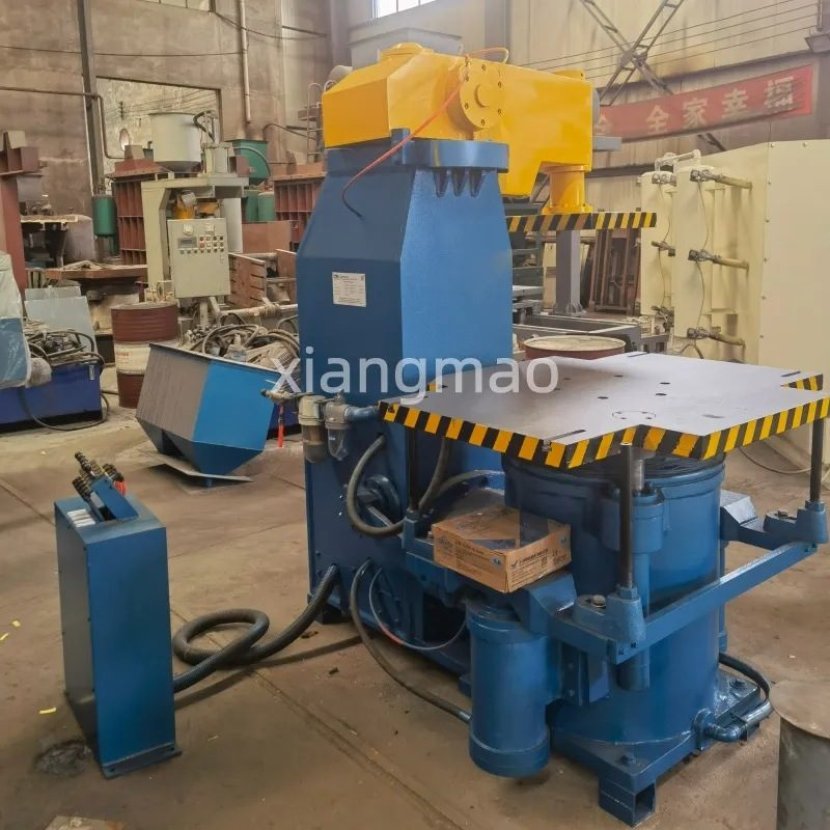

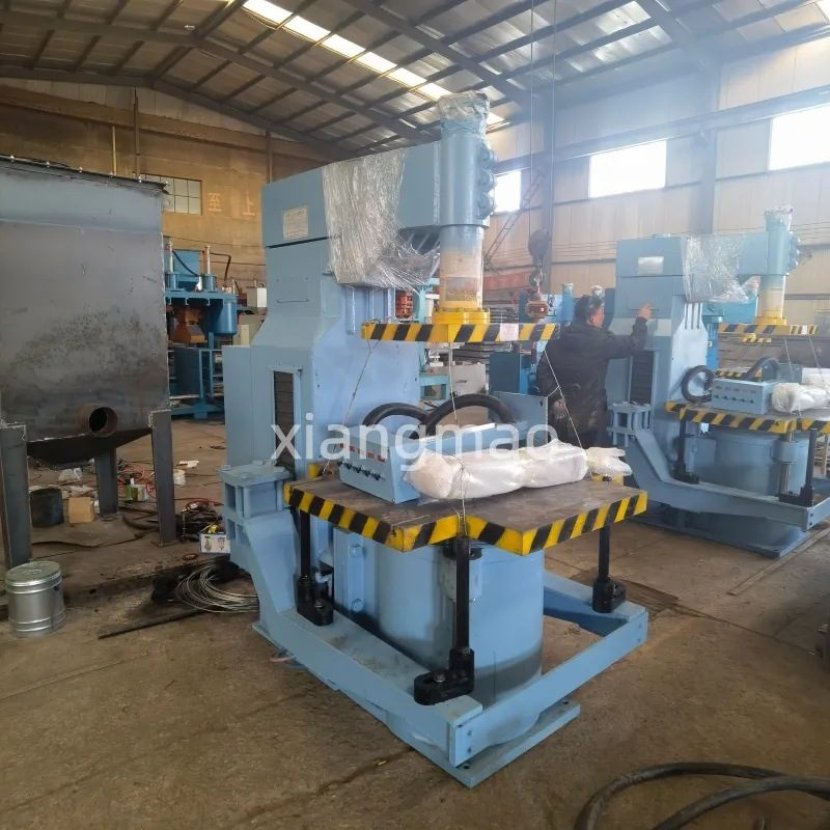

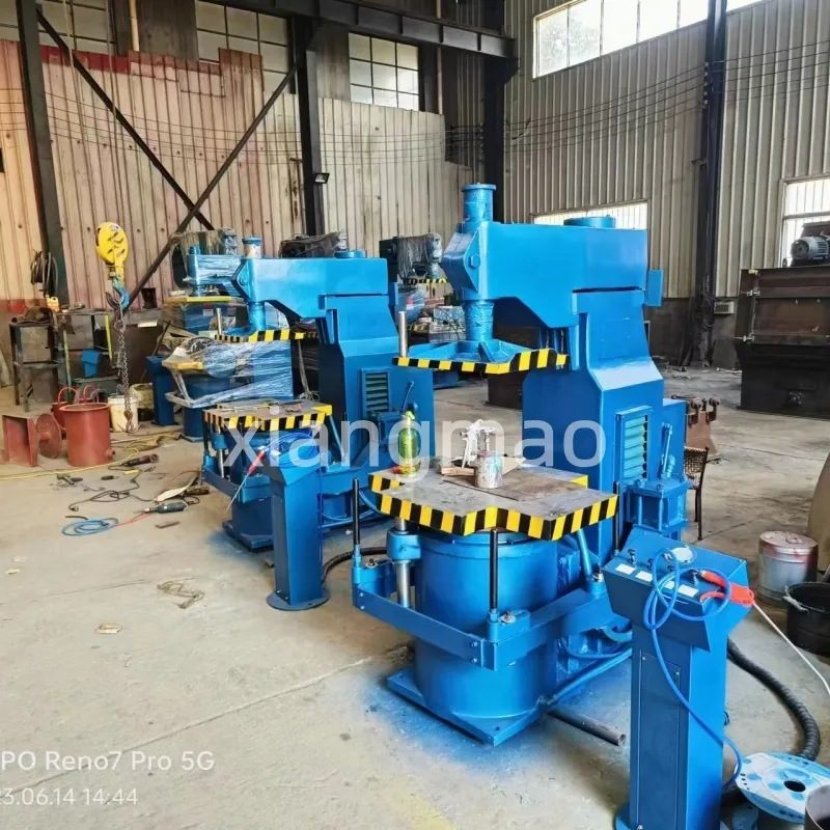

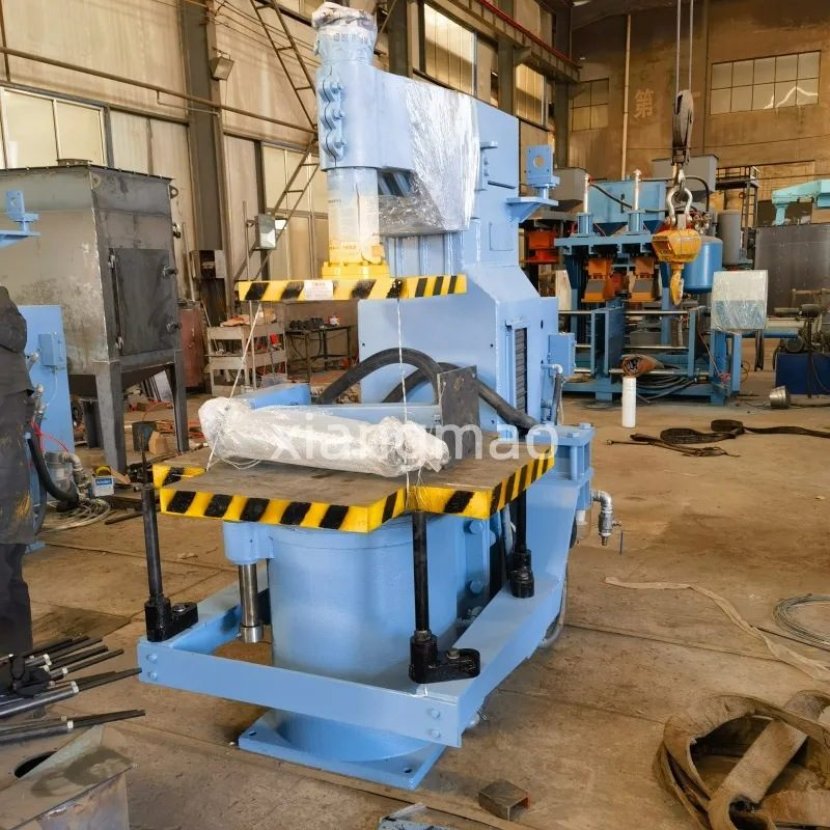

Manufacturing Workshop

FAQ

Can technical drawings, operating manuals, and equipment videos be provided in English?

We can provide detailed drawings, as well as product images and videos, based on your specific requirements.

How quickly can online remote guidance be provided in the event of a device malfunction?

We provide remote guidance with 24/7 response.

Can technical drawings, operating manuals, and equipment videos be provided in English?

We can provide detailed drawings, as well as product images and videos, based on your specific requirements.

Are you a manufacturer of casting machinery or a trading company? Is it possible to visit the factory in person?

We are a factory located at the source, and visitors are welcome to come and conduct site visits and negotiations at any time.

Is on-site training available? Does the training cover equipment operation, maintenance, and adjustments to the sand processing process?

We can provide training services that cover the operation, maintenance, and process adjustment of the equipment you require.

Is the routine maintenance process for the entire sand processing equipment complex, and can a regular worker perform it?

All of our equipment is part of an intelligent production line. It is easy to operate and understand, making it perfectly suitable for regular workers.

What is the minimum order quantity, and can a single recycling machine be purchased separately?

We offer a minimum order quantity of one unit, which can be purchased as a standalone item.
