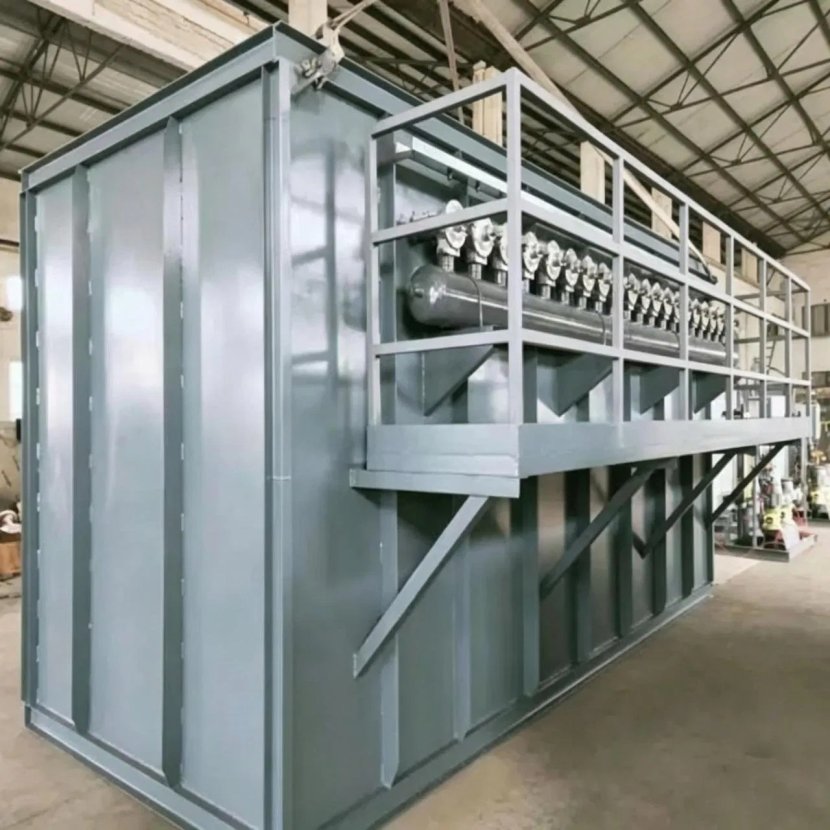

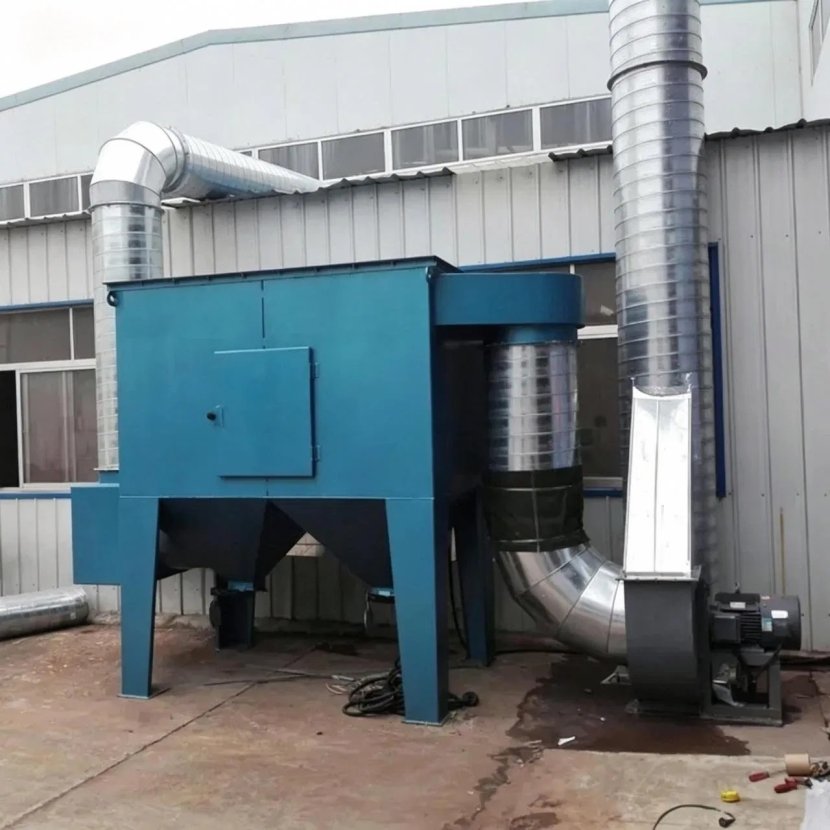

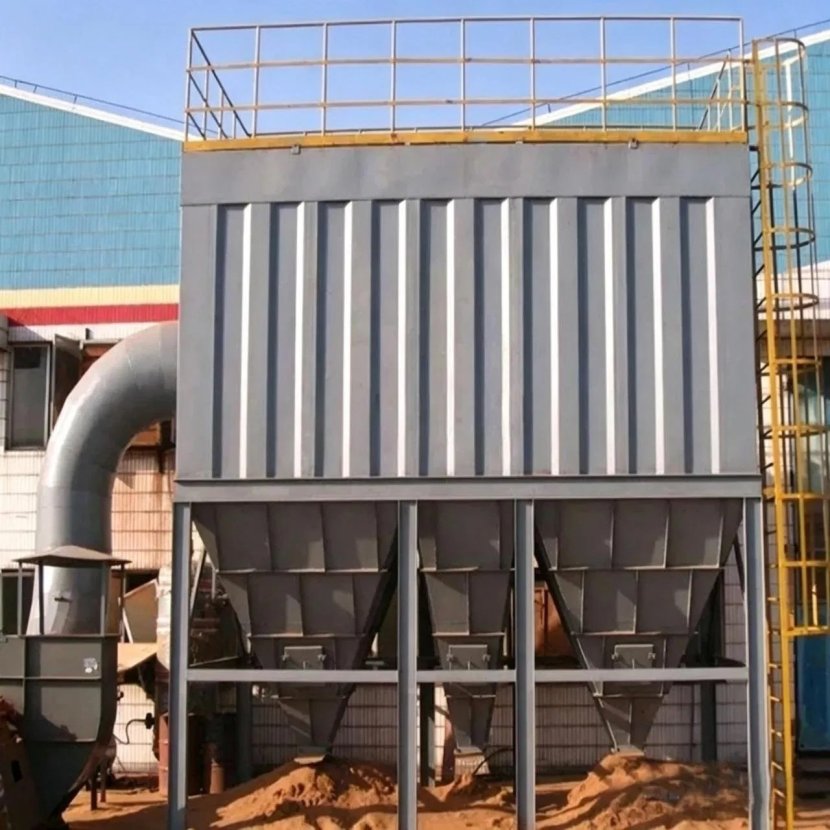

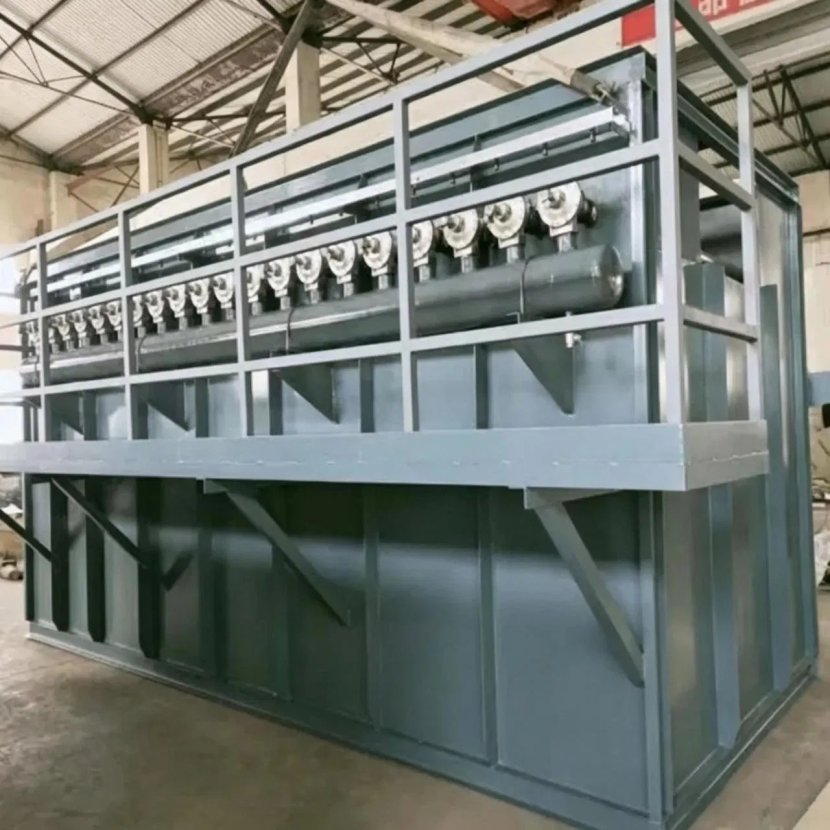

The Bag Filter & Cartridge Dust Collector is a high-efficiency industrial dust removal system designed for smoke, powder, and airborne particle filtration. Equipped with an advanced pulse jet cleaning system, the equipment delivers stable performance, low operating resistance, and dust collection efficiency up to 99%.
Bag Filter & Cartridge Dust Collector

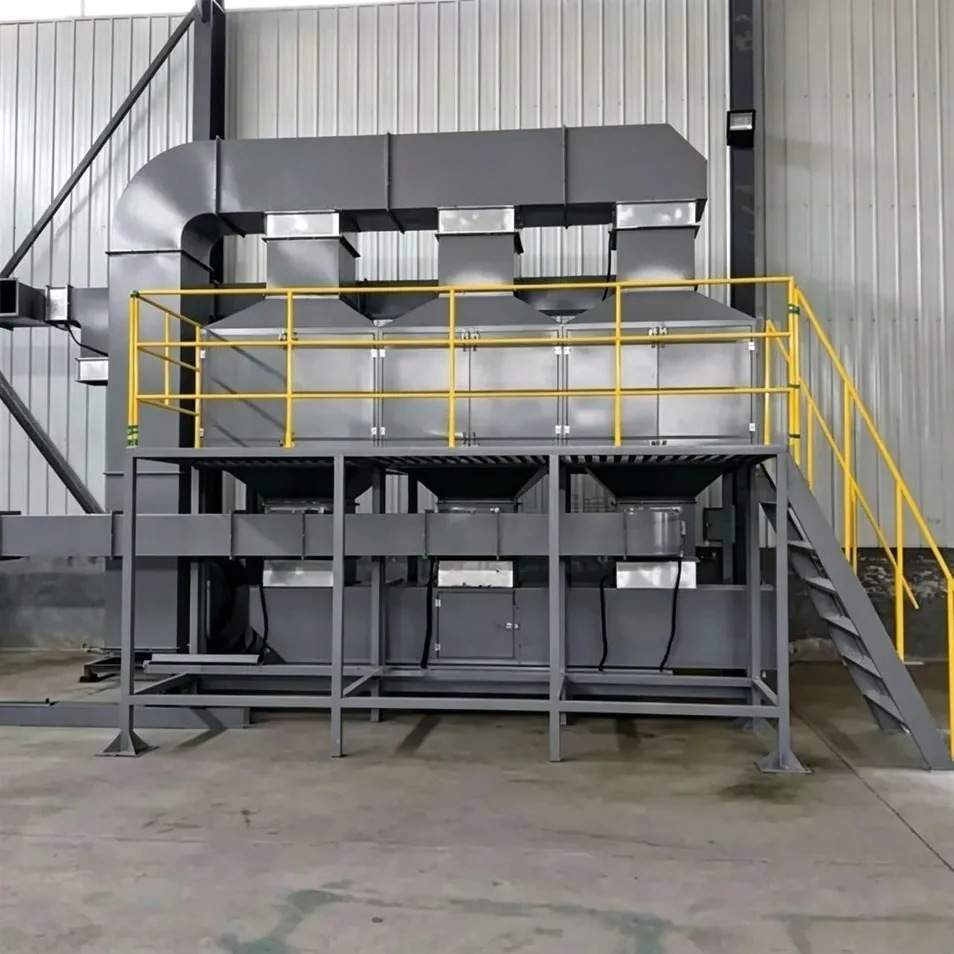

The Bag Filter & Cartridge Dust Collector is a high-efficiency industrial dust removal system designed for smoke, powder, and airborne particle filtration. Equipped with an advanced pulse jet cleaning system, the equipment delivers stable performance, low operating resistance, and dust collection efficiency up to 99%.
Manufactured with durable Q235 carbon steel structure, the system is suitable for continuous industrial operation and supports customized airflow capacities from 3000–15000 m³/h.
Features
Dust collection efficiency ≥99%
Pulse jet automatic cleaning system
Stable operation & low maintenance
Q235 carbon steel construction
Airflow capacity: 3000–15000 m³/h
OEM & non-standard customization supported
Applications
Widely used in boiler systems, metallurgy, building materials, chemical plants, woodworking, and industrial dust control systems.
Specification
| Model | Airflow Capacity (m³/h) | Fan Power (kW) | Filtration Area (m²) | Filter Bag Size (mm) | Filter Bag Qty (pcs) | Pulse Valve Qty (pcs) | Cleaning Pressure (MPa) | Equipment Dimensions (m) | Housing Material |
|---|---|---|---|---|---|---|---|---|---|
| SSCC-3000 | 3,000 | 3 | 28 | Φ130×2000 | 36 | 6 | 0.5 | 1.2 × 1.2 × 3.8 | Q235 3mm Steel |
| SSCC-4000 | 4,000 | 4 | 36 | Φ130×2500 | 36 | 6 | 0.5 | 1.2 × 1.2 × 4.2 | Q235 3mm Steel |
| SSCC-5000 | 5,000 | 5.5 | 52 | Φ130×2000 | 64 | 8 | 0.5 | 1.5 × 1.5 × 3.8 | Q235 3mm Steel |
| SSCC-7000A | 7,000 | 7.5 | 64 | Φ130×2500 | 64 | 8 | 0.5 | 1.5 × 1.5 × 4.2 | Q235 3mm Steel |
| SSCC-7000B | 7,000 | 7.5 | 80 | Φ130×2000 | 100 | 10 | 0.5 | 2 × 2 × 3.8 | Q235 3mm Steel |
| SSCC-10000 | 10,000 | 11 | 100 | Φ130×2500 | 100 | 10 | 0.5 | 2 × 2 × 4.2 | Q235 3mm Steel |
| SSCC-12000 | 12,000 | 15 | 140 | Φ130×2500 | 140 | 14 | 0.5 | 2.3 × 2 × 4.2 | Q235 3mm Steel |
| SSCC-15000 | 15,000 | 15 | 160 | Φ130×2500 | 160 | 16 | 0.5 | 2.8 × 2 × 4.2 | Q235 3mm Steel |
Company Profile
Qingdao Xiangmao Machinery Manufacturing Co., Ltd
Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.
Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.
Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–50 days.
Q: Can you design products according to my needs?
A: Of course, we have our own product design and technical team to meet your personalized customization needs.
Q: Are you a manufacturer or a trader?
A: We are an equipment manufacturer in a physical factory. I can show you a demonstration video of our factory.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
