Micro vibration compaction molding machine

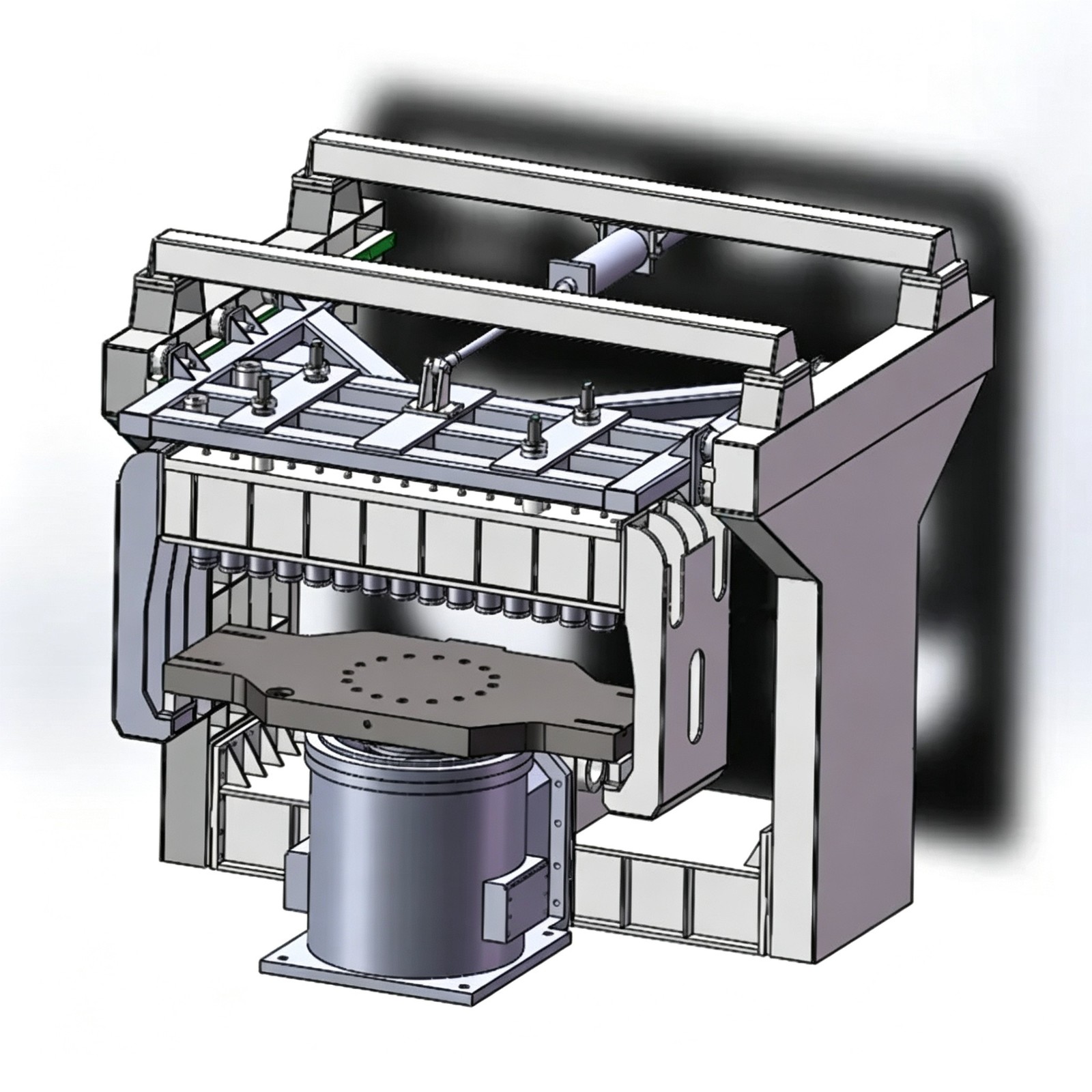

Pneumatic multi contact molding machine

1. Adopting pneumatic multi contact compaction, there is no problem of oil leakage; Moderate specific pressure, no special requirements for molding sand, and a large number of contacts (any combination of 48-120), suitable for complex model modeling.

2. When compacting this machine, the frame is not subjected to force, but is hooked onto the worktable by four hanging rods from the side of the multi contact body. As the multi contacts extend downwards, compaction is carried out. If the contacts, hooks, sandboxes, templates, and worktable are regarded as a system, this compaction force is called internal force or internal force compaction.

3. Compaction compaction, the contact not only compacts the sand mold, but also vibrates together with the workbench (detached from the frame, the frame is not affected by vibration). Therefore, the vibration compaction effect is good, and the hardness of the sand mold is high and uniform (with an average hardness of 85-90, B-type hardness tester value). The sand consumption can be as small as 20-30 millimeters, and the sand consumption ratio can reach H: B=2-3. Moreover, the hardness of the vertical surface of the mold cavity can still reach over 80.

Application:

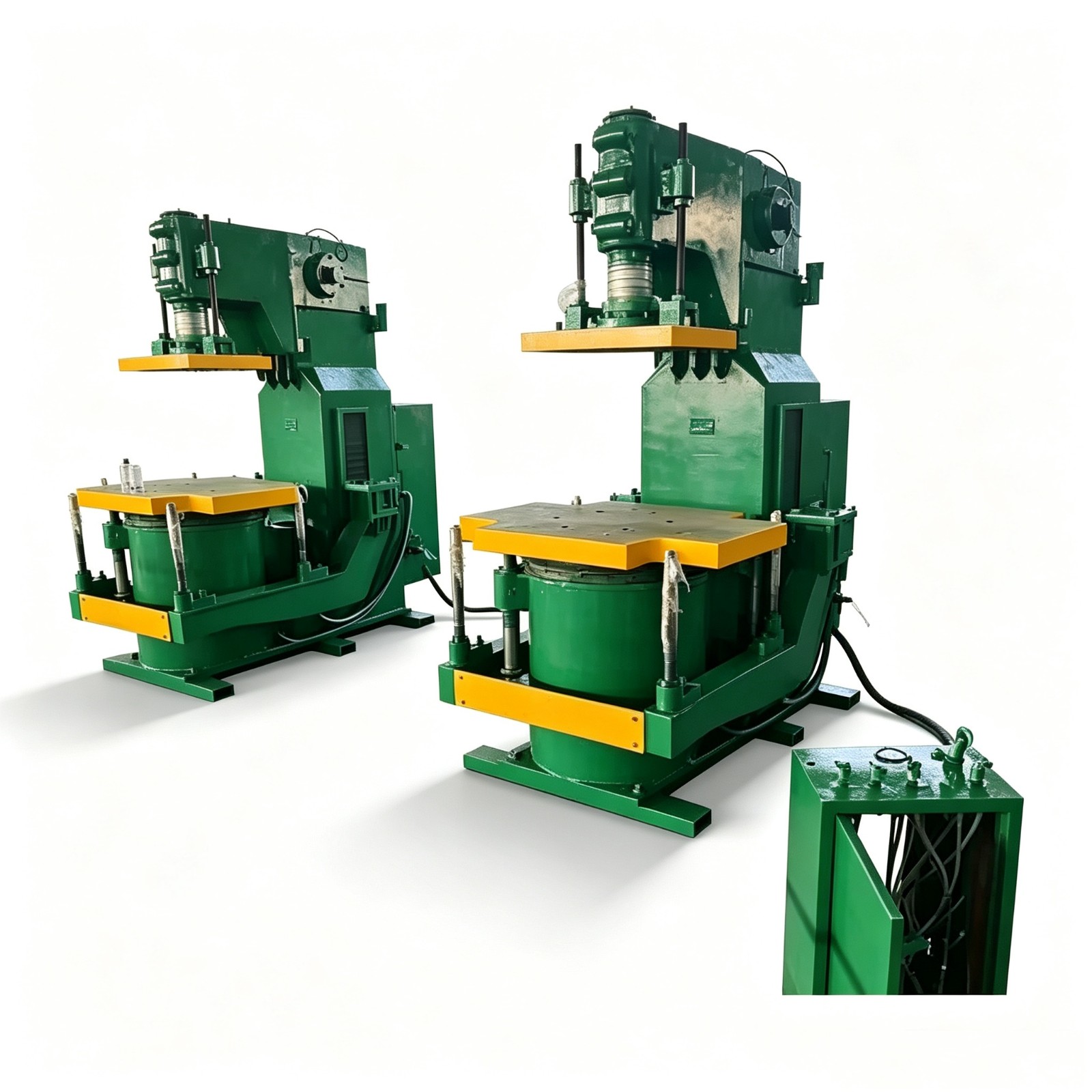

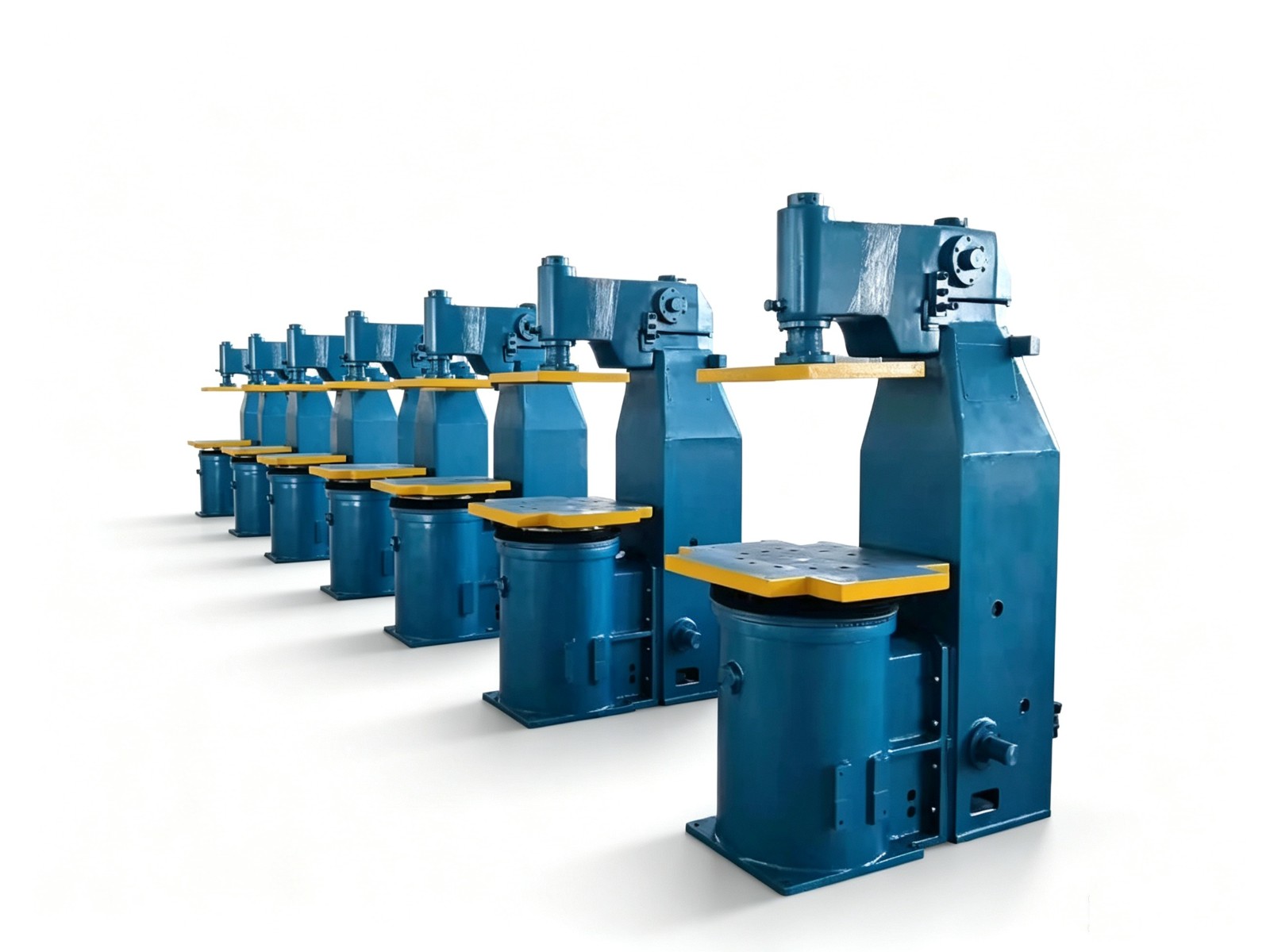

Jolt squeeze molding machine, pneumatic multi piston molding machine, hydraulic multi piston molding machine and others, can be used in a variety of casting workshop for green sand top and bottom sand molding, can be used alone or in the mechanized line, can also be used in a semi-automatic line.

Dispatch in Progress!
Another microseism compacting molding machine is on its way, delivering precision, reliability, and high-performance foundry solutions.

>> AFTER SERVICES FOR THE PRESS
1. The above machines are all passed inspection of 3~5 hours of full load operation before leaving the factory, you can use it directly thus saving the time of test-run and expense.
2. Warranty: 12 months after installation, if our machines have any problems, you can feel free contact me, we will solve it as soon as possible, and give you the best services.
>>FAQ
1. Delivery time of the machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 15 to 20 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao jiaodong airport.
We will pick up you at the airport.
