High-Precision Sand Mold Box Automatic Clamping Mechanical Hand

Product Description

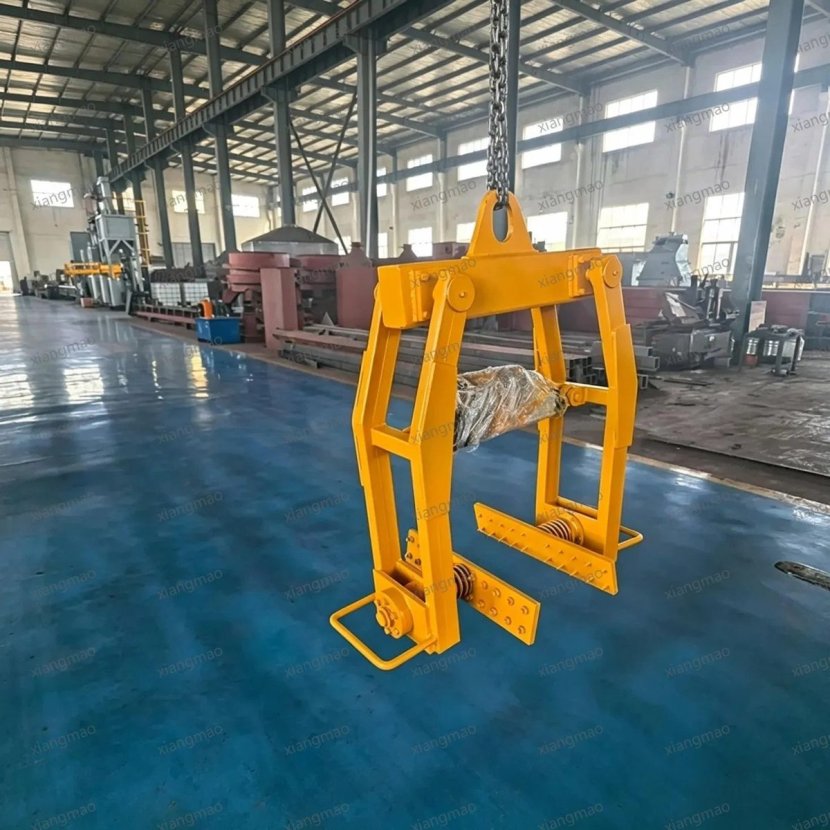

Gripping Robotic Arm for Sand Handling

The gripping robotic arm for sand handling is an automated equipment specially designed for sand processing systems in the foundry industry. It is mainly used to grip, carry, position, and flip sand flasks on molding lines during casting production.

Equipped with a high-precision servo drive system and intelligent control unit, this robotic arm features flexible movement, fast response, and high repeat positioning accuracy. It is widely applied in resin sand, clay sand, V-process casting lines and other foundry production systems.

Product Features

High-performance servo motor + reducer ensures ±0.1mm repeat positioning accuracy even at high speed.

Available with pneumatic grippers, hydraulic fixtures, or electric adaptive gripping systems to handle sand flasks of various sizes .

Modular design supports multi-axis coordination, easy to integrate into existing production lines with convenient maintenance and expansion.

Equipped with PLC + HMI interface for parameter setting, fault diagnosis, and remote monitoring, making operation intuitive and efficient.

Integrated with emergency stop, collision detection sensors, and grip force monitoring to ensure safe operation.

Key components are enclosed in IP54+ rated housings, suitable for long-term stable operation in high-temperature and dusty environments.

Product Technical Parameter

Typical Applications

Resin Sand Molding Line

Clay Sand Production Line

Shakeout & Conveying System

Turning & Closing

Sand Processing Area Coordination

Intelligent Foundry Automation

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Manufacturing Workshop

Packing & Delivery

Packaging & Shipping

Certifications

FAQ

Q1: Can i have your quotation?

A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the

suitable machine.

Q 2: How to operate and maintain the machine?

A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in

the best status for you; At last, we also provide abroad technical training service.

Q 3: Where is your factory located ? How can I visit it ?

A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.

Q 4 :What's dimension of your workpiece ?

A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.

Q 5: Can you guarantee you quality?

A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory

,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our

production completely.
