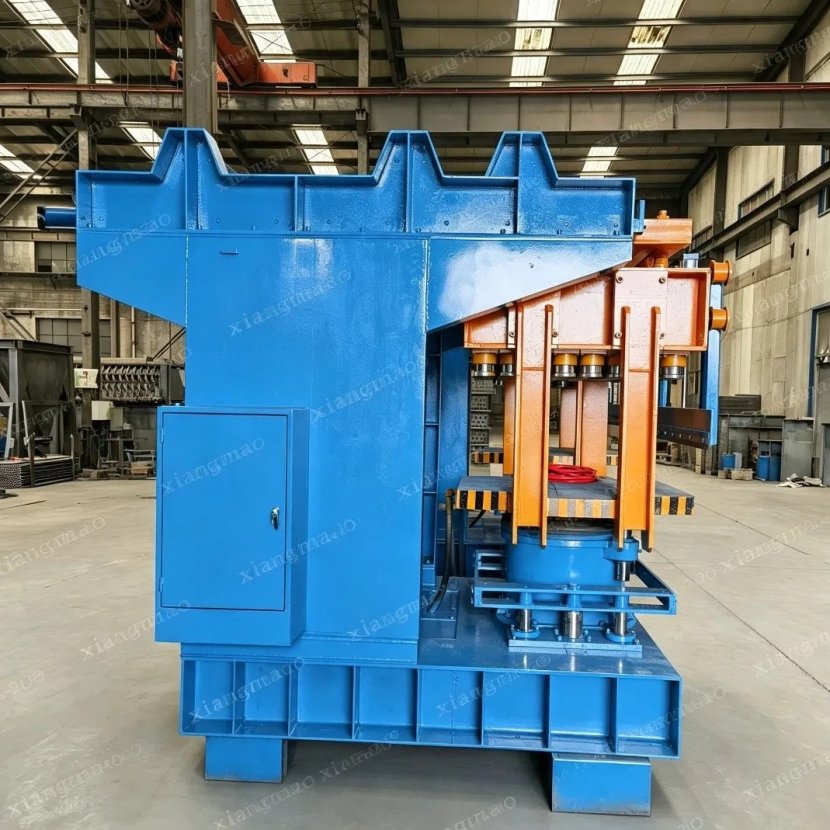

Green Sand Jolt Squeeze Molding Machine

Product Description:

Iron Casting Molding Machine is our polupar foundry machinery for green sand casting process. Iron Casting Molding Machine is for making sand mold pattern for pouring iron and after cooling , have a iron casting part.

Foundry Machinery Green Sand Jolt Squeeze Molding Machines adopt the jolting technology, so it can significantly increase the compressive stress to make the hardness of sand mold up to HB90;

Pneumatic sand molding machine is used for semi-automatic molding of single flask of single-sided template of small castings produced in batch.This machine adopts spring micro-vibration compaction mechanism, with large compaction force, and the sand mold is compact and uniform.

The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation;

The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance;

The machine is convenient to operate, it is visual about the sand mould, human operation, so it is effective to increase the productivity.

The Significant characteristics of this machine are as follows:

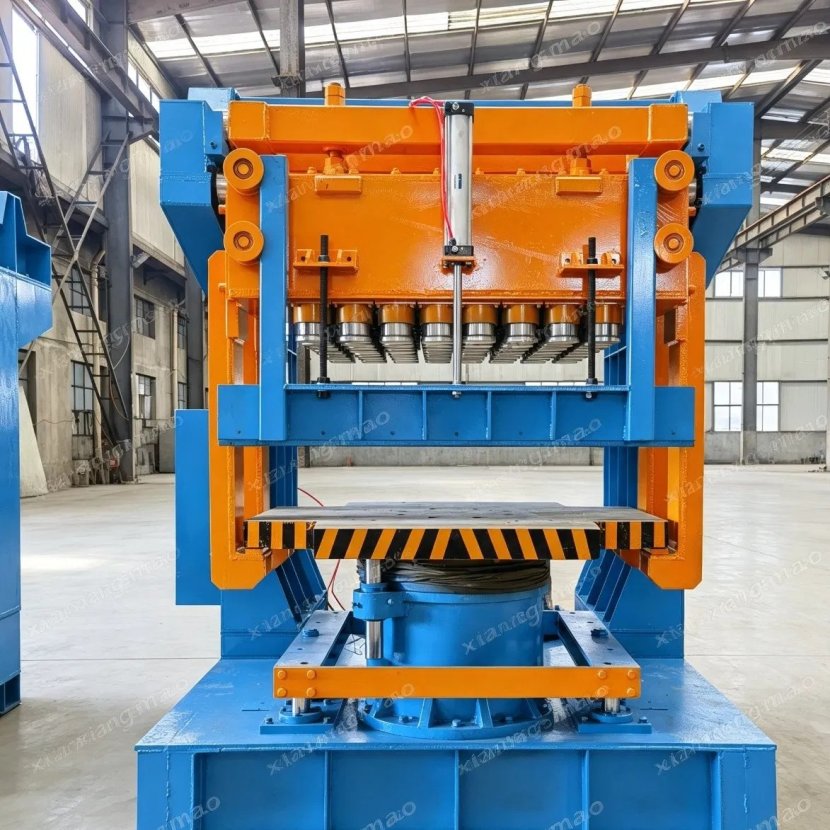

1. Pneumatic multi-piston compaction is adopted without oil leakage; Moderate specific pressure, no special requirements for molding sand, large number of pistons is 48pcs, it is suitable for complex model molding.

2. When the machine is pressed, the machine frame is not stressed. Instead, four pull rods hanging down from the side of the multi-piston body are hooked on the workbench, and compaction is carried out with the downward extension of the multi-pistons. If the pistons, hooks, flasks, templates and workbench are regarded as a system, this compressive force is internal force or internal force compaction.

3.when compacting, on the one hand piston will compact sand mold, at the same time it will ram with the workbench. Therefore, the impact compaction effect is good, the hardness of sand mold is high and uniform , the sand consumption can be as small as 20~30 mm, the sand consumption ratio is h: b = 2 ~ 3, and the hardness of the cavity vertical plane can still reach above HB80.

Specification

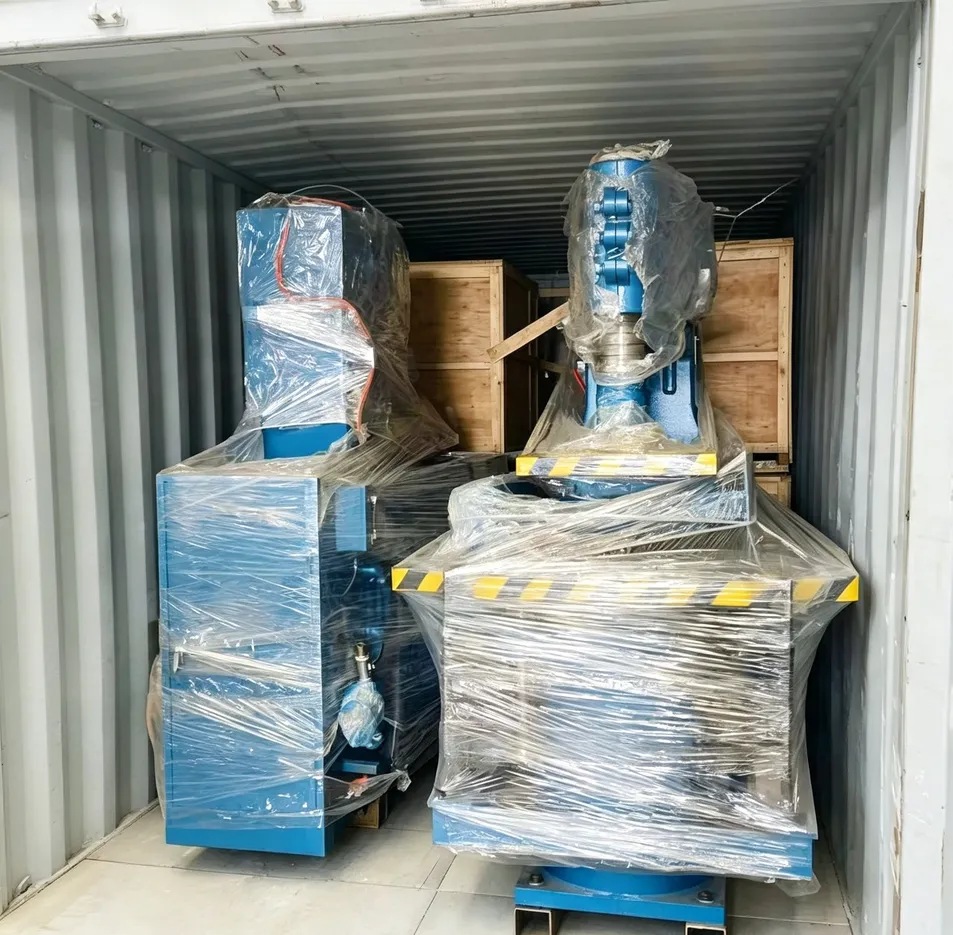

Packing & Delivery

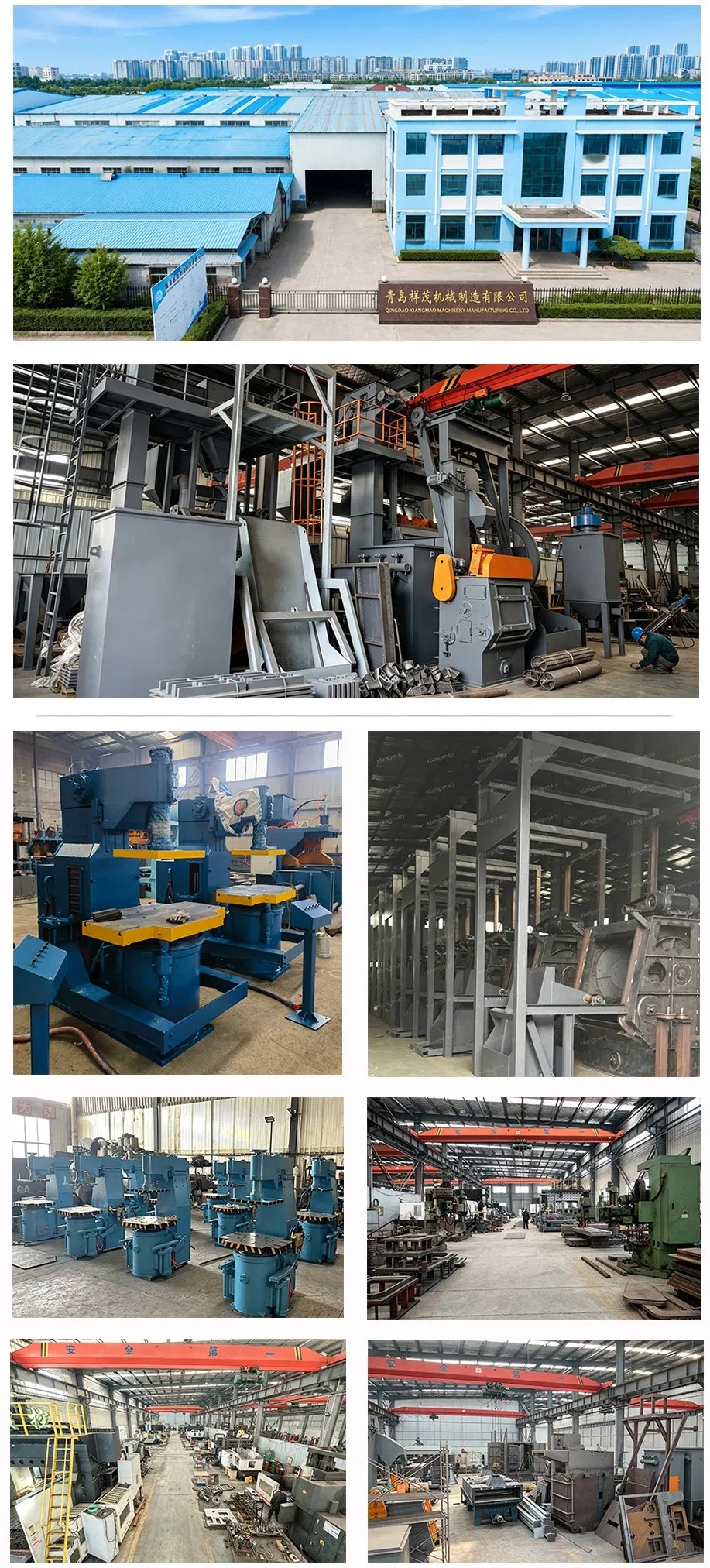

Company Profile

Company Name

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery.

FAQ

Q1: What kind of casting products is this machine suitable for?

A: It is widely used for mass production of auto parts, valve castings, pump bodies, mechanical accessories, gray iron and ductile iron castings.

Q2: What is the biggest advantage of multi-head compaction compared with ordinary molding machines?

A: Multi-head balanced pressure makes the sand mold density uniform in all directions, completely solves the problem of uneven hardness of traditional molds, and greatly reduces casting defects.

Q3: Can the machine customize the sand box size and parameters?

A: Yes, we fully customize the working table size, compaction stroke, molding pressure and station parameters according to customer's casting drawings and production needs.

Q4: How about the after-sales service?

A: 12-month full machine warranty, lifetime technical support and factory-price spare parts supply. Provide free remote debugging and paid on-site installation training.
