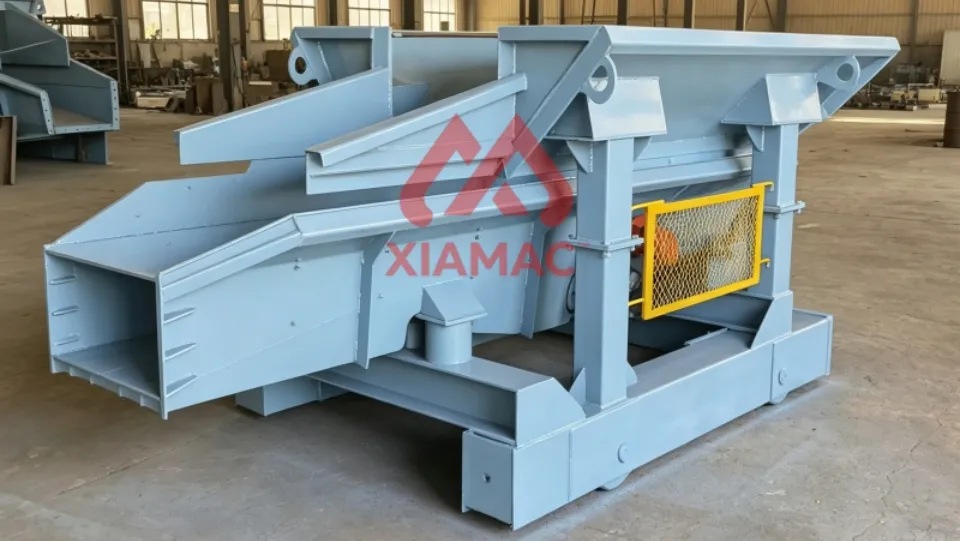

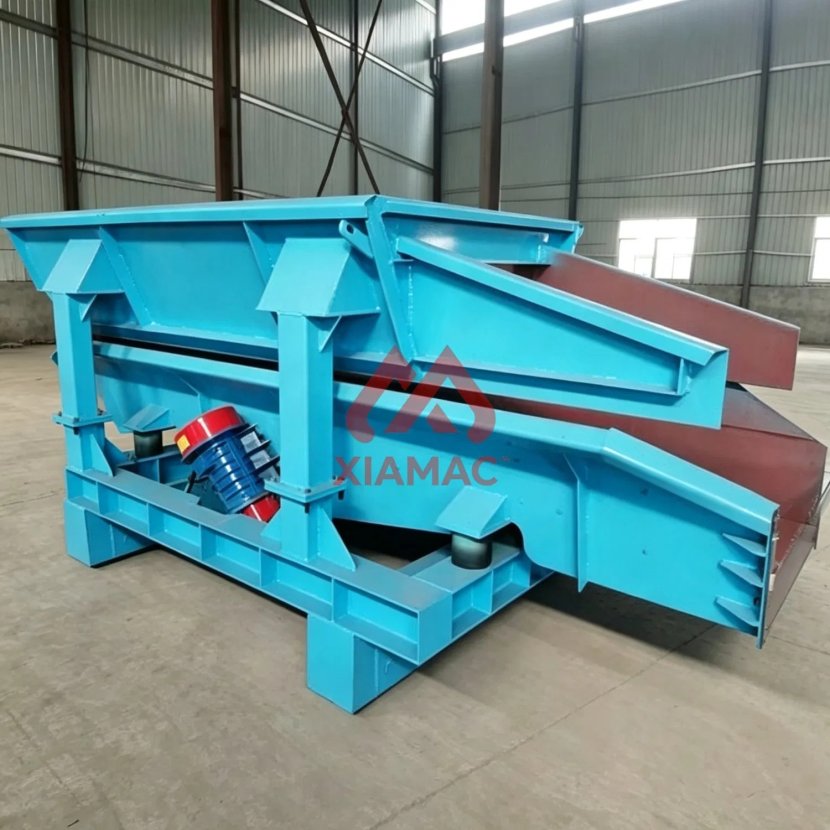

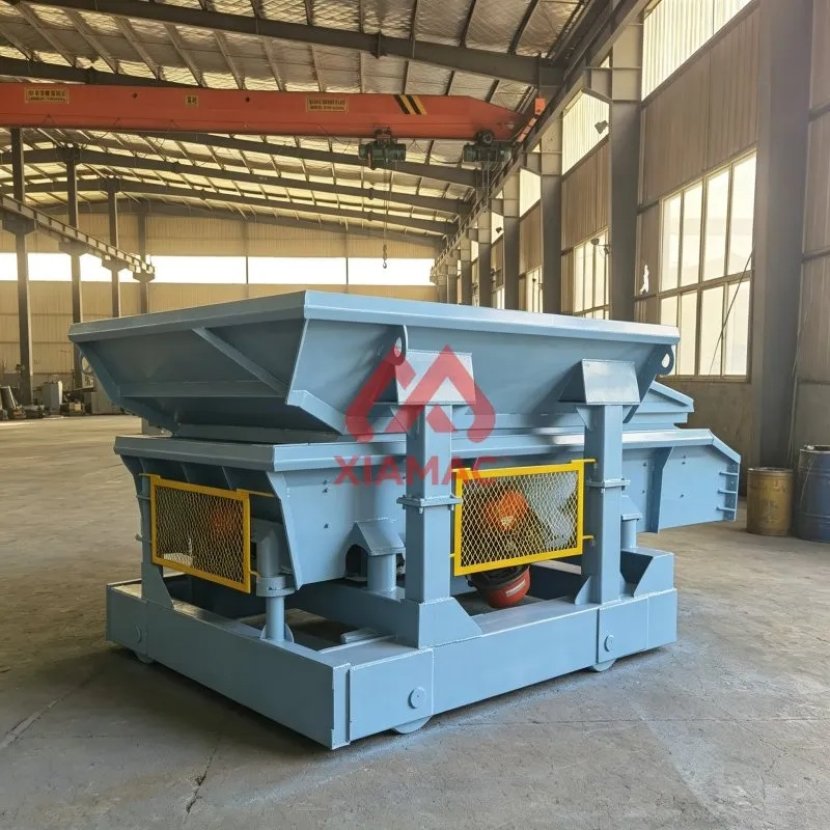

ZDLC Series Electric Furnace Charging Car

Product Description

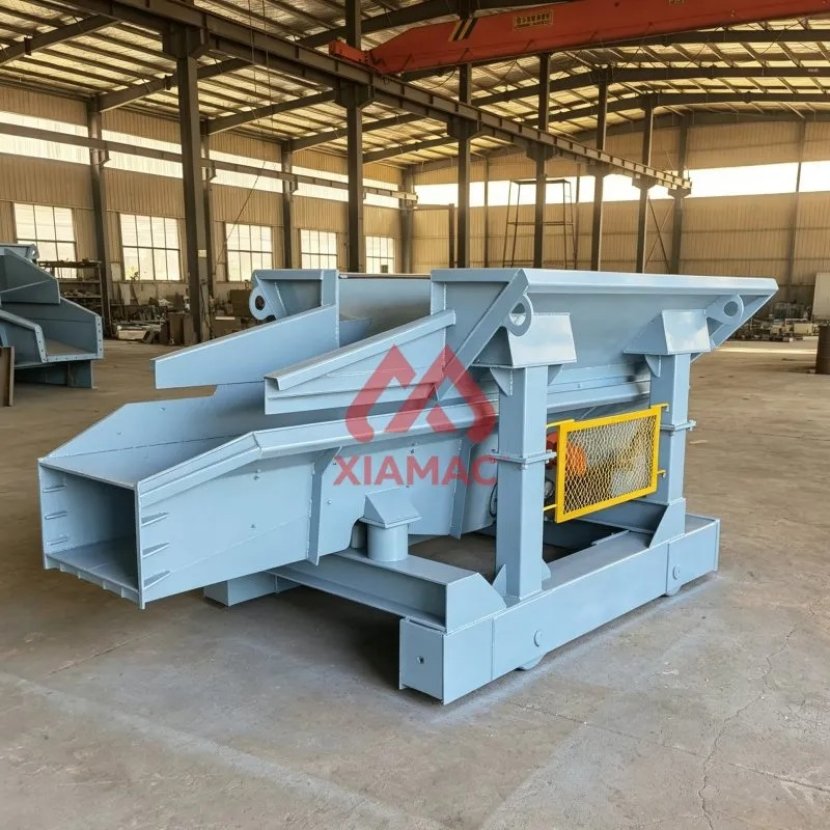

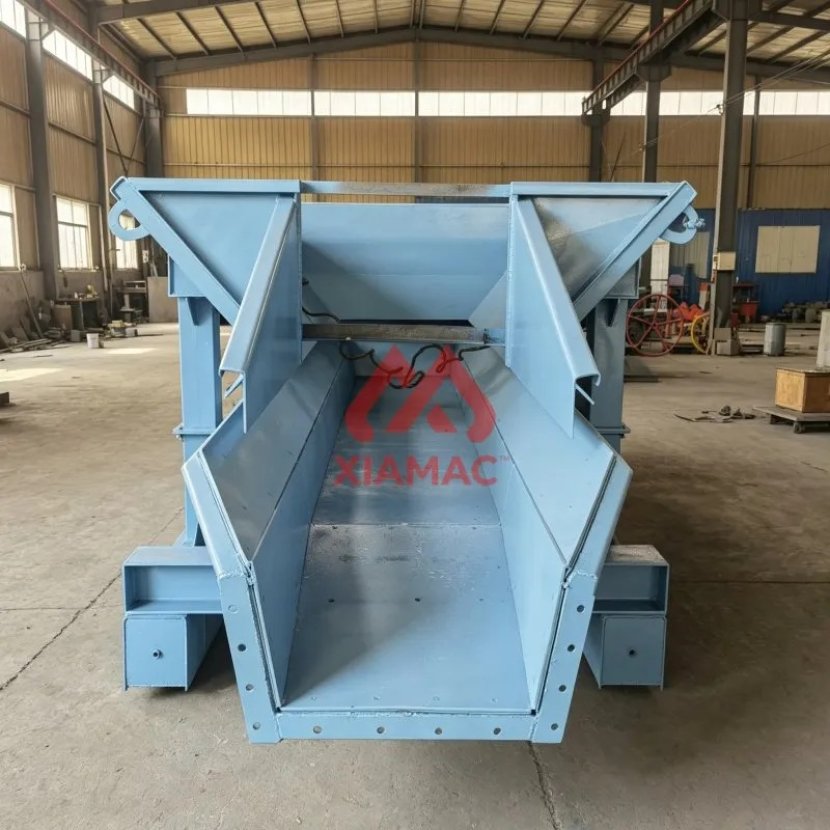

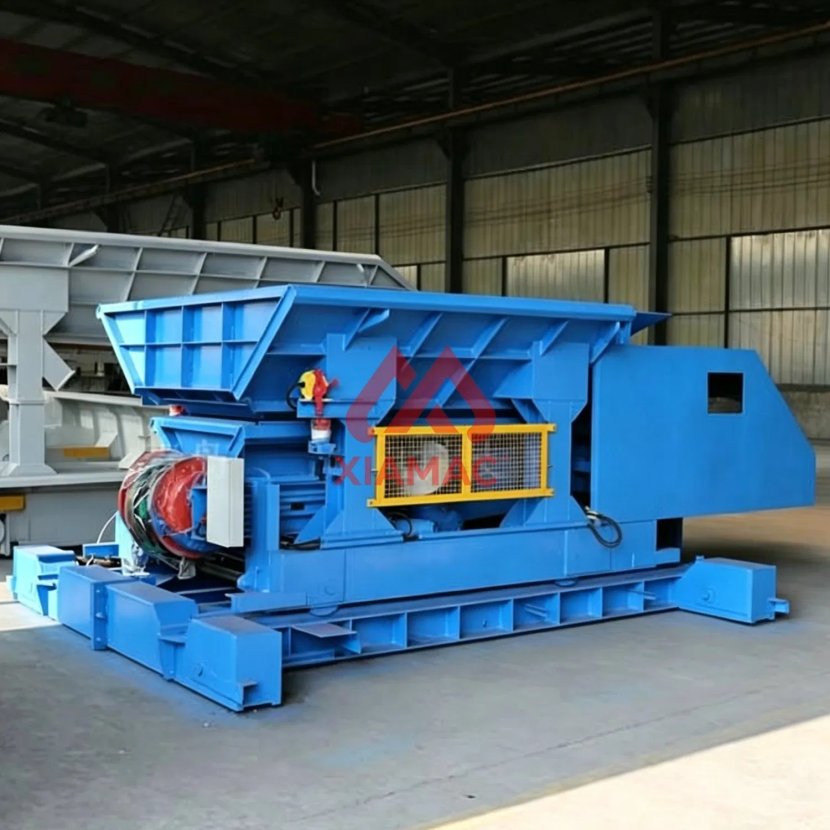

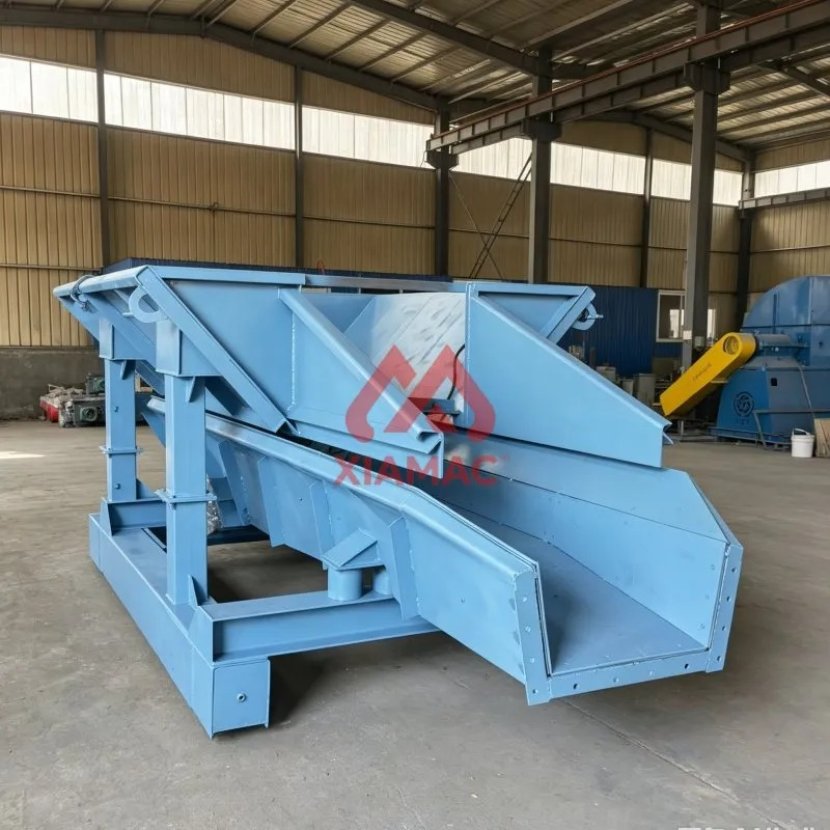

Electric Furnace Charging Car

The electric furnace charging car is special feeding equipment for medium frequency electric furnaces in foundry workshops. It is used to transport and charge scrap steel, pig iron and other raw materials into the melting furnace.

The trolley adopts a heavy-duty chassis, walking motor and hydraulic tipping mechanism. It can realize automatic forward movement, positioning and material tipping. It features stable operation, high feeding efficiency and simple operation, greatly reducing manual labor and improving workshop safety.

It is widely matched with medium frequency induction melting furnaces in casting plants. Different load capacity models are available for customization.

Product Technical Parameter

Specification

Product Features:

1.Rail traveling & hydraulic tipping with vibratory feeding

Combines track movement, hydraulic tipping and vibration feeding, realizing continuous and uniform scrap steel feeding into the induction furnace. Effectively avoids material blockage.

2.Dual control system: wireless remote + local button control

Operators can control the trolley remotely, staying away from high-temperature furnace mouth, greatly improving workshop operation safety. Manual button backup is available for emergency use.

3.Heavy-duty welded steel structure & wear-resistant hopper liner

Adopts thick Q235 steel plate welding. The hopper is fitted with replaceable wear-resistant lining plate, resisting impact from scrap steel, long service life and easy maintenance.

4.Stable hydraulic system

Equipped with reliable hydraulic station, smooth tipping and reset action, low failure rate, stable performance under long-time continuous working.

5.Customizable design

Track gauge, hopper volume, power and overall dimensions can be customized according to customers' furnace capacity and workshop layout. Multiple models for choice from 1T to 10T.

6.Easy operation & high feeding efficiency

Automated traveling, positioning and feeding reduce manual labor, shorten furnace charging cycle and improve melting efficiency of medium frequency furnace.

7.Good motor protection

Motors with IP54 protection grade, suitable for dusty and high-temperature foundry workshop environment.

Application:

XIANGMAO MACHINERY ADVANTAGE:

· Ten years of production and design experience in Foundry.

· Equipment gets the international certification: CE, ISO14001, ISO9001.

· All designs adopt 3D Design.

· OEM&ODM factory, High-quality after-sales service.

· The equipment is environmentally friendly, safe, and cost-effective.

· All adopt general parts, easy to buy and replace.

· Exported to more than 30 countries and regions in the world

Packing & Delivery

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

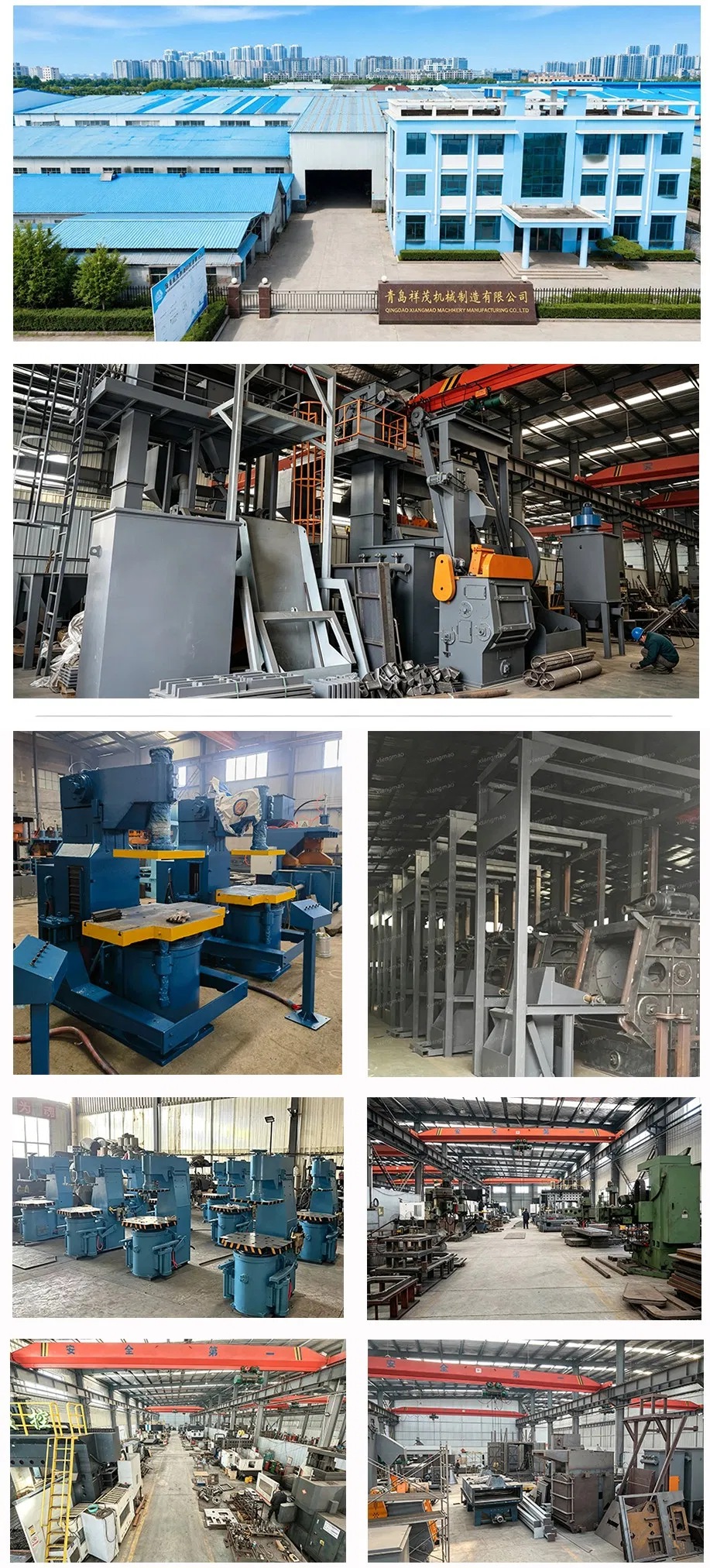

Manufacturing Workshop

FAQ

Can technical drawings, operating manuals, and equipment videos be provided in English?

We can provide detailed drawings, as well as product images and videos, based on your specific requirements.

How quickly can online remote guidance be provided in the event of a device malfunction?

We provide remote guidance with 24/7 response.

Can technical drawings, operating manuals, and equipment videos be provided in English?

We can provide detailed drawings, as well as product images and videos, based on your specific requirements.

Are you a manufacturer of casting machinery or a trading company? Is it possible to visit the factory in person?

We are a factory located at the source, and visitors are welcome to come and conduct site visits and negotiations at any time.

Is on-site training available? Does the training cover equipment operation, maintenance, and adjustments to the sand processing process?

We can provide training services that cover the operation, maintenance, and process adjustment of the equipment you require.

Is the routine maintenance process for the entire sand processing equipment complex, and can a regular worker perform it?

All of our equipment is part of an intelligent production line. It is easy to operate and understand, making it perfectly suitable for regular workers.

What is the minimum order quantity, and can a single recycling machine be purchased separately?

We offer a minimum order quantity of one unit, which can be purchased as a standalone item.
