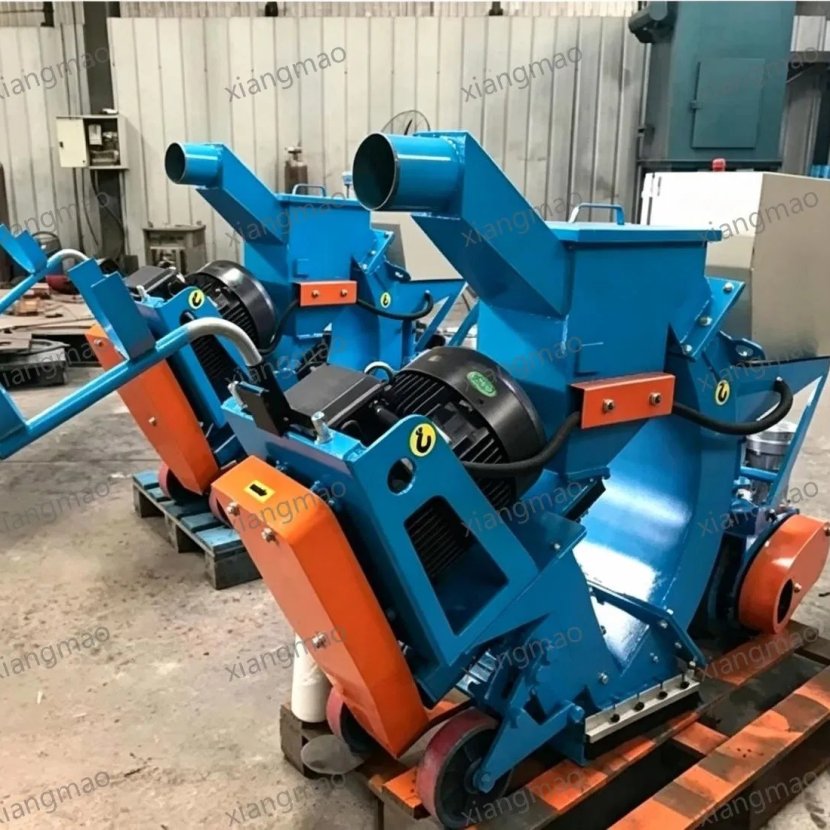

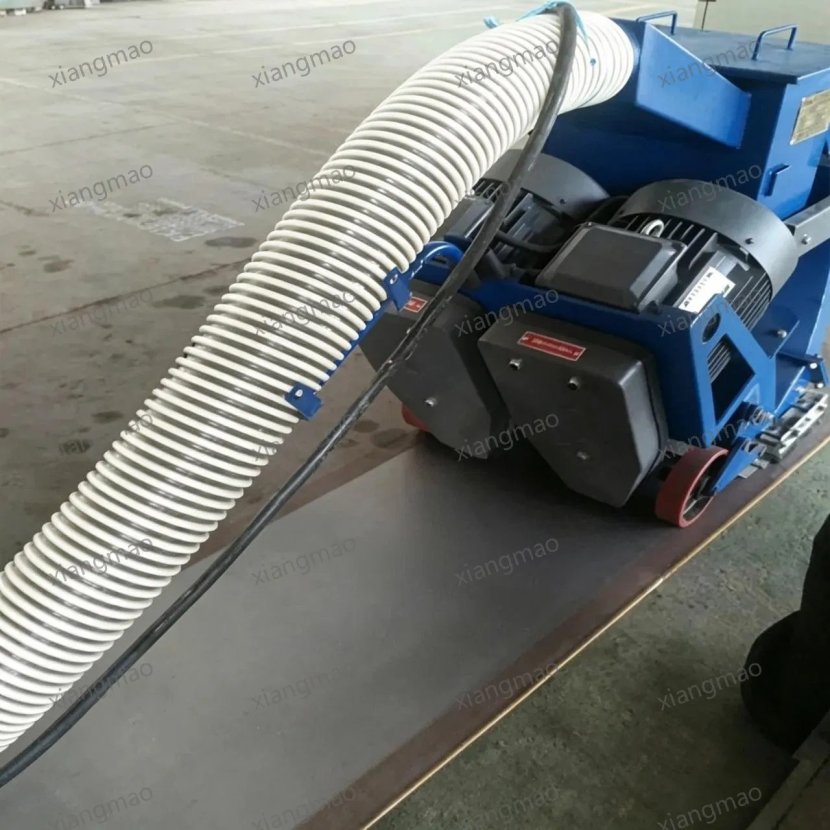

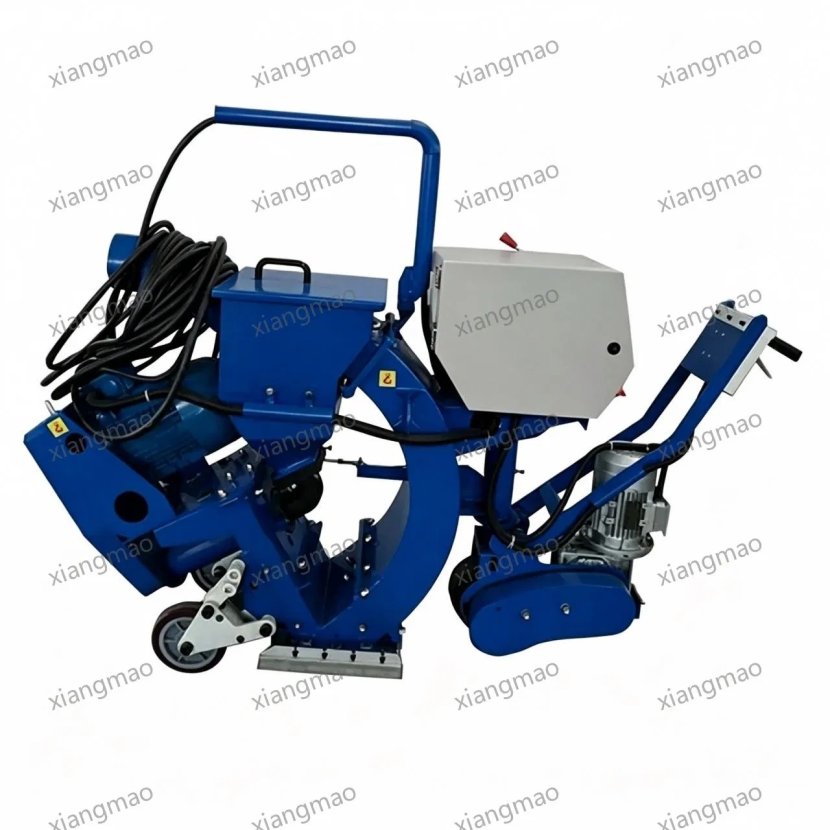

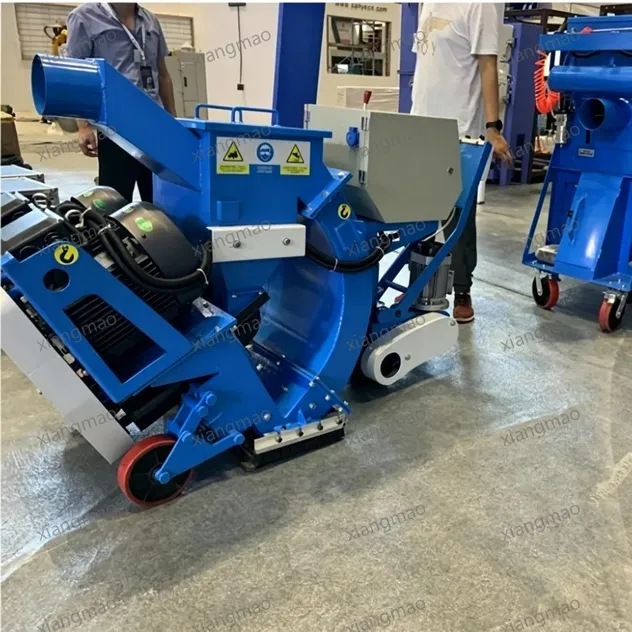

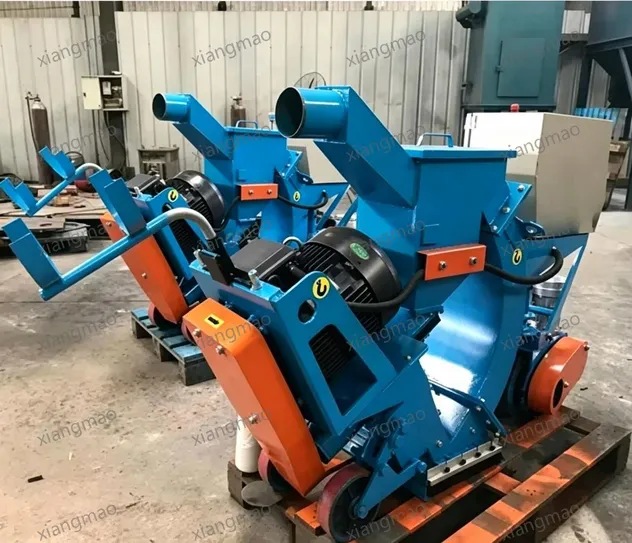

DX Series Concrete Road Surface Shot Blasting Machine

Product Description

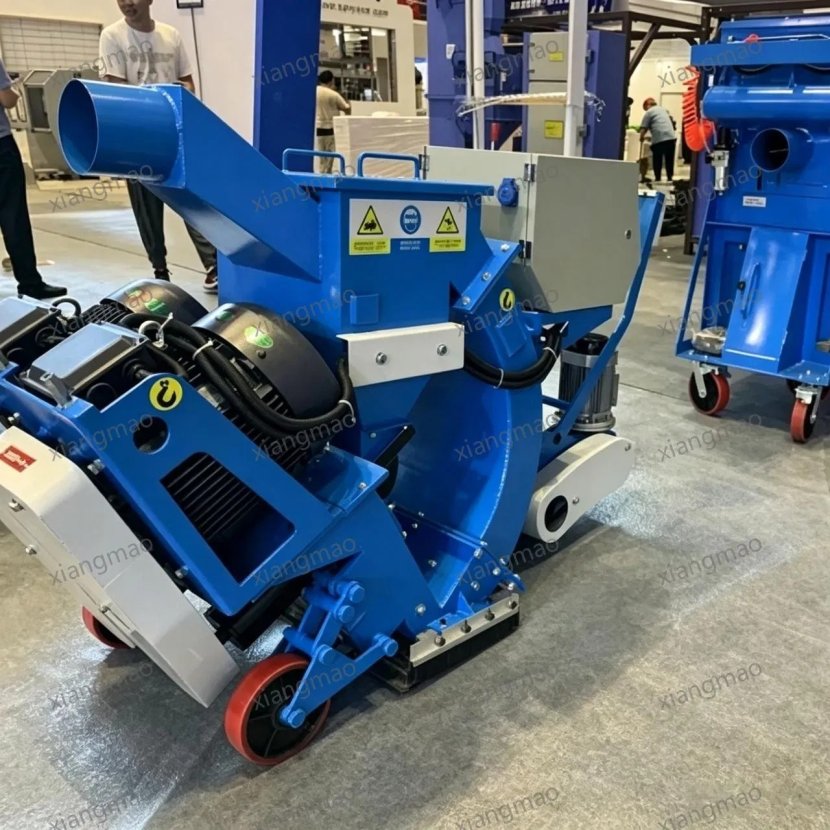

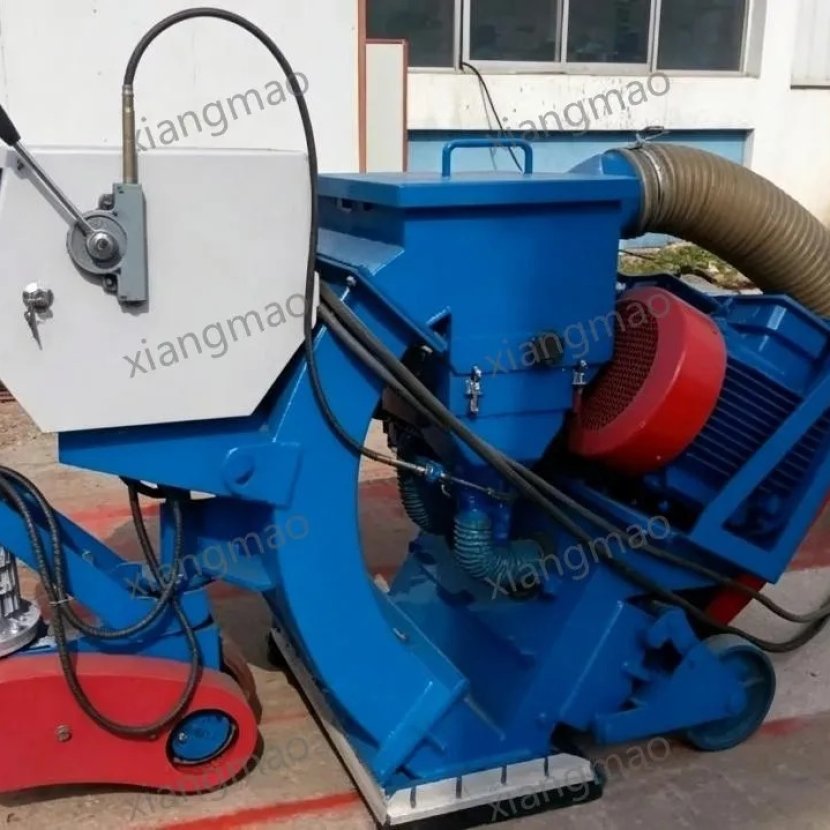

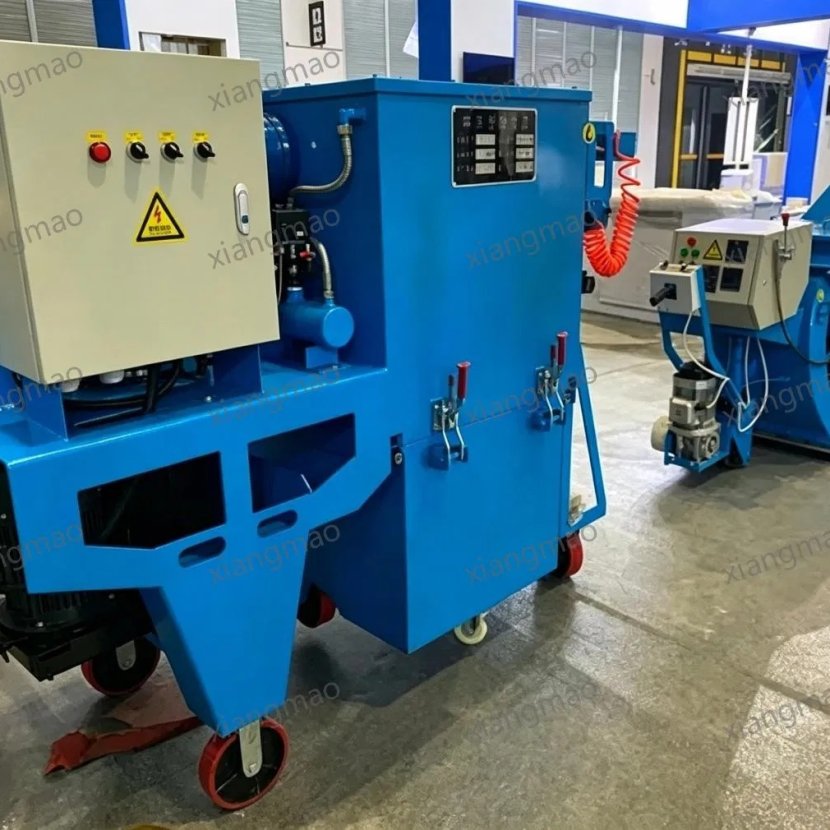

Concrete Road Surface Shot Blasting Machine

Road surface shot blasting machine can clean laitance, contaminants on the concrete surface laitance.

Working conditions:

1. the working surface roughness <20mm; no water and relatively dry; slope <25 °,

2. Ambient temperature: -20 ºC ~ 60 ºC; steel surface temperature is higher than the dew point above 3 ºC

3. Humidity:

a. When blasting steel surface, relative humidity is less than 90%

b. Blasting concrete, relative humidity is less than 95%

4. Altitude: 0 ~ 3000m; should not operate in the rain or snow.

Work efficiency:

1. Cement surfaces: Efficiency: 200-400 square meters/hour

2. Steel plate:

Steel quality grade SA 2,5 to SA3 speed: SA2,5 about 4 m/min; speed: SA3 about 3 m/min,

Area treated per hour: SA2,5 level, about 75-100 square meters/hour

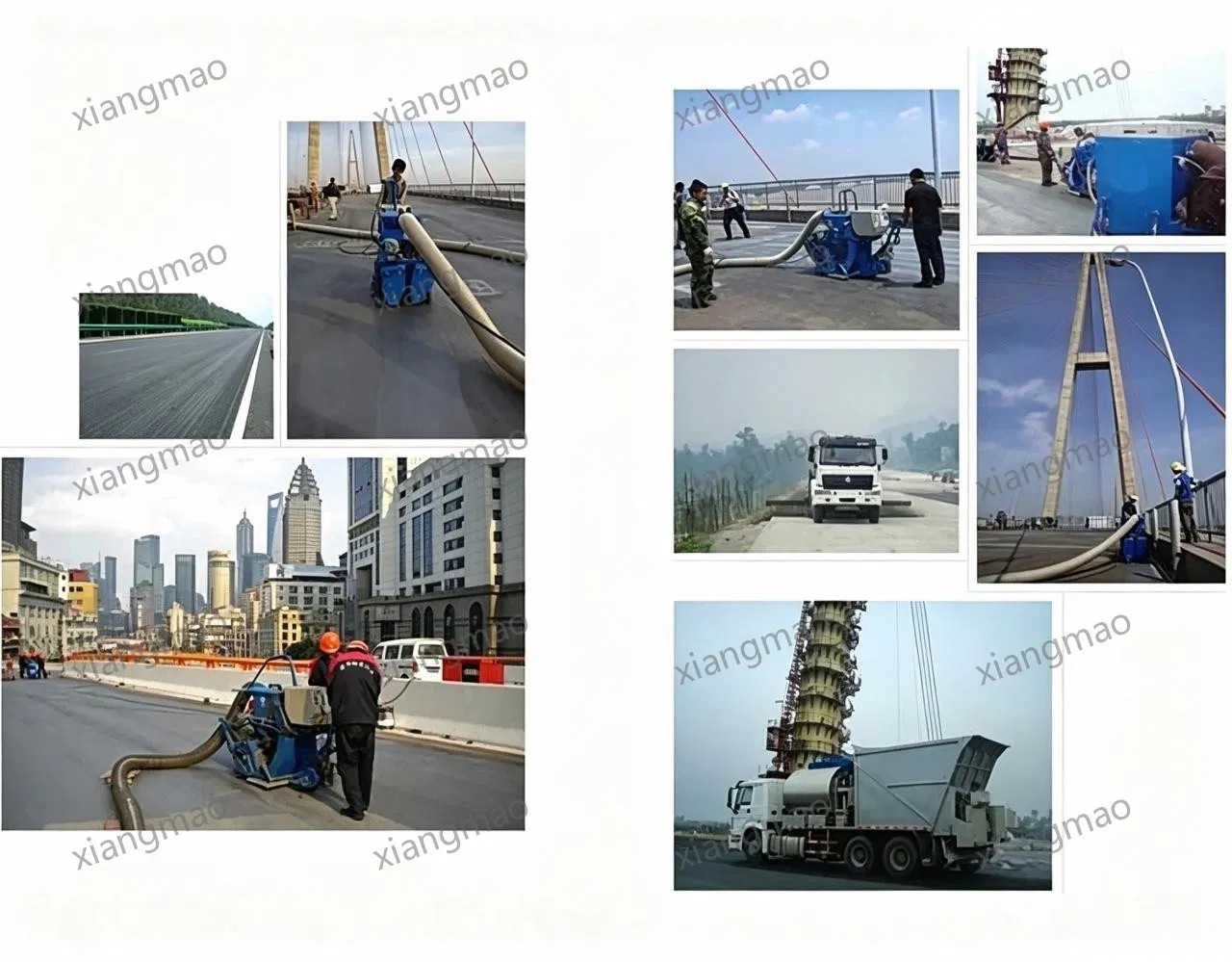

The concrete shot blasting machine application

1. Concrete bridge surface treatment

Road surface shot blasting machine prepares concrete for recoating or application of overlays

Road surface shot blasting machine removes marking, dirt and old coatings

Road surface shot blasting machine prepares parking lots and garage decks Road shot blasting machine

Road surface shot blasting machine cleans factory and warehouse floors

Road surface shot blasting machine ideal for airport runways

Road surface shot blasting machine used on bridge decks and highways

Road surface shot blasting machine stencil patterns for decorative concrete applications

2. Steel bridge surface cleaning, anticorrosive coating pretreatment

Road shot blasting machine for marine industry: removes paint, rust and marine growth

Road shot blasting machine cleans ship and aircraft carrier decks

Road shot blasting machine removes nonskid coatings

Road shot blasting machine cleans offshore platforms

Road shot blasting machine prepares petroleum and water storage tank surfaces

Road shot blasting machine removes rust and paint

3. Blasting equipment cleaning the tunnel concrete pavement

4. Asphalt road surface sliding treatment

Road shot blasting machine removes tire rubber

Road shot blasting machine removes residue

Road shot blasting machine specializes in removing surface contamination

Road shot blasting machine improves skid resistance

Road shot blasting machine improves micro and macro textures

Application

Packing & Delivery

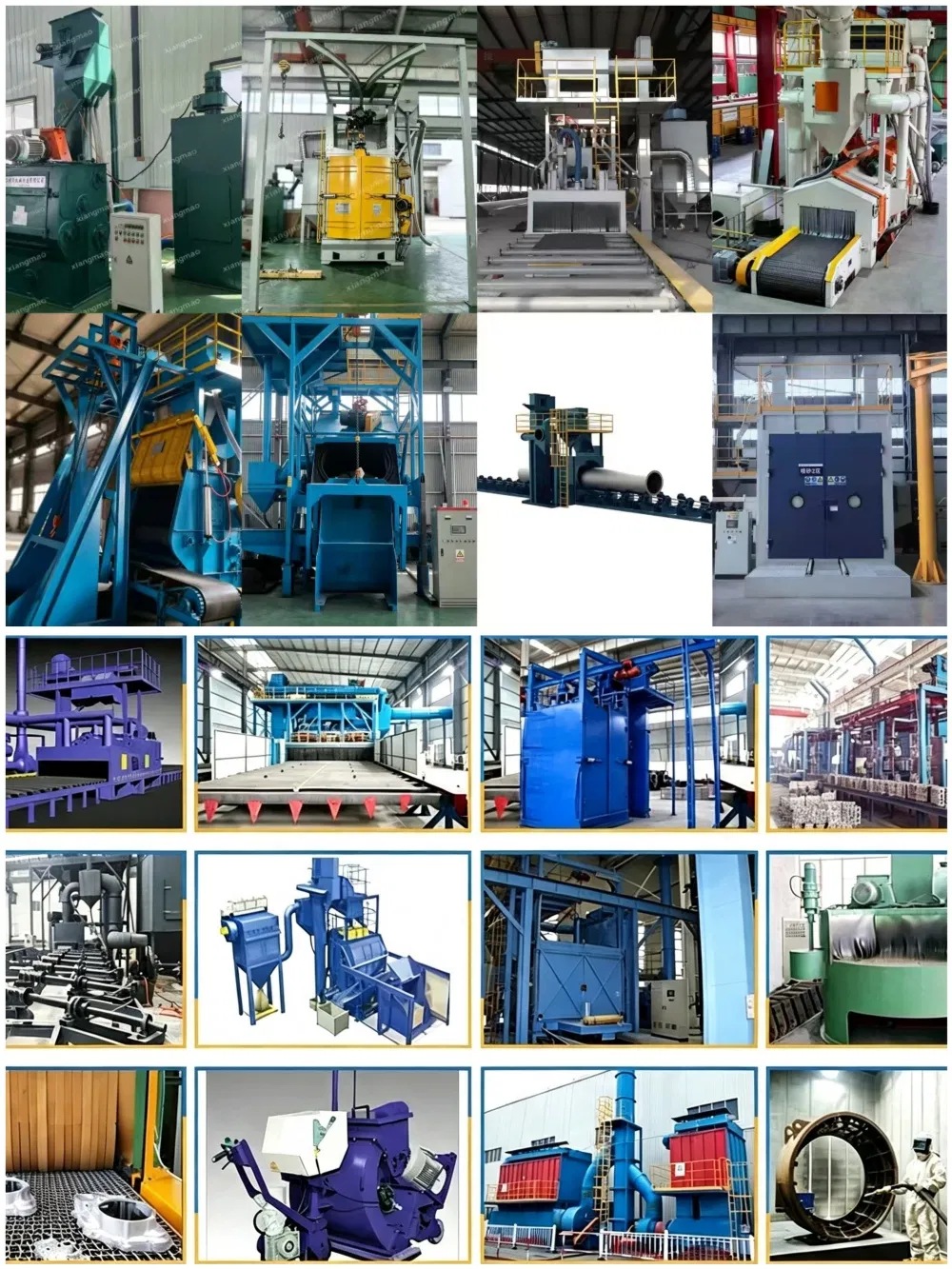

Mainly products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production.

Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; Sand preparation and shot blasting machine; Core shelling machinery, core shooting machine,  Jolt Squeeze Molding Machine, Full range of casting molding machinery.

Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

We provide complete pre-sales, in-sales and after-sales support, including equipment installation, commissioning and operation training. For large turnkey projects, our on-site engineers are ready to provide dedicated technical support.

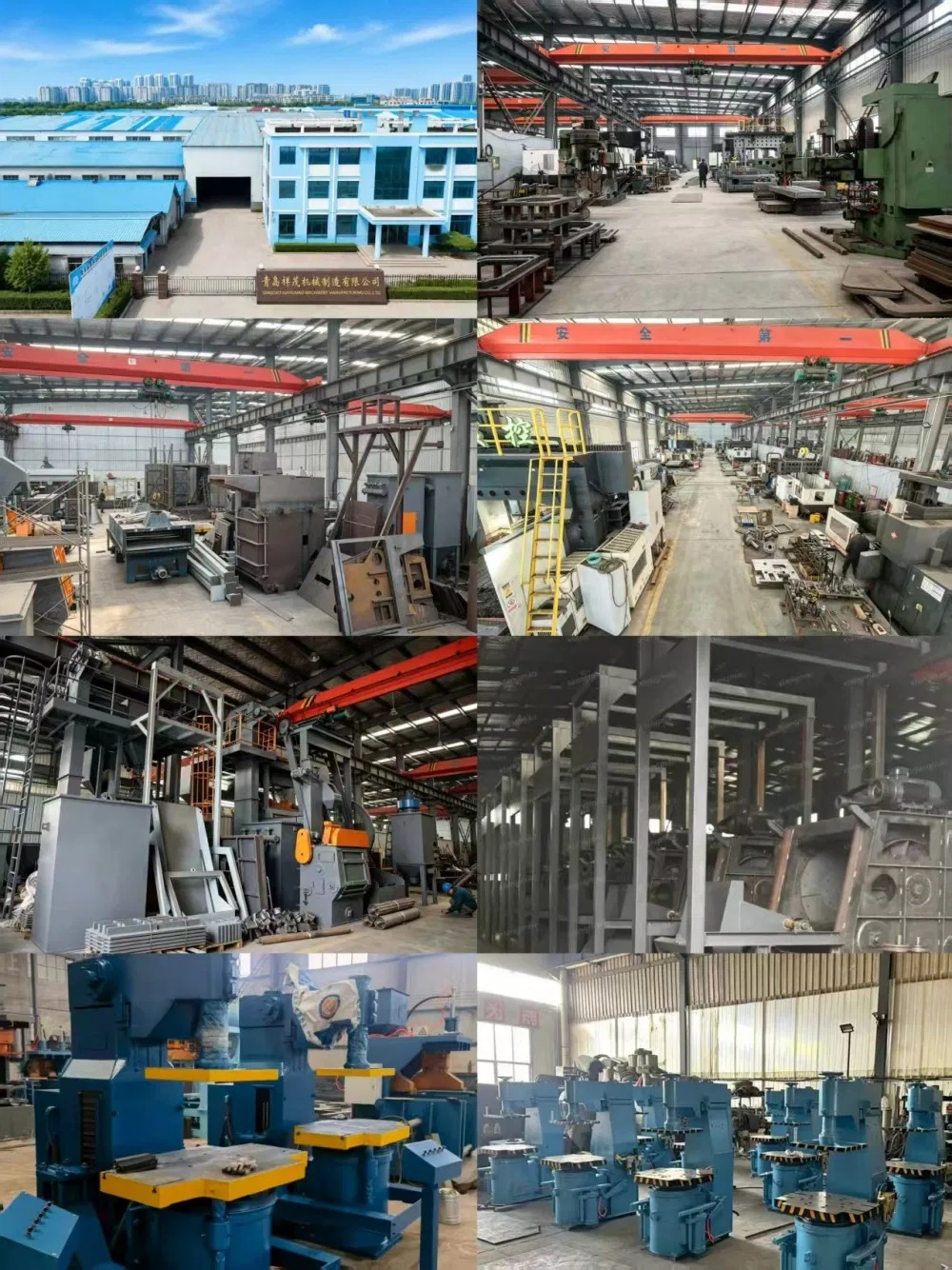

Manufacturing Workshop
