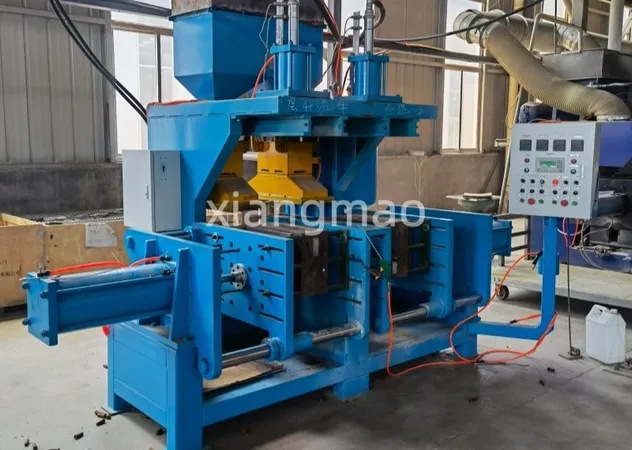

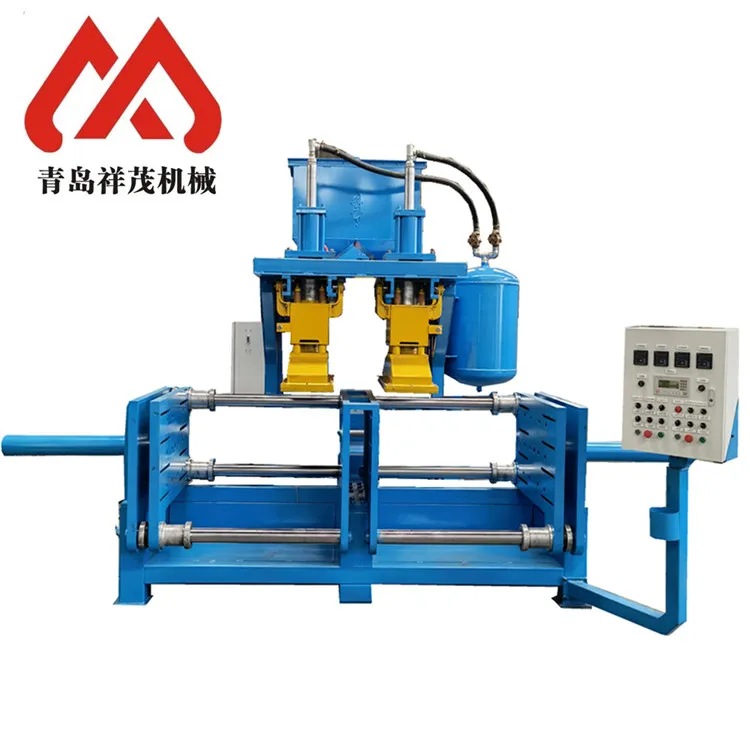

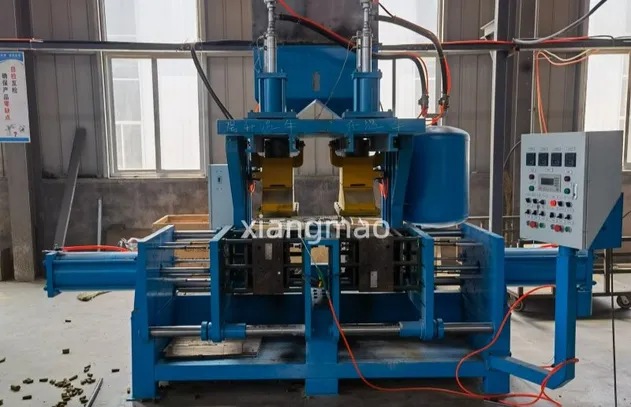

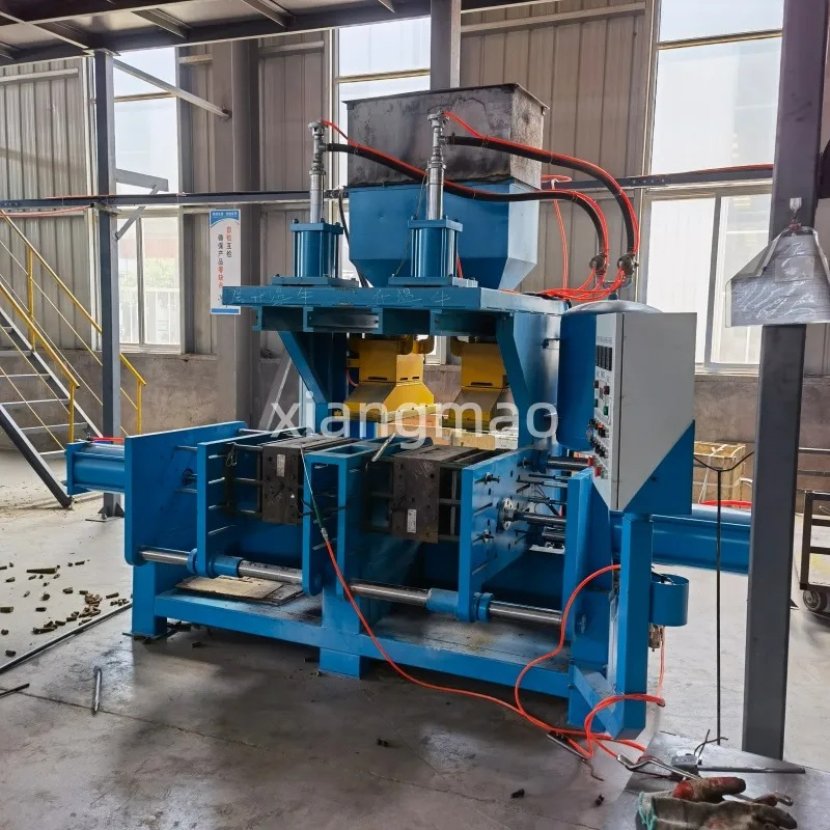

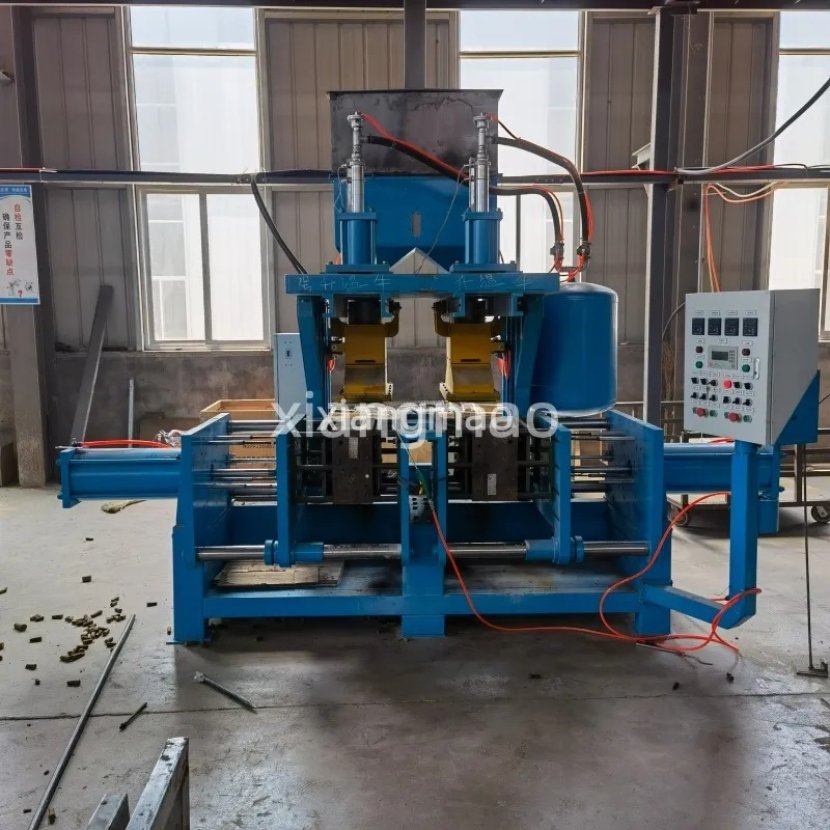

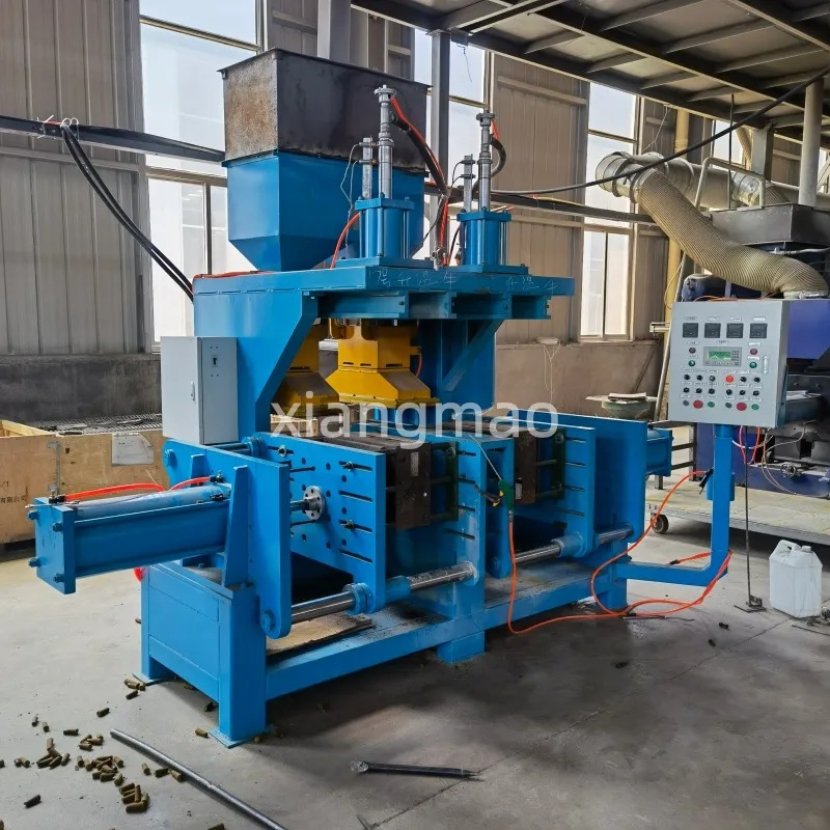

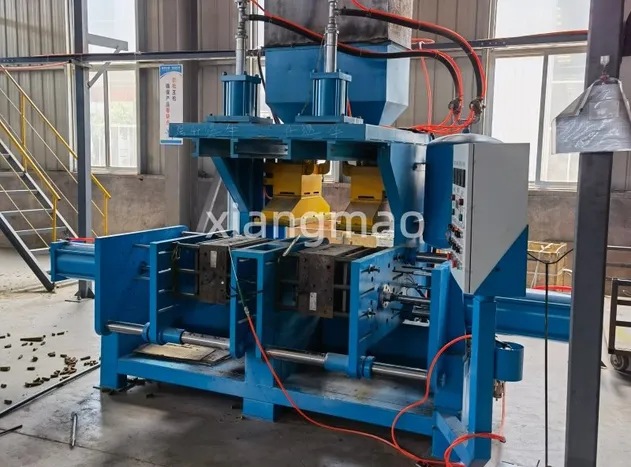

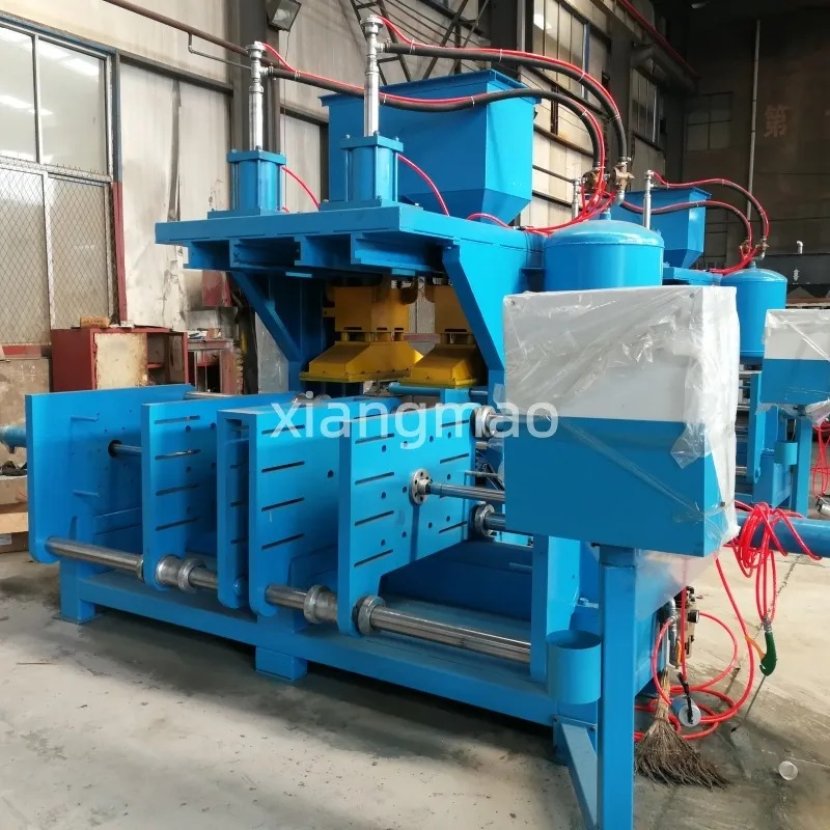

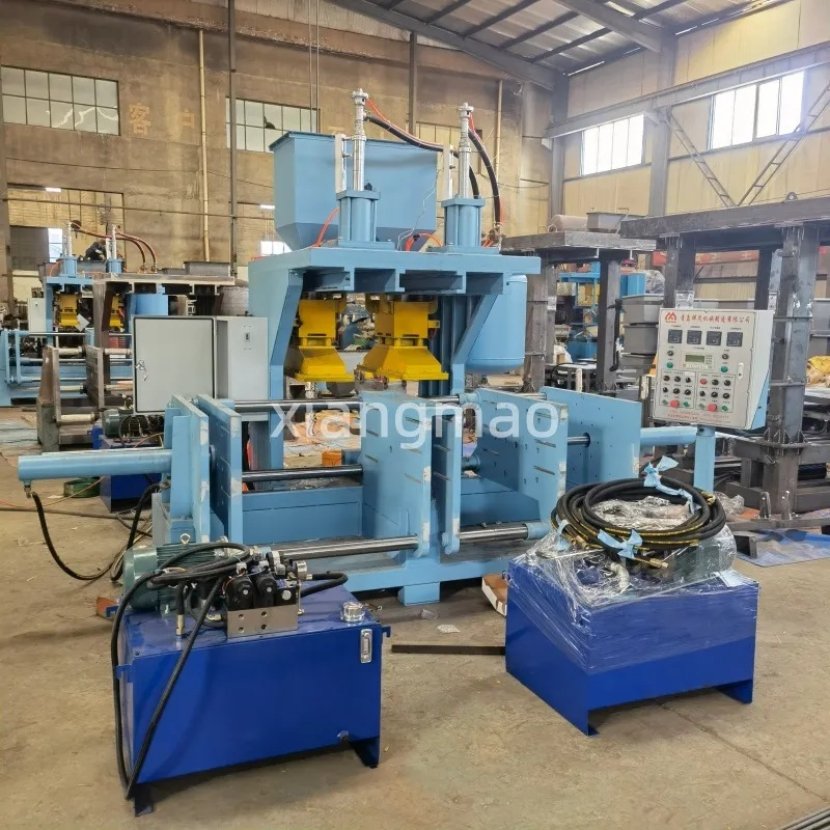

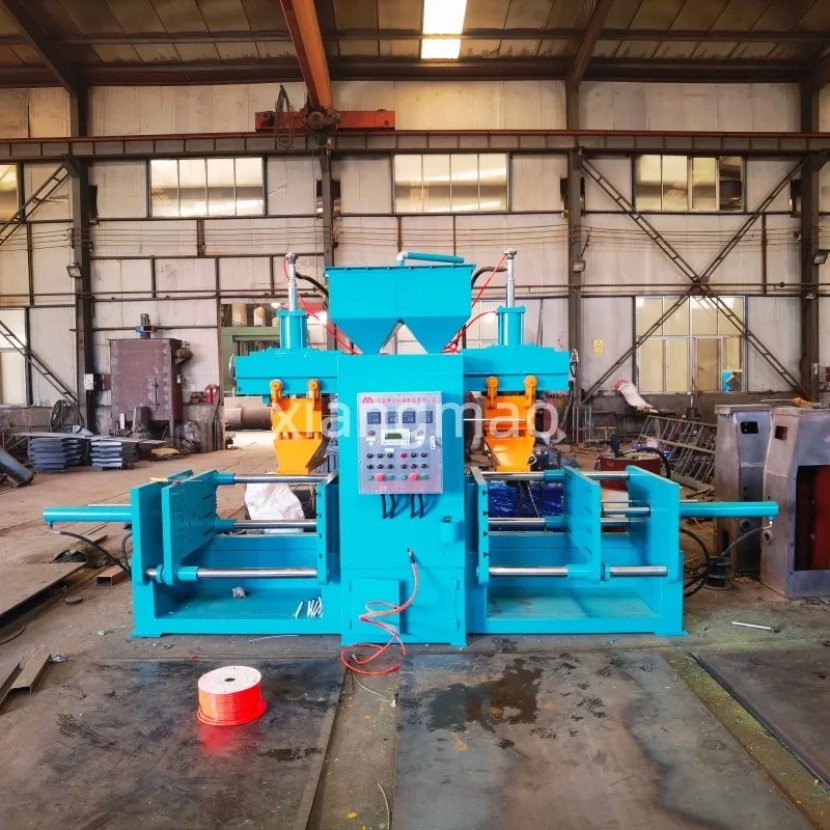

ZH9408 Double-Station Hot Box Core Shooting Machine

Introduction to ZH9408 Core Shooting Machine

The main structure of the machine

Applicable scenarios and advantages

Suitable for shooting hot core coated sand cores weighing less than 25kg, this is an advanced process method with low operating costs and high production efficiency. This machine is suitable for shooting larger sand cores with vertical parting, and features a core shooting function. Its process includes shooting sand, heating and curing, mold opening, and manual core extraction.

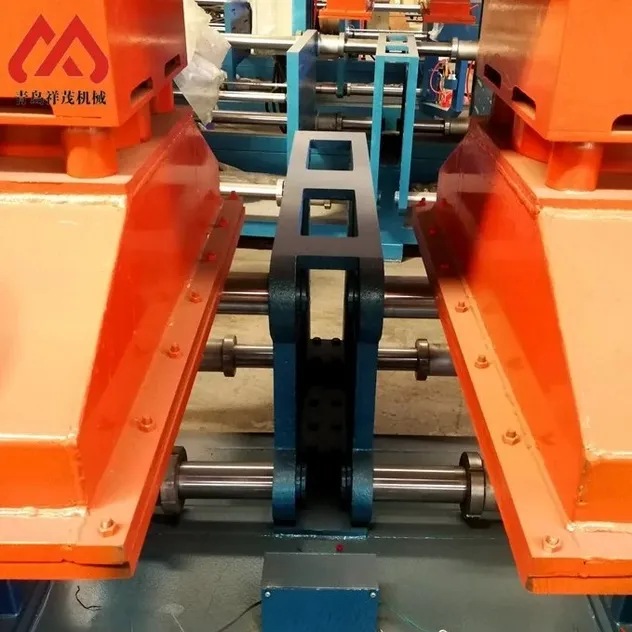

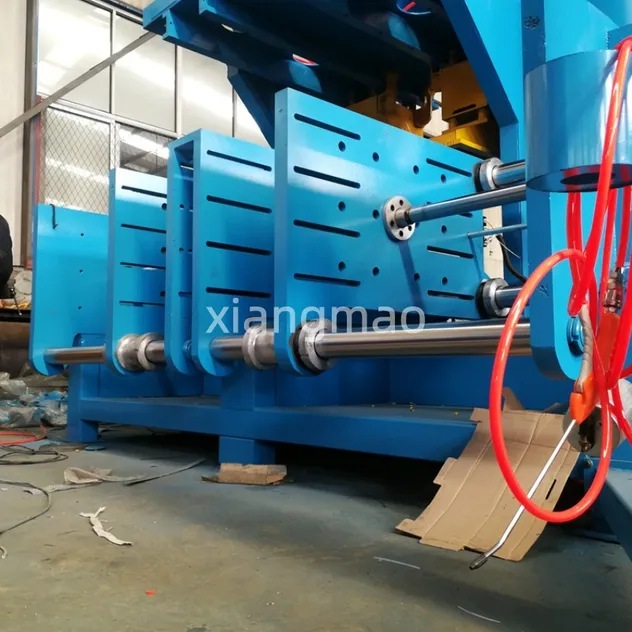

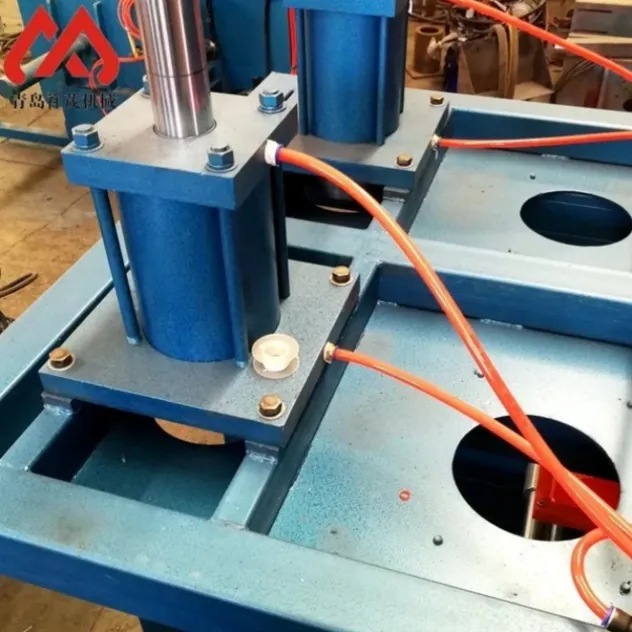

The main body of this machine consists of bed components, mold frame components, sand cylinder components, crossbeam components, pneumatic parts, strong current, and weak current control parts. The ZH9408 core shooter is a hot box vertical parting core shooter.

It is primarily suitable for the mass production of small and medium-sized coated sand cores in industries such as automotive, valve, and machine tool. By utilizing "one machine with dual molds," it reduces equipment footprint and mold change downtime, maximizing production capacity utilization while ensuring sand core accuracy (low gas content, high strength). ‌‌

Product Technical Parameter

Packing & Delivery

Mianly Products

Company Profile

Qingdao Xiangmao Machinery Manufacturing Co., Ltd

Qingdao Xiangmao Machinery Manufacturing Co., Ltd is Located in Huangdao District, Qingdao, Qingdao Xiangmao Machinery Manufacturing Co., Ltd. is a specialized manufacturer of sand casting equipment integrating R&D, design and production. With over 10,000 square meters of production facilities and a team of approximately 100 employees, we are backed by senior engineers with more than 10 years of industry experience, delivering fully customized casting solutions tailored to each customer's unique requirements. Production of resin sand casting production lines, clay sand reclamation complete sets of equipment; V-process casting production line, EPC (Lost Foam) modeling equipment; sand preparation and shot blasting machine ; core shelling machinery, core shooting machine, Jolt Squeeze Molding Machine, Full range of casting molding machinery. Holding ISO9001 certification, our product quality is widely recognized by customers worldwide. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, Indonesia, Brazil and beyond, earning global trust through reliable quality and professional service.

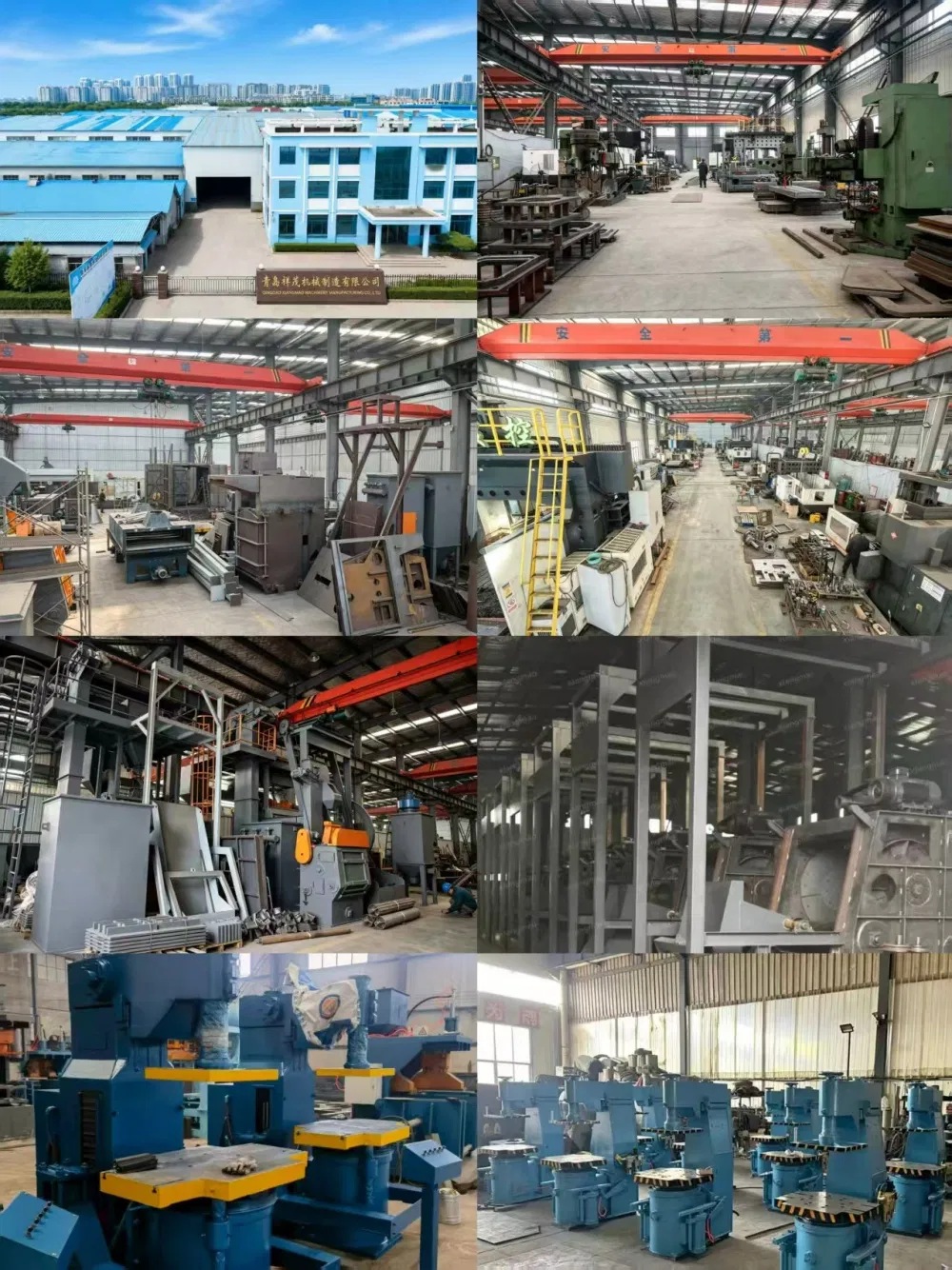

Manufacturing Workshop

FAQ

How many days do you need to produce this rotor sand mixer?

It depends on the size of the machine. Usually 15-25 days for shot blasting machine and sand casting machine.45days for production line equipments.

How to control your quality ?

First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly. For the smaller machine we will install the machine at our workshop to make sure it can work well. For the bigger machine, we will install the machine for our customers until it can work well

What's your machine quality guarantee?

Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.

Can you instal the machine overseas?How long will it take?

YES, we have rich-experienced install team to instal the machine for our customers worldwide.
